China Glass Shape Edging Machine for Glass Inner and External Edge Polishing
- Category: Glass Processing Machinery >>>
- Supplier: GTM Glass Machinery Co. Ltd.
Share on (62582508271):
Product Overview
Description
GY1 Glass Shape Edging Machine
1.1 GNY1 is suitable for grinding and polishing inner&external edges of shaped glass.
1.2 By changing the grinding wheel, different edge profiles(flat edge with arris,pencil edge and OG edge)can be processed.
1.3 the height of the spindle is easy to adjust.
1.4 A pneumatic cylinder makes it possible to process round glass automatically.
1.1 GNY1 is suitable for grinding and polishing inner&external edges of shaped glass.
1.2 By changing the grinding wheel, different edge profiles(flat edge with arris,pencil edge and OG edge)can be processed.
1.3 the height of the spindle is easy to adjust.
1.4 A pneumatic cylinder makes it possible to process round glass automatically.
Technical Parameter: | ||
Glass external diameter | φ100 mm~φ1600 mm | |
Glass internal diameter | φ150 mm~φ600 mm | |
Processing thickness | 3 mm~40 mm | |
Rotation speed of spindle | 2850r/min | |
Rotation speed of working table | 0.4 r/min~2.0 r/min | |
Weight | 950KG | |
Installed Power | 3.8KW | |
Height of working table | 1100 mm | |
Total height of the main machine | 1915 mm | |

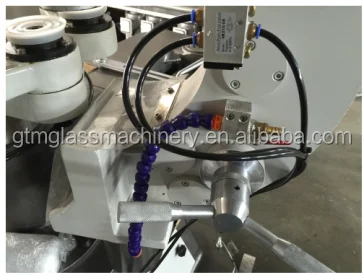

Details Images
