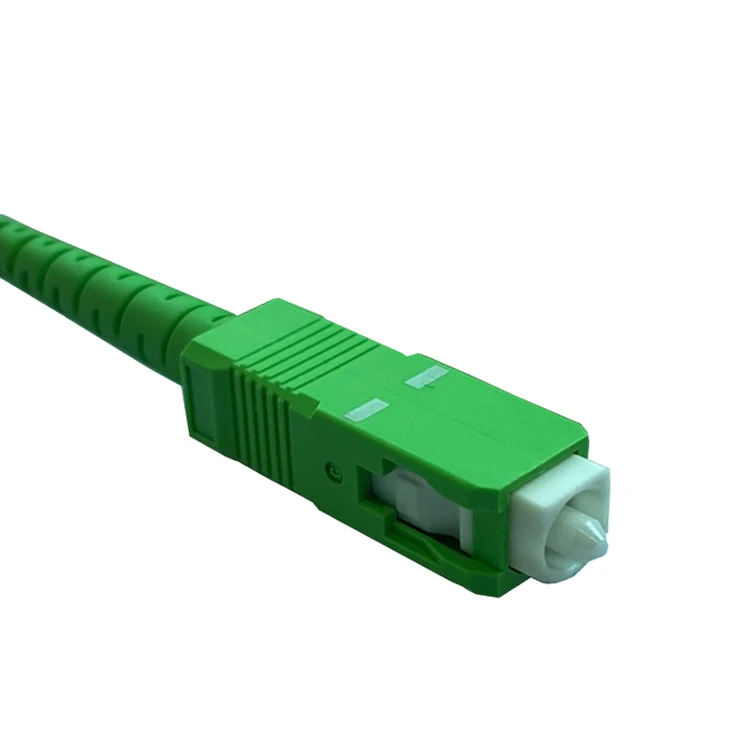

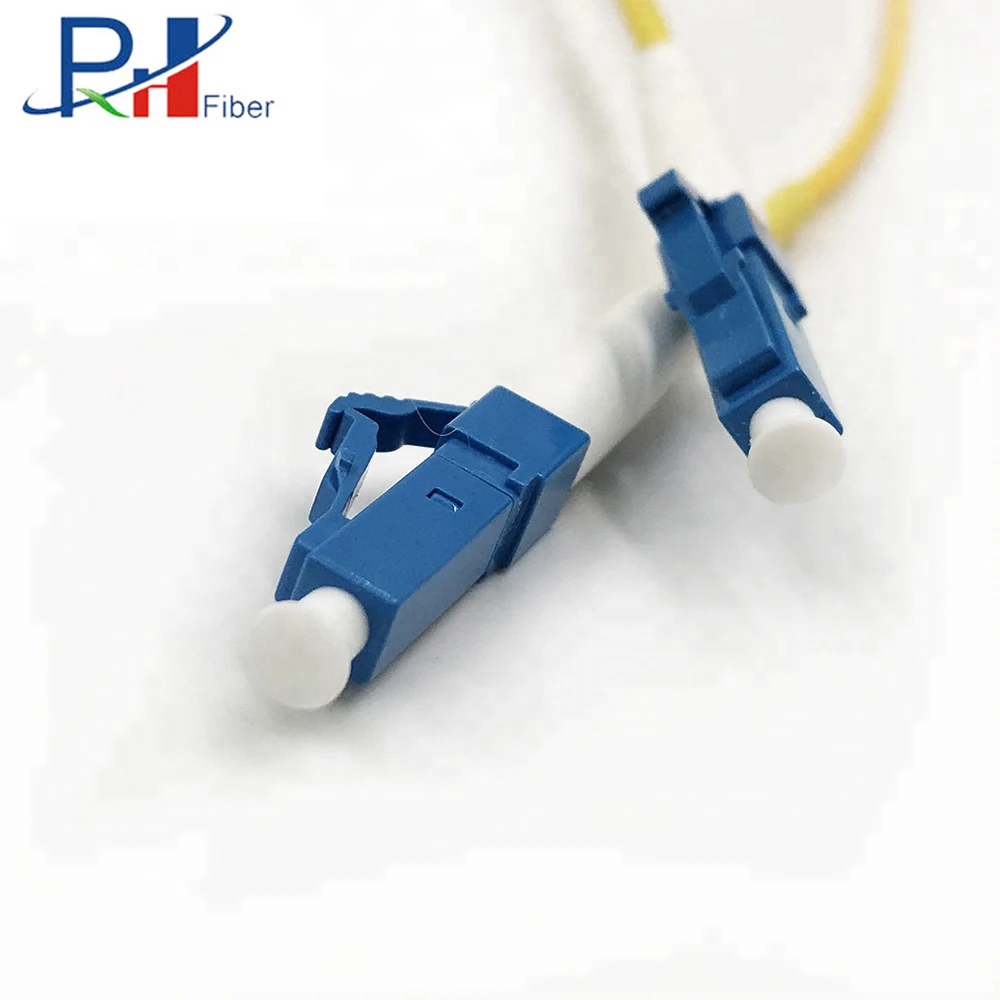

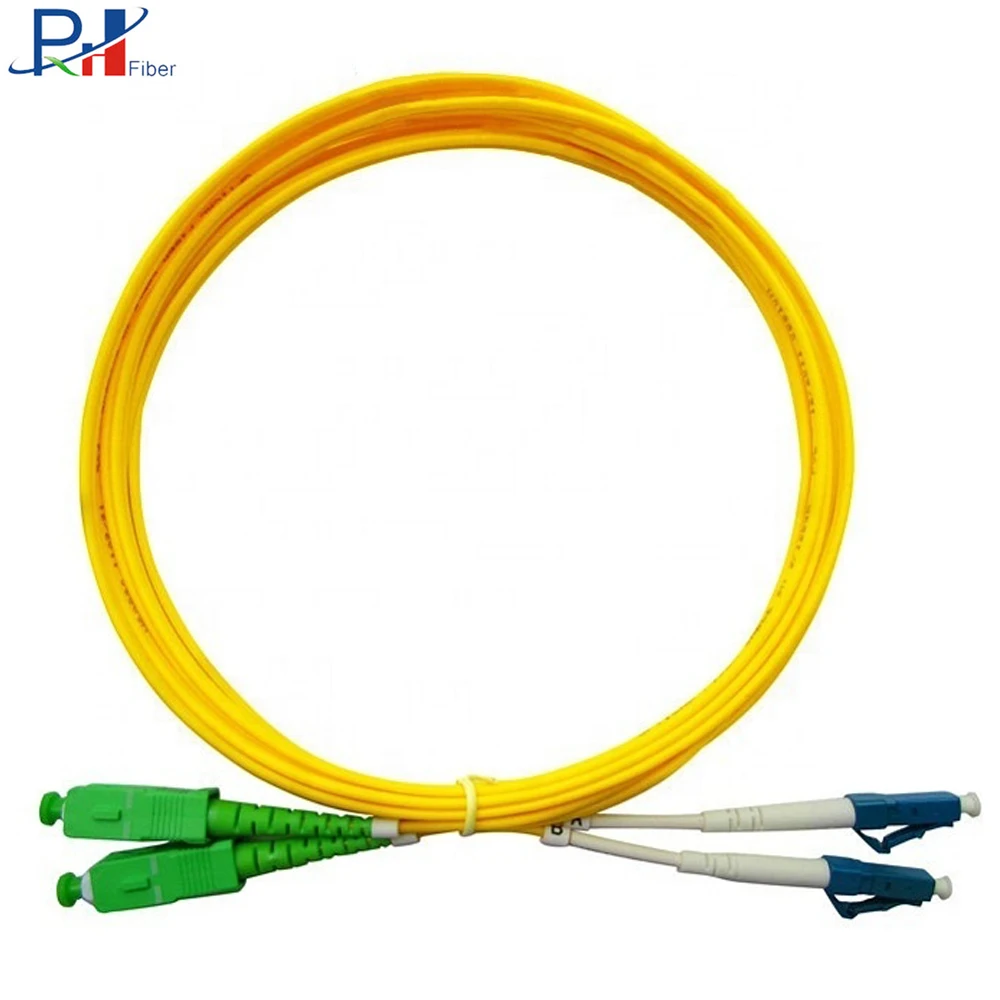

SC/APC LC/UPC Duplex Bundle Fiber Optic Patch Cord

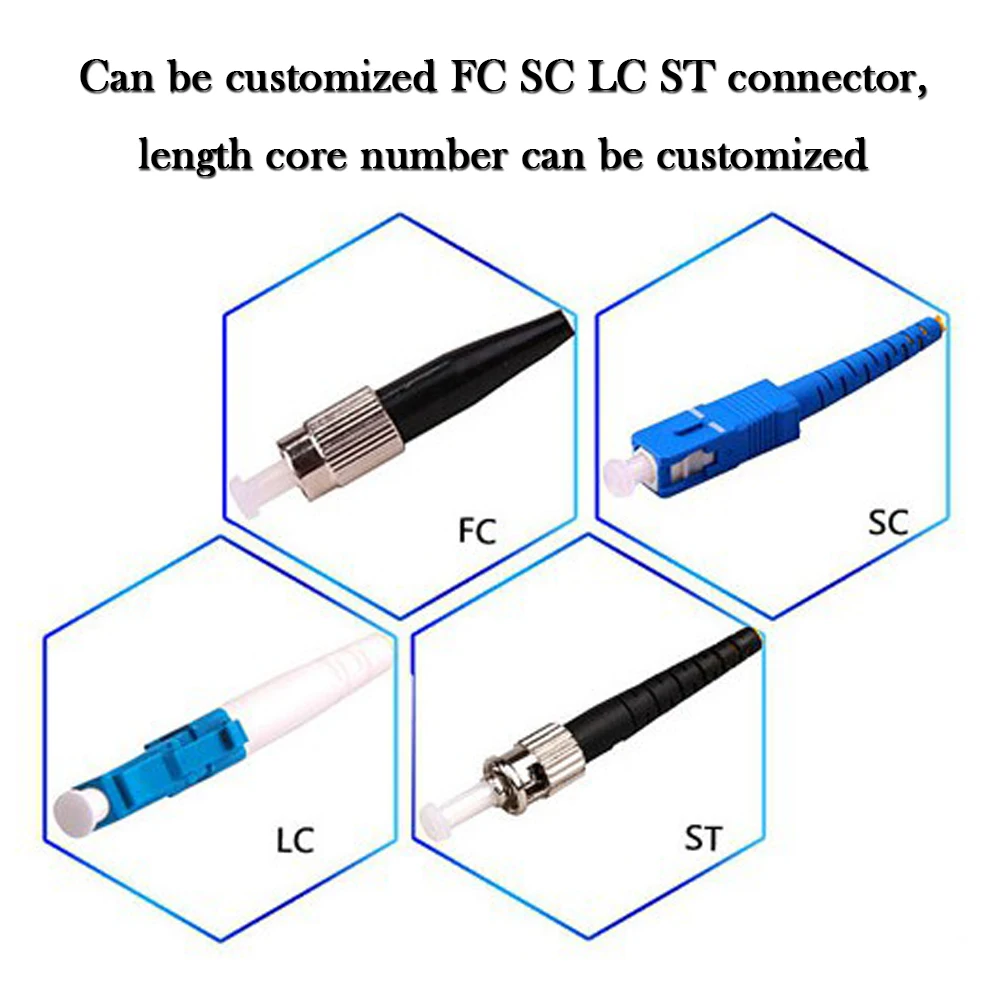

PHXfiber provide a full set of fiber jumper customization services, such as fiber connector, length, color, fiber grade,
specification, material, packaging, etc. All jumpers are strictly tested before delivery and the product meets Telcordia
GR-1209-CORE and Telcordia GR-1221-CORE reliability standards.
Product Paramenters

Parameter
Fiber Connector
Multi -Mode
Single Mode
Operating wavelength (nm)
850/1310
1310/1550
980/1060
780/850
633
Fiber type
50/125 or 62.5/125
SMF-28e or others
HI1060 or HI1060flex
HI780 or SM800
SM600
Grade
P
A
P
A
A
A
A
Insertion loss (dB)
≤0.2
≤0.3
≤0.2
≤0.3
≤0.4
≤0.8
≤1.5
Return loss (dB)
UPC
≥40
≥35
≥55
≥50
≥50dB
APC
/
/
≥65
≥60
≥60dB
Repeatability (dB)
≤0.1
/
Changeability (dB)
≤0.2
/
Durability
≥1000
Operating temperature(℃)
-40 ~ + 85
Products Description

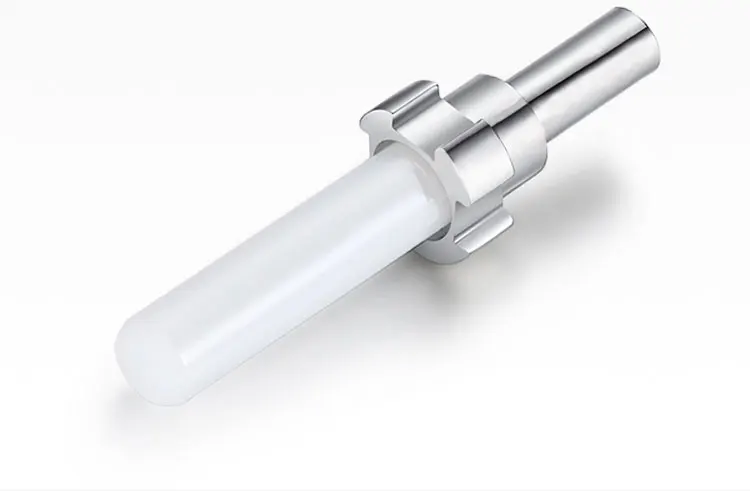

High Quality Three-Circle Ferrule
A grade ceramic ferrule, PC, UPC, APC grinding to ensure ferrule accuracy
Use standard metal parts: bayonet connection, high-density docking

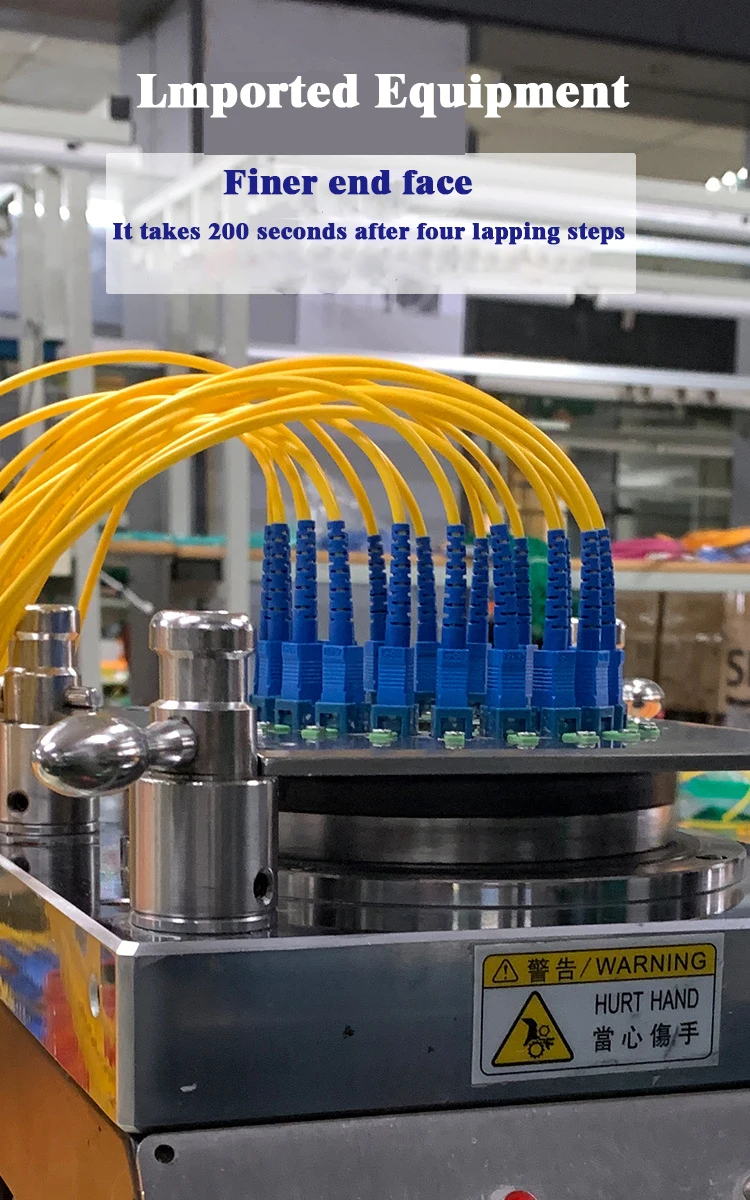

Polishing Tray
Use high precision polishing tray, 4 times polishing process, Insertion Loss ≤0.3dB,
Return Loss ≥50dB(UPC),≥60dB(APC)， Good repeatability, Good interchangeability.

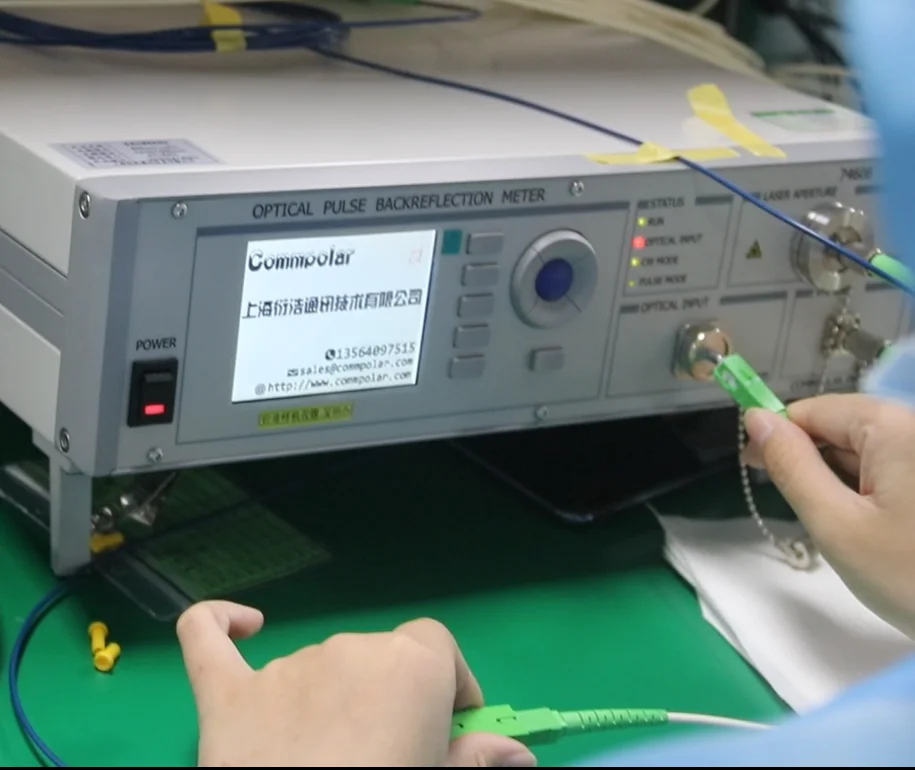

Strict Testing Never Sloppy
Every fiber jumper we produce has been tested for insertion loss and reflection loss

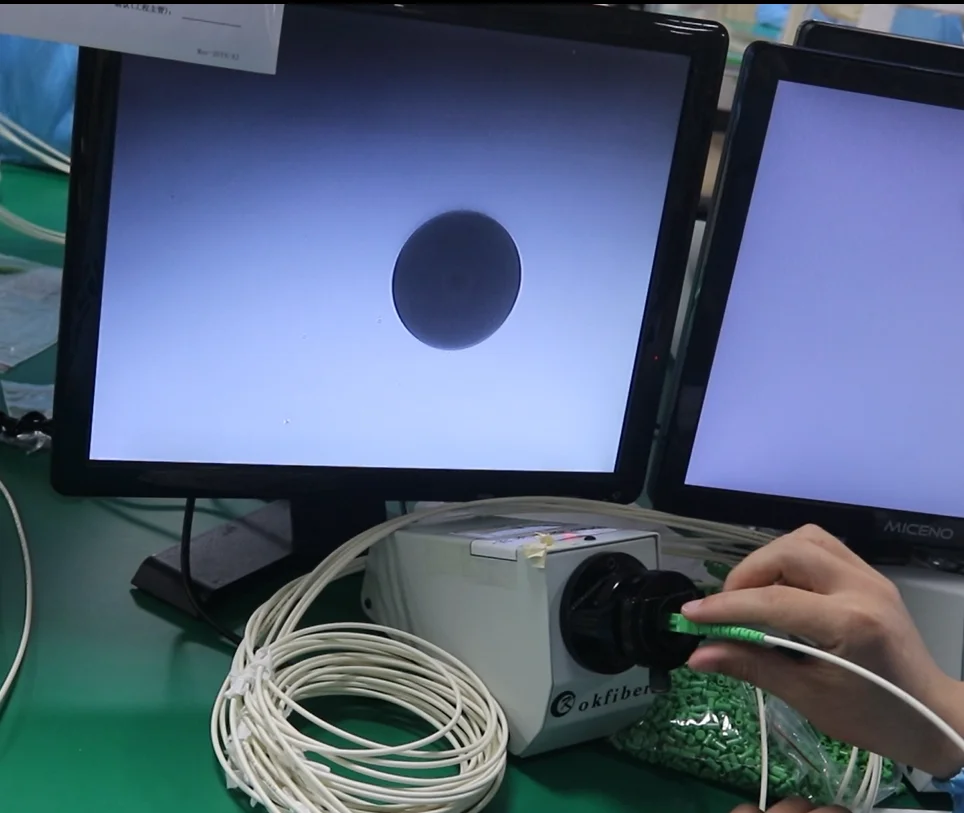

End Face Detection
Ensure that there is no pollution and defects under 400 times magnifying glass
Wide Range of Applications
Strong compatibility, can be used for all kinds of optical fiber LAN,
optical fiber communication system, instrumentation, network CATV
Production scale
Standard Norms Integrated Workshop
Sufficient production capacity, 5S standardized management to ensure quality
With advanced test equipment, the lightning speed of delivery guarantees customer needs.
Automatic optical fiber cutting
Automatic wear parts
Curing
Optical fiber grinding
3D test
Face check 200/400
Company Introduction
Shenzhen Puhuixin Technology Co.,Ltd.
Shenzhen Puhuixin Technology Co.,Ltd was established in 2006 and headquartered in Shenzhen,China.is a high-tech enterprise founded by senior professionals in optical communication industry, specializing in the research and development, production and marketing of optical passive components. The company has a strong R&D and production technology, gathered a number of senior optical fiber communication research and development personnel, with rich product research and development experience and strong technical innovation ability.
The company mainly produces fiber optical splitter , fiber optical isolator, wavelength division multiplexer, fiber optical circulator, optical switch, polarization protection device, high power and other products. The company formulates the enterprise product standard according to the international advanced level, has the consummation quality assurance system. Adhering to the business philosophy of "sincere cooperation, realistic and innovative", PHX has the advantages of specialization and scale, and more innovative exploration and pragmatic spirit to provide customers with high-quality products, advanced technical solutions and perfect after-sales service.
Our high quality products and outstanding service win the customer from all the world, PHX fiber optic is looking forward tocooperate with you.
Exhibition & Certificate
Why Choose Us
A.Technology:
The company specializes in the development and manufacture of optical fiber passive components and communication instruments. With
strong R & D capabilities and advanced production technology, is a rich product R & D experience and strong technical innovation
ability of the enterprise.
B.High quality:
The company formulates the enterprise product standard according to the international advanced level, has the perfect quality
assurance system. Our company has passed ISO9001 quality management system certification, all products are in accordance with
Telcordia 1209/1221 and RoHS.
C.Enterprise scale:
The PHX team has 20 years of experience in the optical fiber industry, including senior engineers and technicians, and more than
20 years of experience in passive device manufacturing. The factory covers an area of more than 5000 square meters, has a number
of production lines, using the most advanced imported precision processing equipment and testing instruments, a complete quality
management system, strictly ensure the quality of each product.
D.Service capacity:
PHX adheres to the business philosophy of "sincere cooperation, realistic innovation" and the spirit of pragmatic innovation and
exploration, and is committed to providing customers with high-quality products, advanced technical solutions and perfect
after-sales service. Welcome OEM and ODM. PHX fiber looks forward to cooperating with you.
Packaging & transportion
FAQ
1.Can you supply OEM product under my brand?
Yes,we can supply OEM product under your band.

2.What is you product warranty?
Our warranty is usually one year.We can fix or replace product during warranty period.

3.Do you provide free samples?
We provide free samples for some product, not all product.

4.What is your lead time?
Usually 7 working days, depends on order quantity.

5.What shall I do if I have a problem with the product purchased from you?
Please contact us without delaying, and do not try to detach or fix the product.
