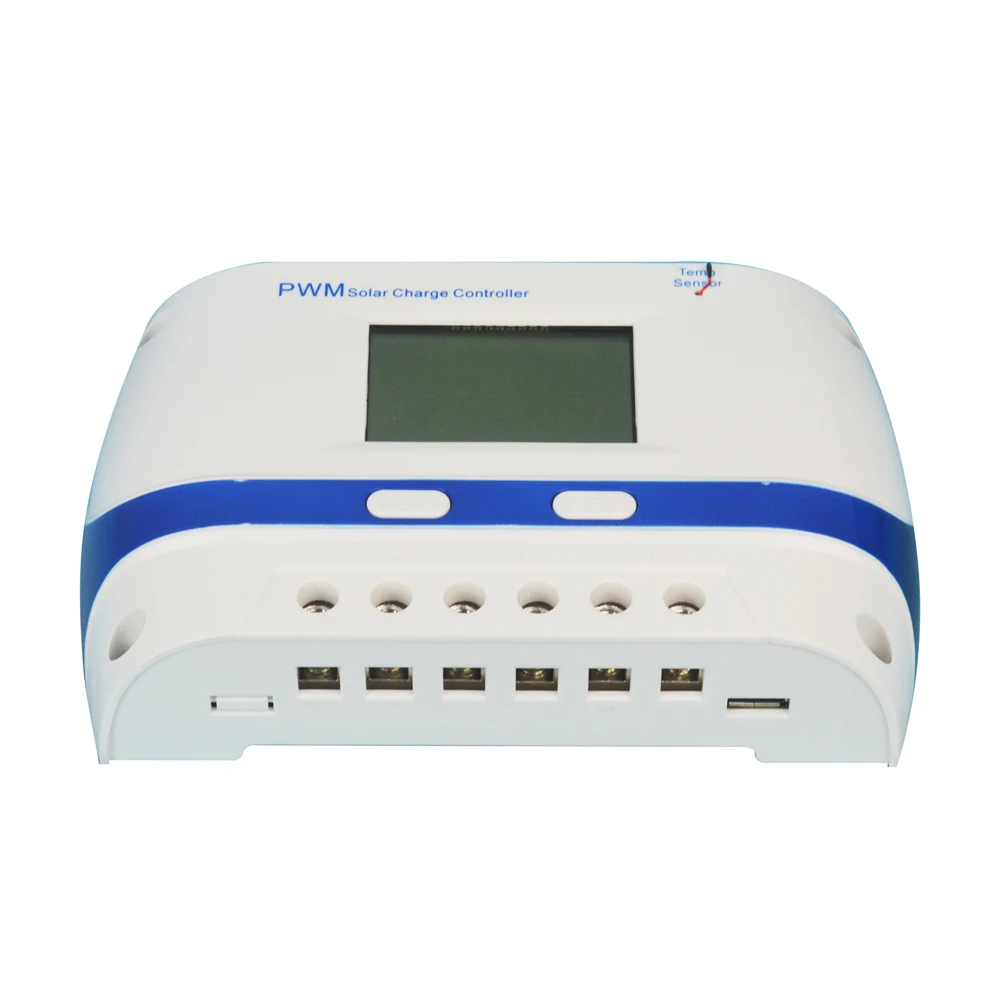

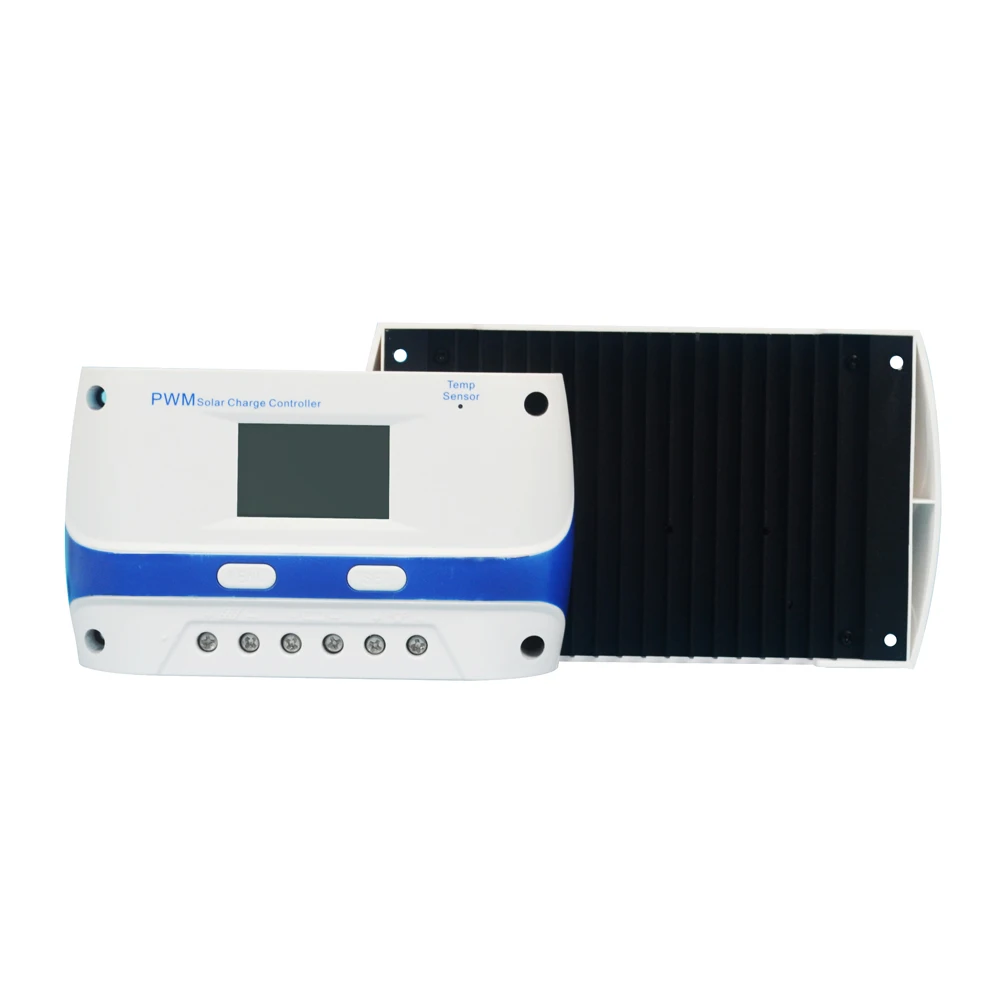

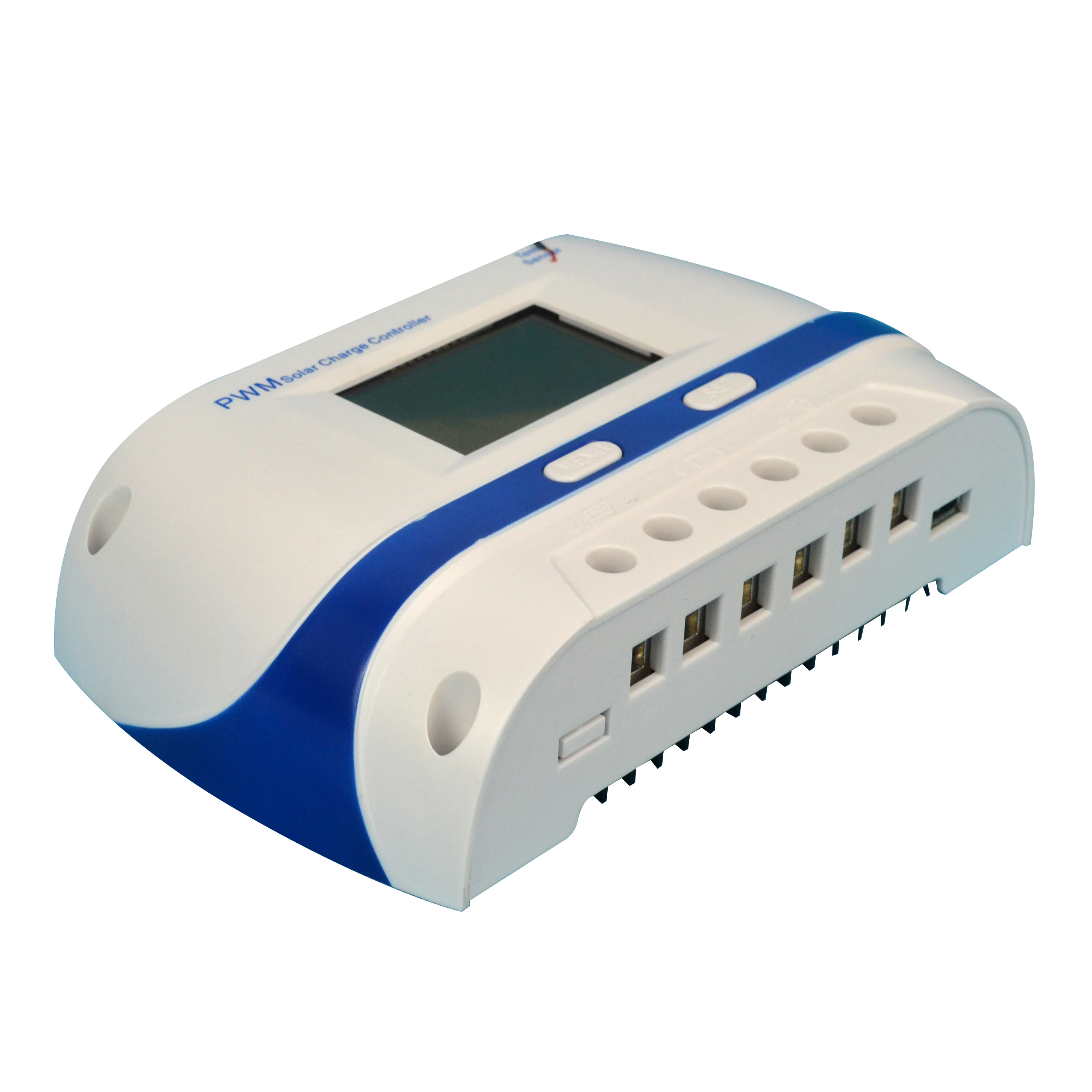

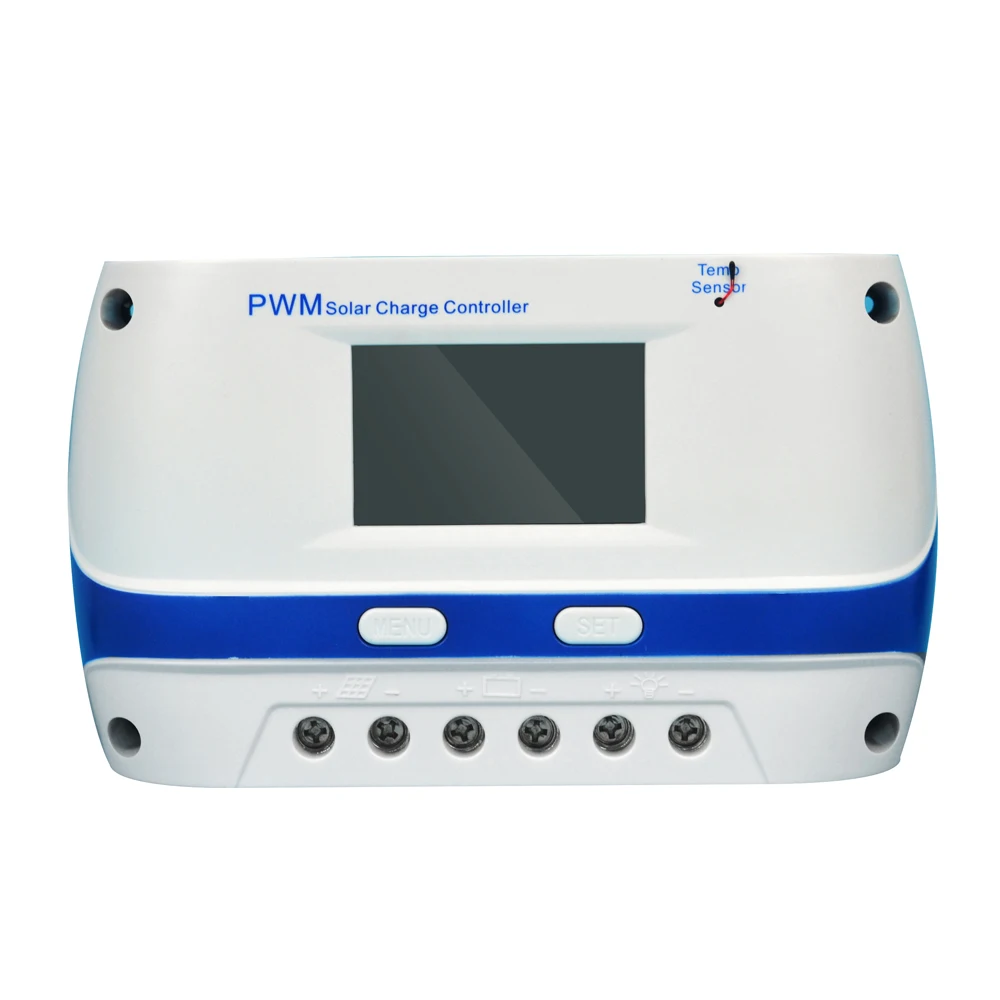

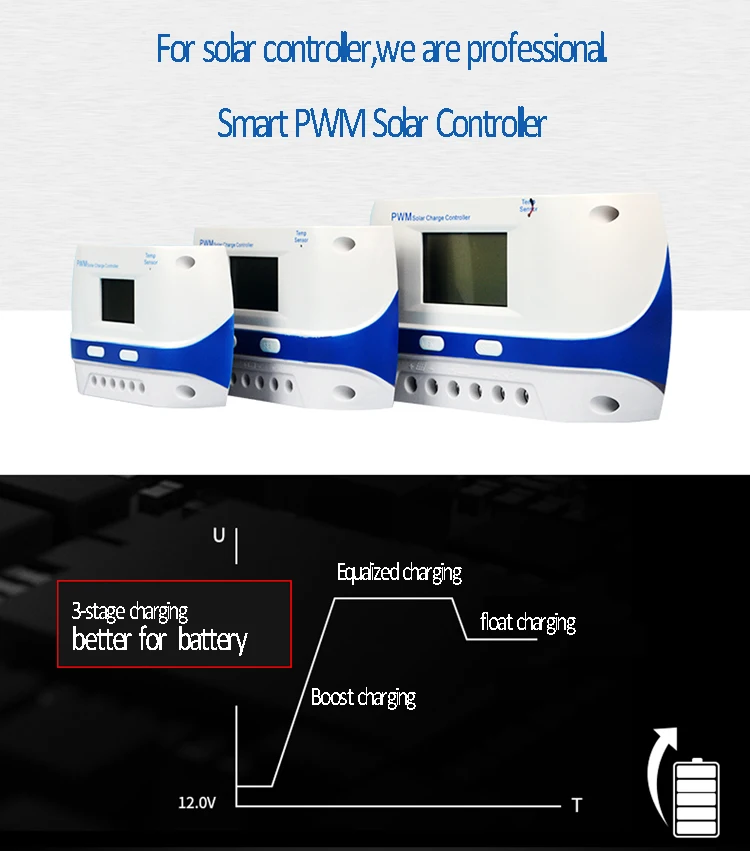

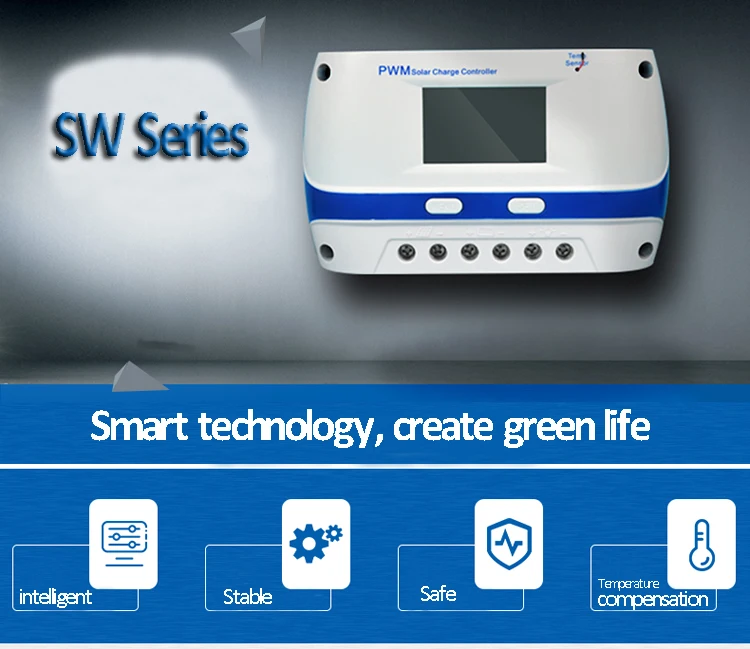

Digital solar charge controller 60A Pump Controllers 2 Year Warranty 10A 20A 30A 40A 50A 60A 100A solar charge controller Most parameters displayed explicity. PWM charging mode with 4 stages(bulk, absorption, float and equalized). Adaptable to Sealed, GEL, Flooded and other customized battery type. Auto-detect battery voltage or maintain a fixed voltage All working parameters can be reset, saved and transferred to a computer or other terminal equipment. Besides regular input, output and battery protection,protection of over-current from solar panel is applied. USB output

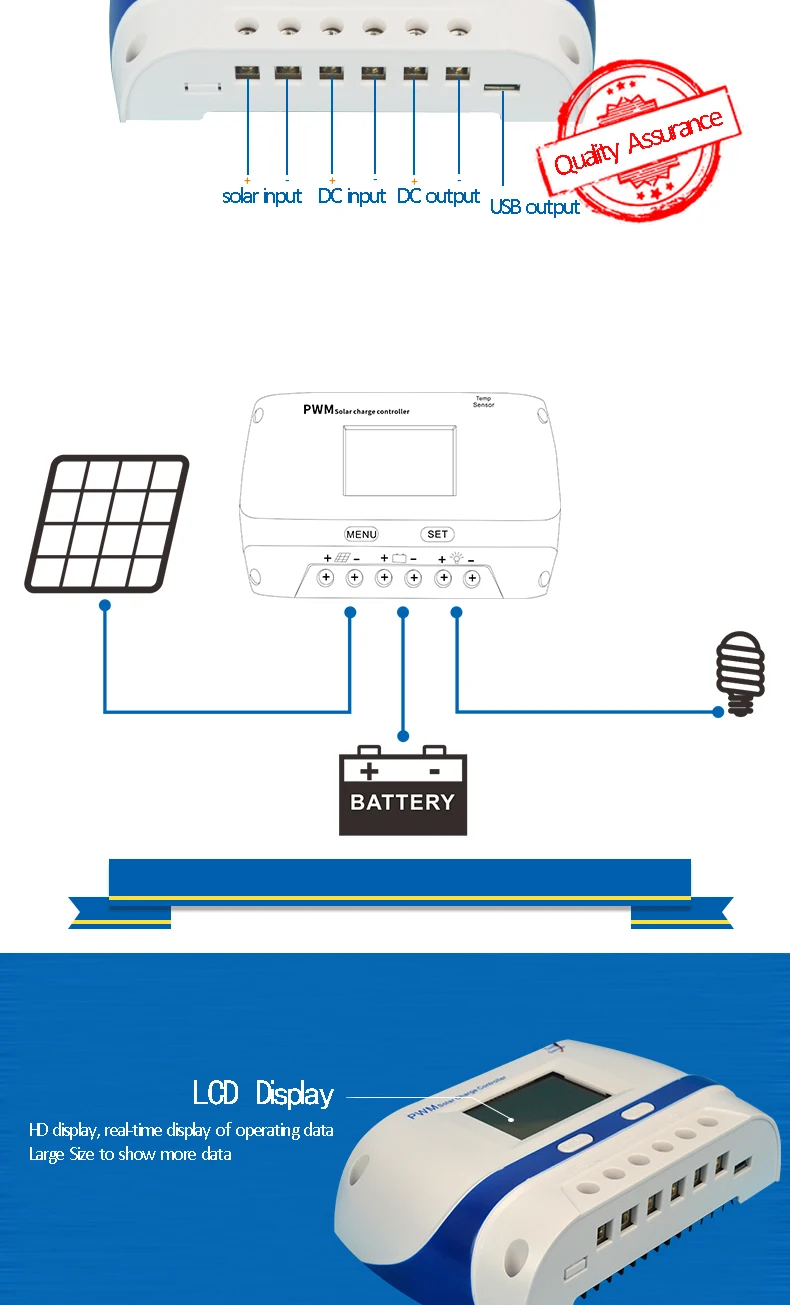

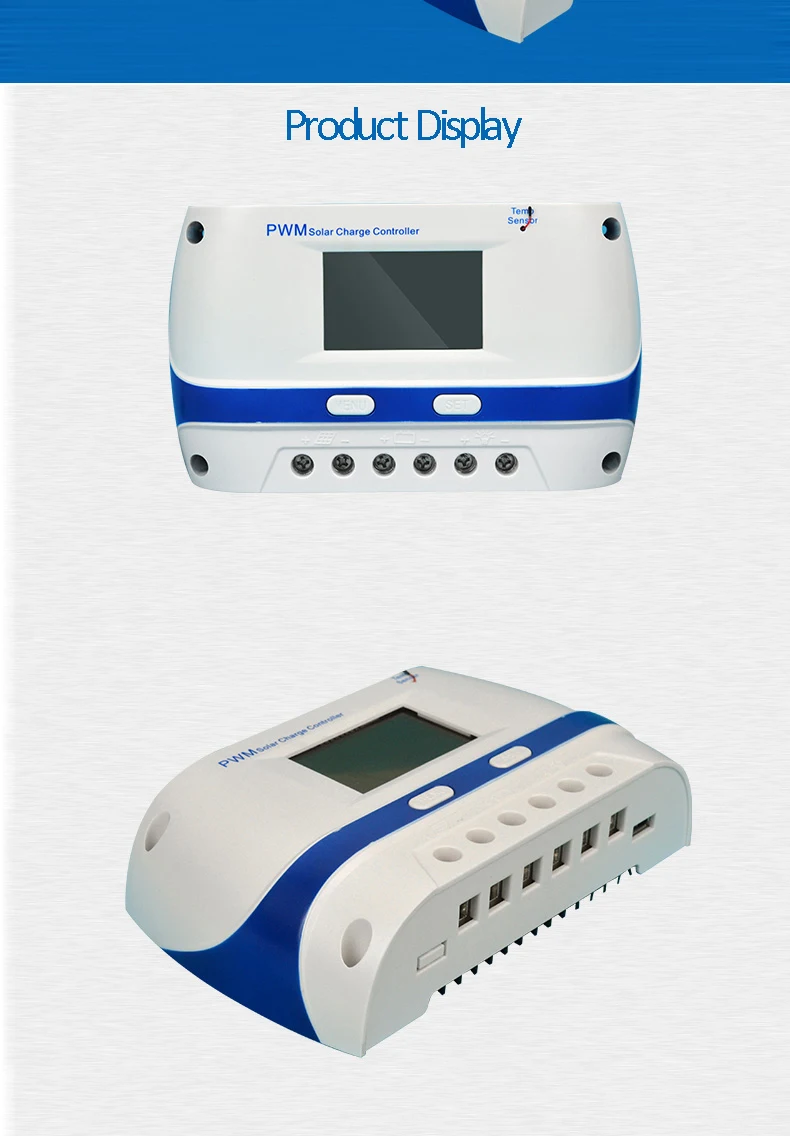

Detailed Images
Parameter
Model No
SM60A
System Voltage
12V/24V
Max Input Voltage
25V(12V)
55V(24V)
Self-Consumption
≦12MA
Max Charge Current
60A
Max Discharge Current
60A
20A
LVD
11.0V
22V
LVR
12.6V
25.2V
Float Voltage
13.8V ADJ13V...15V
27.6V ADJ13V...30V
Boost charging
1pcs battery voltage less than 12v start boost charging 2 hours
Charging Mode
PWM
Temperature Compensation
-24mV/℃ for 12V system,-48V/℃ for 24v system
Working Temperature
-20℃----+50℃
Terminal Scale
28-10AWG
Waterproof grade
IP32
Packing & Delivery
Product Dimension
168mmx92mmx41.5mm
Weight
0.75kg
QTY/ctn
24pcs
CTN SIZE
43.5*38*29CM
Weight
17.8kg
FAQ
Q: What are the components of a solar system? A: A solar system is made up of different components. These include PV modules (groups of PV cells), which are commonly called PV panels; one or more batteries; a charge regulator or controller for a stand-alone system; an inverter for a utility-grid-connected system and when alternating current (ac) rather than direct current (dc) is required; wiring; and mounting hardware or a framework.
Q: How big a solar energy system do I need? A: The size of solar system you need depends on several factors such as how much electricity or hot water or space heat you use, how, the size of your roof, and how much you're willing to invest. Also, do you want the system to supply your complete energy usage or to supplant a portion of your higher cost energy usage? You can contact a system designer/installer to determine what type of system would suit your needs.
Q: How long do photovoltaic (PV) systems last? A: A PV system that is designed, installed, and maintained well will operate for more than 20 years. The basic PV module (interconnected, enclosed panel of PV cells) has no moving parts and can last more than 30 years. The best way to ensure and extend the life and effectiveness of your PV system is by having it installed and maintained properly. Experience has shown that most problems occur because of poor or sloppy system installation.
Q: Can you be able to do OEM/ODM?
A: Definitely. We have experienced R&D team and structure designer team to help customers to achieve their particular goals for bulk orders. We provide one-stop services from initial plan to finished products.
