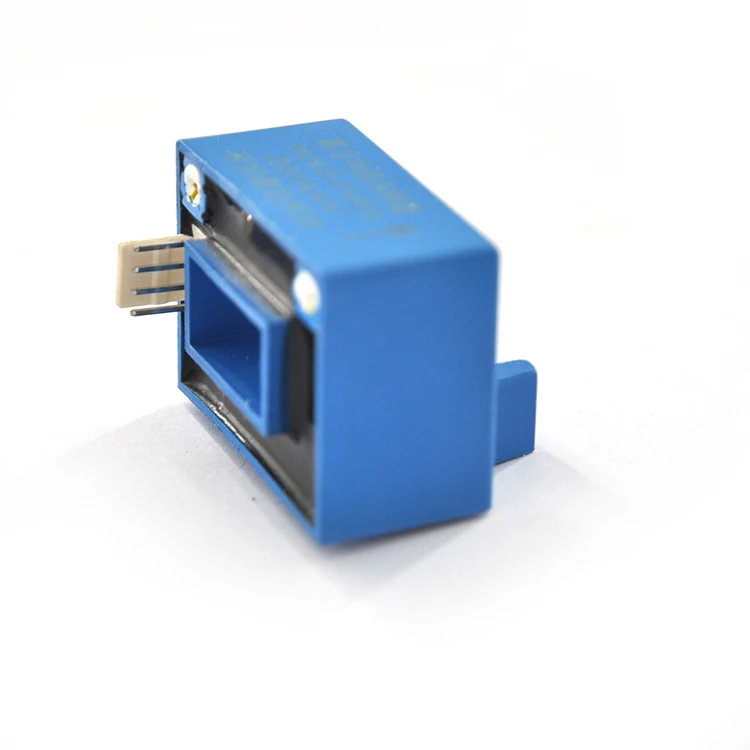

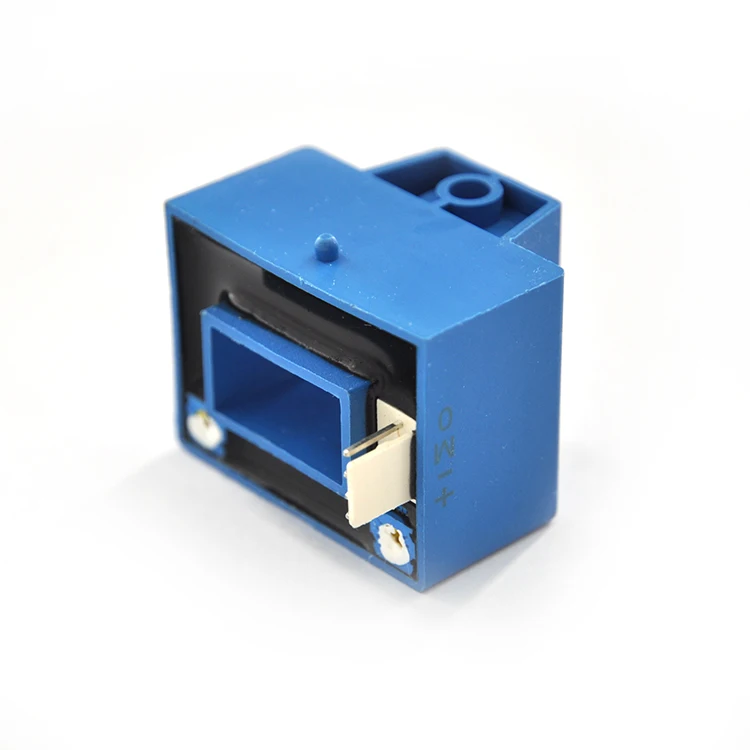

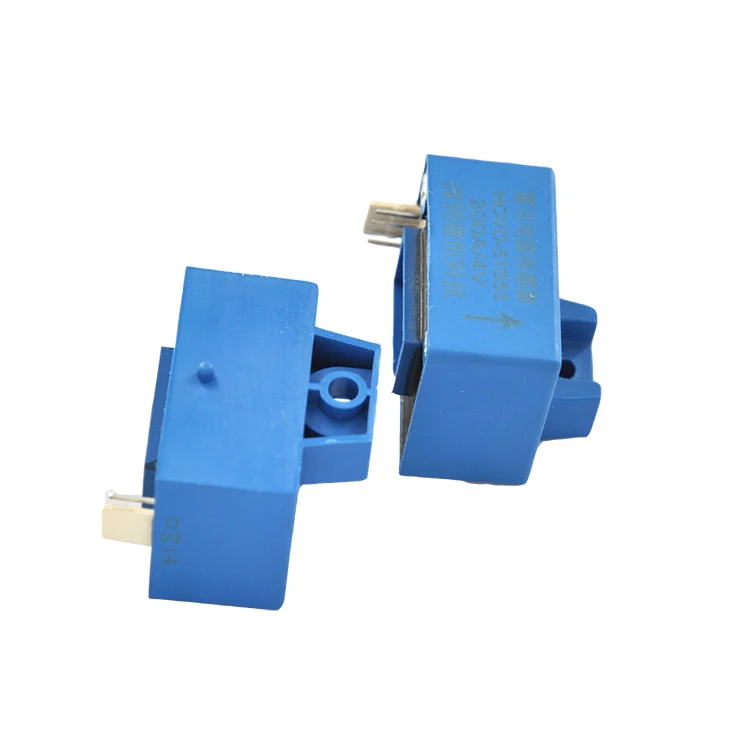

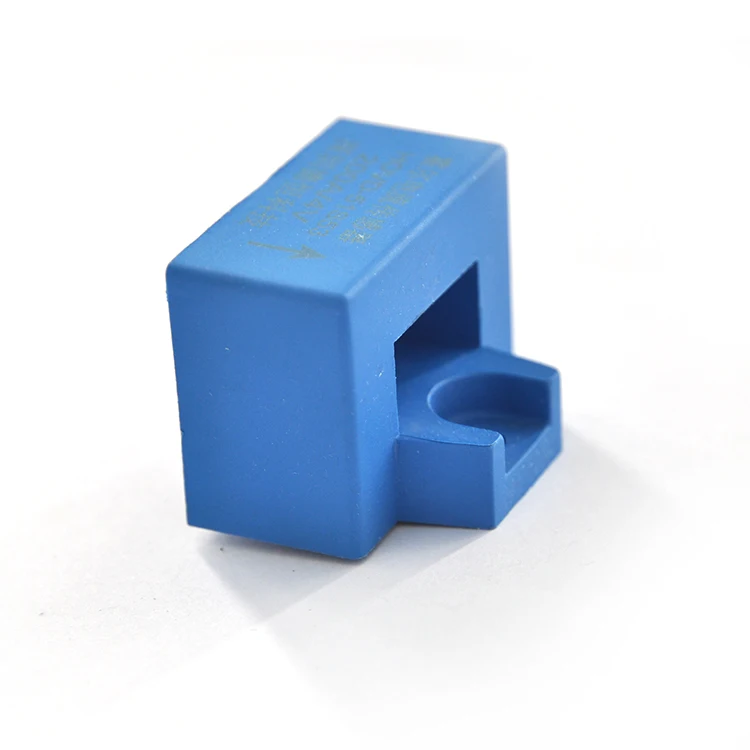

professional manufacturer of current transducer 1 class accuracy hall effect current sensor 2000a
Introductions:
These are newly developed open loop hall current sensor series which can be used for detecting of DC,AC, high frequency, pulse as well as various of irregular wave of current signals.
Features:
Compact and light
Easy to install
Flame retardant (UL94- V0).
Environmental protection( EU RoHS)
Advantages:
High precision and good linearity.
Low offset and gain drift.
Low insert loss, Good overload capacity.
Wide band frequency, quick response.
Application:
Switched mode power supplies(SMPS), Welding machine power supply
Battery Supply, UPS, measurement control system, Inverter
1000A hall current transducer Specification:
Model Parameter | HOVD-53S51 | HOVD-53S52 | HOVD-53S53 | HOVD-53S54 | HOVD-53S55 | HOVD-53S56 | HOVD-53S57 | Unit |
Rated input current | 200 | 400 | 600 | 800 | 1000 | 1500 | 2000 | A |
Test current range | ±400 | ±800 | ±1200 | ±1600 | ±2000 | ±2500 | ±3000 | A |
Rated output voltage | 4 (T=25℃) | V | ||||||
Loaded resistence | ≥10 | kΩ | ||||||
Power voltage | ±12~±15(5%) | V | ||||||
Current loss | ≤20 | mA | ||||||
Zero offset voltage | ≤±30 ( T=25℃) | mV | ||||||
Magnetic offset voltage | ≤±35 ( T=25℃) | mV | ||||||
Offset voltage temperature drift | ≤±2mV/℃(IP=0 T=-10~+70℃) | mV | ||||||
linearity | ≤0.5 ( T=25℃) | % | ||||||
Accuracy | ≤1 .0 ( T=25℃ VC=±15V) | % | ||||||
response time | <5 | µS | ||||||
| 3.0 | kV/Min | ||||||
-3db bandwidth
| DC…20 | kHz | ||||||
Working temperature | -25~+85 | ℃ | ||||||
Storage temperature | -40~+90 | ℃ | ||||||
Instructions for use:
1. Connect the current according to the calibration direction of the circuit diagram, pay attention to the direction of current.

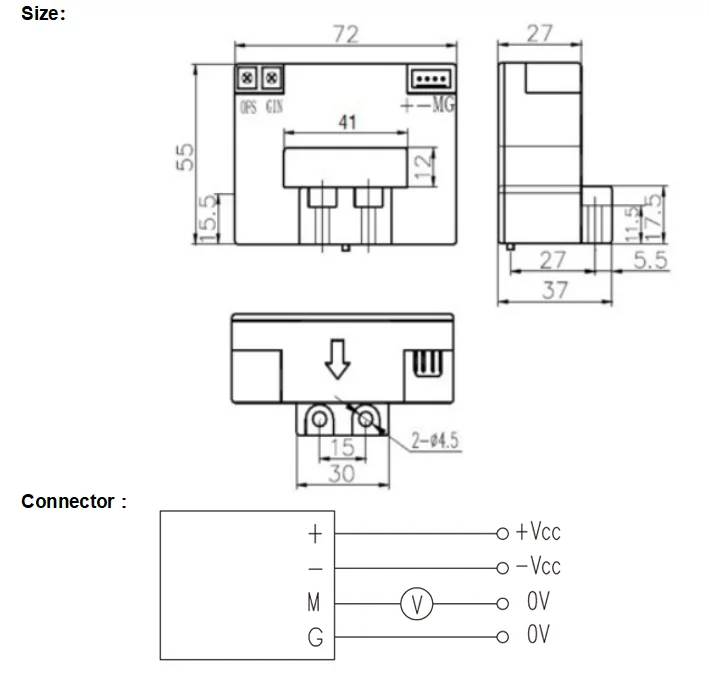

2. Connect the wire according to the function pin definition of the calibration in the structure diagram.
