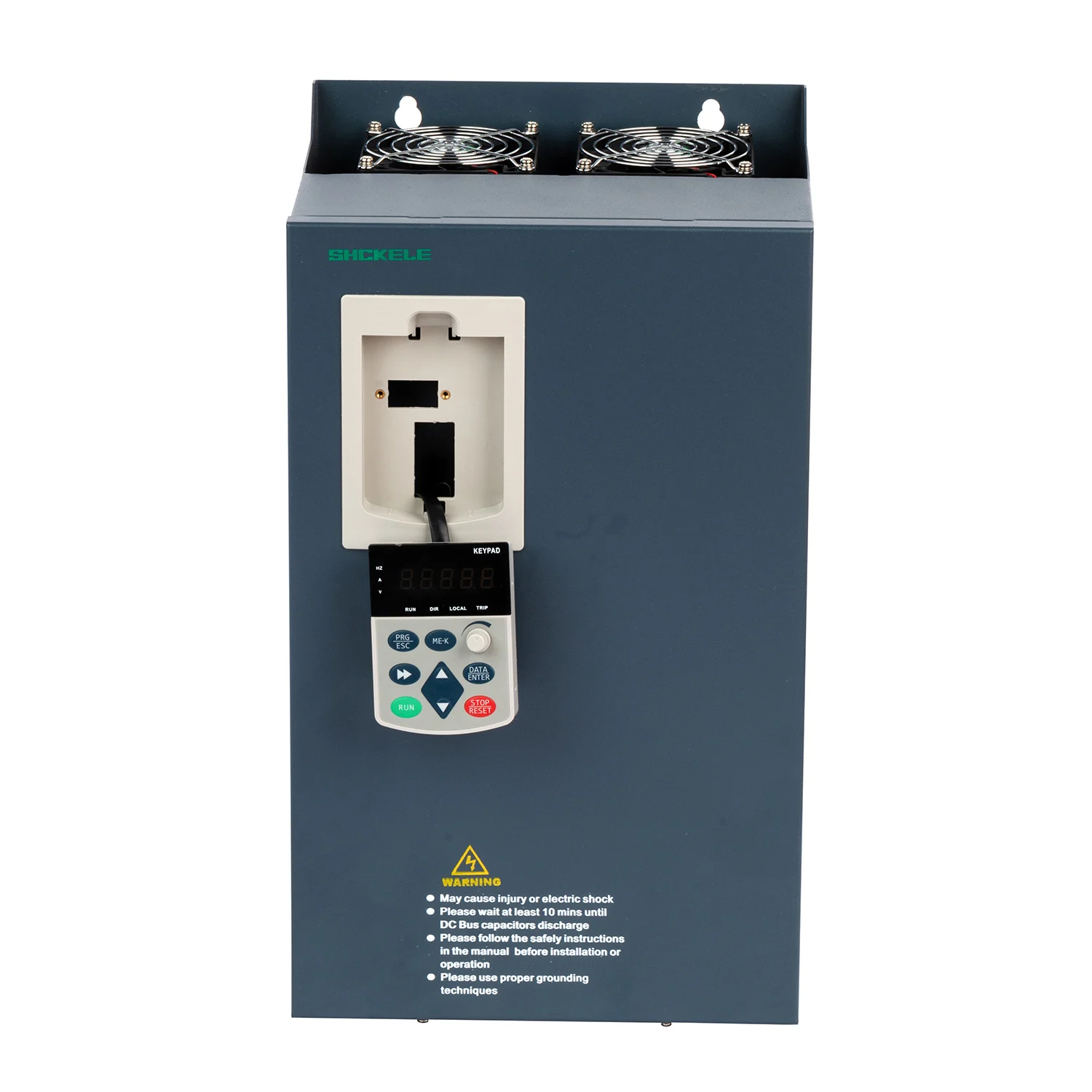

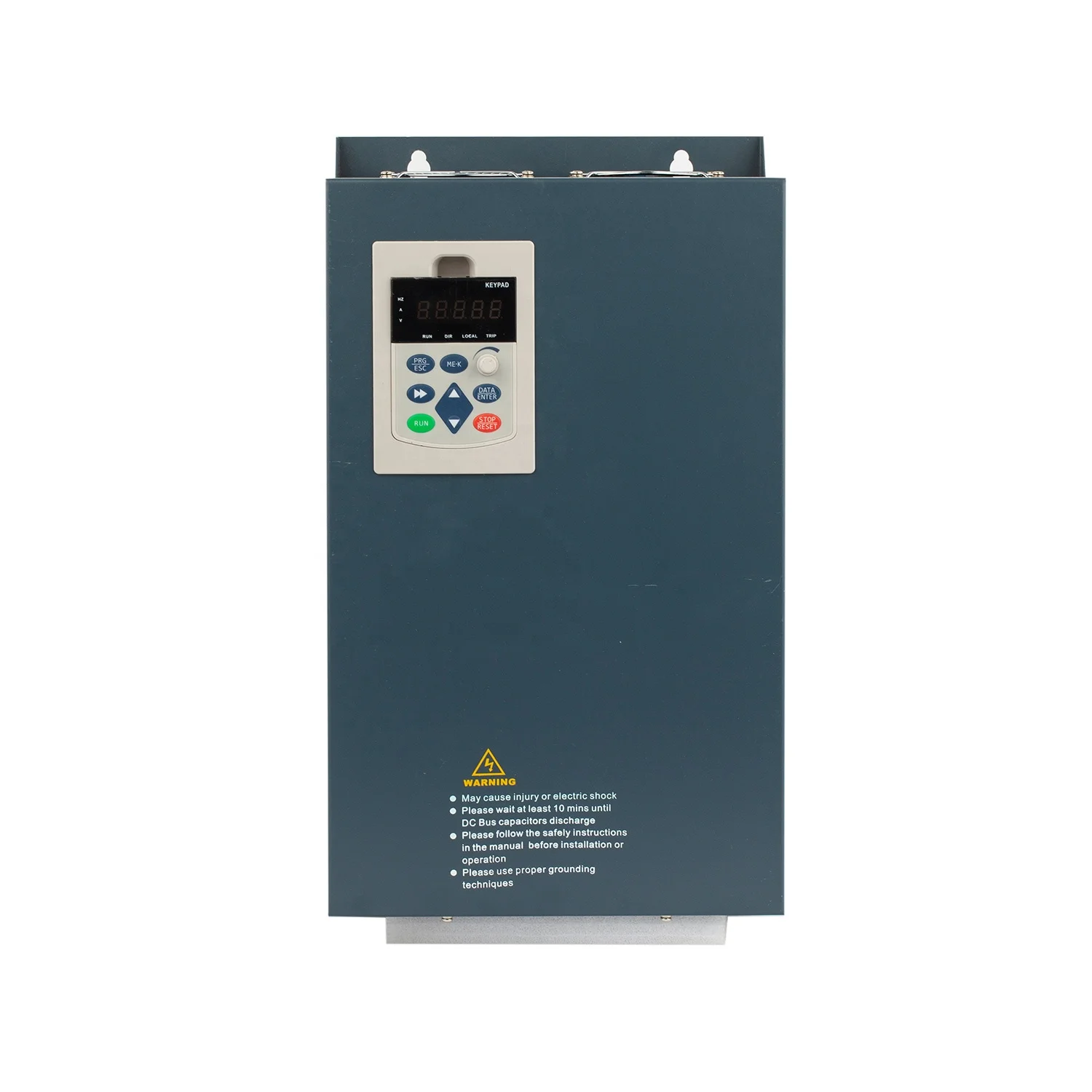

China suppliers three phase 380V 90KW 50HZ 60HZ frequency converter VFD/VSD/frequency inverter for AC motor

                                 Item

                                                 Specifics



Maximum frquency

vector control:0~300Hz V/F control:0~3000Hz

carrier frequency

 0.5-16 kHz (The carrier frequency is automatically adjusted based on the load features.)

Input frequency resolution

Digital setting: 0.01 Hz Analog setting: maximum frequencyx 0.025%

Control mode

Sensor-less vector control(SFVC) Closed-loop vector control(CLVC)(+ PG card) Voltage/Frequency(V/F)contro

Startup torque

G type:0.5Hz/150%(SFVC);0Hz/180%(CLVC) Ptype:0.5Hz/100%

Speed range

1:100(SFVC)

1:1000(CLVC)

Speed stability accuracy

± 0.5%(SFVC)

± 0.02%(CLVC)

Torque control accuracy

± 10%(SFVC)

±5%(CLVC)

Overload capacity

G type:60s for 150% of the rated current,3s for 180% of the rated current P type: 60s for 120% of the rated current, 3s for 150%
of the rated current

Torque boost

Auto boostManual boost 0.1%~30.0%

DC braking

DC braking frequency:0.00Hz~ maximum frequency Braking time:0.0s~36.0s Braking trigger current value: 0.0%~100.0%

Built-in simple PLC multiple speeds

It realizes up to 16 speeds via the simple PLC function or combination of Di terminal states

Built-in PID

It realizes up to 16 speeds via the simple PLC function or combination of Di terminal states

Overvoltage/ Over current stall control

The current and voltage are limited automatically during the running process so as to avoid frequently tripping due to
overvoltage/over current

Running command
giving

key panelControl terminals Serial communication port
You can switch between these giving in various ways

Auxiliary frequency
giving

There are 10 kinds auxiliary frequency giving.lt can implement tiny tuning of auxiliary frequency and frequency synthesis

Input terminal

Standard: □6 digital input(Dl) terminals,one of which supports up to
50 kHz high-speed pulse input
□2 analog input(Al)terminals,both of them support
0V~10 V voltage input or 0mA~20mA current input
□Expanding capacity:
□many DI terminals
□1 Al terminal that supports-10V~10 V voltage input

Standard:□1high-speed pulse output terminal(open-collector)that supports 0-50 kHz square wave siqnal output
□1digital output(DO)terminal
□1relay output terminal
□2 analog output(A0)terminals,both of them supports 0mA~20mA current output or 0V~10V voltage output
□ Expanding capacity:
□ many DO terminals
□ many relay output terminals

keypad
optional

LED display

It displays the parameters.

LED display

It is optional,supports panel display in Chinese or English language.

Parameters copy

Optional LCD keypad can copy parameters

Key locking and
function

It can lock the keys partially or completely and define the function function range of some keys so as to prevent misoperation.
