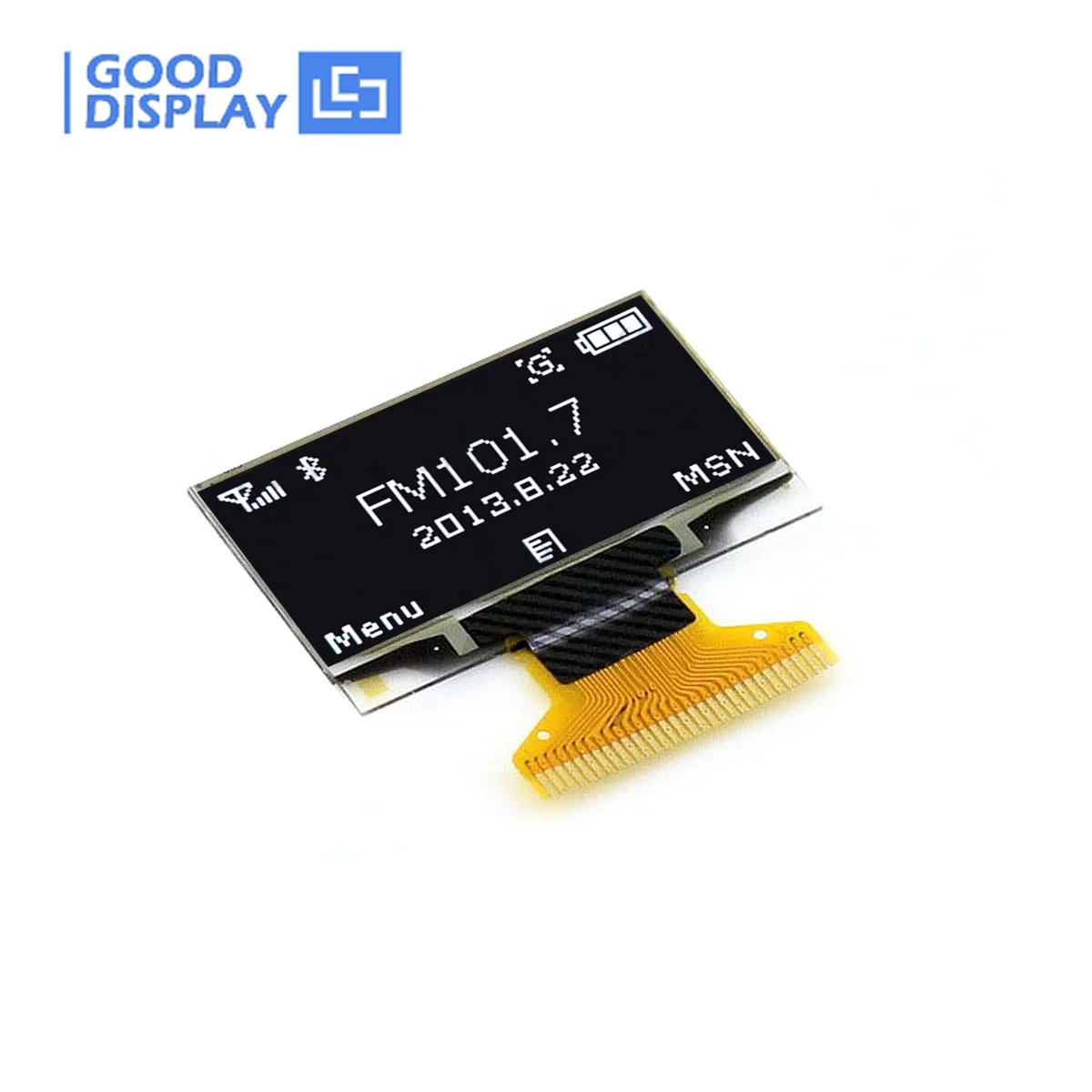

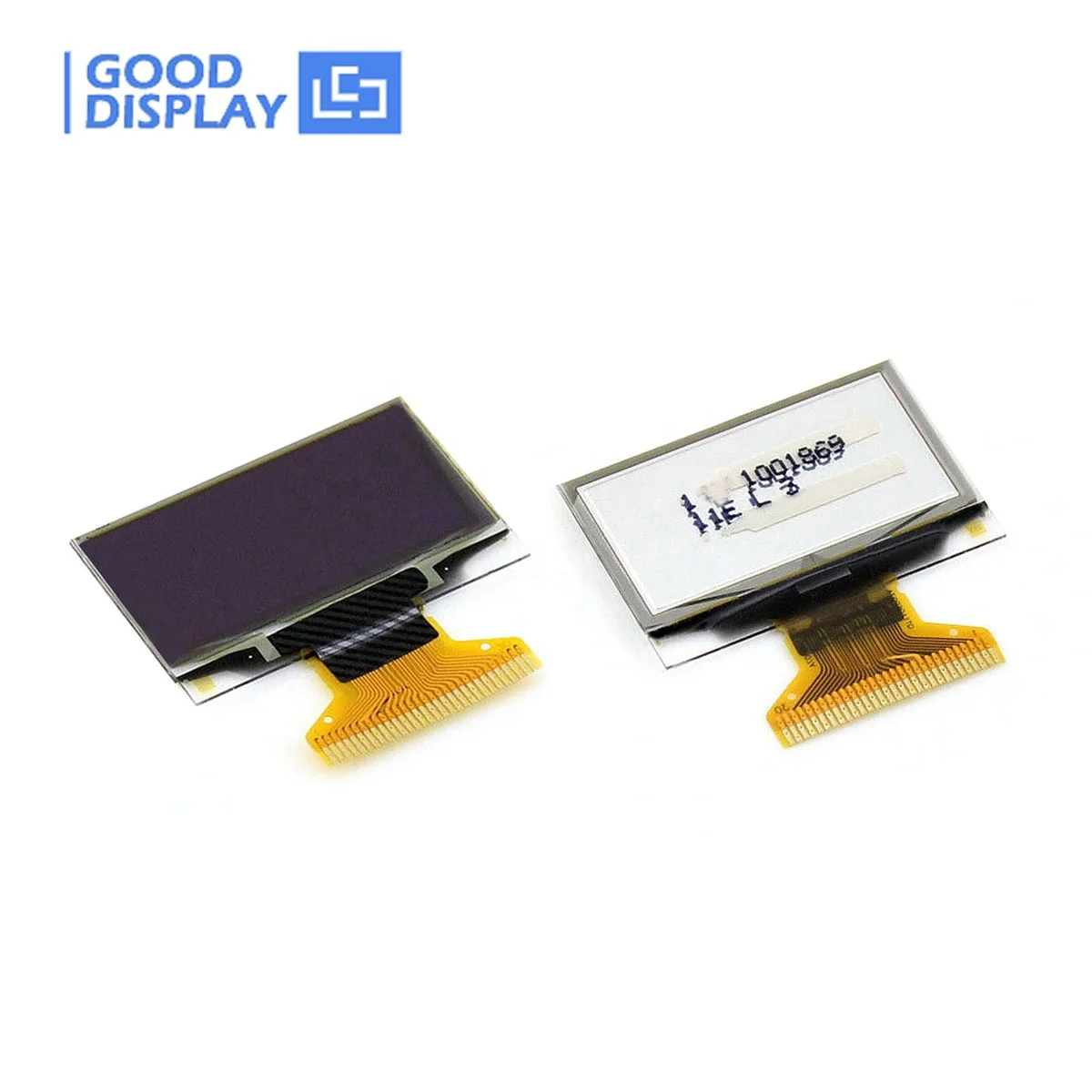

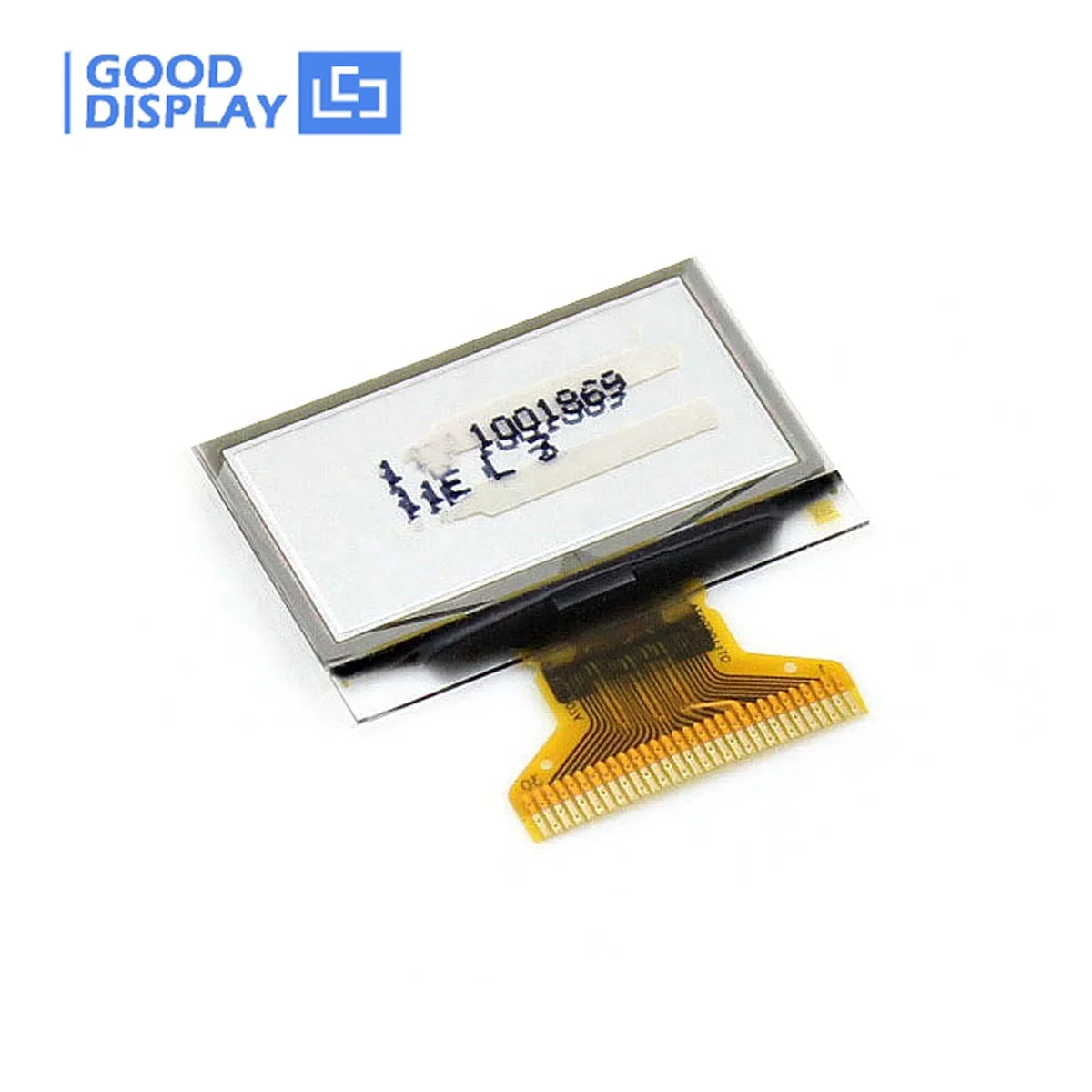

1.3 inch Small 1.29'' OLED SSD1315 128x64 Display Screen Panel


General Description


GDON0129RGW is the white graphic OLED display made of 128x64 OLED pixels,diagonal is 1.29 inch.The controller ic SSD1315, communicates via 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and
extremely operating temperature.

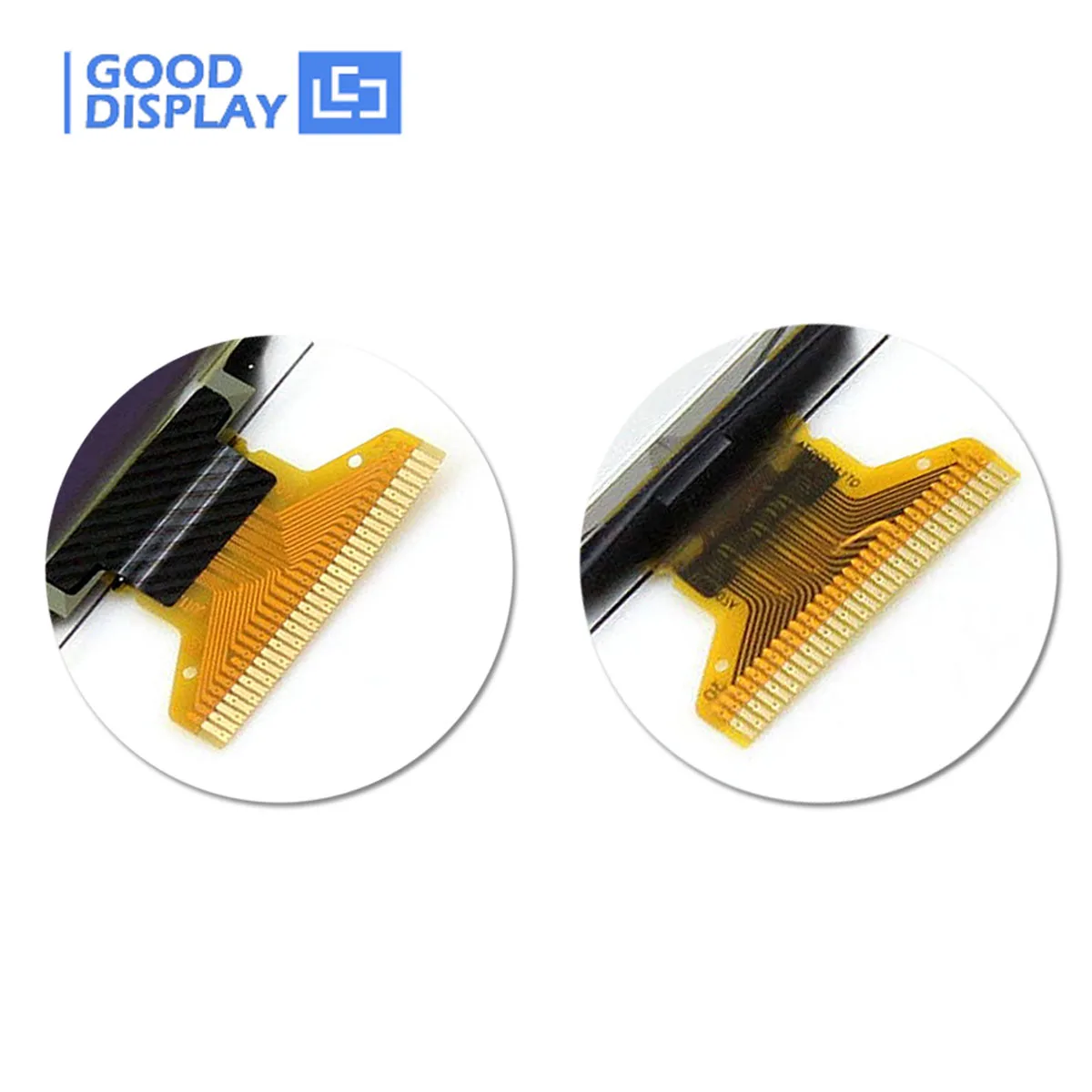

The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.



Main Parameters




Part Number
GDON0129RGW
Diagonal Size
1.29''
Display Mode
Passive Matrix
Display Color
White
Drive Duty
1/64 Duty
Number of Pixels
128x64
Interface
8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Driver IC
SSD1315
Connection
FPC-Soldering

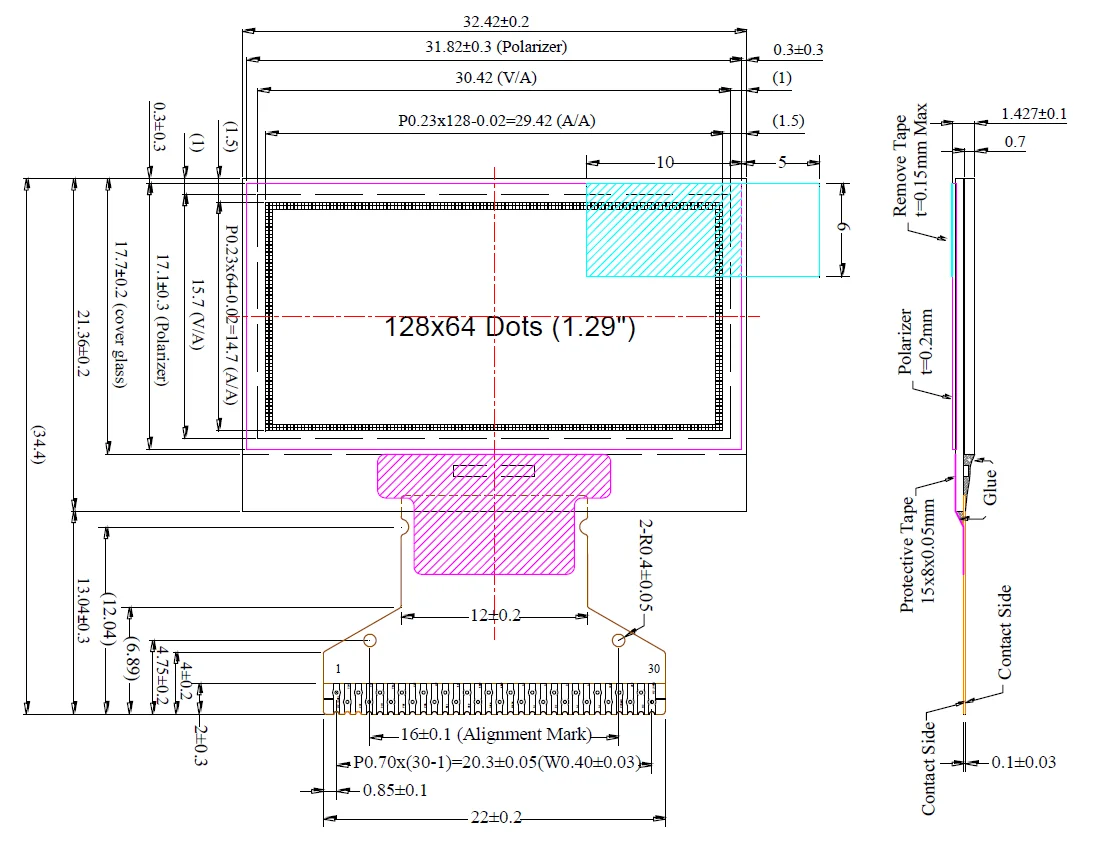

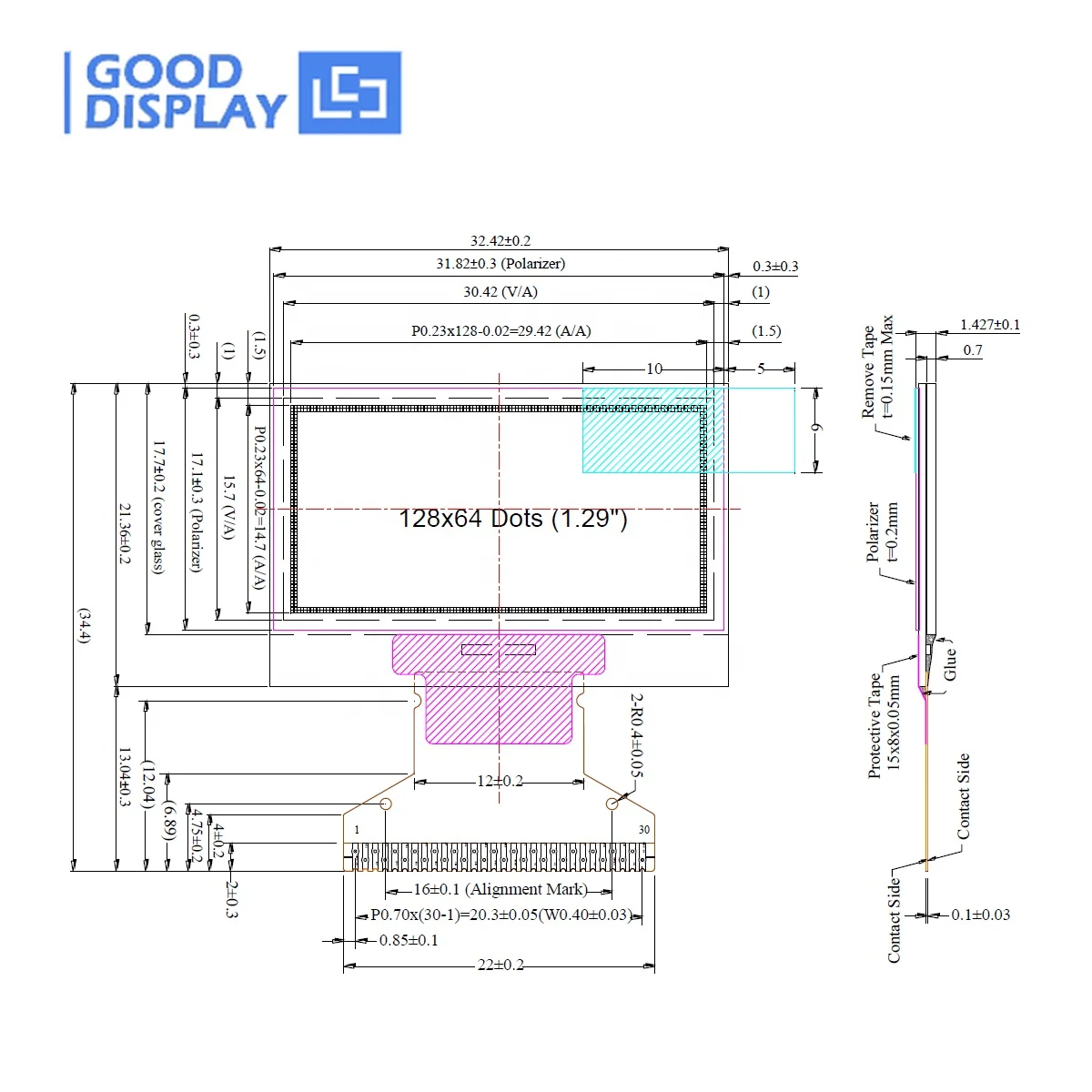

Outlin Dimension
32.42x21.36x1.427 (mm)
Active Area
29.42x14.7 (mm)
Pixel Pitch
0.23x0.23 (mm)
Pixel Size
0.21x0.21 (mm)
Brightness(Typ)
110 cd/m2
View Angle
Free
Power Suppley(Typ)
3.3V
Operating Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃




Particulars




\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t


● It makes its own light, no backlight is required.

● High contrast,extremely wide viewing angle

● It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi

● Wide operating temperature: -40~85℃
