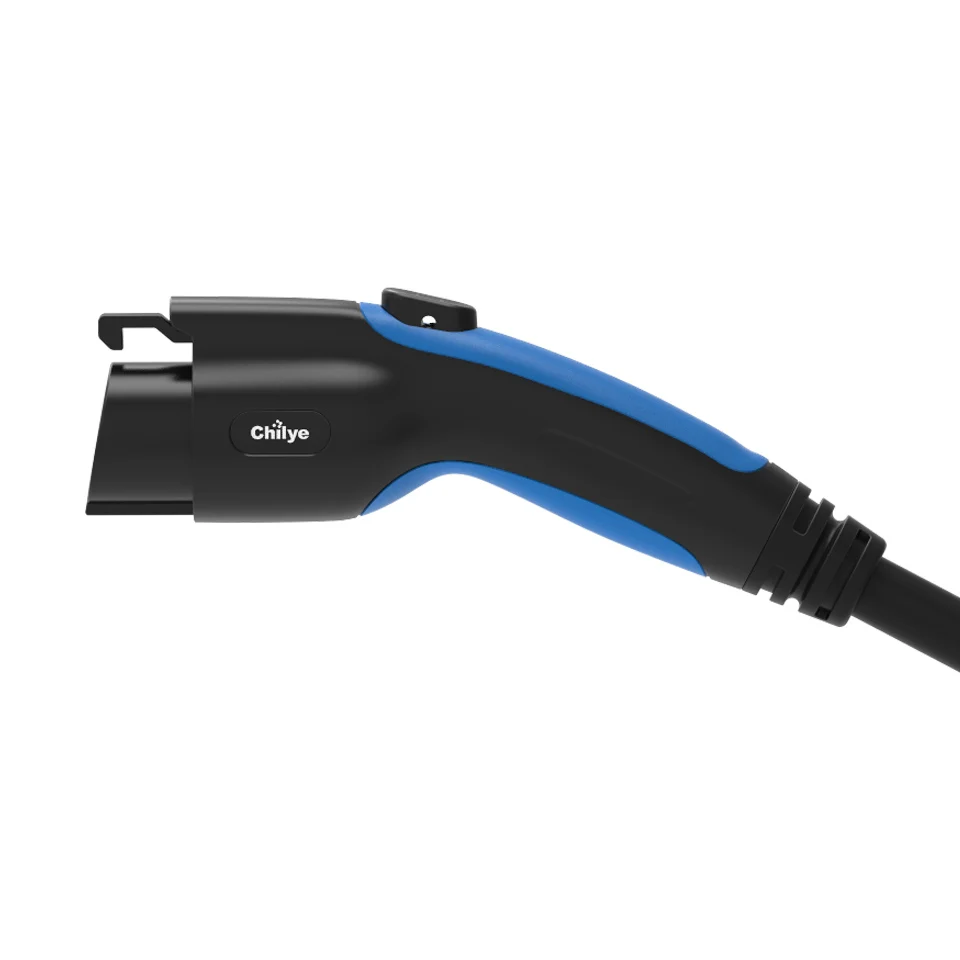

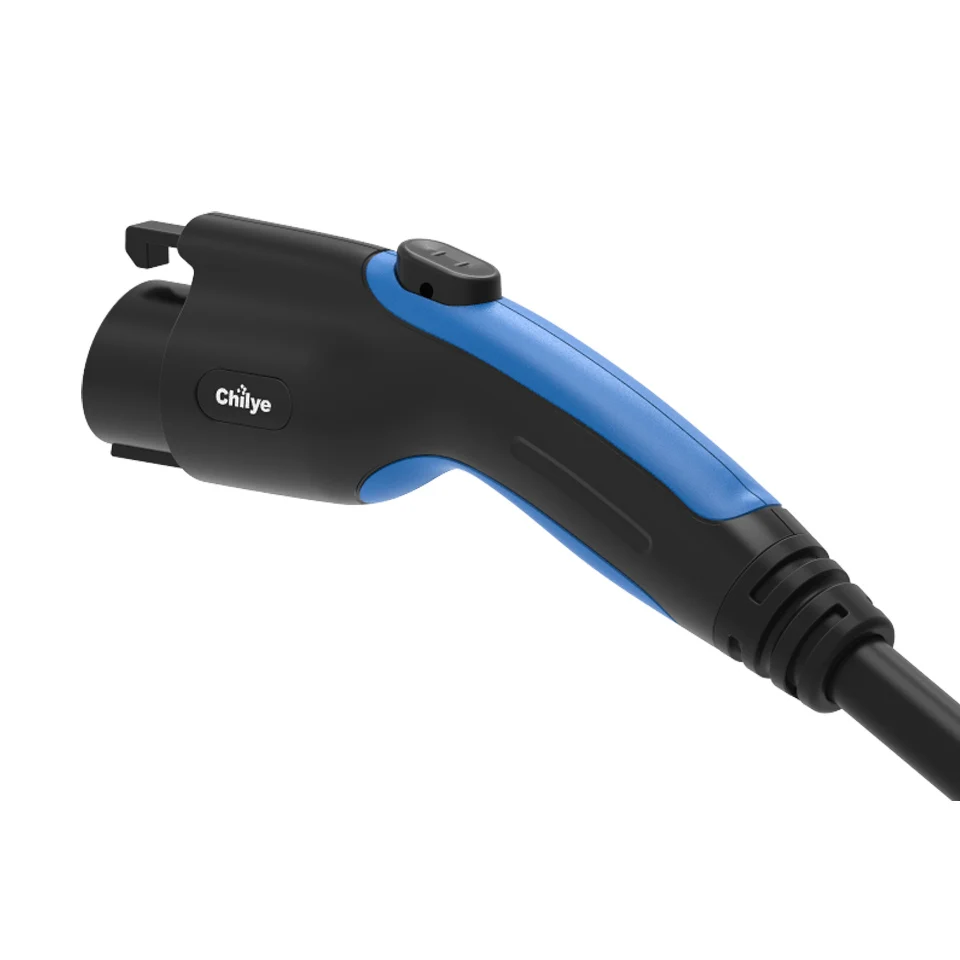

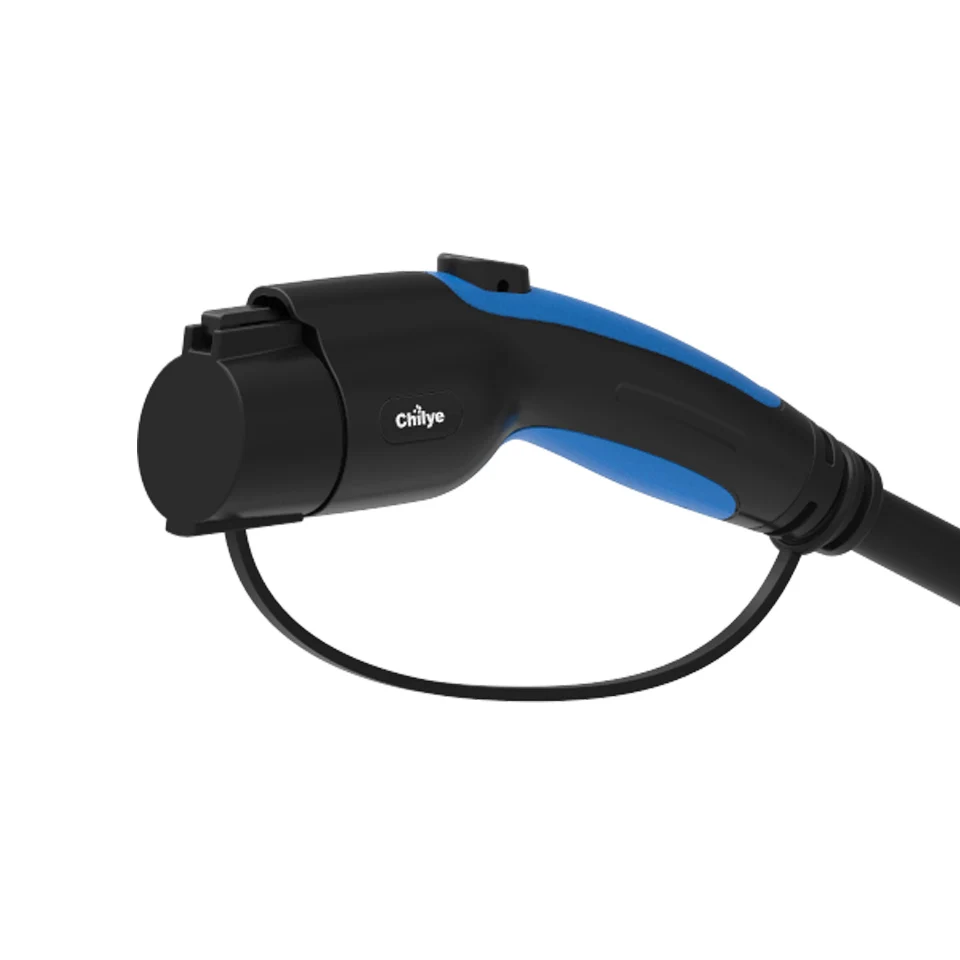

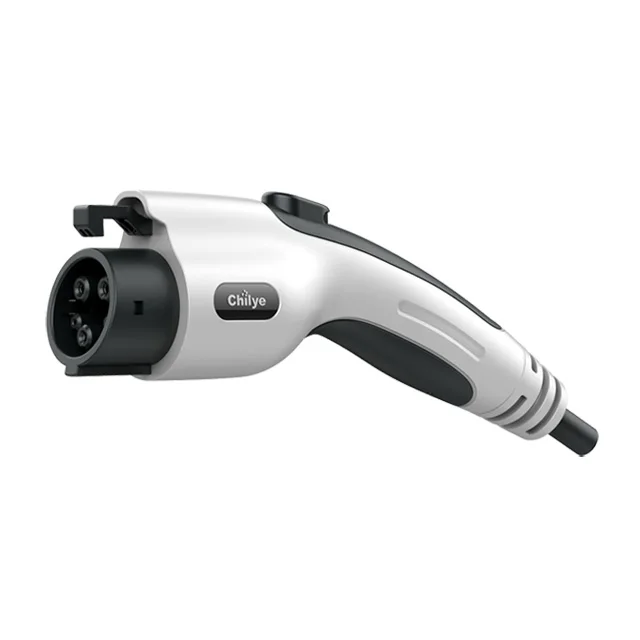

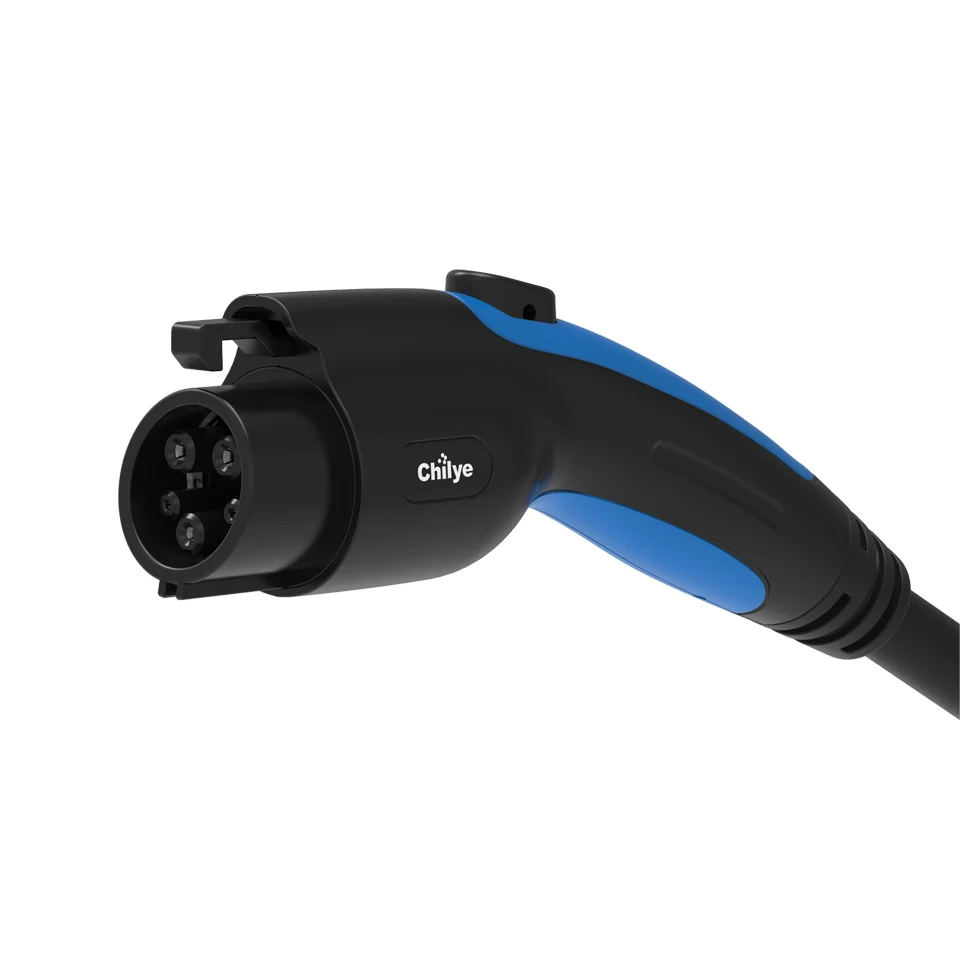

Type 1 EV charging connector 10AWG male plug 32A single phase SAE electric vehicle AC charging
- Category: >>>
- Supplier: Suzhou Chilye Green Technology Co. Ltd.
Share on (62583060075):
Product Overview
Description
| Model Number | CL-C3SCA10 | Application | Electric Vehicle |
| HV cable | 13.5-20.5mm² | Standard | SAE J1772 |
| Material | Plastic sealed connector | Rated voltage | 120/240V AC |
| Rated current | 16A/32A | Insulation resistance | >200MΩ(500Vdc) |
| Temperature range | -40℃ to +80℃ | Shielding range | 360 degree shield |
| Electric protection level | IP2XB | Connecting protection level | IP55 |
EV Charging Plug/Connector
HV charging series connectors integrate touch-proof design, good EMC shielding performance,
high IP rating,high safety, unique design,
providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.

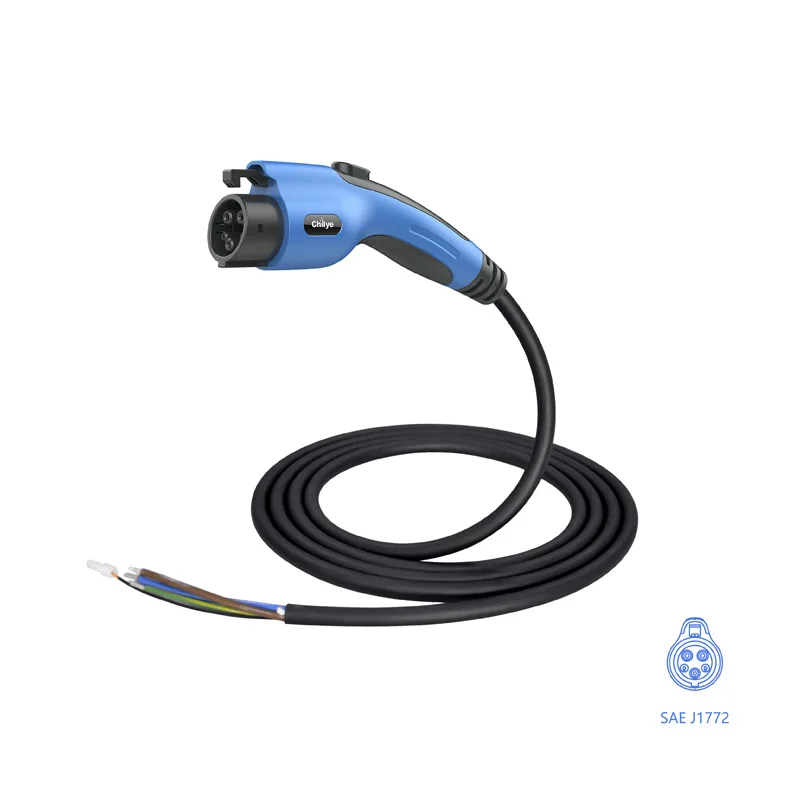

Type 1 charging plug/connector for EV charging system
Application
Electric vehicle charging system
Description
• single phase
• 5 meters long cable
• IP55 protection level
• Customized color
• Finger proof/touch safe
• Shielding range: 360° shielded from the line to the connector
• Cable range: 13.5 mm² to 20.5 mm² power circuit;
Performance
• Current capacity: 12A/16A/20A/32A/50A
• Voltage: 120/240V AC
• Temperature range: -40°C to +80°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB
Why Choose Us
 |  |  |
| About us | Equipment & technology | Service |
| Suzhou Chilye is a leading supplier of high voltage electrical appliances and power distribution units for new energy vehicles | Chilye not only provide high precision connectors and solutions to electric vehicles, but also has the plan to provide technical innovation related to green technology, e.g. | The products are manufactured according to quality system, has the strict management on incoming materials, process technology and process inspections, to ensure all the semi-finished products to the next working procedure. |
Main Products
 |  |  |

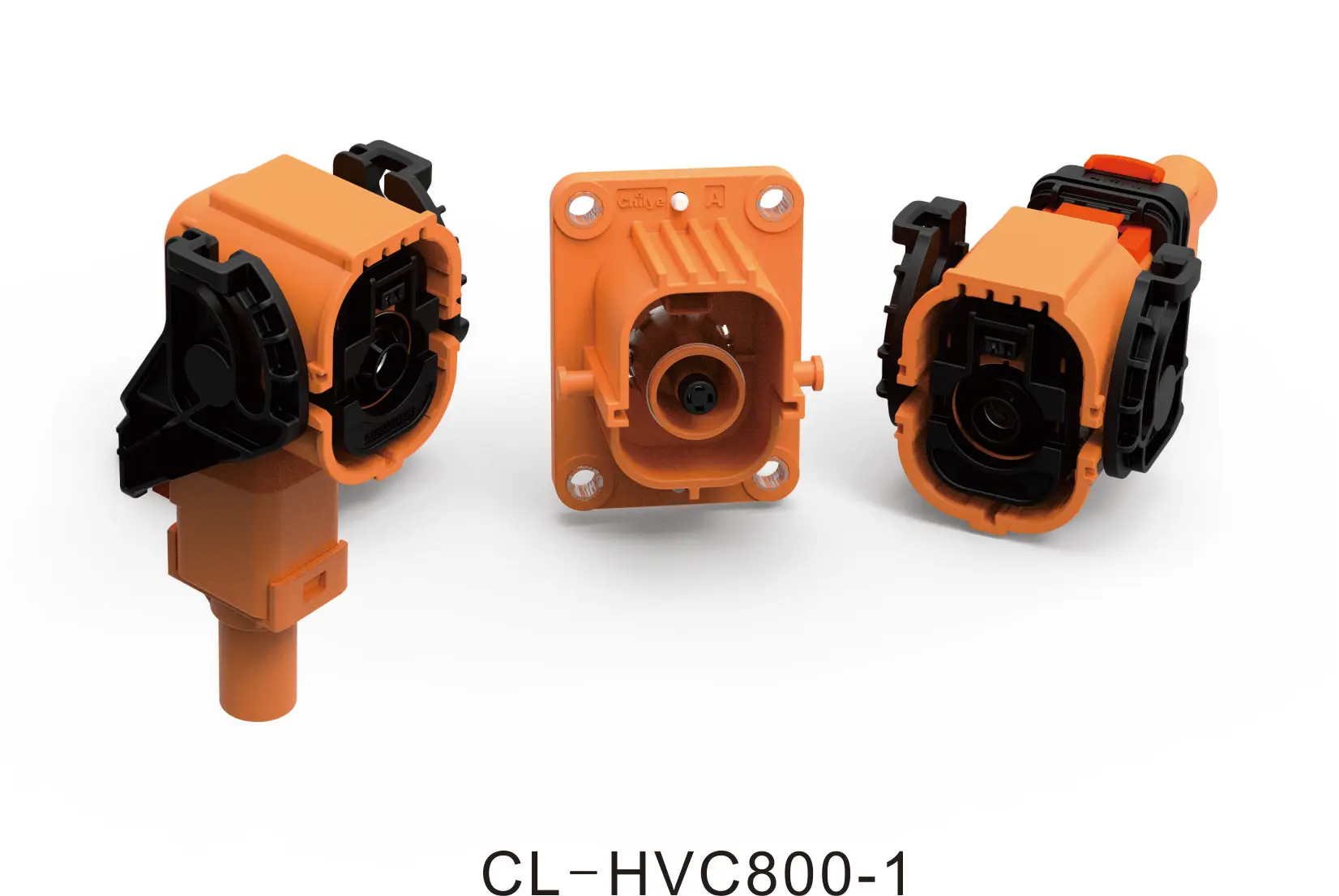

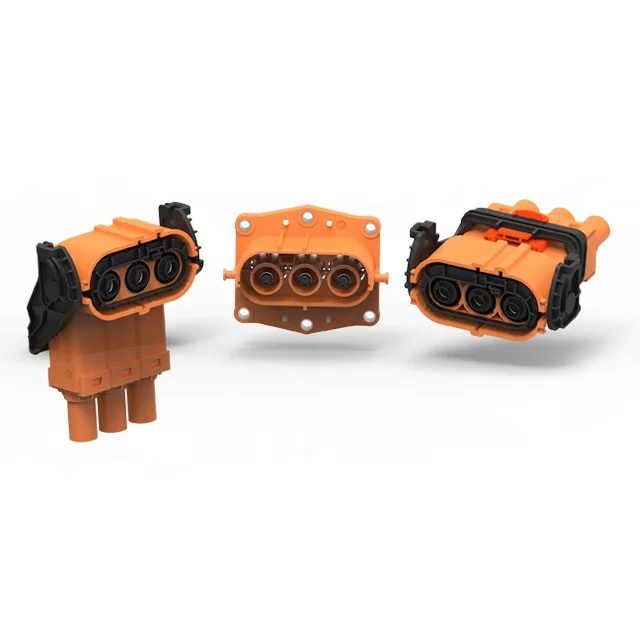

| HVC 530 series 4 poles with HVIL 40A/600V | HVC 800 series 2 poles with HVIL 240A/1000V | HVC 800 series 3 poles with HVIL 240A/1000V |
