JINGWEI бренд JWF1211A модель Сделано в Китае текстильная машина высокая производительность машина для изготовления серебра
- Category: >>>
- Supplier: Qingdao Hongda Textile Machinery Co. Ltd.
Share on (62583252295):
Product Overview
Description

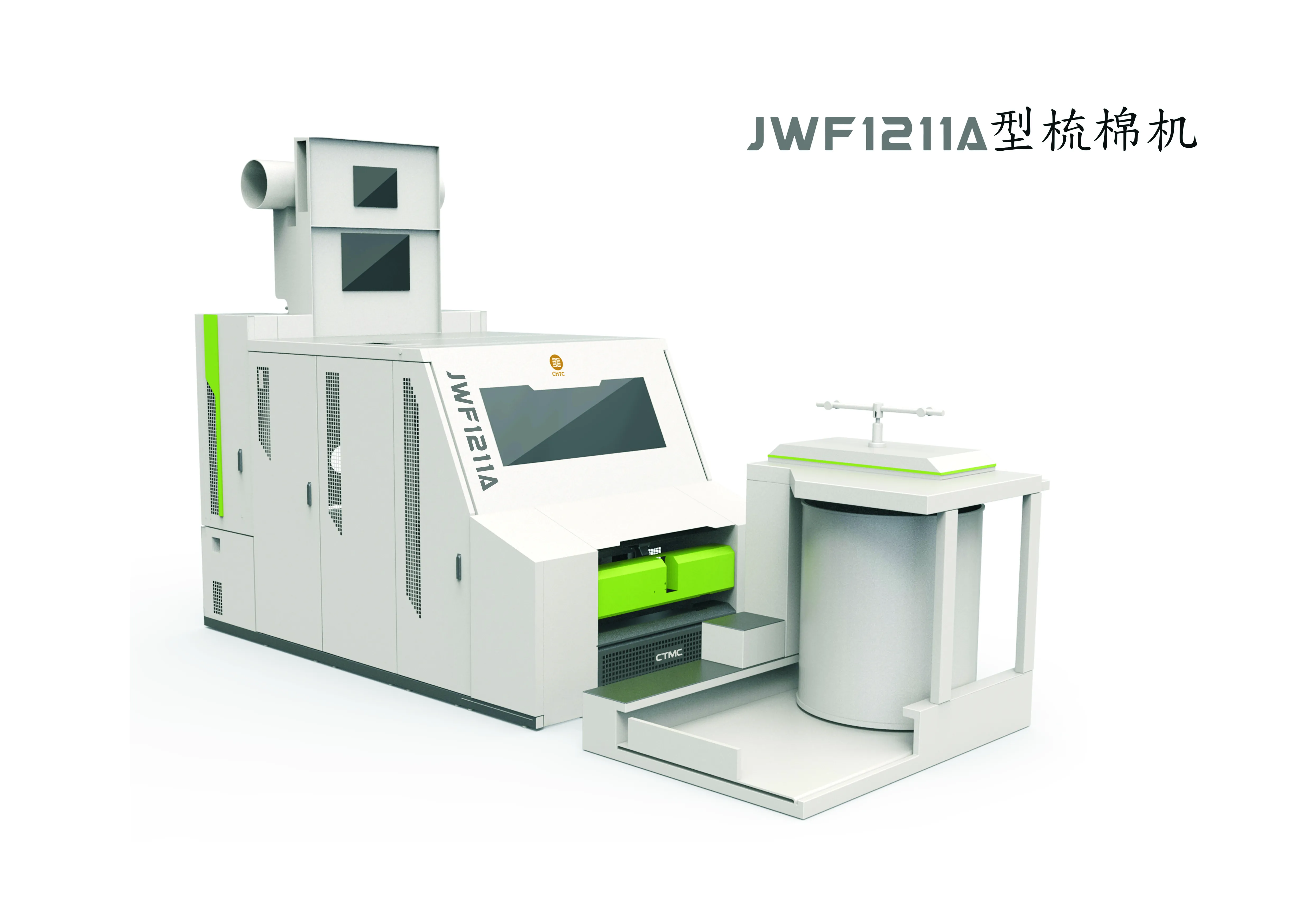

Modle JINGWEI JWF1211A Brand Made in China textile machine High Production sliver making Carding Machine
Product Description
Mono-block casting iron cylinder, doffer and side wall ensures good stability and low thermal expansion coefficient. The carding technical gauge is stable even when machine runs at high speed, ensuring the high production.
The stepped entity frame welded by steel plate is characterized by its flexible mechanism and its special processing technology, ensuring the major gauge stable and uniform.
STABLE AND RELIABLE QUALITY GUARANTEE
New type of driving method
Cylinder and licker-in adopt high torque motor, featured by stable start and reliable rotary.
Doffer is driven by vector motor to ensure stability in low speed, high speed and speed conversion.
Flat and flat brush roller is driven by independment vector motor for convenient speed adjustment.
Leaning unit with high efficiency
- Bush roller adopts the lndependent motor and inverter. The step-less speed adjustment ensures the flats cleanness by setting different speeds according to materials.
- The gauge adjustable design of the bush roller and the revolving flats ensures the deep cleaning of the revolving flats.
- The optimized reative position and gauges between the brush roller and cleaning roller ensures the timely removed of the flat cotton fly.
- The new clean suction hood with perfect fluid mechanics can reduce the drag and suck flat fly smoothly.
NEW TYPE OF LICKER-IN CARDING SYSTEM
- Licker-in designed with two noil area whose length is adjustable outside of machine.
- It is designed with two sets of mote knife, pre-carding segment for efficiently removal of trash and staple.
Noil area length is adjusted flexibly according to quality, type of material.
- Arc length of the first noil area is adjusted freely around licker-in center.
- Angle of tongue plate in the second noil area is adjusted according to requirement.
MODULAR DESIGN-EASY OPERATION AND MAINTENANCE
- Aluminum alloy rotary flat body is made by special material, with the characteristics of good flatness, light weight, stable operation.
- It is guided by two tooth belts without need of other fasten parts, so it is easy for mantle, dismantle and maintenance.
- Duplex stationery flats, web cleaners and cover plates adopt aluminum alloy material. The fine needle flatness and easily adjustable guarantee the fine and intensive material carding.
- Modular design realizes flexible replacement to meet different technical requirememnt based on warious material and guarantees excellent product.(INCLUDING: Modular of stationery flats; Modular of feed unit; Modular of al-alloy sheet; Modular of web cleaner)
NEW TYPE DETECTING AND PROTECTING SYSTEM
- Metal detecting device to deduct metal during cotton feeding.
- Anti-winding detecting mechanism of the upper and lower roller effectively protects the driving belt.
NEW TYPE MIXED LOOP AUTO-LEVELLER SYSTEM
The new mixed loop auto-leveller, exclusively used for the directional feeding design, can detect the batt thickness variation by use of precision vertex non-contact sensor to cintrol fiber in short term and realize the control of fiber in long term via detecting sliver count variation, reaching the open-close loop control. The inverter motor also enchances the driving precision and stable sliver CV value.
SPECIFICATIONS
| JWF1211A Carding machine | |
| Suitable fibre | This machine is used for processing cotton, chemical fiber and blends of 22-76mm in length |
| Output(kg/h) | max delivery speed 300m/min |
| Sliver count | 3~8g/m |
| Feed weight | 400~1000g/m |
| Working width(mm) | 1000 |
| Total draft | 60~300 |
| Licker-in diameter(mm) | 250 |
| Doffer diameter(mm) | 706 |
| Doffer speed(rpm) | 4.3~84 |
| Cylinder diameter (mm) | 1288 |
| Cylinder speed(rpm) | 347~447 |
| No. of revolving flats(working/total) | 30/84 |
| Flat speed (mm/min) | 70~408(controlled by inverter) |
| Auxiliary carding segment | carding segment under licker-in: 2 pics |
| front stationary flats: 8 pics | |
| post stationary flats:10 pics | |
| Web cleaner | front3,back 3(cotton) |
| front2,back 2(chemical fiber) | |
| Can size diamenter(mm) | Ø600 Ø1000 |
| Can size height(mm) | 1100; 1200 |
| Inverter control | 5 inverters(in addition to the above 5, Cylinder inverter is optional),ensuring stable driving and convenient speed adjustment,save energy with higher efficiency |
| High efficiency and Energy-saving motor | 10 independent motor driver,speed control more reasonable |
| Suction point number | 22 suction points(including Chute feeder and Coiler),improving web quality and keeping the cleanliness of machine |
| Continuous suction | 4000 m³/h |
| Outlet air pressure(Pa) | (-820~-920) |
| Total installed power | 9.24 |
| Space requirement(L×W×H) | 5825×2480×3525(Include Ø1000 diamenter change manchine ) |
| Approx.net weight | 7200 |
| JWF1173A Chute Feeder | |
| Suitable fibre | natural or manmade fiber less than 76 mm |
| Working width(mm) | 920 |
| Diameter of feed roller (mm) | φ172 |
| Diameter of open roller (mm) | φ292 |
| opening roller speed(r/m) | 850/1150 |
| Output roller dia.(mm) | 156 |
| Power installed (kg) | 2.05 |
Company Information
Certifications
Packaging & Shipping
Our Exhibition
FAQ
Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
