9000000 kcal industrial thermal oil heater boiler price

9000000 kcal industrial thermal oil heater boiler price

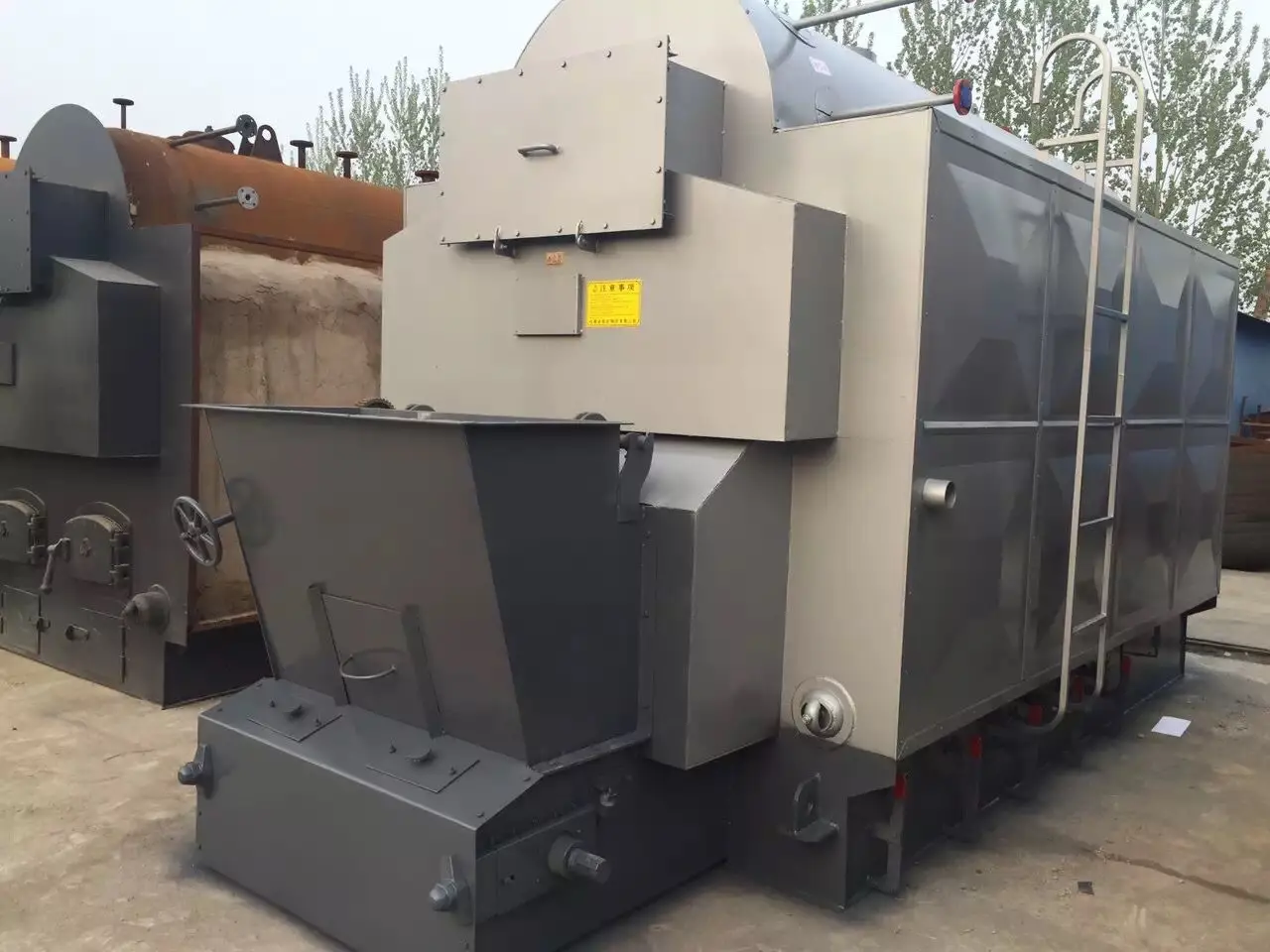

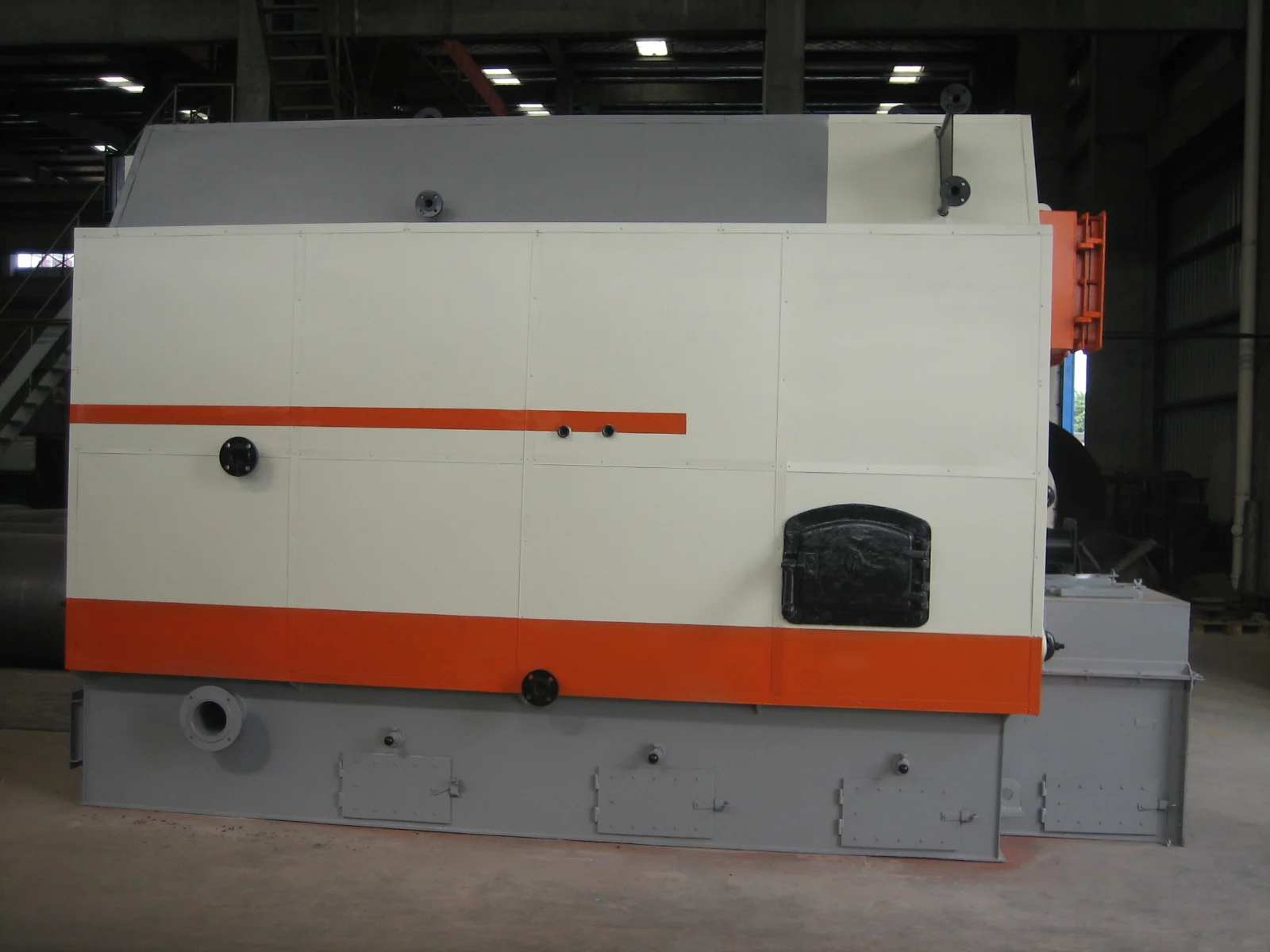

SZL series biomass-fired steam boiler is package or shop-assembled water tube boiler with double steam drum and chain grate stoker structure. 4-6 tph boiler is package boiler and 6-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment. The former part of boiler body is surrounded by membrane wall, its upper part connects with boiler drum and lower part connects with header, which forms a combustion chamber to absorb the radiated heat from furnace; there are dense convection tube bundle between the back side of upper and lower drum, the high temperature smoke enters a separate economizer after flushing heat absorbing surface then discharge from chimney.

Product Pharameter

Descriptions		Energy-saving Bi-drum Water tube steam boiler Technical Data
		SZL4-1.25-BMF	SZL6-1.25-BMF	SZL8-1.25-BMF	SZL10-1.25-BMF	SZL15-1.25-BMF	SZL20-1.25-BMF
Rated Evaporationg(t/h)		4	6	8	10	15	20
Working Pressure(Mpa)		1.25	1.25	1.25	1.25	1.25	1.6
Water Feed temperature(ºC)		20	30	60	60	60	105
Heating Surface	Body(m2)	93.7	127	153.2	223.4	355	503.94
Effected Grate Area(m2)		5.3	7.78	9.1	12	17.7	20.25
Applicable Fuel	Applicable Fuel	Biamass pellet	Biamass pellet	Biamass pellet	Biamass pellet	Biamass pellet	Biamass pellet
	Low Heating Value(kj/kg)	16830	16830	16830	16830	16830	16830
Fuel con-sumption	Biomass pellet(kg/hr)	~795	~1100	~1496	~1796	~2694	~3592
	Coal(kg/hr)	~710	~950	~1250	~1600	~12450	~3200
Boiler Effic-iency(%)	Biomass pellet(kg/hr)	82	82	82.88	82.1	82	82
	Coal	81	81	81	81	81	81
Max Piece Shipping Weight(t)		~31	~21	~23	~28	~36	~33
Max Dimensions affer installation		7.4×2.6×3.5	8.0×2.7×5.57	8.6×2.7×5.57	9.61×3.2×5.57	11.5×3.5×6.7	14×3.8×7.88

Intelligent Equipment

Company Introduction

Related Products

FAQ

Q1: How can you get the best price quickly?

(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2: Why should you believe our boiler quality?

(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Henan Boiler Inspection Institute;
(6).Passed ISO:9001 and SGS certificate.

Q3: What about the installation and Commissioning?

After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to
your local place in 72 hours. The experts will responsible for guiding installation and commissioning.
But the buyer will be in charge of :
(1) The round air-tickets costs from Changzhou city to your project site.
(2) Board and lodging of seller's workers for entire period at the end user's site.

Q4:What is the using life of your boiler?

A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance, the boiler can be used for 20-25 years.
