underwater 360 degree mini wireless hidden sewer pipe robot crawler pipe inspection robot underwater camera

Product Overview

Description

I. Product Introduction

Application:

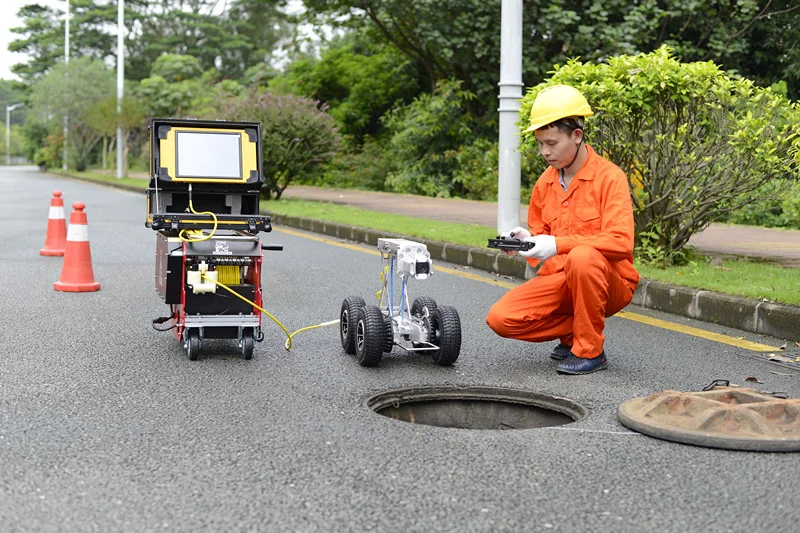

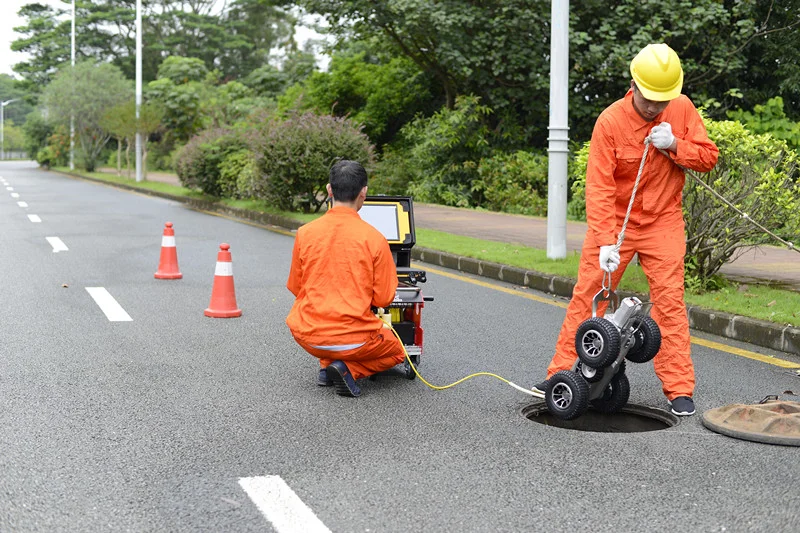

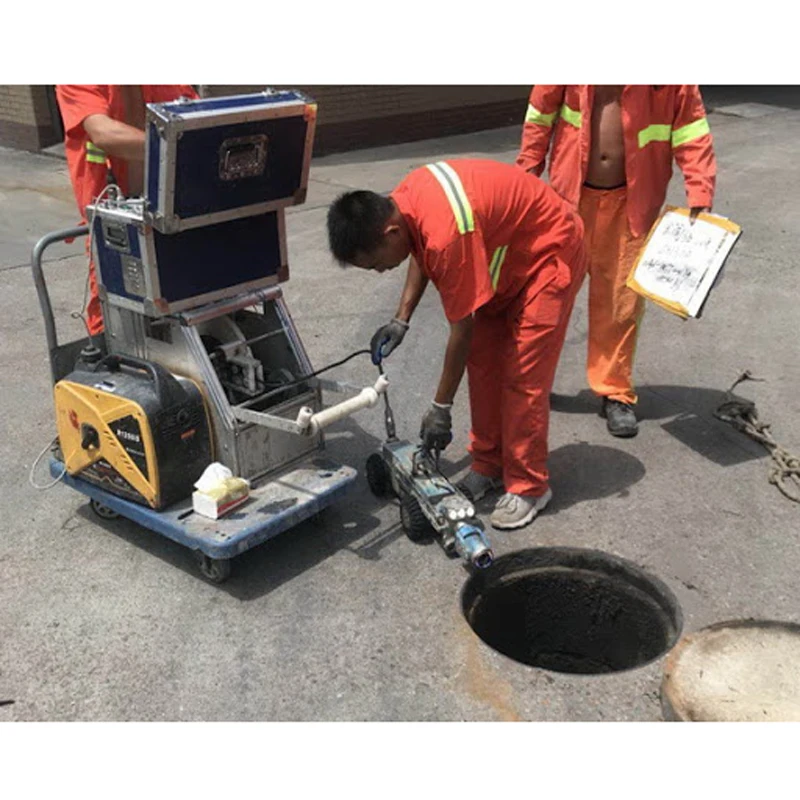

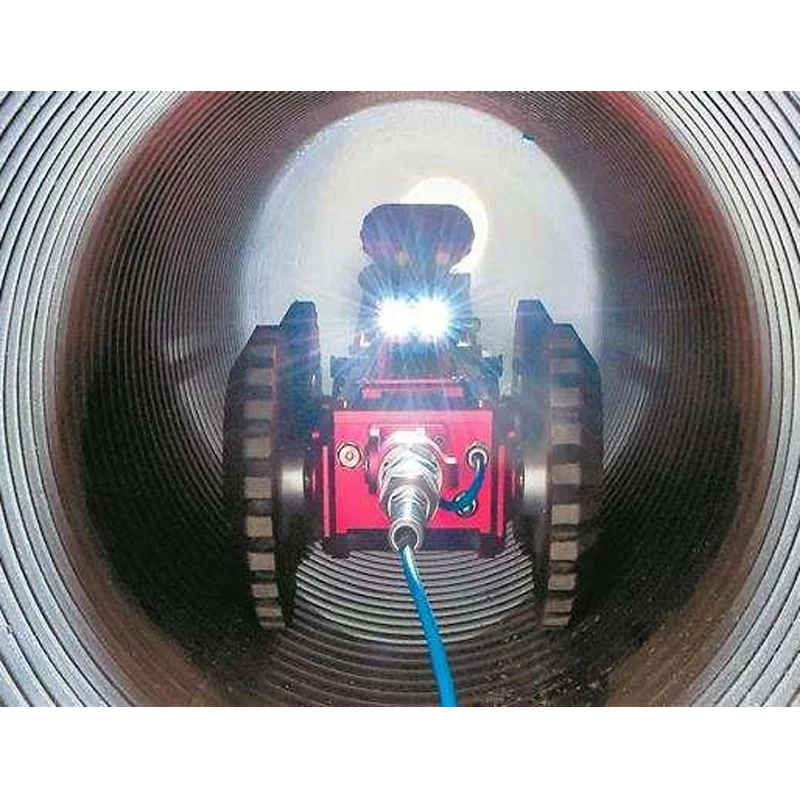

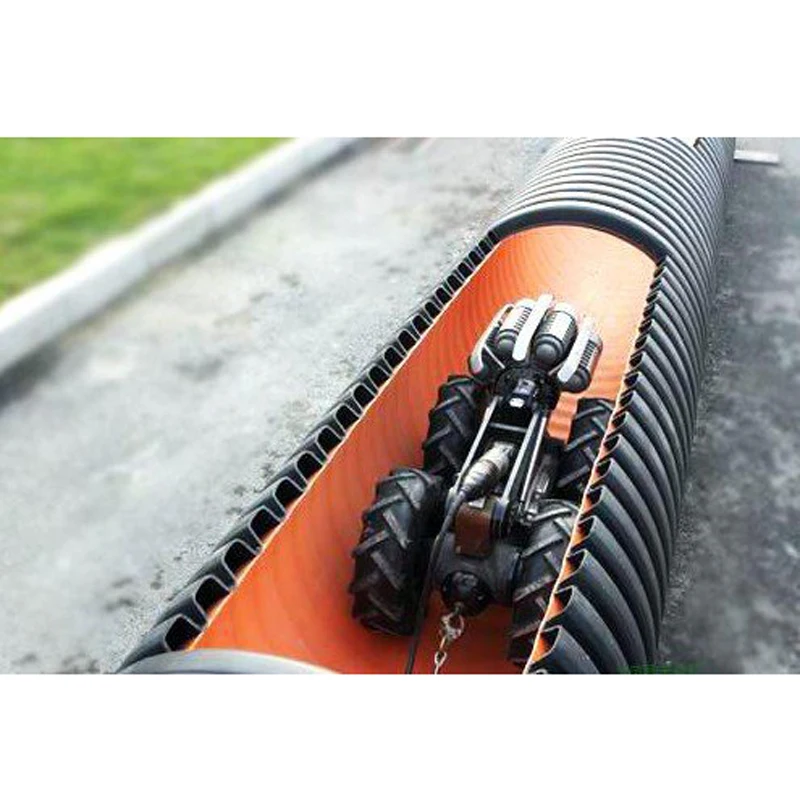

The pipe inspection robot is widely used in the 300-2000mm interior space of the environment of underground pipelines, tunnels, containers, and other hidden video detection.

Robotic System Components:

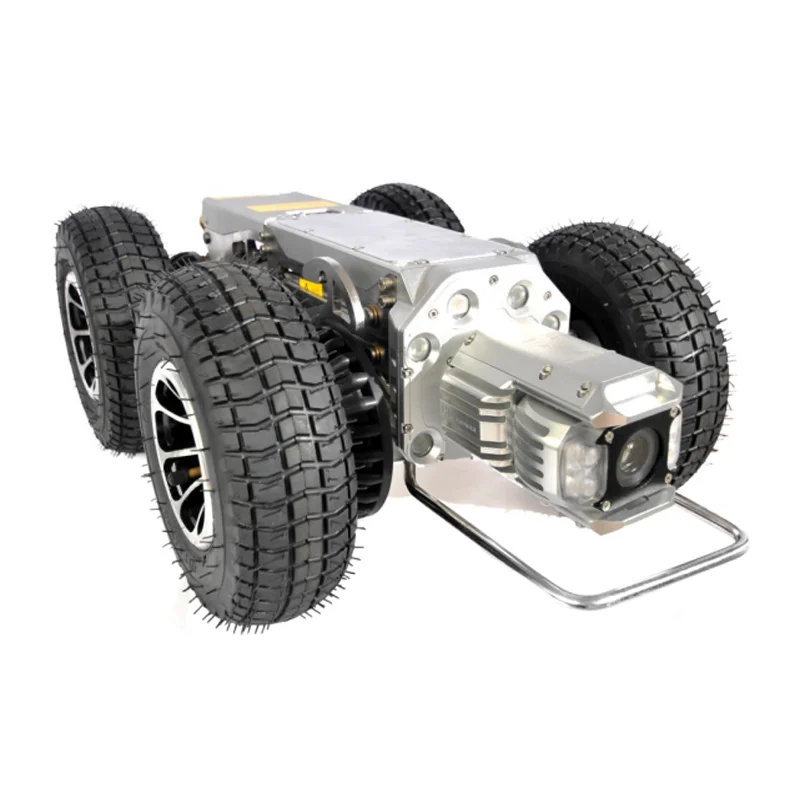

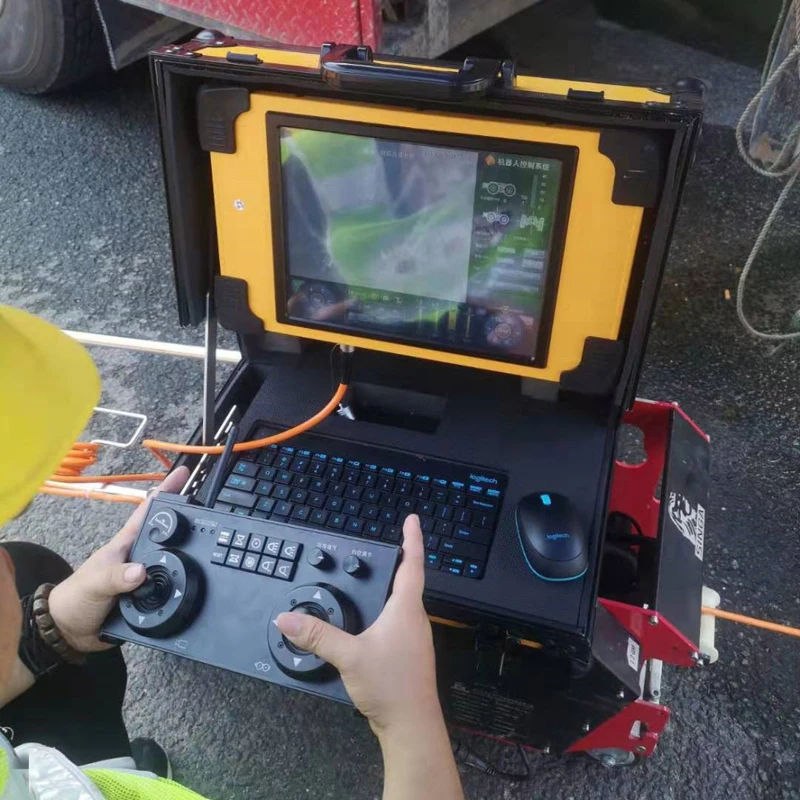

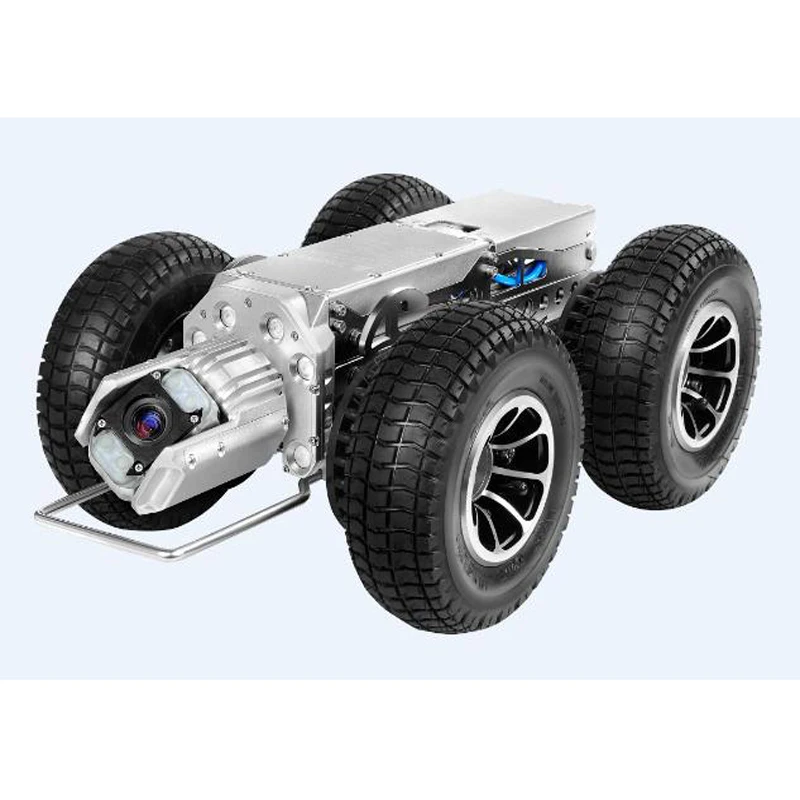

Camera head, crawler, display controller, wireless controller, cable drum, wheels, and accessories.

Material: Aviation aluminum, brass and high strength PC etc.



II. Main Parts Technical Parameters

1. 90mm PTZ front camera head



1). Image sensor: 1/4 Sony CCD; Resolution: 625TVL; Illumination: 0.01 LUX;

2). Electric zoom: 120 times (10X optical, 12X digital);

3). Light source: High brightness LED, 4*10w ;

4). Axial-rotation 360°, Radial-rotation 270°;

5). Auto level;auto focus;

6). Working temperature: -20℃-55℃;

7). Diameter: 90mm, length: 165mm;

8). Weight: 1.4KG;

9). Waterproof level: IP68,gas injection protection.

Model	Main     parts	Weight	Quantity
S300  Pipe  Robot	HS code.: 9031809090   Material:  Aviation Aluminum, brass and PC System:  PAL / NTSC optional     Main parts: 1.  90mm PTZ front camera head&30mm fix rear       camera 2.  S300 Crawler with 2 sets of tires 3.  15.1” touch LCD display 4.  120G hard disk , wireless mouse and keyboard 5.  Wireless controller and charger 6.  120m composite cable 7.  Manual cable reel 8.  Meter counter  9.  O-rings, screw and wrench 10.  Auto camera head lift bracket 11.  48V rechargeable battery 12.  Other accessories   Suits for pipes diameter 300mm-2000mm(12”-80”)	140KG	One set
Price ( EXW)
