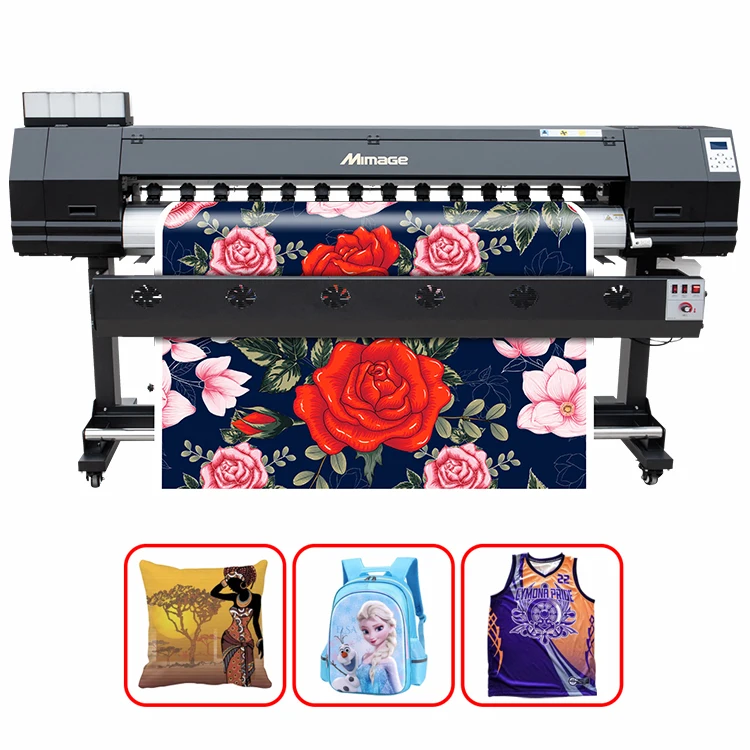

M16s/M18s is our best seller on dye sublimation printing with good cost-effective. It can be equipped with high resolution Epson DX5/ 4720/XP600 head, and make the vivid output color. Our printer has been widely used in customizing t-shirt and other gadgets, such as soccer jerseys, pillow, cushion, blanket, carpet, scarf, curtain, sheet, mouse pad, cap. cup, mug, etc,
Specification
Parameter
Model
M18
Print head
Epson DX5
Xp600
Epson 5113
Print head number
2
2
2
Print resolution
1440dpi
1080dpi
3200dpi
Print wide
1900mm
1900mm
1900mm
Print speed
Draft mode
32 sqm/h
29 sqm/h
38 sqm/h
Production mode
25 sqm/h
24 sqm/h
29 sqm/h
Accuracy mode
20 sqm/h
16 sqm/h
23 sqm/h
ink
Ink type
Dye sublimation ink
color
CMYK
Ink tank volume
1500 tank for each color
Supply tape
Negative pressure continuous inks supply
Drying system
Outside infrared drying system with fan
Media loading /Take Up System
standard
Cleaning system
Automatic spray cleaning
Data transmission
Network port printing
Software
Maintop,photoprint(optional)
Power supply
220V/110V,50Hz, temperature 15-30℃, relative humidity 40-60%
Package/weight
M16/5ft
Body weight/size:180±5%kg/2380*720*1513mm Package total weight/size:220±5%kg /2440*750*622mm
M18/6ft
Body weight/size:205±5%kg/2648*731*1513mm Package total weight/size:245±5%kg/2740*750*622mm
Very easy to personalize soccer jerseys:Step 1. Using Mimage DX5/ xp600/ 4720 head printer to print on dye sublimation paper(we provide standard high quality ICC file to ensure stunning output effect).
Step 2. Using the heat pressing machine to heat transfer on to soccer jerseys.
Step 3. Tailoring, sewing
Dye Sublimation Printing Solution
Related product
One station 38*38cm heat pressing machine
Double station pneumatic lifting heat pressing machine
Size
weight
Package size
voltage
Temperature range
Pressure range
powder
38*38cm
120kg
120*74*70cm
220V
0-299℃
0-8kg/cm²
2.6KW
40*50cm
130kg
130*80*70cm
220V
0-299℃
0-8kg/cm²
3.3KW
40*60cm
140kg
138*85*70cm
220V
0-299℃
0-8kg/cm²
3.8KW
1.7m Rotary heat transfer machine
After-sales Service
As manufacturer with rich experiences. We have a professional after-sales service team,providing user manual books, a full set of video tutorials (including hardware assembly, software installation and spare parts replacement), and arranging technicians to provide one-to-one installation guidance and training.
Whenever you meet problem in installation, operation or maintenance, you can contact us .We will spare no effort to help you,looking forward to have long term business with you.
FAQ
1)How can I place order?
Contact us about your order details, we will prepare the PI . We accept T/T , you can also place order on line directly.
2) How can I know if it is paid successfully?
We will send you a payment confirmation email upon receiving your payment
3) If I buy the machine, can you supply the ink, material, etc also?
Yes sure, please use the Original ink, it's better for the printer maintenance, we can supply the relate material also.
4) What’s you delivery time?
We will arrange the shipping time within 3-10 working days after receiving the deposit. And we keep some models in stock all year round.
5) How about warranty service?
Machine guarantee 12 months, the consumable parts are not guaranteed. We supply the on line technology even machine out of guarantee.
6) What service can you supply?
1.Manual books and videos for installment operation and maintenance .
2.One to one professional technical free training.
3.Instant online support service.
4.one year warranty, life-long after-sale service.
5For printer ink, the more you order , the cheaper the price.
6.Welcome to visit our company or factory at anytime.
7) If I have some technical problem, how can you help us to solve it ?
Detailed description, photo or video will help our technician analyze the problem and give solution accordingly.
8) once there is something need to replace ,what can I do ?
We supply all the spare parts for printer. If any part is broken, we will fix or send you new parts after users send back the broken ones. We suggest that users order some spare parts for long time maintenance and fast replacement. According to the instructions and videos, if you have any questions, please contact us at any time. We will arrange special technicians to train and guide you, mainly including operation and maintenance training.
