JINGWEI Brand JWF1029 Modle Top Quality Automatic Blow Room Machine Fabric Textile Cotton Blender Machine Series multi mixer

Share on (62583564449):


Price:$32,020.00

Quantity:


Product Overview

Description


JWF1029 Modle JINGWEI Brand Series multi-mixer


Top Quality Automatic Blow Room Machine Fabric Textile Cotton Blender Machine



Product Description

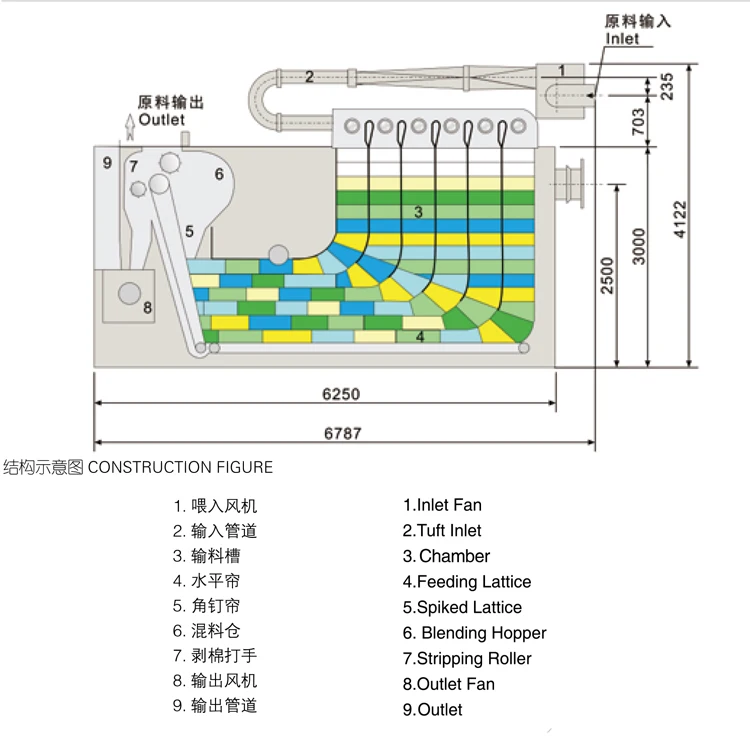

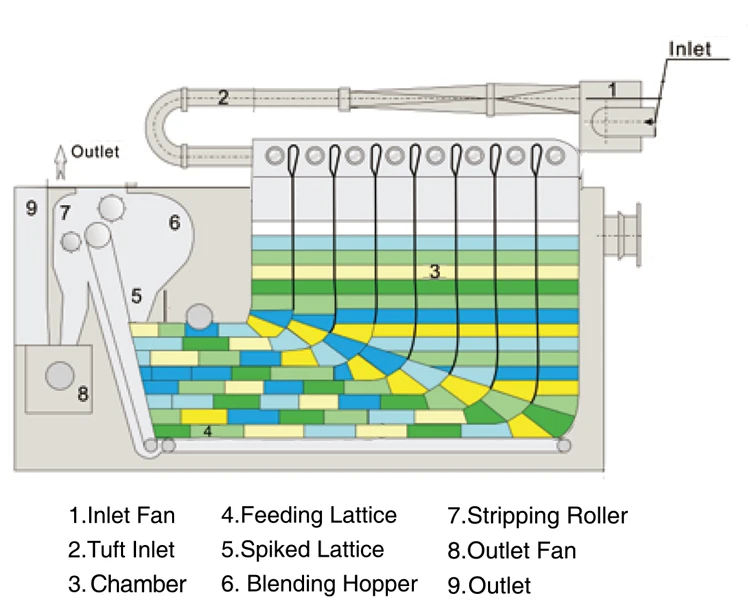

    JWF1029 is used for blending cotton, chemical fiber or blends. After fiber is fed into the machine, the airflow blows it into every chamber evenly to form an airflow blending. The fiber in every chamber is conveyed in a 90° turn, achieving the second-round blending due to the distance difference. The excessive fiber is thrown into the blending room to attain fine mixture.

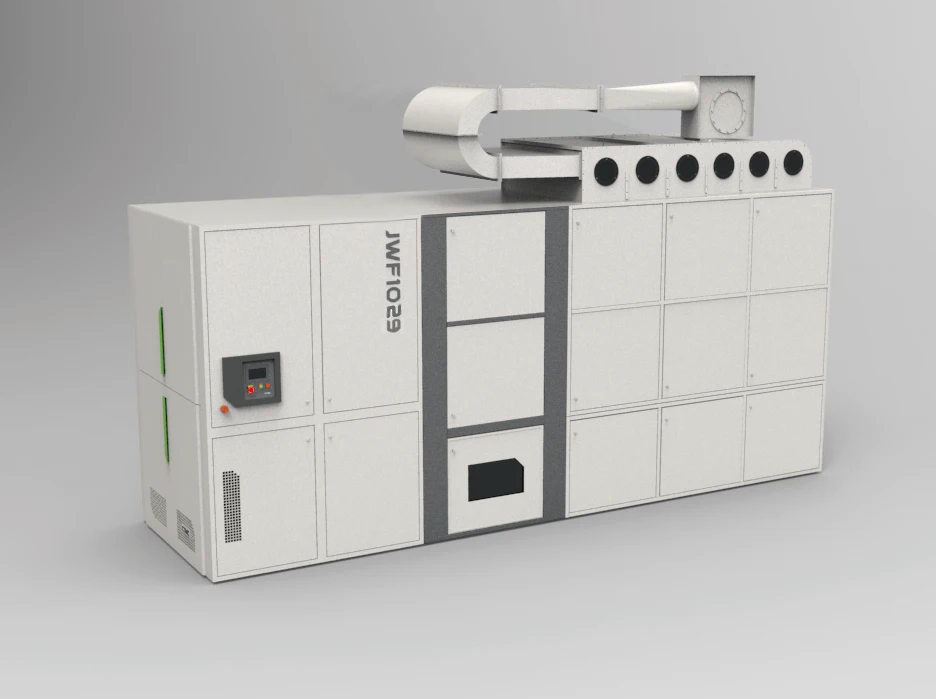

 JWF1029-02





MAIN FEATURES



  • The tripartite blending ensures the uniform mixing of the material.

  • The structure of six or eight hoppers makes the mixing evener and storage capacity bigger.

  • Cotton transportation by the spiked lattice is controlled by the intellectual PID, ensuring the even, stable and continuous cotton supply.

  • The speed of the feeding lattice is controlled by the inverter, favorable for controlling the continuous feeding of the system.

  • The whole machine is intellectually started and operated. The entrance fan is controlled by the machine itself, favorable for energy conservation.

  • The pressure in the hoppers is automatically detected, thus adjusting the plucking amount of the plucker.


-04


SPECIFICATIONS

















































TypeJWF1029
Hoppers6
Production (kg/h)800
Working width (mm)1200
Linear speed of spike lattice (m/min)13.5~40 (Speed controlled by inverter)
Linear speed of conveyor (m/min)0.08~1.18 (Speed controlled by inverter)
Speed of the evener roller (r/min)462
Speed of the stripping roller (r/min)557
Installed power (kW)7.49
Overall dimension (mm)6787×1618×4122
Net weight (kg)About 5800







Company Information







Certifications







Packaging & Shipping










Our Exhibition







FAQ


Q: How's the after-sale service?


A: We offer engineers available to service overseas under merchandiser's supervision and translation.





Q: Are you available for on-the-spot invitation?


A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.





Q: Is the price offered changeable?


A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.





Q: How about the quality?


A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.





Q: Are you a manufacturer or Trade Company?


A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.





Q: Product /Quality Guarantee and After Sale Service?


A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
