Full Electric Vacuum Lifter for Marble
- OEM & ODM Service -
Product Description
SAGAFIRST Brand Vacuum Lifter are specially designed for handling different kinds of heavy plate,board and glass,useful for installing steel board,glass wall,moving such as granite,marble.Easily handle lifting,moving and rotating with vacuum suction caps and powerful drive system.

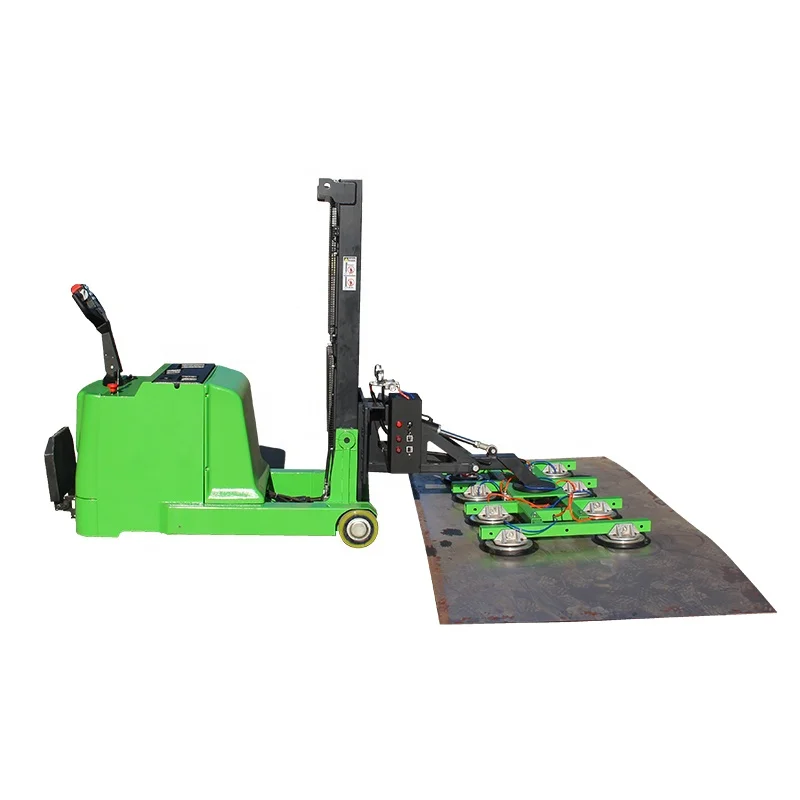

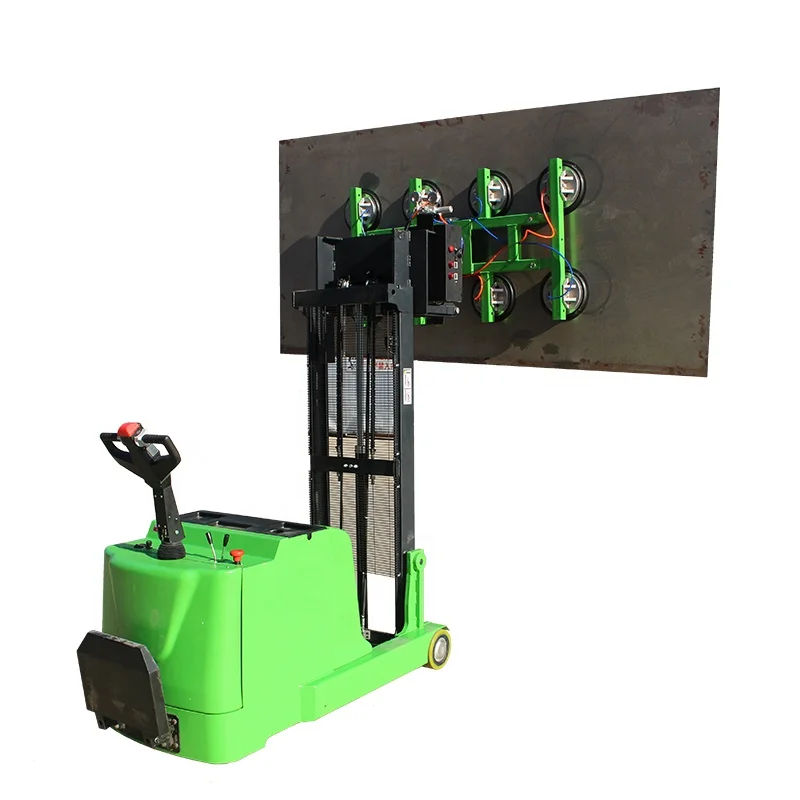

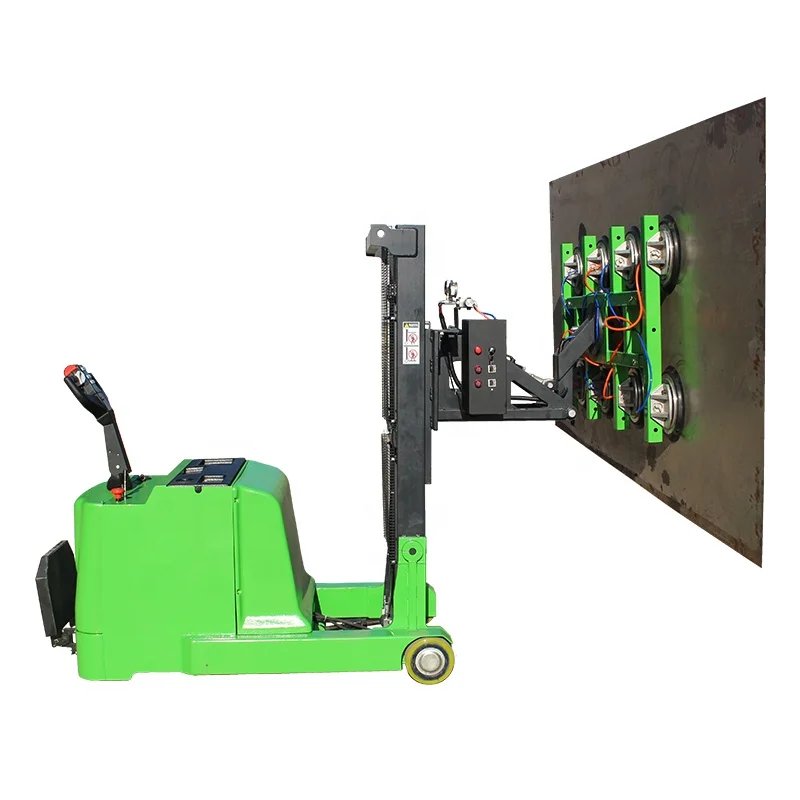

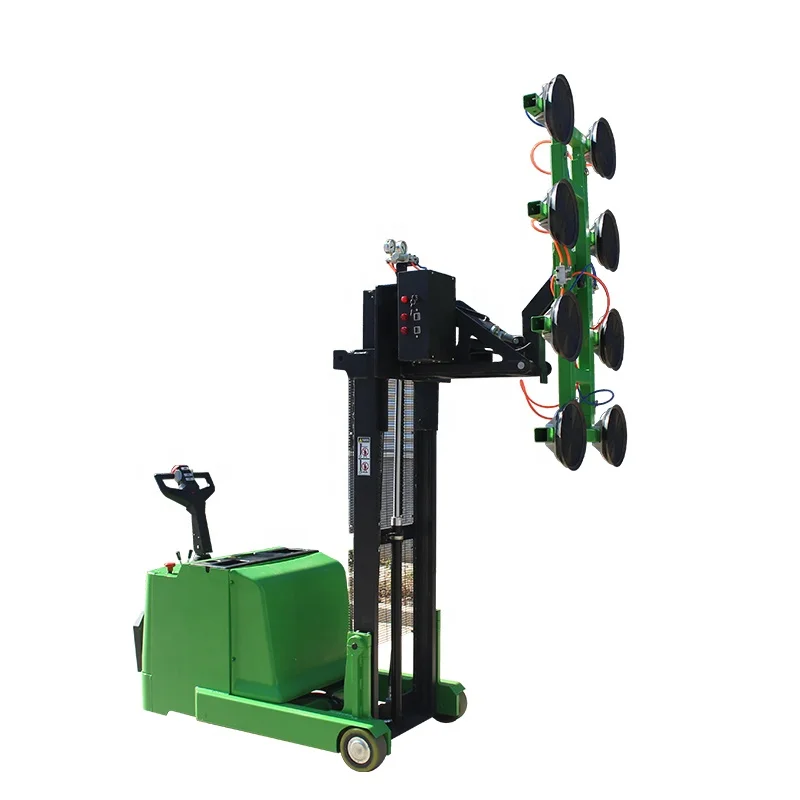

GL-HD series Vacuum Lifter: heavy duty vacuum lifter,easy to move around
Self-propelled drive,Higher lift cap,available upon request.Electric side shift 100mm both right/left. Electric tilting forwards/backwards from vertical to horizontal or reverse.Suction plate is manual rotating.
Model | GL-HD-4015 | GL-HD-6015 | GL-HD-8015 | GL-HD-8025(8) | GL-HD-8025(10) |
Max. Load Capacity | 400kgs | 600kgs | 800kgs | 800kgs | 800kgs |
Safe Load Capacity | 200kgs | 300kgs | 400kgs | 400kgs | 400kgs |
Lifting Height | 1500mm | 1500mm | 1500mm | 2500mm | 2500mm |
QTY of Caps(CUSTOM) | 4pcs/6pcs | 4pcs/6pcs/8pcs | 6pcs/8pcs/10pcs | 8pcs | 10pcs |
Cap Diameter(CUSTOM) | Ø300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
Plate Size(CUSTOM) | 1220x1830mm | 2440x1830mm | 3660x2440mm | 3660x2440mm | 3660x2440mm |
Load Center | 650mm | 950mm | 1250mm | 1250mm | 1250mm |
Drive Motor | 24V/500W | 24V/700W | 24V/900W | 24V/900W | 24V/900W |
Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W |
Battery | 2x12V/70Ah | 2x12V/100Ah | 2x12V/160Ah | 2x12V/160Ah | 2x12V/160Ah |
Charger | 24V/10A | 24V/15A | 24V/20A | 24V/20A | 24V/20A |
1. Self-propelled drive. Manual rotating.
2. Electric lift up to 1.5M 2.5M
3. Higher lift cap. is available upon request.
4. Electric side shift 100mm both right & left.
5. Electric tilting forwards/backwards from vertical to horizontal or reverse.
Options
GL-HD series is of floor crane chasis. The 2pcs of front supporting legs can be customized to balance wheel, using in combine with a CNC machine. Its max lifting height is 1.6m to 2.6m with 90° vertical up/down .It's widely used to handle and move heavy panels in workshop and warehouse,like handle marbles to a CNC machine for cutting and move to another place.Price is economic.
Detailed Images
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve
3. Emergency decline valve 4. Overload protection locking device.
5. DC power,safety and security 6. DUAL circuit vacuum system
Applications
Sagafirst Vacuum Lifter is specially designed for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
Certifications
All of sagafirst scissor lift tables are approved by European certificates and meet the international standards.
