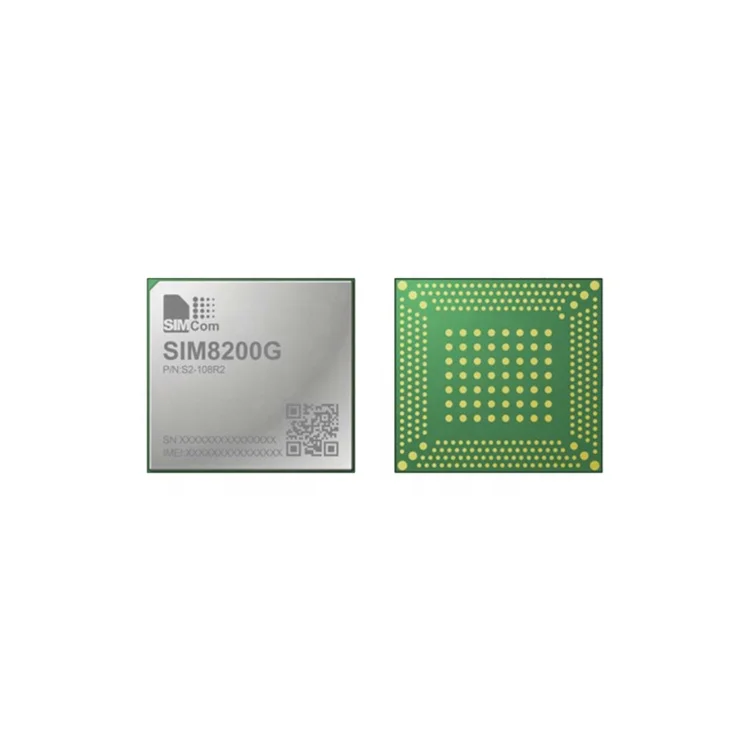

SIMCOM SIM8200G 5G Module R15 5g NSA/SA Up To 4.0 Gbps Data Transfer Sub6G/LTE FDD/LTE TDD/WCD
- Category: >>>
- Supplier: Shenzhen Pengchuangda Electronic Co. Ltd.
Share on (62583784970):
Product Overview
Description
SIMCOM SIM8200G 5G NR/LTE FDD/LTE TDD/HSPA+ Module R15 5g NSA/SA Up To 4.0 Gbps Data Transfer Sub6G/LTE FDD/LTE TDD/WCD
Product Description
| The SIM8200G is MultiBand 5G NR/LTEFDD/LTETDD/HSPA+ module solution in a LGA type which supports R15 5g NSA/SA up to 4.0 Gbps data transfer. It has strong extension capability with rich interfaces including UART,PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application. The package of SIM8200G is LGA form factor. This also minimize the investments of customers, and enables a short time to market. It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications. |
Product Details
General Features
Supply voltage range: 3.3V ~ 4.3V
Control Via AT Commands
Operation temperature: 40℃ ~ +85℃
Dimensions: 41.0*43.6*2.8mm
Weight: TBD
Sub6G/LTEFDD/LTETDD/WCDMA
Support UL 2XCA
GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS
Control Via AT Commands
Operation temperature: 40℃ ~ +85℃
Dimensions: 41.0*43.6*2.8mm
Weight: TBD
Sub6G/LTEFDD/LTETDD/WCDMA
Support UL 2XCA
GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS
Other Features
USB Driver for Microsoft Windows Win7/Win8/Win10
USB Driver for Linux /Android
RIL supporting for Android 5.0/6.0/7.0/8.0
RNDIS /NDIS/PPP/MBIM to Win8
Firmware update via USB
TCP/IP/IPV4/IPV6/MultiPDP/FTPS /HTTPS/MQTTS/DNS
SSL3.0/TLS1.0/TLS1.2
DTMF (Sending and Receiving)
VoNR/VoLTE/CSFB
FOTA/OTA
AGPS/SUPL2.0
USB Driver for Linux /Android
RIL supporting for Android 5.0/6.0/7.0/8.0
RNDIS /NDIS/PPP/MBIM to Win8
Firmware update via USB
TCP/IP/IPV4/IPV6/MultiPDP/FTPS /HTTPS/MQTTS/DNS
SSL3.0/TLS1.0/TLS1.2
DTMF (Sending and Receiving)
VoNR/VoLTE/CSFB
FOTA/OTA
AGPS/SUPL2.0
Approvals
RoHS Compliant
CCC*
CTA*
SRRC*
REACH*
CE*
FCC*
GCF
RCM
CCC*
CTA*
SRRC*
REACH*
CE*
FCC*
GCF
RCM
Data
Sub6G
Uplink up to 450Mbps
Downlink up to 4 Gbps
LTE CAT22
Uplink up to 200Mbps
Downlink up to 2.4Gbps
HSPA+
Uplink up to 5.76Mbps
Downlink up to 42.0Mbps
Uplink up to 450Mbps
Downlink up to 4 Gbps
LTE CAT22
Uplink up to 200Mbps
Downlink up to 2.4Gbps
HSPA+
Uplink up to 5.76Mbps
Downlink up to 42.0Mbps
Interfaces
USB2.0 with High speed up to 480Mbps
USB3.1 with SS Gen2
UART
USIM and ESIM interface(1.8V /2.85V)
Digital Audio through PCM
I2C
I2S for Audio
SPI
ADC
GPIOs
RGMII
PCIe Gen3
SDIO3.0
WIFI
PMI
Antenna x 8
USB3.1 with SS Gen2
UART
USIM and ESIM interface(1.8V /2.85V)
Digital Audio through PCM
I2C
I2S for Audio
SPI
ADC
GPIOs
RGMII
PCIe Gen3
SDIO3.0
WIFI
PMI
Antenna x 8
