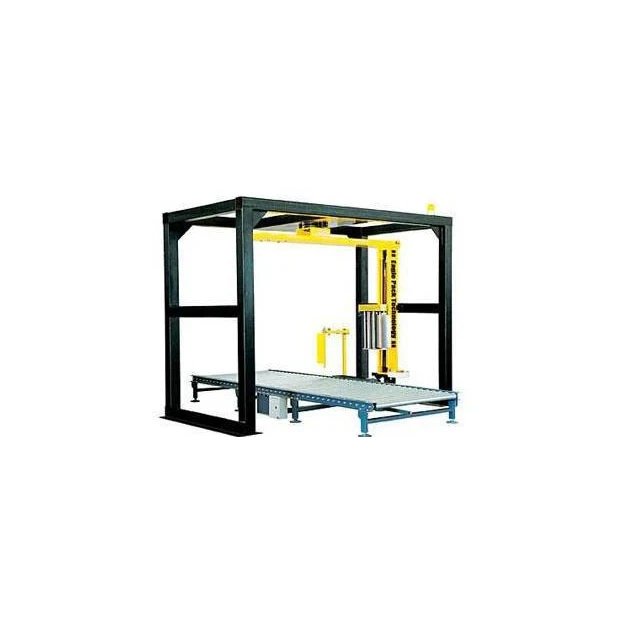

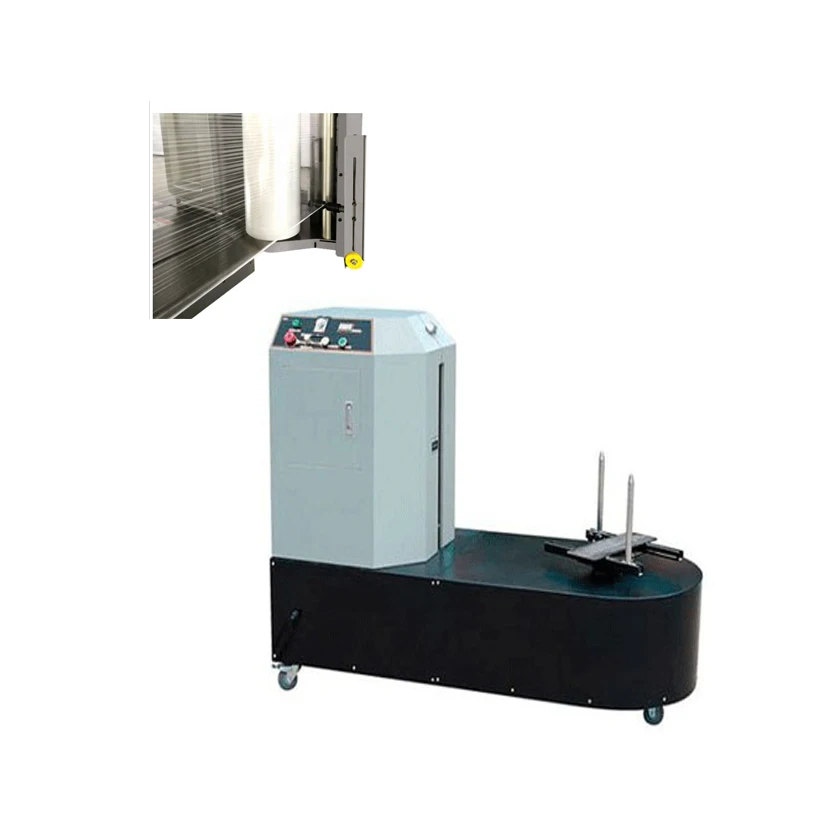

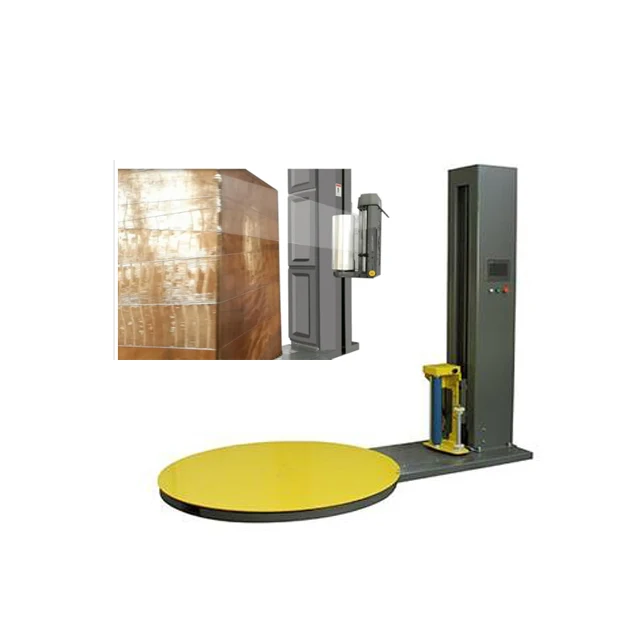

Pallet /Skid Turntable Stretch Film Wrapper Packaging /Packing / Shrink Wrap/ Wrapping Machine with Scale
- Category: >>>
- Supplier: Shanghai Greawoo Machinery Equipment Co. Ltd.
Share on (62583893035):
Product Overview
Description
Product Description

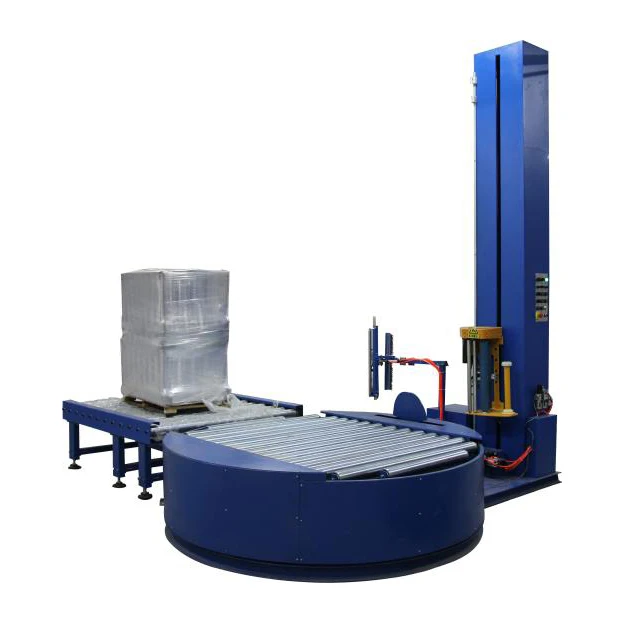

Fully Automatic Conveyor Type Pre-stretch Wrapping machine is a traditional turntable rotary type machine that has been designed to be as automatic as possible. Once the film has been loaded into the film jaw clamps there is no need to attach the film to the pallet in the normal way. At the end of the cycle the machine cuts the film with a hot wire, secures the tail end on to the pallet and then grips the film ready for the next load. It even comes with ontrol so if loaded by a lift truck the driver does not have to get out of his vehicle.
Turntable System
Rotary variable speed 0-12 rpm adjustable by frequency changer.
The turntable automatically reset when packaging finished over.
The turntable select the pure steel high wear-resistant material.
Film Delivery System
The film carriage for dynamic pre stretching mechanism, stretching up to 250%, reduce the film consumption.
Film feeding speed is adjustable, separate DC motor control.
The film frame rising and falling speed alone adjustable.
The film frame is the pure aluminum film frame, light and stable.
Selection of wear resistant rubber roller, long service life.
Film system with servo mechanism, pull.
The lifting column is double chains structure, stable and reliable.
Optional Function
The open film frame:Ease to wear membrane and replace membrane volume.
Ramp: easy to use trolley to carry the goods.
Film automatic installing and breaking.
The Control Systerm
PLC programmable control.
The top and bottom winding layers and numbers,crossing the top time, reinforcement plies 0-9 can directly set on the panel.
Simple operation: just press the automatic function button, can complete the whole packaging process.
Photoelectric switch, automatic sensing cargo height.
Excellent selection of electrical control components, high reliability.
Automatic and manual conversion at any time.
PLC programmable control.
The top and bottom winding layers and numbers,crossing the top time, reinforcement plies 0-9 can directly set on the panel.
Simple operation: just press the automatic function button, can complete the whole packaging process.
Photoelectric switch, automatic sensing cargo height.
Excellent selection of electrical control components, high reliability.
Automatic and manual conversion at any time.
Turntable System
Rotary variable speed 0-12 rpm adjustable by frequency changer.
The turntable automatically reset when packaging finished over.
The turntable select the pure steel high wear-resistant material.
Film Delivery System
The film carriage for dynamic pre stretching mechanism, stretching up to 250%, reduce the film consumption.
Film feeding speed is adjustable, separate DC motor control.
The film frame rising and falling speed alone adjustable.
The film frame is the pure aluminum film frame, light and stable.
Selection of wear resistant rubber roller, long service life.
Film system with servo mechanism, pull.
The lifting column is double chains structure, stable and reliable.
Optional Function
The open film frame:Ease to wear membrane and replace membrane volume.
Ramp: easy to use trolley to carry the goods.
Film automatic installing and breaking.
Specification
Max. wrapping height | 2000mm |
Max. loading weight | 2000kg |
Max. turntable speed | 12rpm/min |
Max.efficiency | 25loads/hour |
