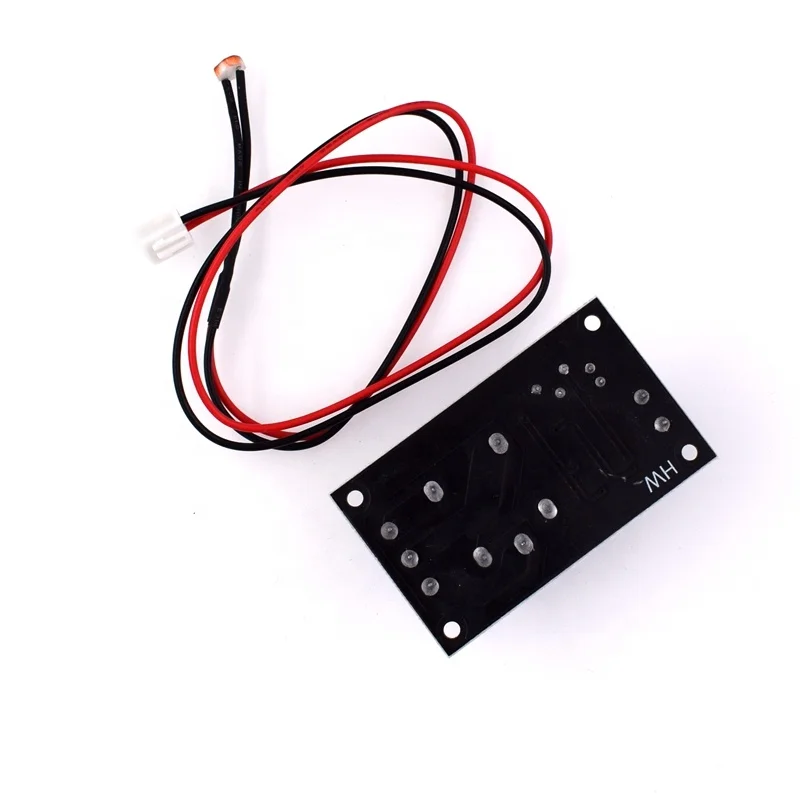

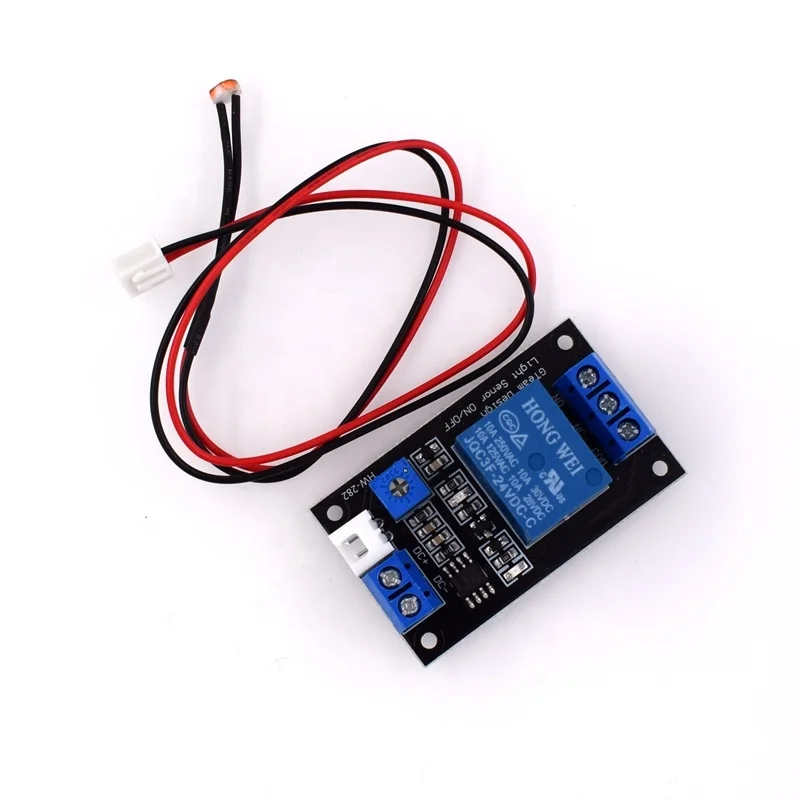

#282C Photoresistor Relay Control Module Light Control Switch relay module DC24V

Features:
1. Adopt photoresistor to sense the intensity of light, with its own relay, which can directly control AC or DC load, the maximum load capacity of normally open interface: AC 0V-250V / 10A, DC 0V--30V / 10A;
2. The sensitivity can be adjusted by the potentiometer, and the threshold of the starting relay can be set by adjusting the potentiometer. When it is darker than this threshold, the module relay pulls in, and when it is brighter than this threshold, the relay is released;
Intelligent adjustment design, when the relay is activated, the action threshold is automatically fine-tuned to solve the problem of repeated action of the threshold;
3. The module has anti-reverse connection function, reverse connection of the power supply will not damage the module;
4. Equipped with power indicator (red), road relay status indicator (blue)
5. Module working voltage: 24V
6. There are 4 fixing bolt holes for easy installation;
7. Module size: 5.0cm * 3.0cm * 1.8cm;
