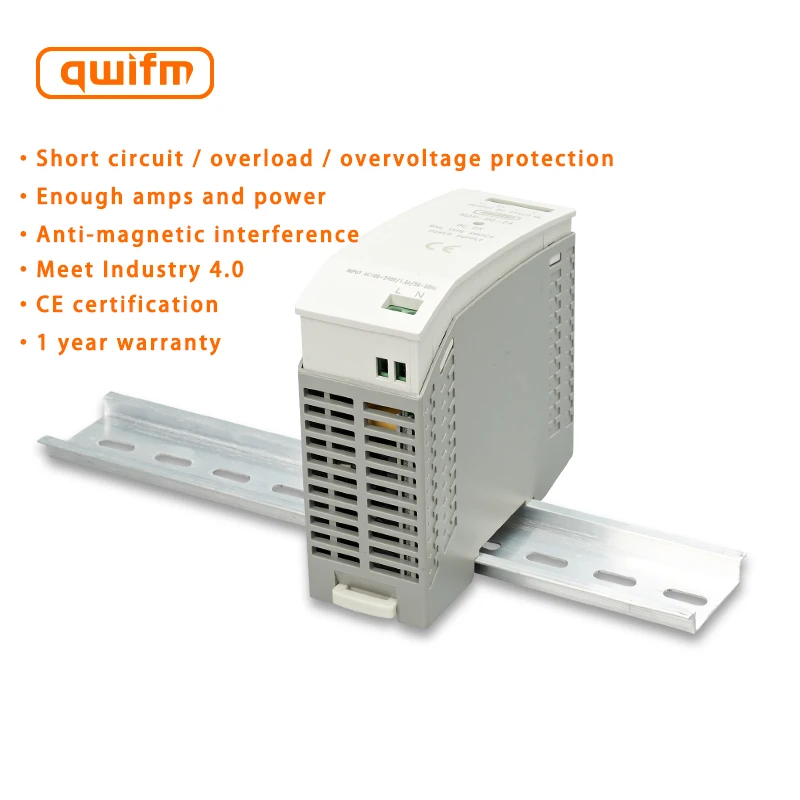

High Voltage 12V 1A Switching Power Supply For Automation Industry
- Category: >>>
- Supplier: Shanghai Nature Beyond Electric Technology Co. Ltd.
Share on (62584133587):
Product Overview
Description
Product Detail
| Model | NDR-45-12 | NDR-45-24 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 4A | 2A | |
| Current Range | 0~4A | 0~2A | |
| Rated Power | 45W | ||
| Ripple & Noise | 80 mVp-p | 120 mVp-p | |
| Input | Voltage Range | 85~264VAC, 120~370VDC | |
| Frequency range | 47-63Hz | ||
| Efficiency | 84% | 87% | |
| Inrush Current | Cold Start, 20A /110VAC; 40A /220VAC | ||
| Protection | Over load | 105%-150% rated output power | |
| Protection type: Constant current liimiting, recovers automattically after fault condition is removed | |||
| Over Voltage | 115%-135% rated output voltage | ||
| Protection type: Shut down o/p voltage, re-power on to recover | |||
| Over temperature | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| Environment | Working Temp & Humidity | ·-20-60°C 20-90% RH non-condensing | |
| Storage Temp & Humidity | ·-40-85°C 10-90%RH | ||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC within 1 min | |
| EMC Emission | Compliance to EN55032:2015 , EN61000-3-2 :2014, | ||

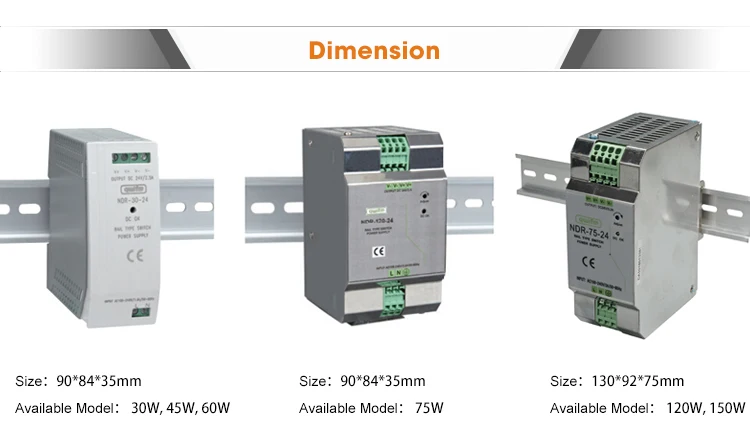

| Others | Dimension | 90*84*35mm (W*H*D) | |
| Packing | 0.2kg/pcs; 60pcs/18kg/1.06CURT | ||
