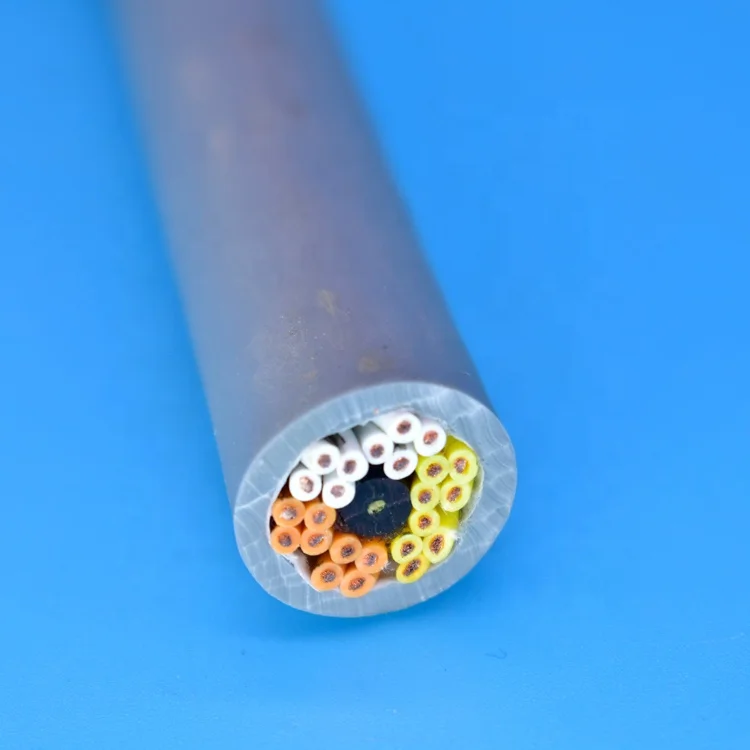

Flexible 24x0.5mm towline cable LiYCY cable
- Category: >>>
- Supplier: Derul Cable (Shanghai) Co. Ltd.
Share on (62584140191):
Product Overview
Description
Products Description
Product Name | Flexible 300v/500v 24x0.5mm towline cable 24 core LiYCY cable |
Article Type | DERUL-A1452 rov tether/robot cable/underwater umbilical/crane cable |
Constructure | Conductor+insulation+fiber optic+coaxial+shielding+sheath |
Conductor | Copper/tinned copper/silver plated copper |
Insulation | PE/PVC |
Shielding | Braided tinned copper/Aluminum foil |
Voltage | 300-1000V |
Diameter | TBD |
Sheath Color | TBD |
Applications | ROV/UAV/crane/elevator/underwater drone/sewer robot/cctv pipe crawler |
MOQ | 300-500 meters |
Sample term | Free sample on stock with freight collect |
Product lead time | 10-15 working days after payment received |
Shipping lead time | 7-10 working days by DHL/FEDEX/TNT/UPS... |
Payment term | T/T, Paypal, full payment before shipped. Negotiable. |
Application range:
Trailer cables are mainly used in industrial electronic systems, automatic generation lines, warehousing equipment, robots, fire fighting systems, cranes, CNC machine tools and metallurgical industry. When equipment units need to move back and forth, in order to prevent cable entanglement, abrasion, pull-off, hanging and scattering, cables are often placed in cable tow chains to protect the cables, and the cables can also move back and forth with the tow chains.
Trial in dry or wet rooms, without the installation of free continuous reciprocating motion with strong stress relief or forced guidance, especially in frequent reciprocating motions in industrial environments, such as woodworking machinery, machine tool processing equipment, logistics conveyor systems, crane applications and so on.
Application range
For power tow chains or moving mechanical parts
For measuring, controlling and regulating circuits
Power circuit in automation engineering electrical equipment
Assembly line, production line, all machines
Equipment installation engineering

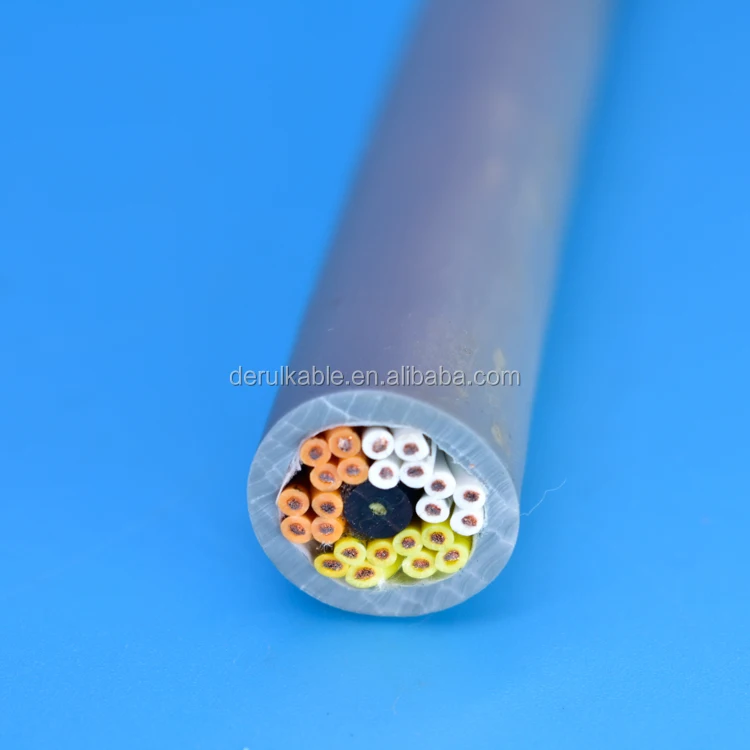

Cable structure
Ultra-thin bare copper wire stranded conductor (6 types)
Core insulation: PVC
The core wire is twisted with a short pitch
PVC inner sheath, grey
Tinned copper braided shield
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)
Technical certification
Core wire based on VDE 0245 / 0285
Outer sheath in accordance with VDE 0245/0285
Transmission distance ≤ 10 m
Product Features
Low viscosity surface
Flame retardant in accordance with IEC 60332-1-2
For wet indoors
Designed for bending cycles up to 2-8 million times in a power chain
Can be used outdoors only in the specified temperature range, UV protection
Trailer cables are mainly used in industrial electronic systems, automatic generation lines, warehousing equipment, robots, fire fighting systems, cranes, CNC machine tools and metallurgical industry. When equipment units need to move back and forth, in order to prevent cable entanglement, abrasion, pull-off, hanging and scattering, cables are often placed in cable tow chains to protect the cables, and the cables can also move back and forth with the tow chains.
Trial in dry or wet rooms, without the installation of free continuous reciprocating motion with strong stress relief or forced guidance, especially in frequent reciprocating motions in industrial environments, such as woodworking machinery, machine tool processing equipment, logistics conveyor systems, crane applications and so on.
Application range
For power tow chains or moving mechanical parts
For measuring, controlling and regulating circuits
Power circuit in automation engineering electrical equipment
Assembly line, production line, all machines
Equipment installation engineering
Cable structure
Ultra-thin bare copper wire stranded conductor (6 types)
Core insulation: PVC
The core wire is twisted with a short pitch
PVC inner sheath, grey
Tinned copper braided shield
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)
Technical certification
Core wire based on VDE 0245 / 0285
Outer sheath in accordance with VDE 0245/0285
Transmission distance ≤ 10 m
Product Features
Low viscosity surface
Flame retardant in accordance with IEC 60332-1-2
For wet indoors
Designed for bending cycles up to 2-8 million times in a power chain
Can be used outdoors only in the specified temperature range, UV protection
Why Choose Us
Derul Cable (Shanghai) Co.,Ltd
Derul Cable (Shanghai) Co., Ltd, an enterprise with high and cutting-edge technology, which is based on mature process and a excellent team composed of domestic technicians from cable industry, commits itself to the special design, manufacture and marketing. Derul Cable has built up since 2013 and products are mainly involved in power plant, port, mine, metallurgy, ship and other industrial equipment, etc. Derul Cable uses the best-in-class cable material to enhance the product lifespan, weathering resistance, bending resistance, abrasion resistance, and performance in high and low temperature.
We provide four series of products such as:
We provide four series of products such as:
- flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
- drum cable series ( elevator traveling cable, reeling cable, spreader cable, cable for oil drilling platform, cable for wind power and etc )
- Robot cable series ( cable for industrial robot, ROV, pipe inspection crawler, underwater camera, manipulator arm and etc )
- flat cable series ( cable for elevator, acid and alkali resistant cable, cable for plating equip and etc )
All products we produce conform to Europe CE Standard (CONFORMITEEUROPEENNE) and ISO9001:2015 quality management system.
Derul Cable, as a renowned cable manufacturer in China, is able to develop and customize various cables complying with customers' requirements.
Certificate
Customer Comments
Packing and Shipping
Recommend Products
FAQ
Q1: What can I get from your company?
A1: Our company, Derul Cable is a professional company that specialized in different cables specially in ROV cables, flexible cables, underwater cables, flat elevator cables and so on. We can not only provide you qualified products but also excellent services. Let us help you to grow your business!
Q2: What is your MOQ?
A2: If we have products in our stock, there is no MOQ. For customized cables, the MOQ is 100 meters or more. It depends on the specifications you need.
Q3: How can you ensure your product quality?
A3: We can provide samples before you place the bulk order. So you can check the product quality through the sample. We are a company that aims to provide high quality and good service to our customers. The products are using qualified raw materials. Our products are under CE requirements.
Q4: Do you do OEM service?
A4: Yes, we can customied the products for our customers. Please advise the detailed specifications you need. We will evaluate your needs and give our professional suggestions and best offer.
Q5: When can I receive the goods after I payed?
A5: Usually it will take 7 days to receive the goods.
Q6: What if I payed the money and you don't send the goods to me?
A6: It will never happens to you. We have trade assurance order on alibaba which can guarantee your order from beginning to the end.
Contact Us
Contact | Anna Zheng |
Email | anna(@)derulkable.com |
Mobile/WhatsApp/Wechat | +86 15968463797 |
Skype | ah_alading(@)outlook.com |
