XY 3 Water Well Borehole Core Drilling Machine
- Category: >>>
- Supplier: Dongying Jintan Petroleum Technology Equipment Co. Ltd.
Share on (62584164468):
Product Overview
Description

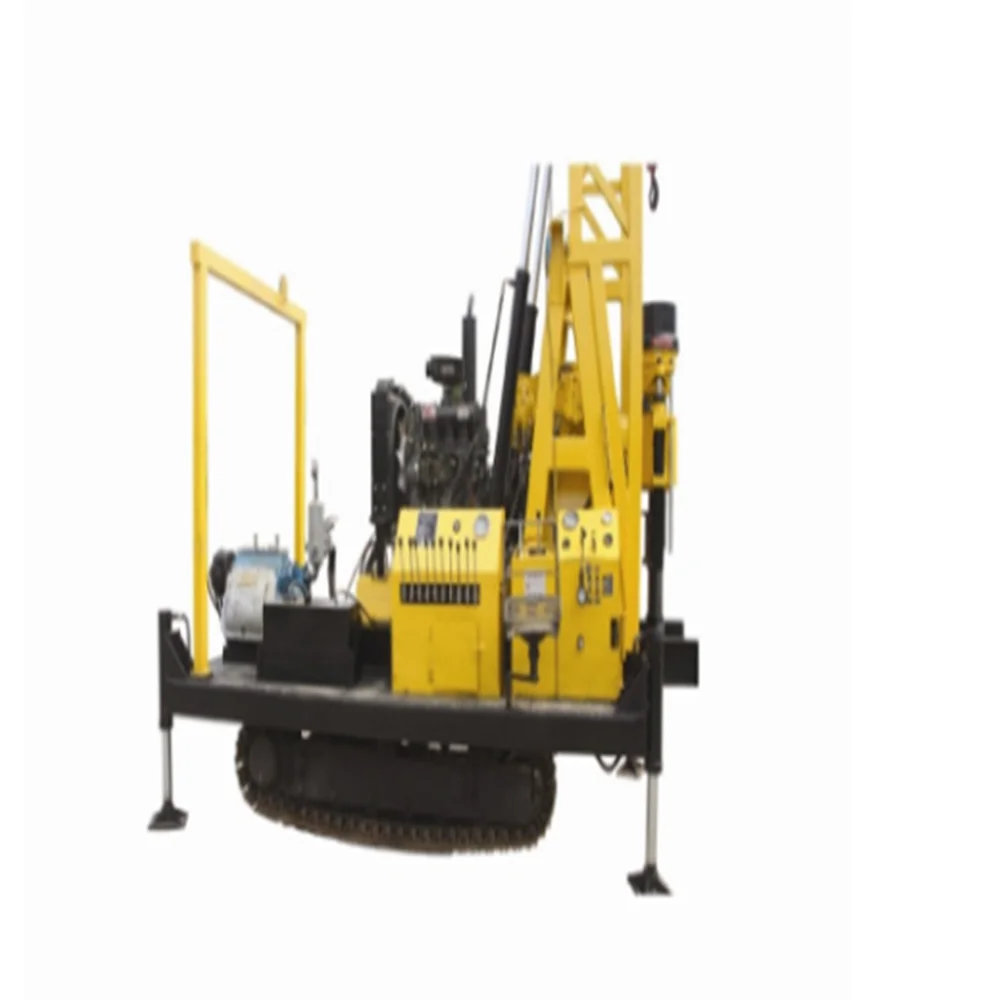

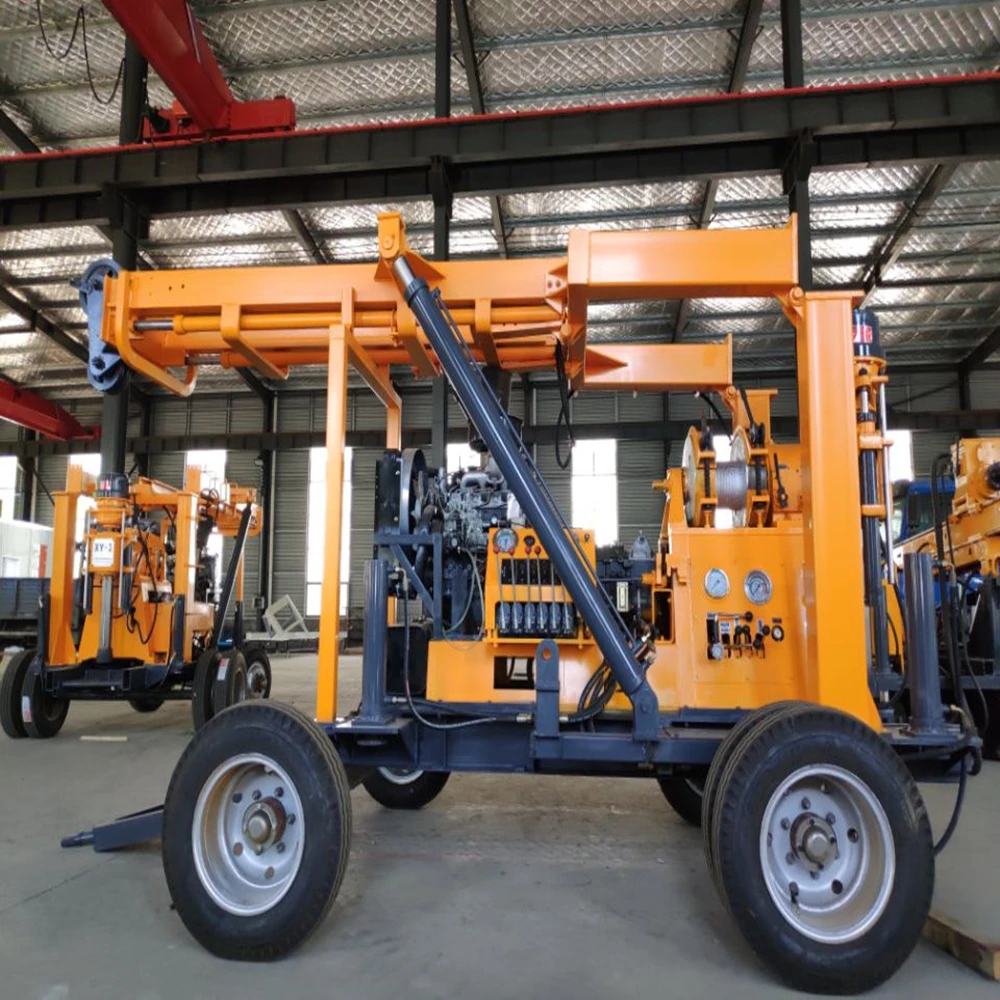

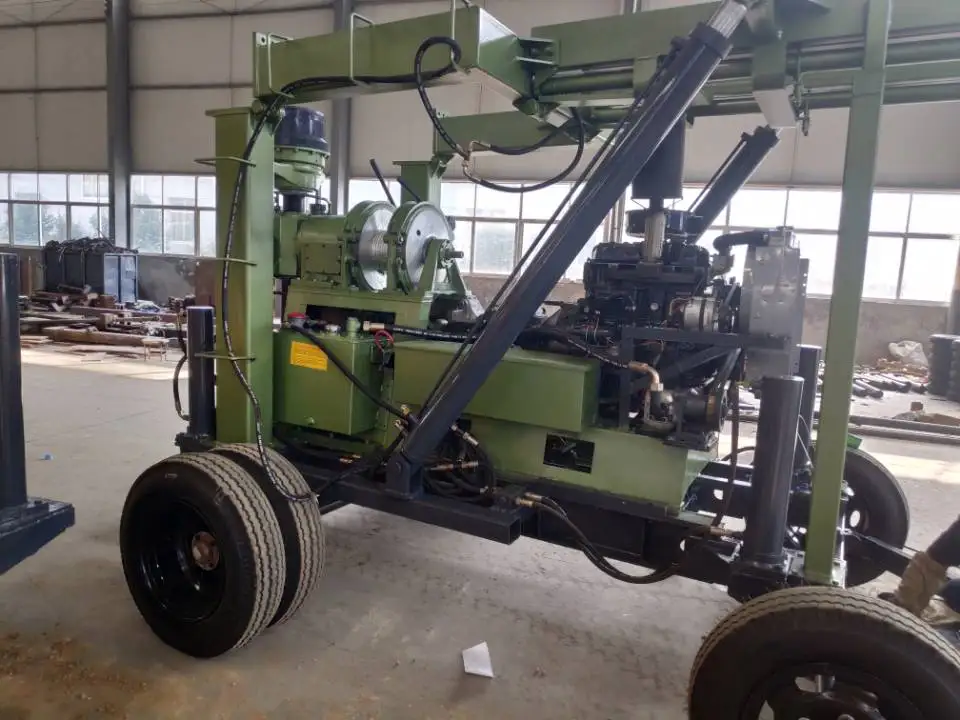

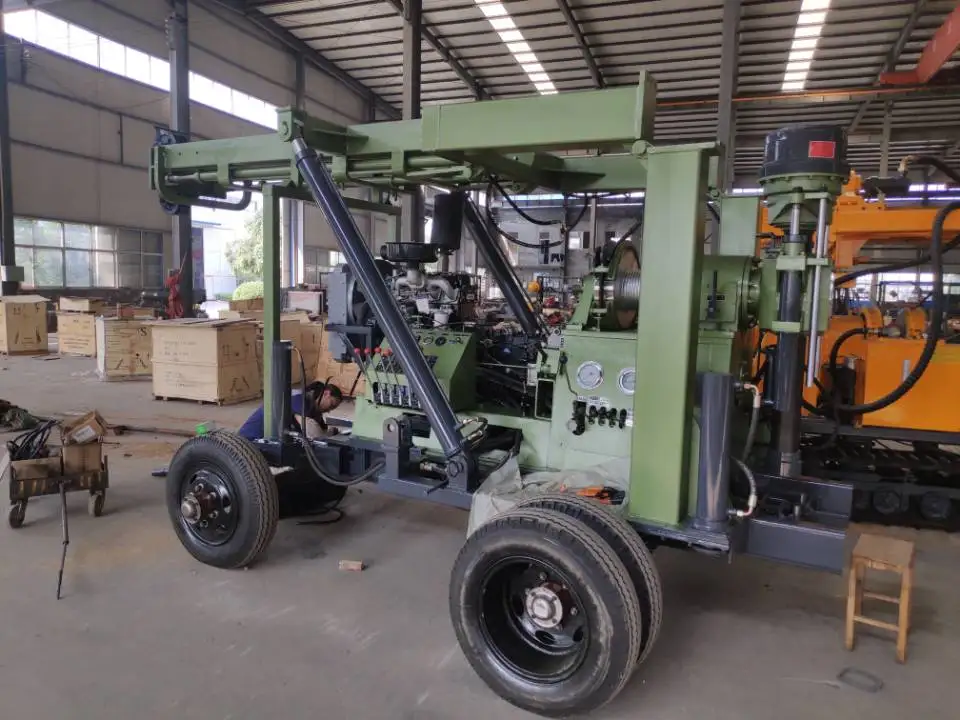

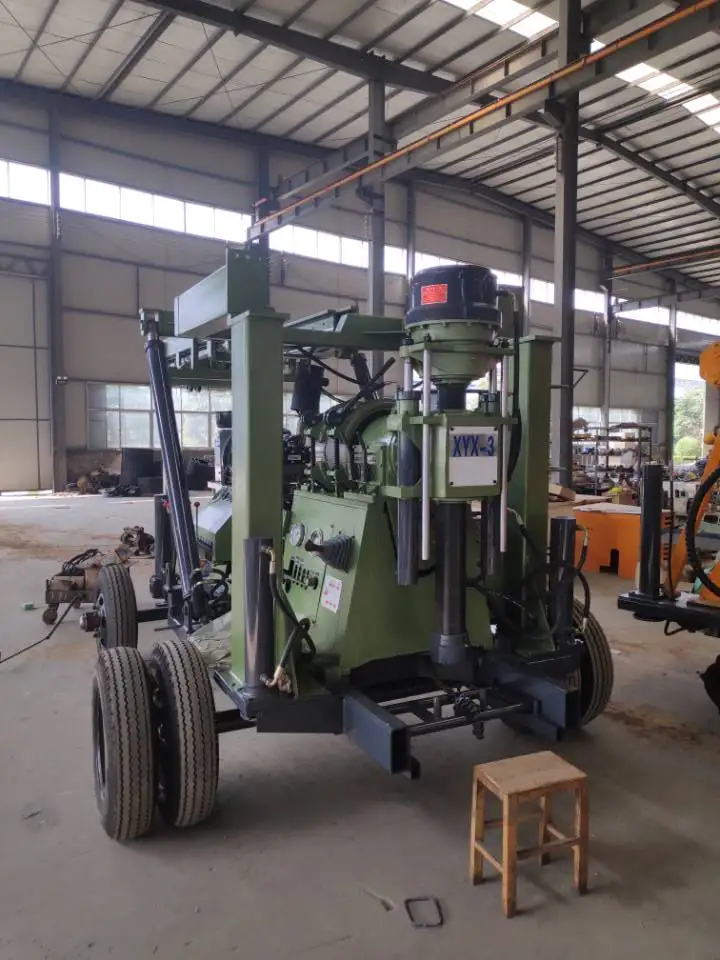

XY-3 Water Well Borehole Core Drilling Machine
Product Description
| XY-3 unity machine parameter | |
| Drilling depth | 600m |
| End hole caliber | 500-75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90°-75° |
| Drilling weight(No include power) | 560kg |
| Unity machine dimensions | 2.5*1*1.3 2.5*0.9*1.3m |
| Spindle | |
| spindle speed | 64.128,287,557r/min |
| Spindle stroke | 450mm |
| Hoist | |
Max single line hoisting capacity | 2400kg |
| Single line lifting speed | 17.35,75.151r/min |
| Tightrope caliber | 12.5mm |
| Tight rope cubic measure | 35m |
| Hhug floodgate caliber | 254mm |
| Hug floodgate belt width | 70mm |
| Distance between drill and hole | 400mm |
Mud pump -Specifications
Displacement | horizontal single urn twin-action |
| Diesel engine | 170L/min |
| Electric motor | S1115 model 22HP |
| Maximum pressure | Y160M-4 15KW 1440r/min |
| Work pressure | 1.5Mpa |
| Water inlet caliber | 0.7Mpa |
| Water to exit caliber | 40mm |
| Triangle conveyer belt | 30mm |
| Suit scope | B1728mm |
| Water well exploration |
Packaging & Shipping
Company Information
FAQ
1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly
to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
Our Services
Before sale: Reasonable solution based on the customer requirement.
Order service: Fax contract and transfer contract is available .
After sale: 1 year quality warranty and training of installing and debugging for free.
Fund service: Inner customer.48 hours arrive below 1000 km .72 hours arrive over 1000kw.
Foreign customer: We will arrived the destination as soon as possible .
Parts service: Every product parts has the stock to supply customer as soon as possible.
