Product Overview
Description
Product Description

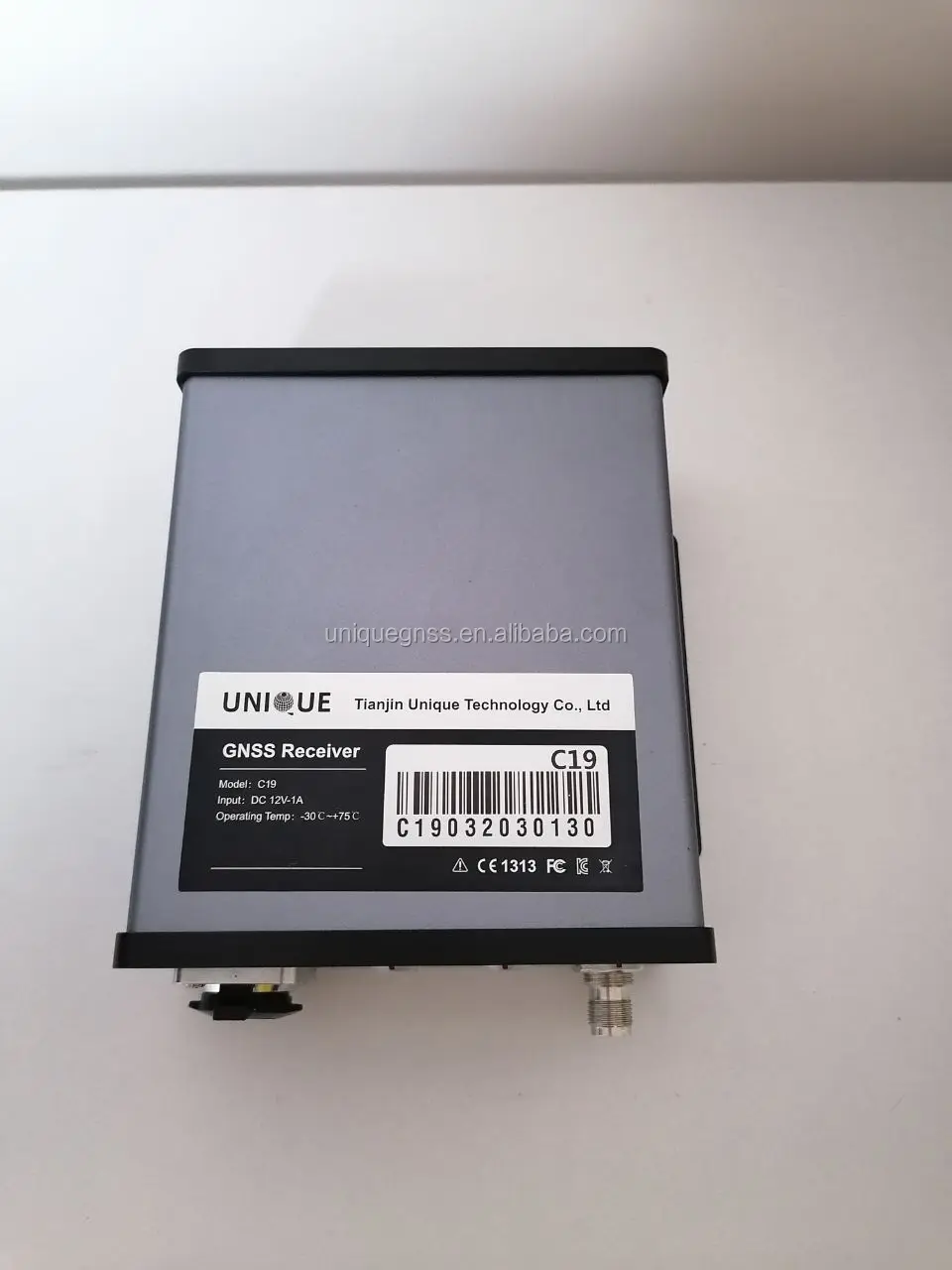

GNSS Receiver C19
The GNSS Receiver C19 uses a Trimble BD970 OEM board. It can be used in a variety of applications and is compatible with various platforms that can improve Single Base Station applications and any kind of VRS setup and suitable for deformation monitoring. An advanced type of self-locking connection is employed; the outer casing is made of aluminum alloy with a system that cools the machine. This self-cooling mechanism is coupled with anti-shock technology and more.
UNIQUENAV C19 built Cors station for better service to our users with our C19 GNSS RECEIVER. With UNIQUENAV C19 GNSS cors receiver, you can build your own Ntrip Caster system, provide your users with RTCM3. X diff data services, so that more rover receivers can obtain accurate coordinates at the centimeter level!!

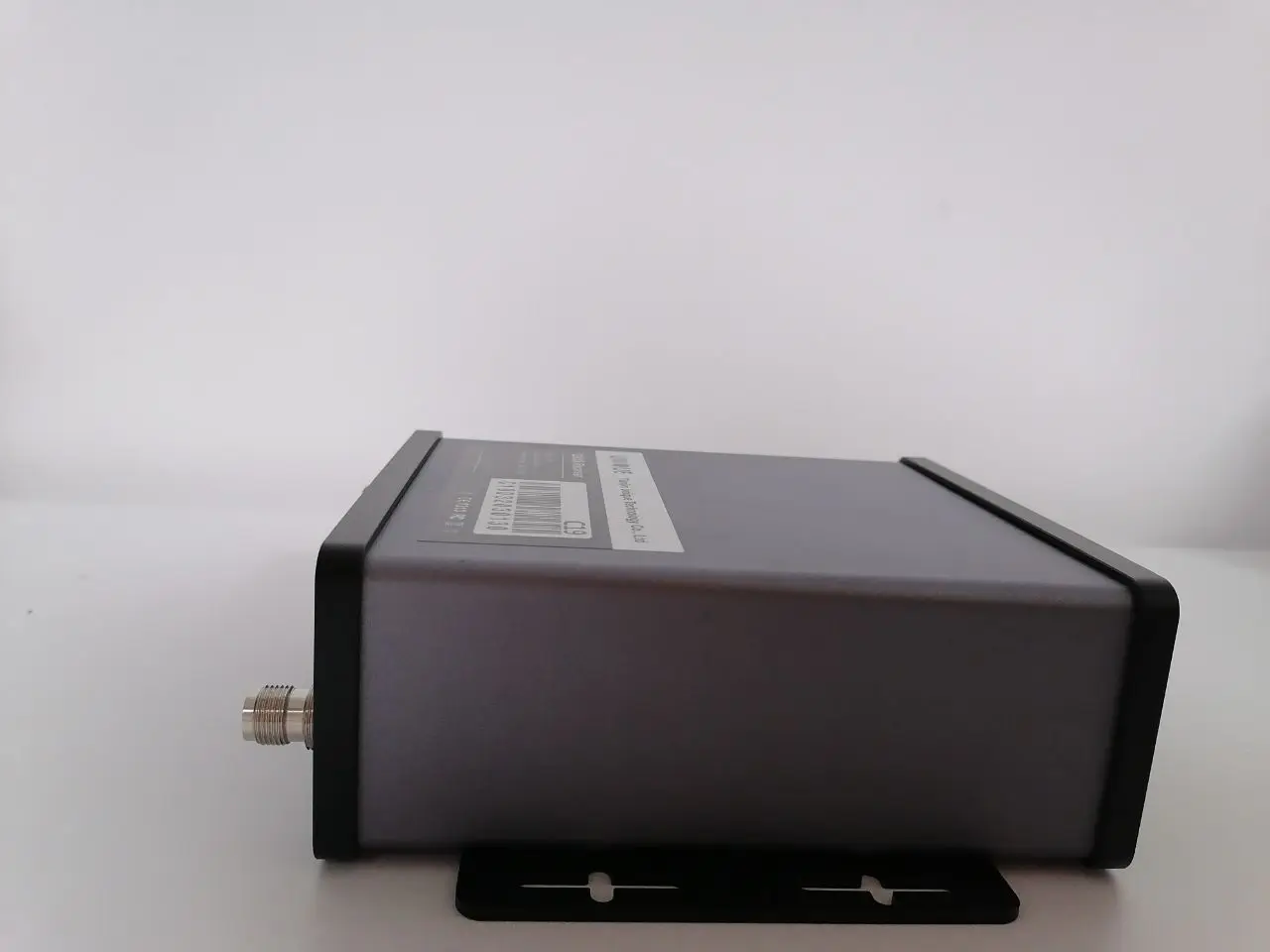

Detailed Images
Specification
Item | Parameter |
GNSS Module | Trimble BD970 |
Web Server | GNSS board embedded |
Power indicator | One LED light |
Ntrip Caster | GNSS board embedded |
Ethernet | RJ45 water-proof Ethernet port |
Serial Port | RS232 standard |
GNSS Antenna interface | TNC type at the same side with the other connector |
Shell material | Aluminum alloy |
Dimension | 167mm*128mm*59mm |
USB port | Optional, one fischer USB port for download static data |
1PPS&Event(Optional) | Optional, two SMA connectors for the functions |
Moving Base and Heading | Optional |
Battery | None |
Channels | 336 |
Signal Tracking | GPS: L1 C/A, L2E, L2C, L5 |
BeiDou: B1, B2 | |
GLONASS: L1 C/A, L1P, L2 C/A, L2P | |
Galileo: E1 BOC, E5A, E5B, E5AltBOC | |
SBAS: L1 C/A, L5 | |
QZSS, SBAS | |
Maximum rate | ＜50Hz |
Autonomous | 1m horizontal, 1.5m vertical |
SBAS | 0.5m horizontal, 0.85m vertical |
DGPS | 0.25m horizontal, 0.5m vertical |
RTK | 0.008m horizontal, 0.015m vertical |
RTK intialzation reliablity | ＞99.9% |
DC Input | 12V, 1A |
Operating temperature | -30℃~+75℃ |
Storage temperature | -40℃~+85℃ |
Operating humidity | 5%~95% (Noncondensing) |

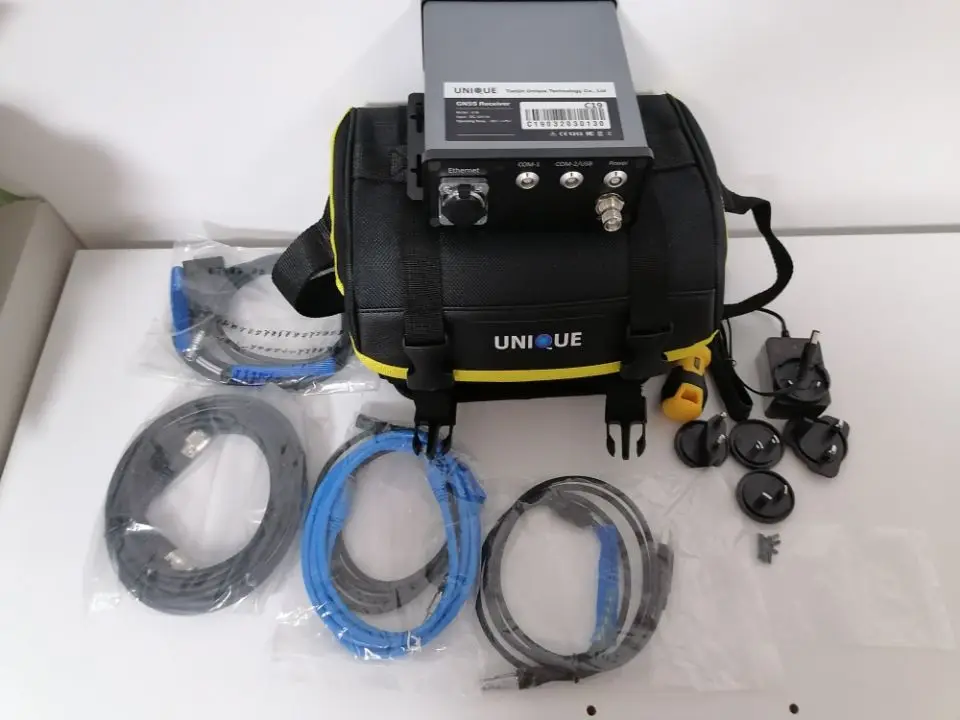

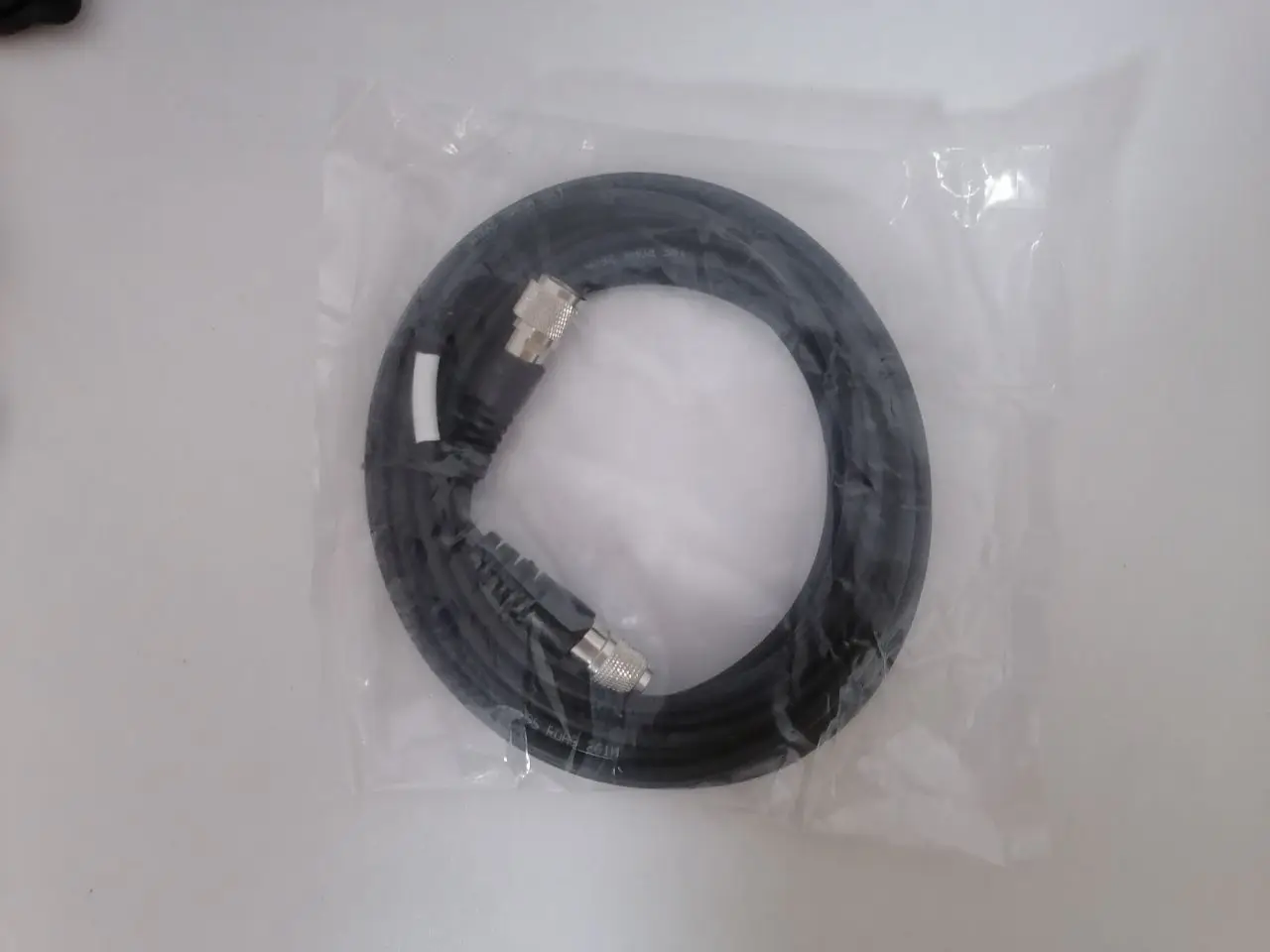

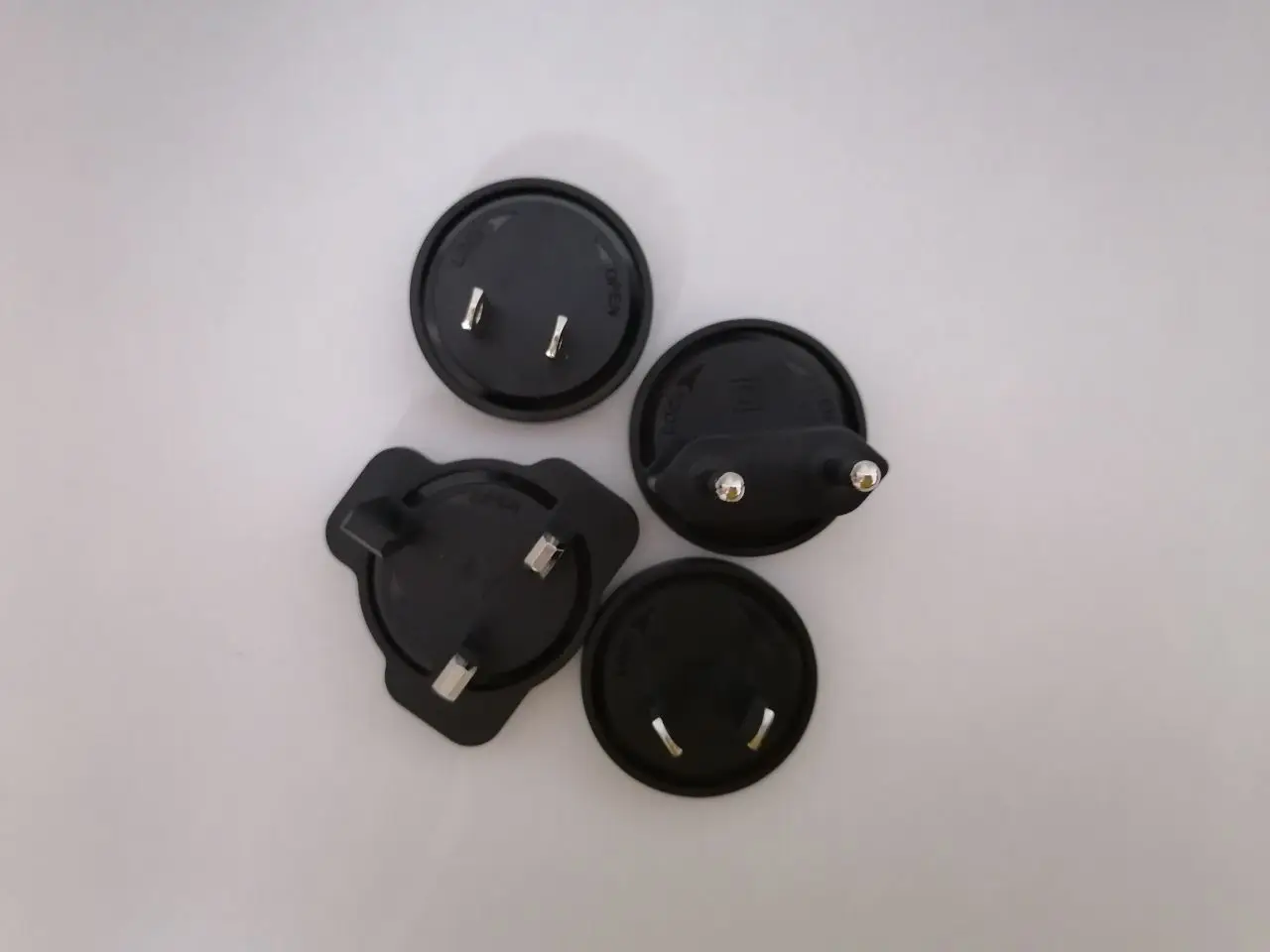

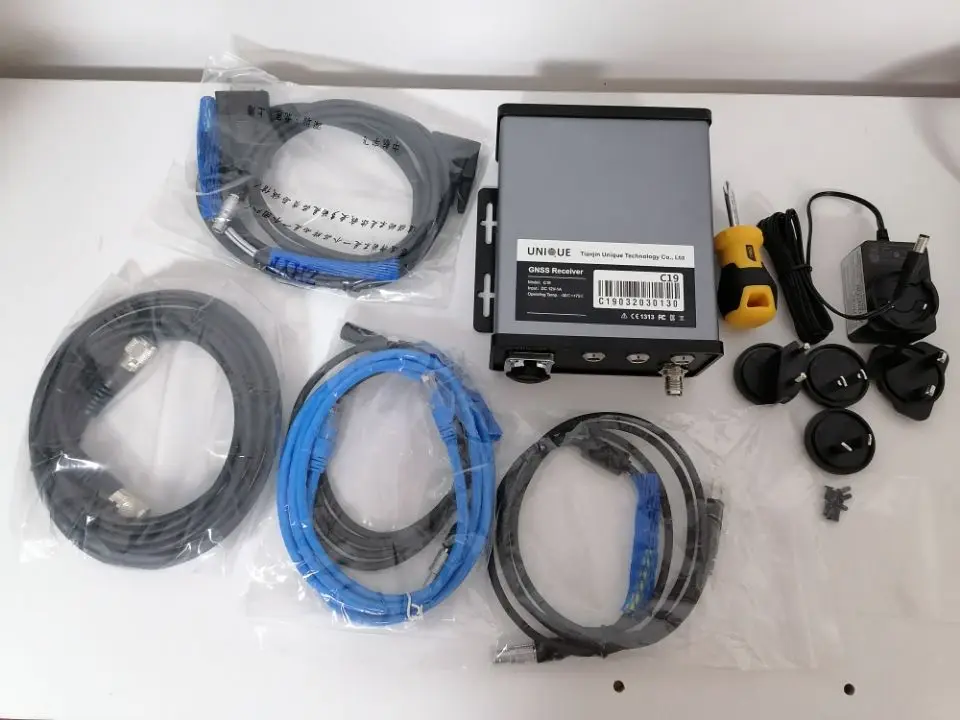

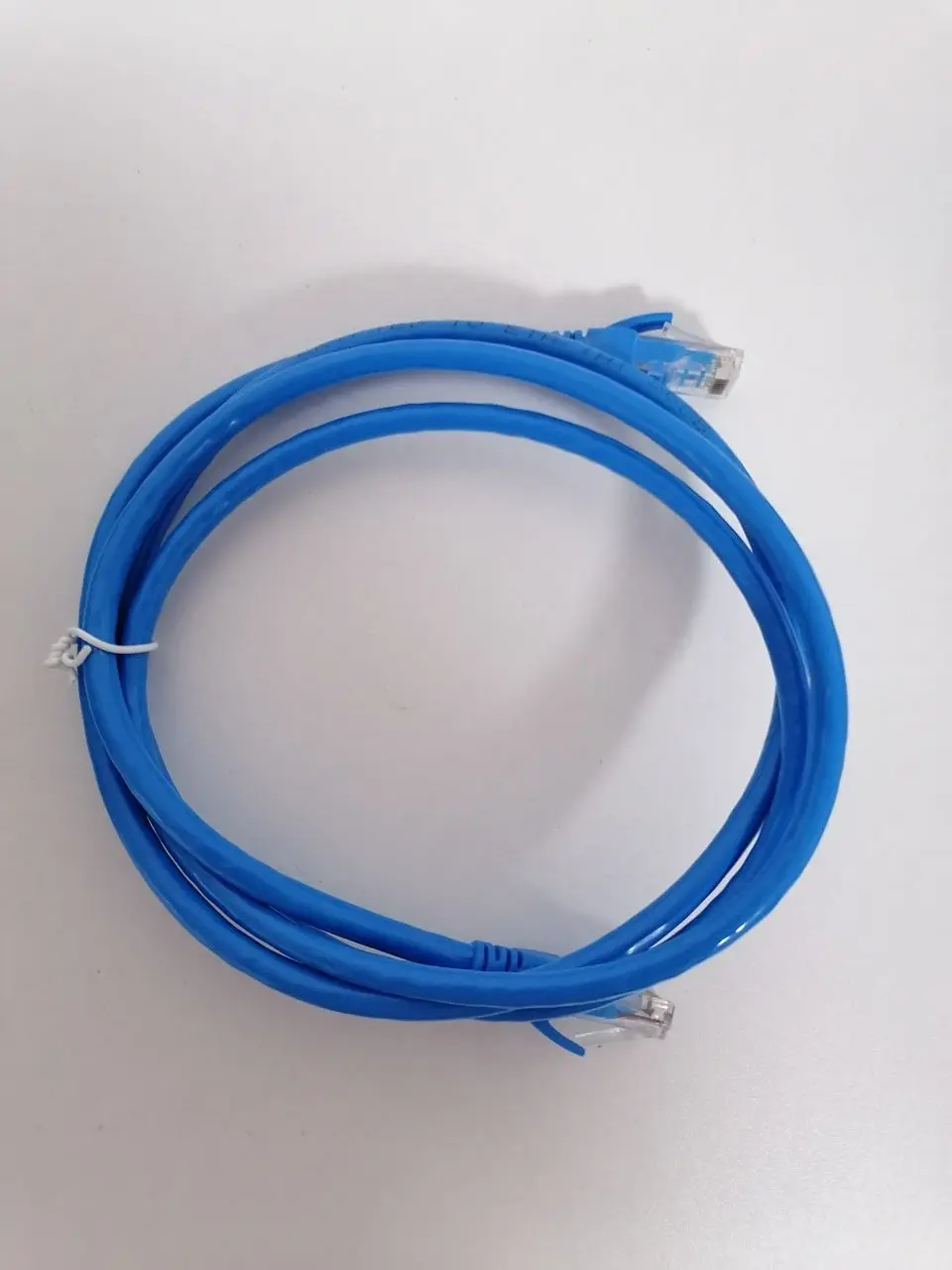

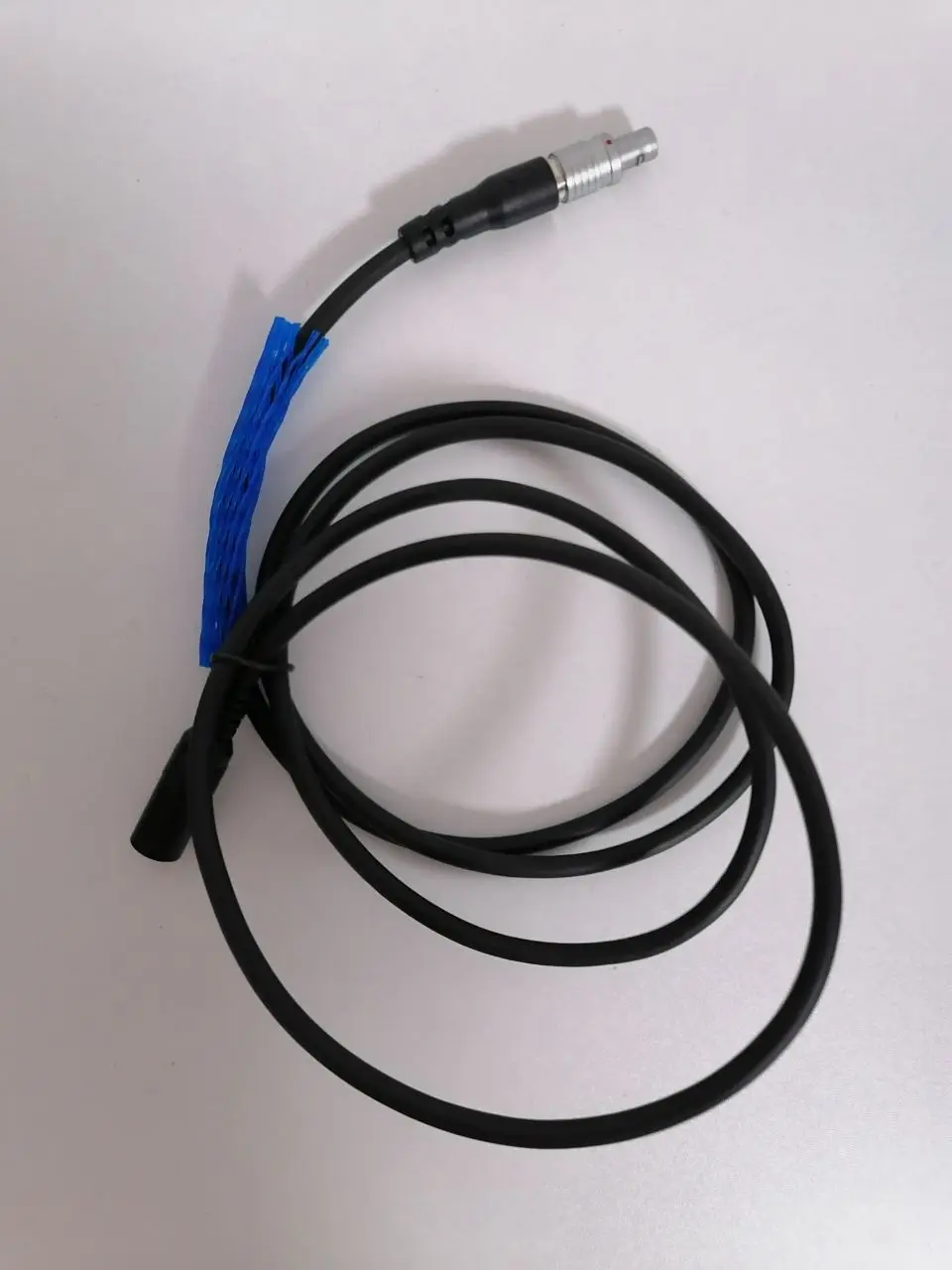

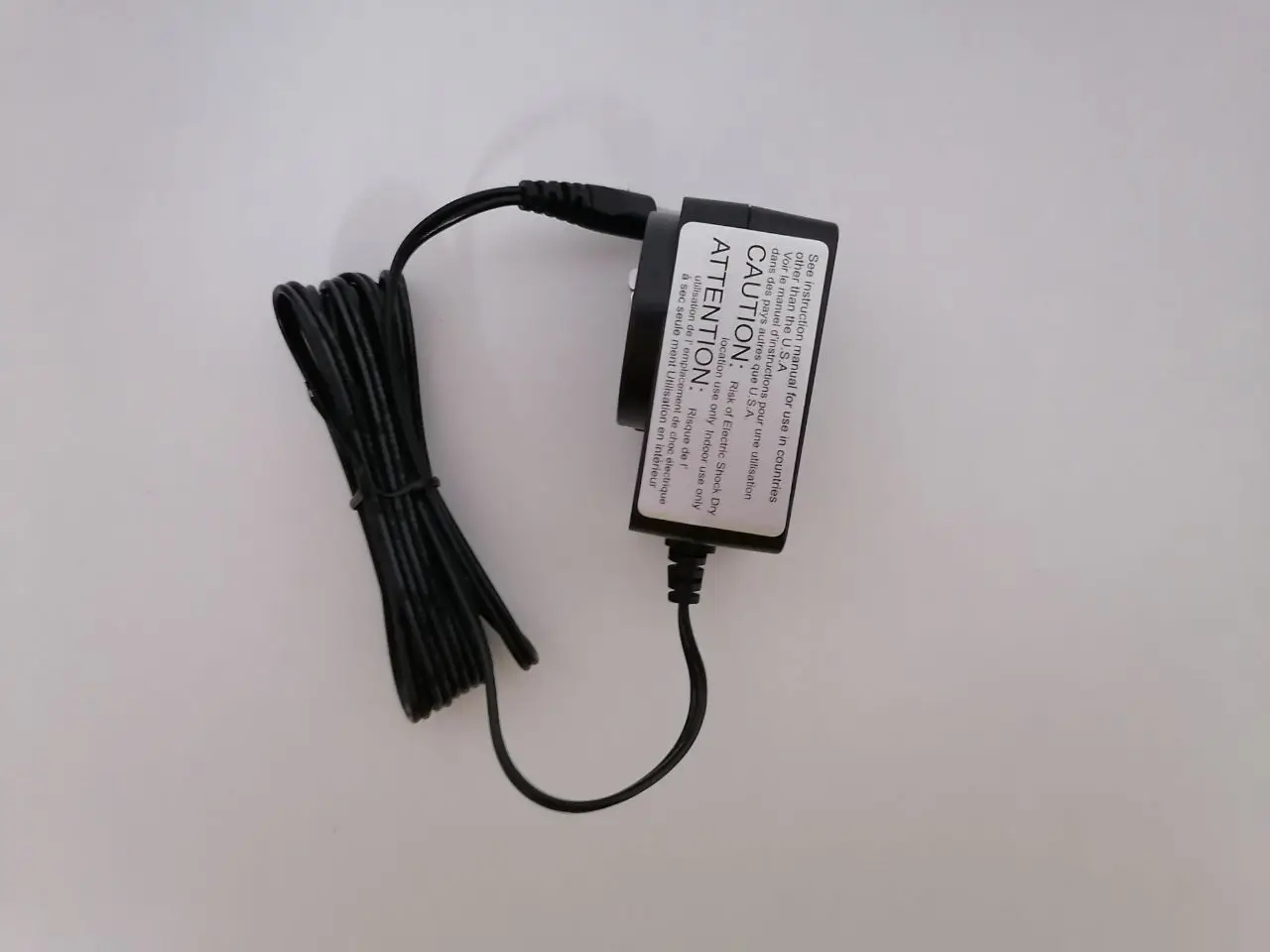

Standard Accessory | Power cable*1, Adaptor*1, Fischer to Serial Cable*1, RJ45 cable*1, TNC to TNC cable*5m |

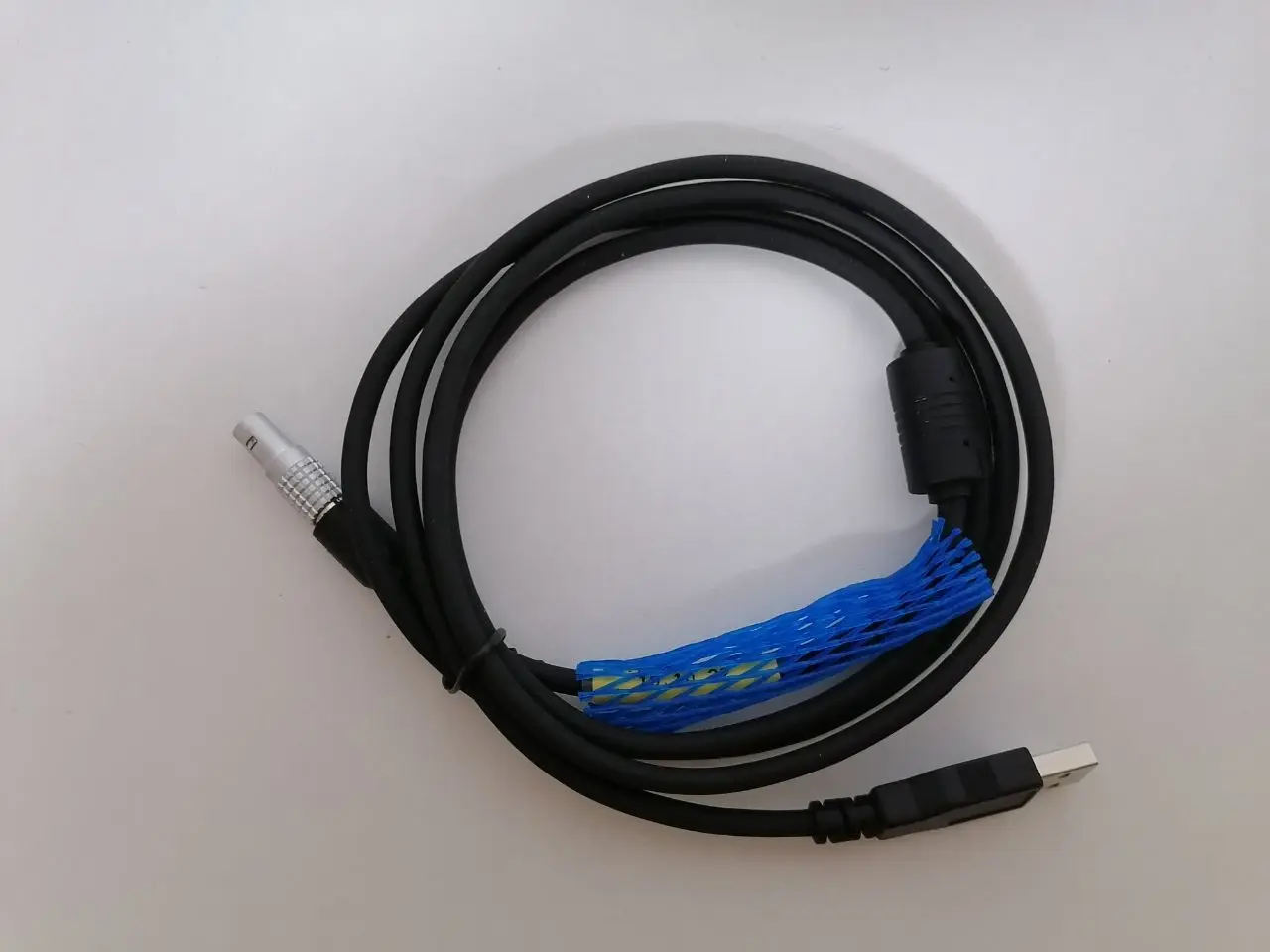

Optional Accessory | Choke Ring Antenna, Fischer to USB cable, Engineering plastics case |
Recommend Products

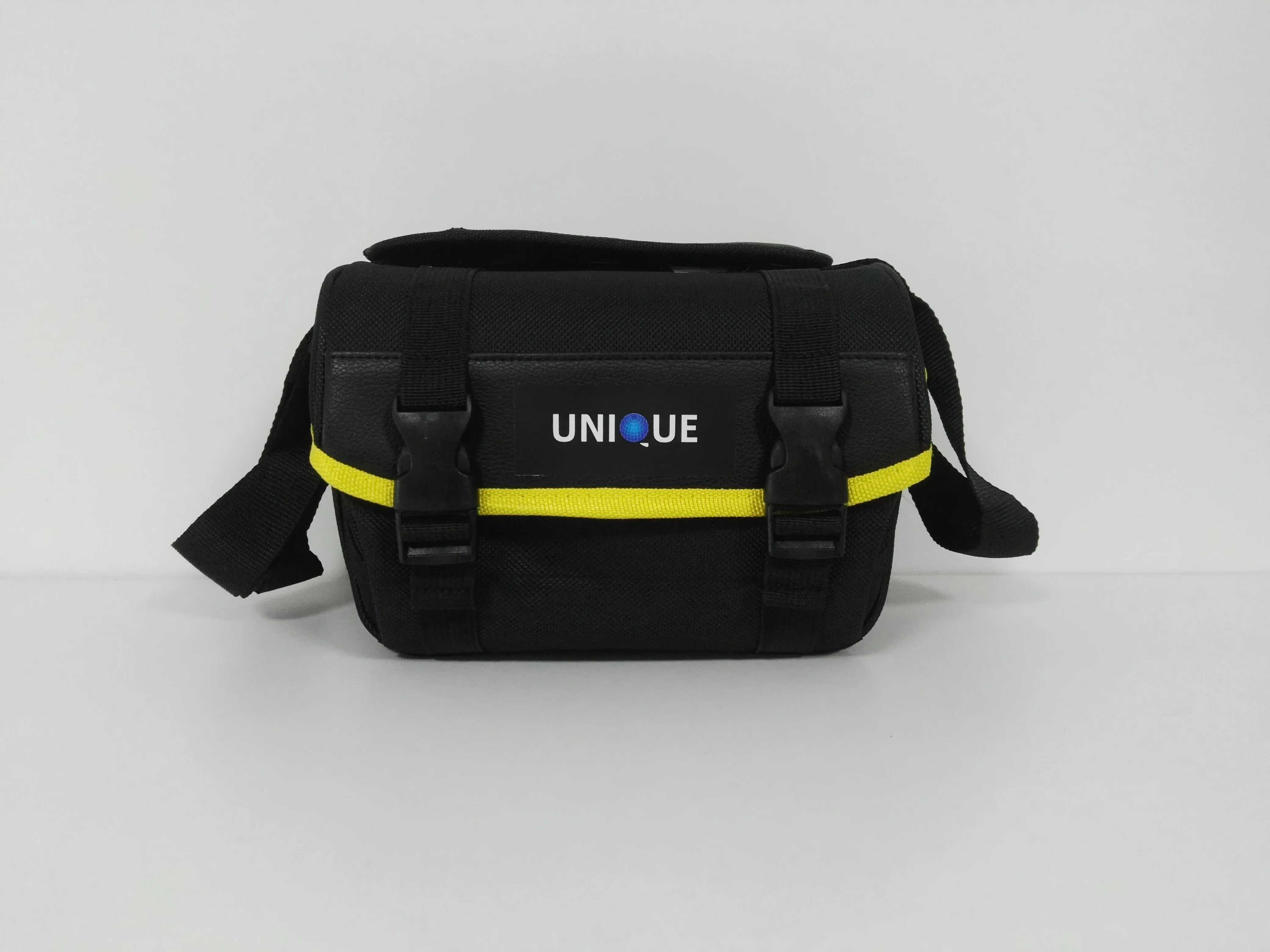

Product packaging
Delivery
After Sales Service
The warranty period is 12 months.
Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would be bear by the customers.If there is any problem caused by human reason within the first year, the service would be the same as the service out of thewarranty period.
