PVC Rain Boot Moulding Injection Machinery Gumboots Making Machine
- Category: Shoemaking Machines >>>
- Supplier: Fujian Zero To One Industrial Co. Ltd.
Share on (62584250845):
Product Overview
Description

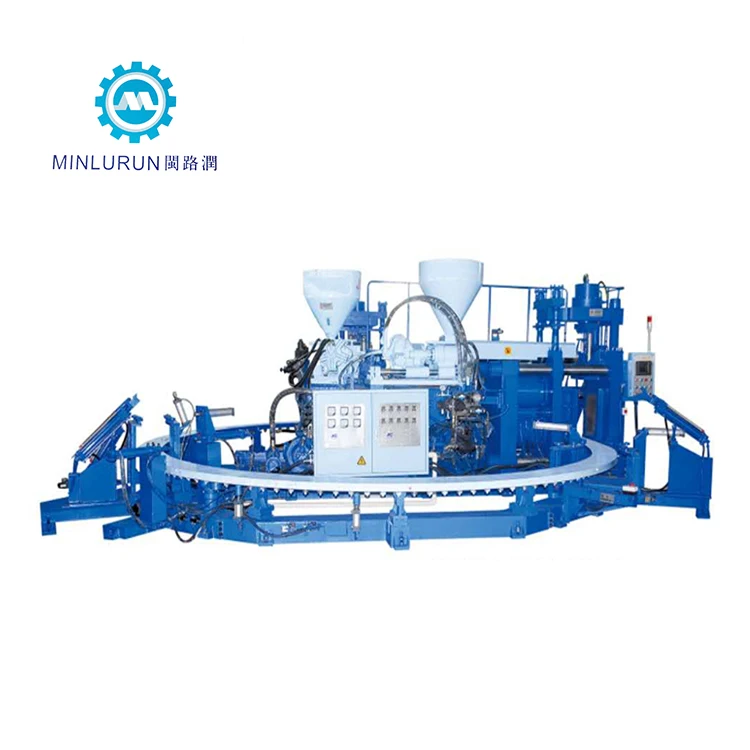

PVC Rain Boot Moulding Injection Machinery Gumboots Making Machine
Our Mission
Product Description
1:Automatic computer control, do not need to be professional,save labour resource and time.
2:Low noise,low speed, high torque motor
3:Power saving feature and efficient.

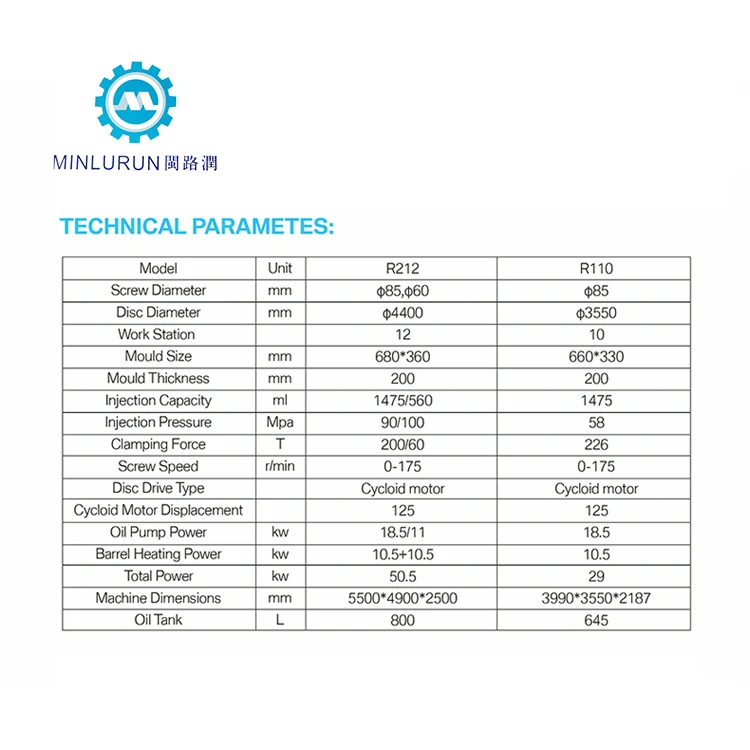

Model | Unit | R212 | R110 |
Screw diameter | mm | ∅85.∅60 | ∅85 |
Disc diameter | mm | ∅4400 | ∅3350 |
Work station |
| 12 | 10 |
Mould size | mm | 680*360 | 660*330 |
Mould thickness | mm | 200 | 200 |
Injection capacity | ml | 1475/560 | 1475 |
Injection pressure | Mpa | 90/100 | 58 |
Clamping force | T | 200/60 | 226 |
Screw speed | R/min | 0-175 | 0-175 |
Disc drive type |
| Cycloid motor | Cycloid motor |
Cycloid motor displacement |
| 125 | 125 |
Oil pump power | kw | 18.5/11 | 18.5 |
Barrel heating power | kw | 10.5+10.5 | 10.5 |
Total power | kw | 50.5 | 29 |
Machine dimensions | mm | 5500*4900*2500 | 3990*3550*2187 |
Oil tank | L | 800 | 645 |
