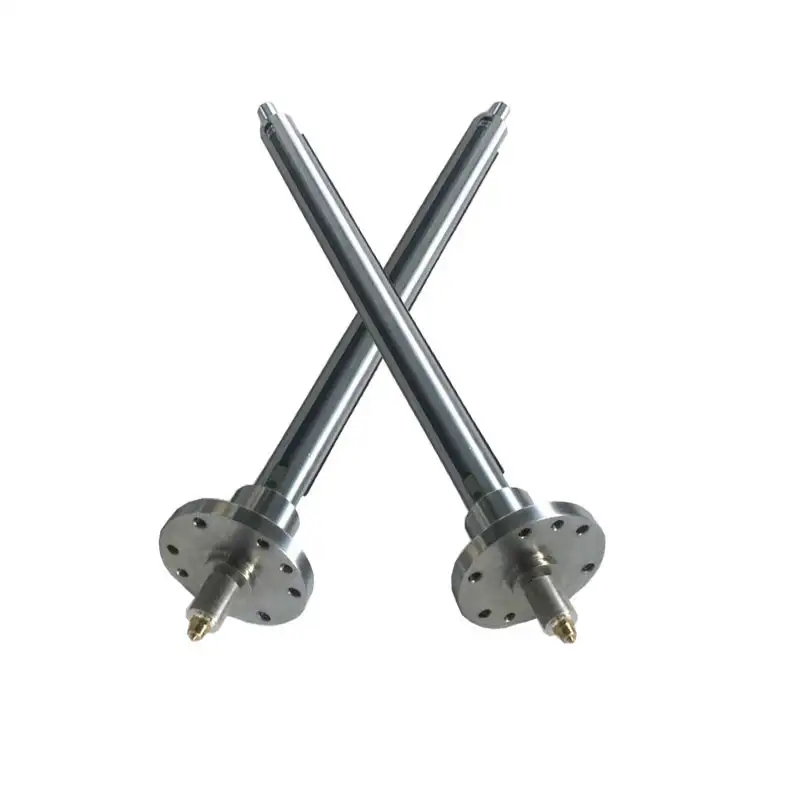

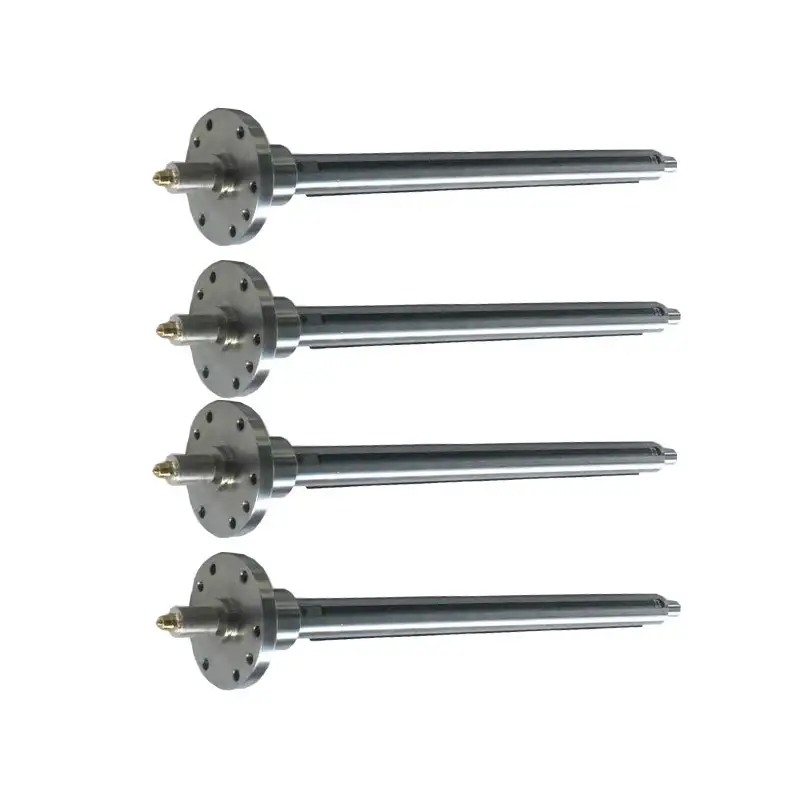

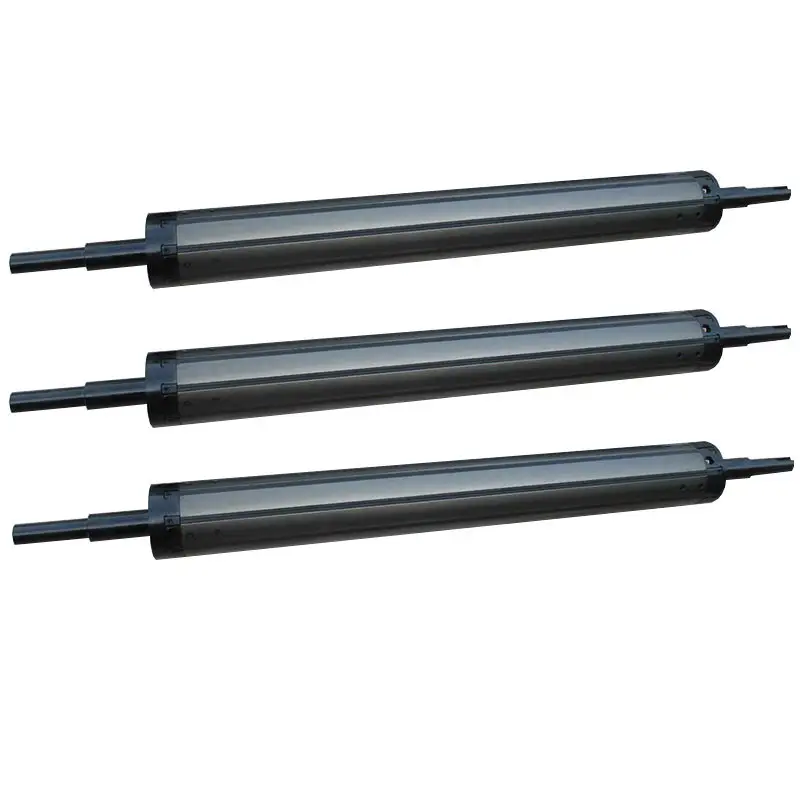

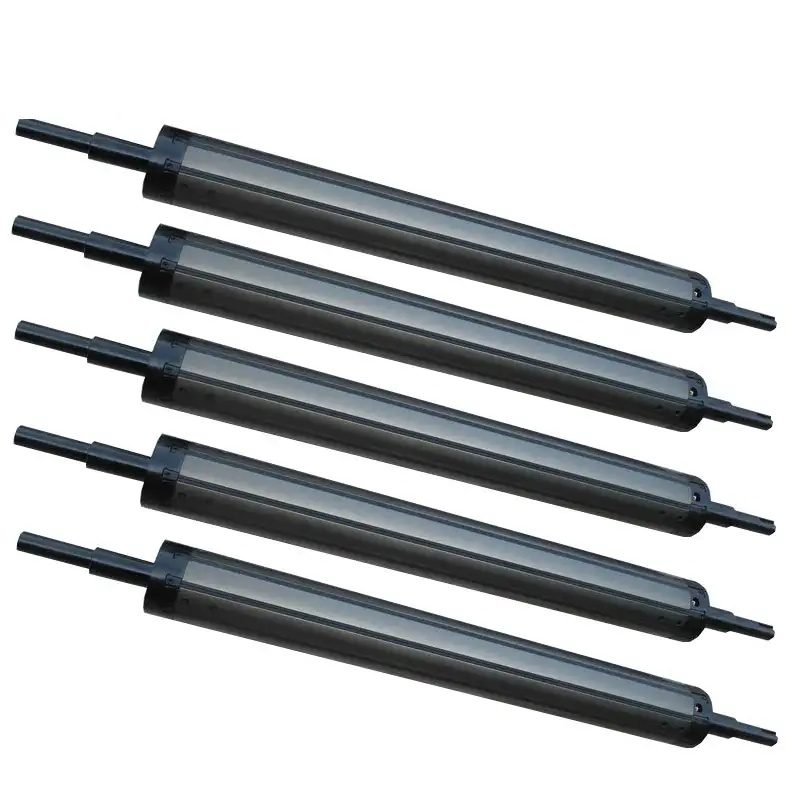

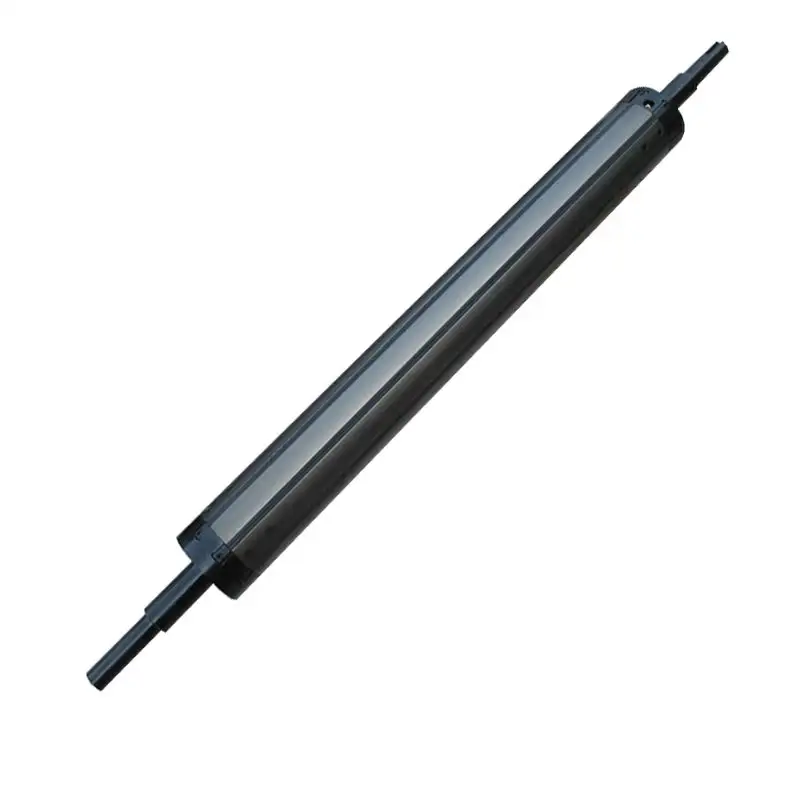

factory air expanding shaft for slitting machine
- Category: >>>
- Supplier: Anhui Zhele Mechanical And Electrical Co. Ltd.
Share on (62584334913):
Product Overview
Description
Product Description
factory air expanding shaft for slitting machine
The air shaft (inflatable shaft) introducing foreign advanced production equipment and fabrication technology, using
imported airbag, shaft head for the high quality steel products with precise process, attribute wattle using excellent aluminum and hard oxide, use convenient and long operate life. When using, match with our company’s professional configuration of the aerate gun filling gas for the nozzle jet, to make the shaft of off-axle appearance uniform expansion, thereby lock nitrogen-treated barrel,when unloading, press on deflated mouth to deflated, then nitrogen-treated barrel can be unloaded.
Air expanding shaft main feature:
1. Material and technology from Taiwan .
2.Factory directly supply.
3.Extensive application and high precision performance.
4.Simple installation.
5.Durable.
6.All specification can be customized.
Air expanding shaft Performance & Advantage:
In practical applications,it has advantages of convenient operation,quick, air shaft has big stress area, the stress distribution uniformity etc.
Air expanding shaft Product Purpose:
It is applicable to winding and unwinding shaft of the related machines in coating,cutting,printing,compounding,paper making,bag making,plastic items,specially the occasion of the high-efficient roundness required or surface winding and unwinding of the paper tube.Moreover,it also can improve efficiency and quality of the products.
Winding drum core standard | Unearated axis external diameter | Inflated bulging bloc |
1.5 " | Ø36mm | Ø40 - Ø42mm |
2 " | Ø49mm | Ø53 - Ø55mm |
3 " | Ø74mm | Ø79 Ø82mm |
4 " | Ø100mm | Ø104 Ø106mm |
4.5 " | Ø120mm | Ø124 Ø126mm |
6 " | Ø150mm | Ø155 Ø158mm |
8 " | Ø200mm | Ø205 Ø208mm |
Air shaft advantages
1. Inflatable job a short time, separated from the inflatable Key type air shaft and place the paper tube just three seconds to
inflate and deflate, nor do they need any parts sub negligent shaft side that is able to work closely with the paper tube bite.
2. Paper tube placement simple: inflatable and deflated operation, mobile and fixed any position paper tube in the axial plane.
3. Carrying heavy: May be the actual needs of customers, to determine the size of the shaft diameter, and the use of high
strength steels hard to make it carry the weight increase.
4. Economic efficiency: shaft design for a particular function, for thick, thin, wide, narrow tubes have encountered all kinds of
paper of all applications.
5. Maintenance is simple, use a long time: a single film blowing machine inflatable Key type air shaft parts, each part in its
construction fixed specifications, can exchange it with, it is convenient.
inflate and deflate, nor do they need any parts sub negligent shaft side that is able to work closely with the paper tube bite.
2. Paper tube placement simple: inflatable and deflated operation, mobile and fixed any position paper tube in the axial plane.
3. Carrying heavy: May be the actual needs of customers, to determine the size of the shaft diameter, and the use of high
strength steels hard to make it carry the weight increase.
4. Economic efficiency: shaft design for a particular function, for thick, thin, wide, narrow tubes have encountered all kinds of
paper of all applications.
5. Maintenance is simple, use a long time: a single film blowing machine inflatable Key type air shaft parts, each part in its
construction fixed specifications, can exchange it with, it is convenient.
1. What is Air Shaft
It is a kind of special-made shaft for winding or unwinding, when it inflated by high-pressure, the surface of it can be raised up
and after deflating the air,the surface will quickly retract.
It is widely used in the manufacturing process and light metal industry.The advantage of using an air shaft is that it can greatly
improve the workingeffeciency .
2. What can an air shaft be used for?
Printing machine;
Cutting machine;
Slitting machine;
Coating machine;
Laminating machine;
Bag making machine;
And so on
3. Specifications of air shaft
Type: Key type air shaft(steel-made or aluminum made), Lath type air shaft, Differential air shaft
Material: No.45 steel/ Aluminum
Length: 0.2m-3.8m
It is a kind of special-made shaft for winding or unwinding, when it inflated by high-pressure, the surface of it can be raised up
and after deflating the air,the surface will quickly retract.
It is widely used in the manufacturing process and light metal industry.The advantage of using an air shaft is that it can greatly
improve the workingeffeciency .
2. What can an air shaft be used for?
Printing machine;
Cutting machine;
Slitting machine;
Coating machine;
Laminating machine;
Bag making machine;
And so on
3. Specifications of air shaft
Type: Key type air shaft(steel-made or aluminum made), Lath type air shaft, Differential air shaft
Material: No.45 steel/ Aluminum
Length: 0.2m-3.8m
Detailed Images
Users should specify type,dimension,the position of the gas nozzle,and the tolerance of the important size of the top of shaft.If the film blowing machine inflatable Key type air shaft inlet gas,when the gas nozzle is mounting,the out diameter of the top of the shaft should be more than 35 mm ;All formal drawing of overall dimension should be provided.After the confirmation of both sides,we will start production.
Size Information
Size Chart of This Design
Winding drum core standard | Unearated axis external diameter | Inflated bulging block diameter |
1.5 " | Ø36mm | Ø40 - Ø42mm |
2 " | Ø49mm | Ø53 - Ø55mm |
3 " | Ø74mm | Ø79- Ø82mm |
4 " | Ø100mm | Ø104- Ø106mm |
4.5 " | Ø120mm | Ø124- Ø126mm |
6 " | Ø150mm | Ø155- Ø158mm |
8 " | Ø200mm | Ø205- Ø208mm |
Related Products
Packing&Shipping
Packaging
Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.
Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.
Company Introduction
Company Introduction
ANHUI ZHELE MECHANICAL AND ELECTRICAL CO.,LTD was founded in 2006, is a production, design integration of the enterprise, the Taiwan professional production technology and advanced production equipment, professional production of inflatable shaft,inflatable jacket, and safety clip, the main products are 1-12 inches key type inflatable shaft, 1-12 inch inflatable
shaft,plate 1-12 inch inflatable jacket, type 28, type 35 safety safety chuck, chuck type 50 security, 75 security chuck, chuck type 120 security and push sliding safety clip.Miraculously zhele Electromechanical, leading a few microns fine circles.
Contact: Anna
Tel: + 86-18697699555(WECHAT)
Leading science and technology, creating standard quality！
ANHUI ZHELE MECHANICAL AND ELECTRICAL CO.,LTD was founded in 2006, is a production, design integration of the enterprise, the Taiwan professional production technology and advanced production equipment, professional production of inflatable shaft,inflatable jacket, and safety clip, the main products are 1-12 inches key type inflatable shaft, 1-12 inch inflatable
shaft,plate 1-12 inch inflatable jacket, type 28, type 35 safety safety chuck, chuck type 50 security, 75 security chuck, chuck type 120 security and push sliding safety clip.Miraculously zhele Electromechanical, leading a few microns fine circles.
Contact: Anna
Tel: + 86-18697699555(WECHAT)
Leading science and technology, creating standard quality！
Our Services & Strength
Eight reasons to choose us:
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24 hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipment.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.
Five Core strengths:
1. The first domestic independent R & D manufacturer and 10 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24 hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipment.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.
Five Core strengths:
1. The first domestic independent R & D manufacturer and 10 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
FAQ
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.
5.What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
More concerned for our products , please do not hesitate to inquiry now!
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.
5.What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
More concerned for our products , please do not hesitate to inquiry now!
