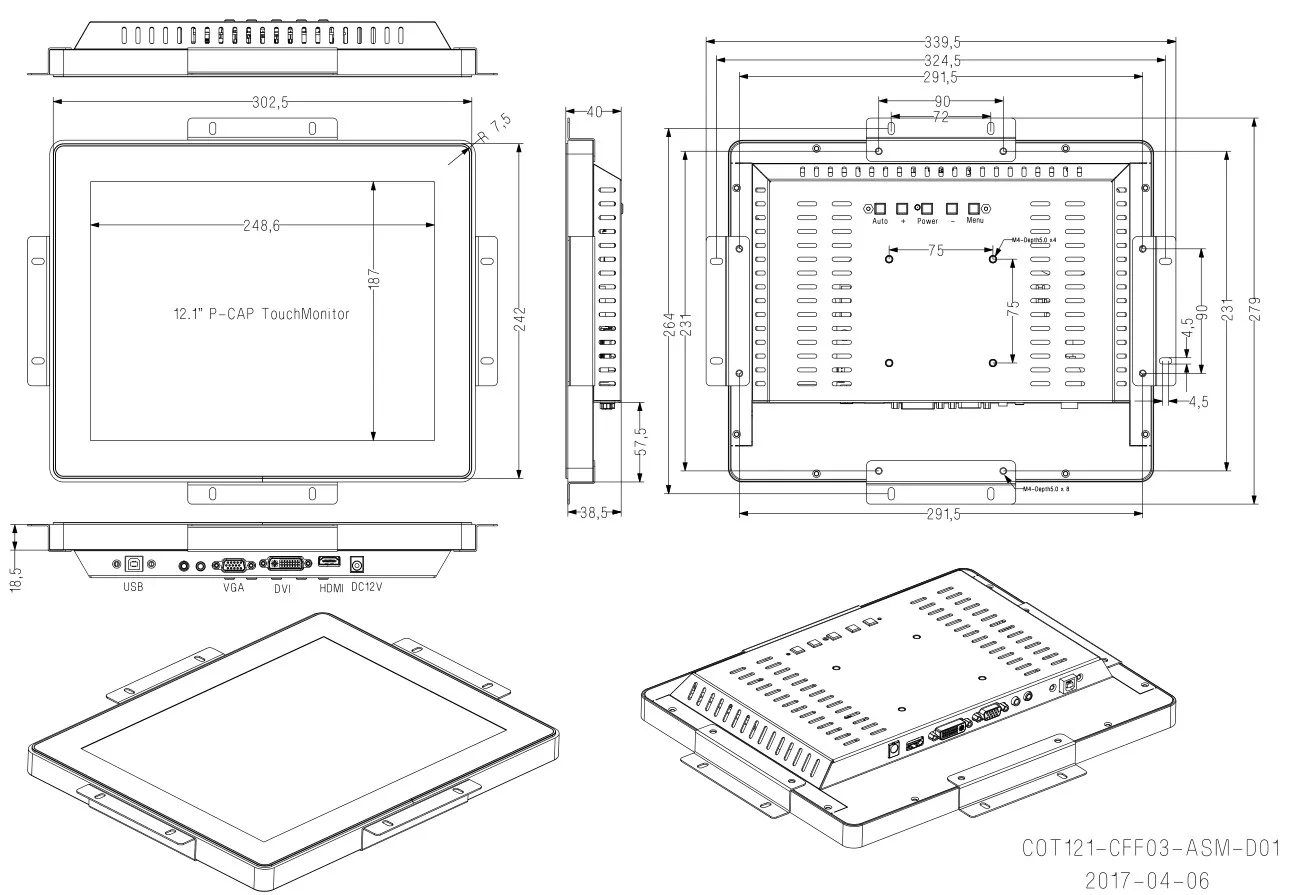

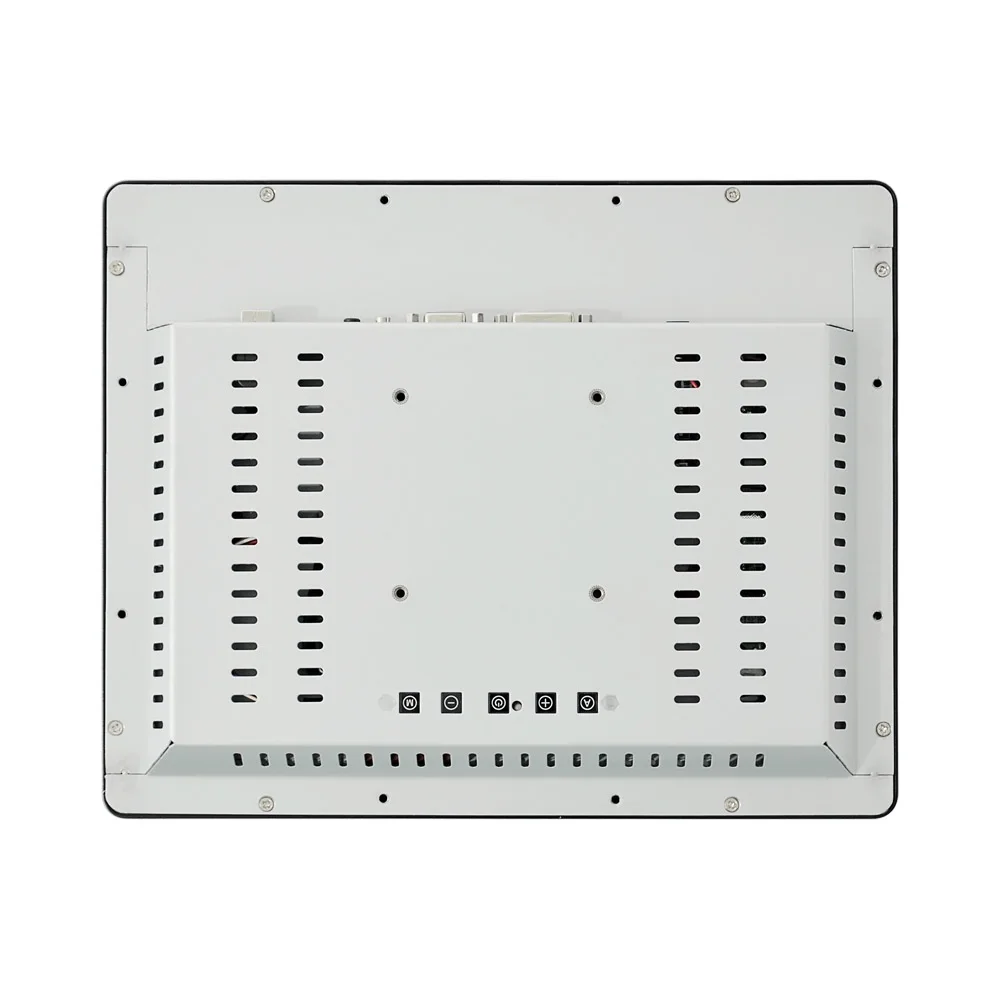

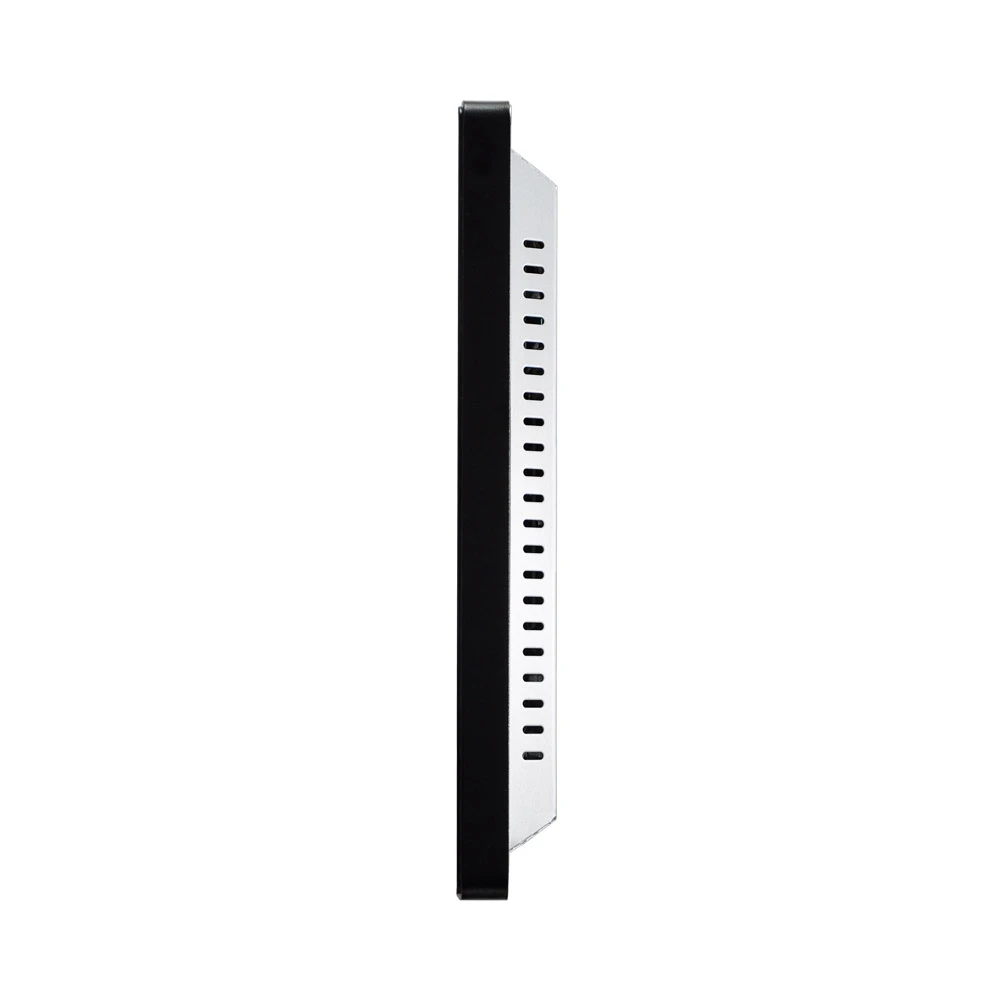

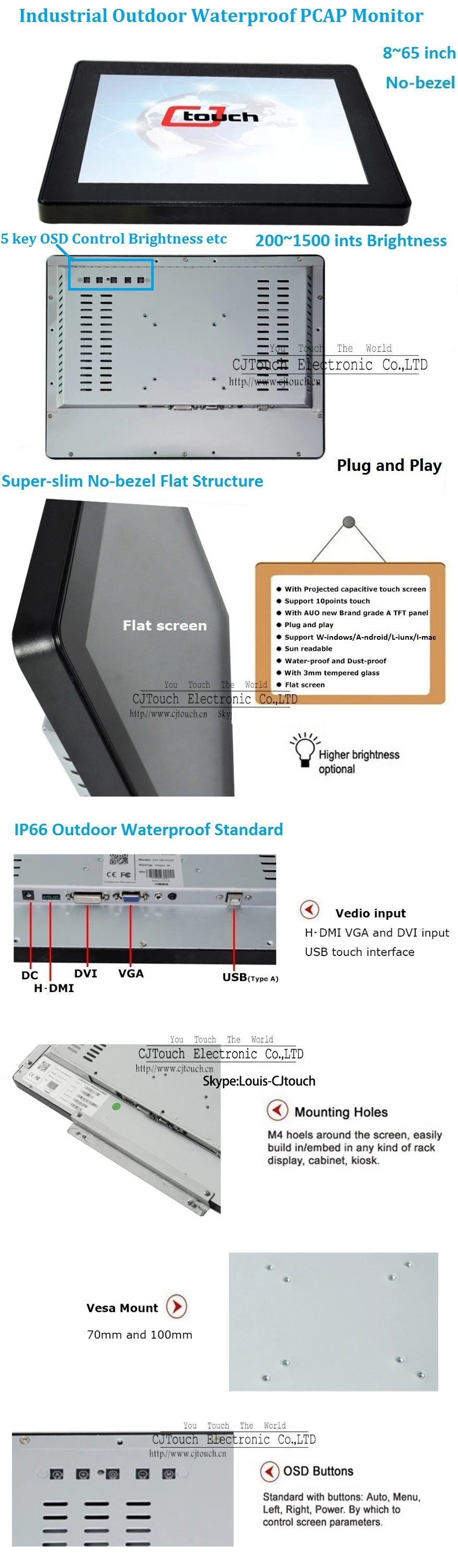

12.1 Inch Openframe Interactive Kiosk PCAP 10 Points Capacitive Outdoor 1000 Nits High Brightness AG AR AF Touchscreen Monitors
USB 10 Points Projected Capacitive PCAP Touchscreen
IP66 Outdoor Surface Waterproof Vandal-proof Standard
1024*768 Resolution,1000 nits outdoor high Brightness

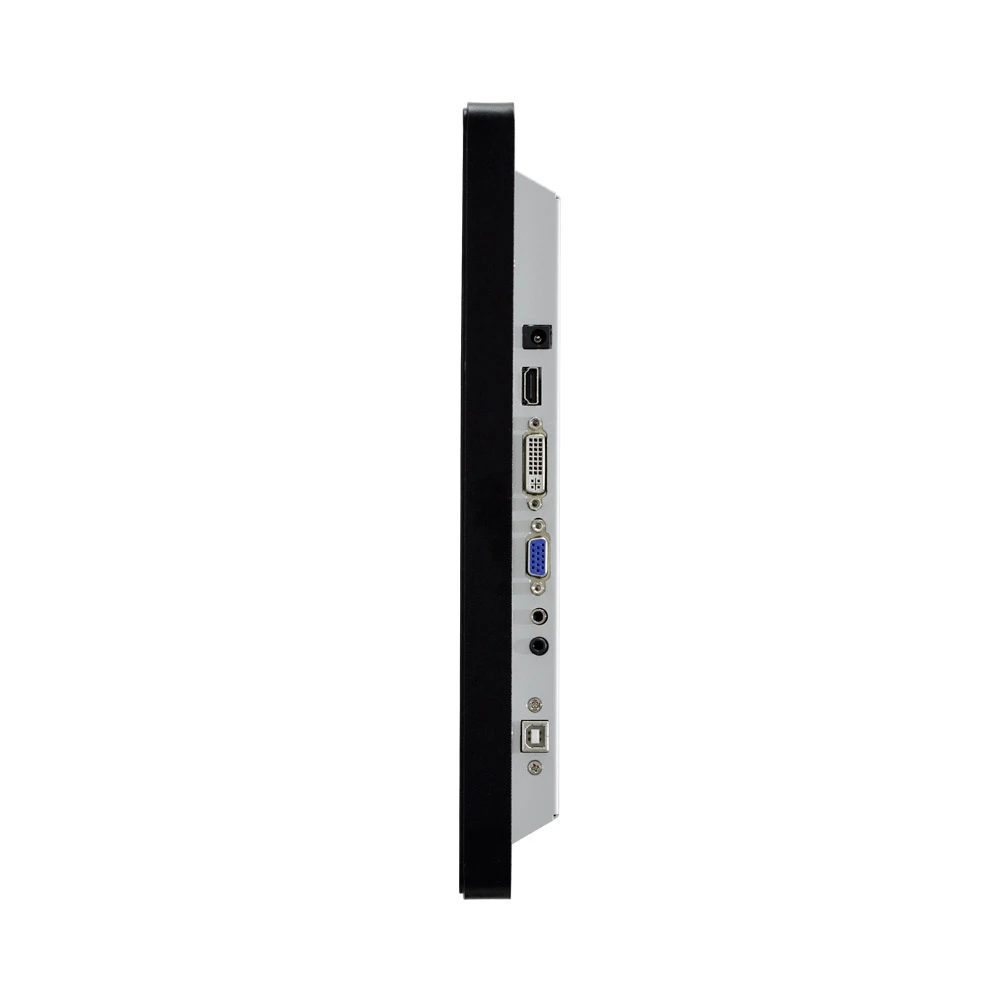

USB,VGA,DVI,HD-MI,DP,RS 232 Remote Control Ports etc

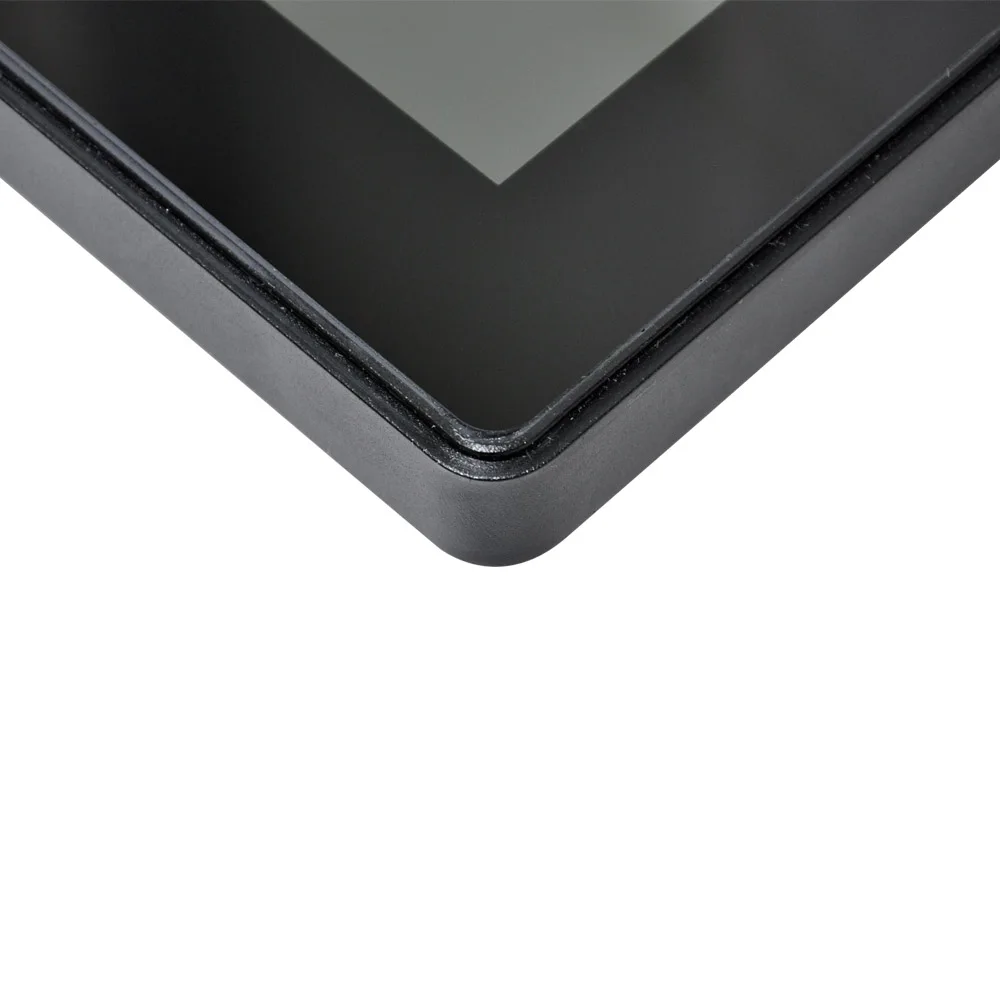

Open frame,Flat No-bezel beautiful Classical Good Outlook Structure
W indows / L inux /A ndroid /I mac /Raspberry pi OS supported
Wall mounted/Open frame/Embedded,VESA + Brackets supported for installation
1000 nits,1500 nits,2000 nits,2500 nits high Brightness,Anti Glare(AG),
Anti Reflection(AR),Tempred Glass,Anti Sunlight etc Function optional,
1 Year Warranty,Custom made supported,Standard 8~65inch Skype : Louis-CJtouch

Touch Screen | ||
Size | 12.1 inch ( 4:3 Screen Ratio ) | |
Type | 10points Capacitive TouchScreen, outdoor anti UV ip67 sunlight readable, Anti glare anti reflection tempered vandalproof touch glass AG AF AR | |
Resolution | 4096*4096 | |
Light Transmission | 92% | |
Touch Life Cycle | 50 millions | |
Touch Response time | 5ms | |
Touch System Interface | USB / RS232 / IIC interface | |
LCD / LED Panel | ||
LCD Brand | A-U-O G121XN01 V0 (Optinal) | |
Resolution | 1280(RGB)×800 , WXGA (Optinal) | |
Active Area | 245.76 ×184.32 mm | |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | |
Brightness | 1000nits ip66 outdoor high brightness, Add Industrial cooling fan and Light sensor | |
Colors | 16.7M , 50% (CIE1931) | |
Contrast | 800 : 1 (Typ.) (Optinal) | |
Others | ||
Power | Output : 12V/DC/4A ; Input : 100-240 VAC, 50-60 Hz | |
MTBF | 30000 hr at 25°C | |
Temp. | Operating : -30~85°C ; Storage : -30~85°C | |
RH | Operating : 20%~80% ; Storage : 10%~90% | |


Warranty & Components
1 Year Free Warranty for Monitor and all components.

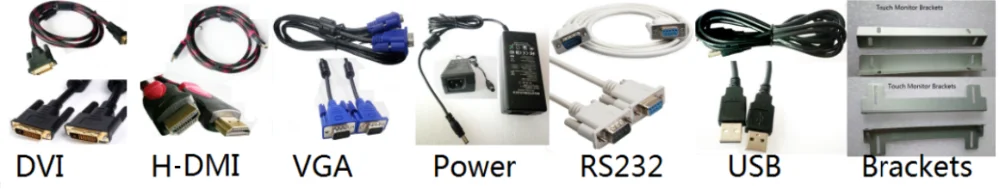

USB Cable *1 Pcs,
VGA Cable *1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
RS232 Cable & DVI Cable Sold Separately

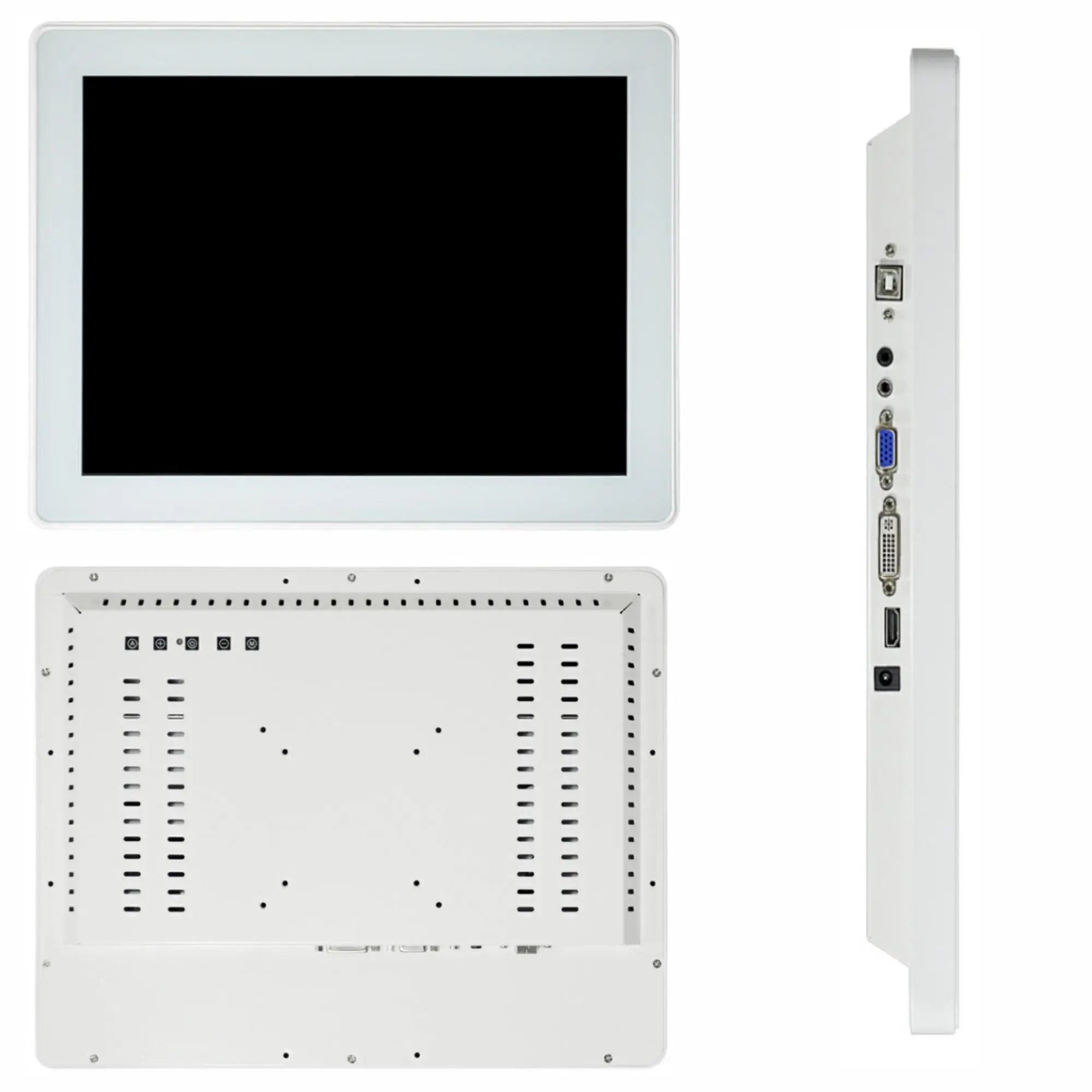

Black & White Metal Case Option,
8~65inch PCAP Touchscreen Monitor,Custom made All in one PC Monitor


TouchScreen/ LCD Monitor / Touch Compupter Applications :

1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store`
2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, etc.
5. Real Eatates: Apartment, Villa, Business Building, HR Market, Lottery Center,etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.
Click Below Pictures to get More Products Details ( Skype : louis@cjtouch.com )
IP 66 Outdoor Waterproof
800/1000/1500 High Brightness
55'' Large Size IR LCD Monitor
32''43''55''65''75''98''
E-LO Compatible Monitor
15''17''19''18.5''21.5''
Cheap SAW Touch Panel
7~32 inch
IP66 Outdoor Waterproof
1/2/4 Points IR Touchscreen
140'' Infrared Touch Frame
10~300 inch
7'' Cheap Resistive Monitor
7~32 inch
8'' SAW Touchscreen Monitor
8~32 inch
Desktop Touch LCD Monitor
15''17''19''
PCAP Touch Foil / Film
15~110 inch
E ETI Capacitive Touch Panel
5~65 inch
Touch All in one PC
8~65 inch
Dongguan CJTOUCH Electronic Co.,Ltd,10 Years of a Professional Manufacturer & Supplier ;
Main Product : Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC and Accessories etc.
Our Main Factory is located near Shenzhen,China.


Packing & Delivery
1/2/4 sets/carton,EPE packaging inside ; Net Weight : 1.5 kg/pcs



Please feel free to contact us,our professional sales will always provide you best solutions.
Skype: Louis-CJtouch ; Email: louis@cjtouch.com ;
Cell / Whatsapp : +86 15622808799 ;Wechat: Louis-CJTOUCH
