Intel HM76/HM77 Chipset i3/i5/i7 CPU motherboard onboard DDR3 SODIMM 204 Socket Max support 8GB DDR3 Ram
- Category: >>>
- Supplier: Shenzhen Piesia Electronic Technology Co. Ltd.
Share on (62584507624):
Product Overview
Description
Intel HM77/HM77 Chipset i3/i5/i7 CPU motherboard onboard DDR3 SODIMM 204 Socket Max support 8GB DDR3 Ram
Product Description
Processor | CPU | Onboard CPU,support Intel Mobile sandy/ivy bridge i3/i5/i7&Celeron 1037U processors(optional). |
| CPU Package | BGA |
| Chipset | Intel® HM77/HM76 Express Chipset Optional. |
| BIOS | AMIEFI32MB SMT/DIP-SPI Flash ROM |
Ram | Technical architecture | DDR3 memory,1066/1333/1600MHz. |
| Capacity | Onboard 2GB /4GB Ram |
Video | Graphic controller | Intel HD Graphics 3000/4000 (CPU Integrated ) |
| Dual LVDS | Support dual channel 24bit LVDS connector |
| HDMI | Resolution maximum:1920*1200 |
| Double display support | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display |

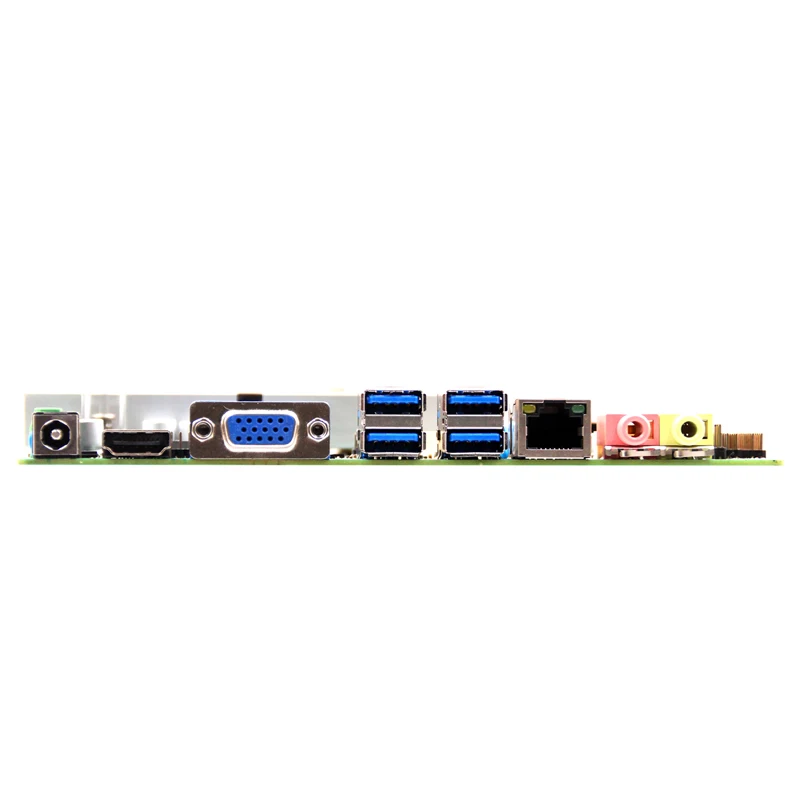

Rear Panel I/O | Ports | 1*HDMI 1*VGA port 1*Lan 4*USB 3.0 port 1*Audio I/O interfaces (Line_out,Mic_in) |
Network | Controller | Onboard 1*Gigabit Ethernet,support PXE and Wakeup on LAN. |
Audio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
Super I/O | Controller | NCT6106D |
Hardware Monitor | Watchdog-Timer | 0~255 timer |
| Cooler | Aluminum heat sink(fan or fanless) |
Input/Output interfaces | USB | 8*USB(4*USB 3.0 port 4*USB 2.0 expansion header),Max. supported 5V/1A |
| Serial port | 2*COM expansion headers(RS232),4*COM expansion headers(support RS232/422/485)(Optional) |
| PS/2 |
|
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level |
Expansion Sockets | Mini-PCle | 2*Mini-PCIE socket for WIFI/3G |
| SMBUS |
|
Storage | SIM | 1*SIM card slot for 3G |
| M-SATA | 1*Mini SATA socket for SSD |
Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W |

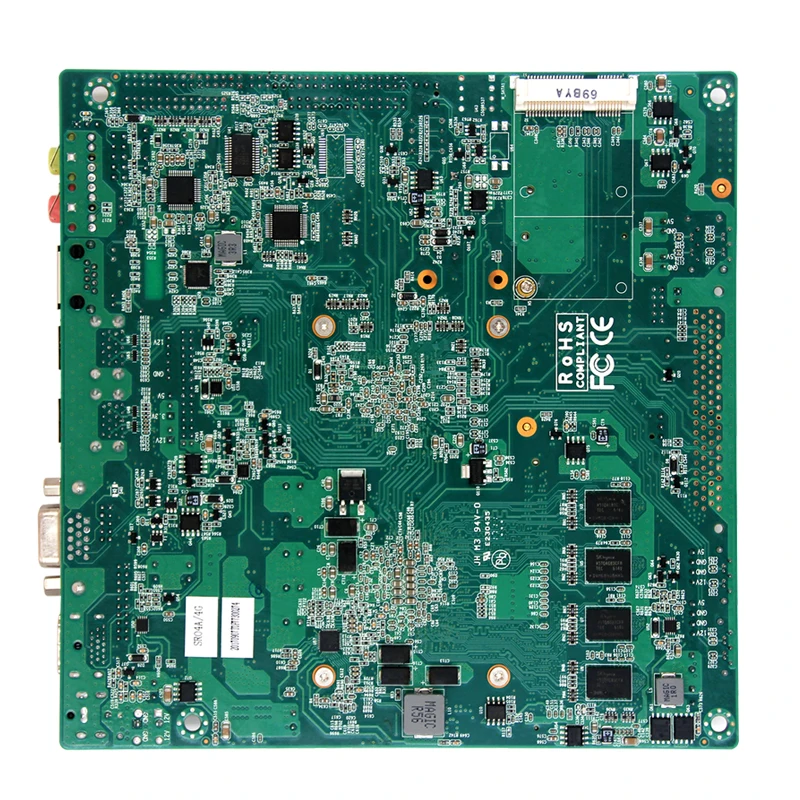

Product Picture:
Company Information
Certifications
Our Services
1.the quality problem: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.the design problem:we could do design as customer requirement.
3.the packages problem:the carton with your own logo are available.
Packaging & Shipping
Packing details : carton box (Accessory :1 *COM cable :1*CD driver 1*SATA cable 1*SATA power cable)
Delivery details:Within 3 days (sample order ) 7-25 days in a bulk
Delivery ways :
DHL/Fedex/UPS Express for samples and small orders.
Batch Orders: By Air or By Sea, based on customer's request.
