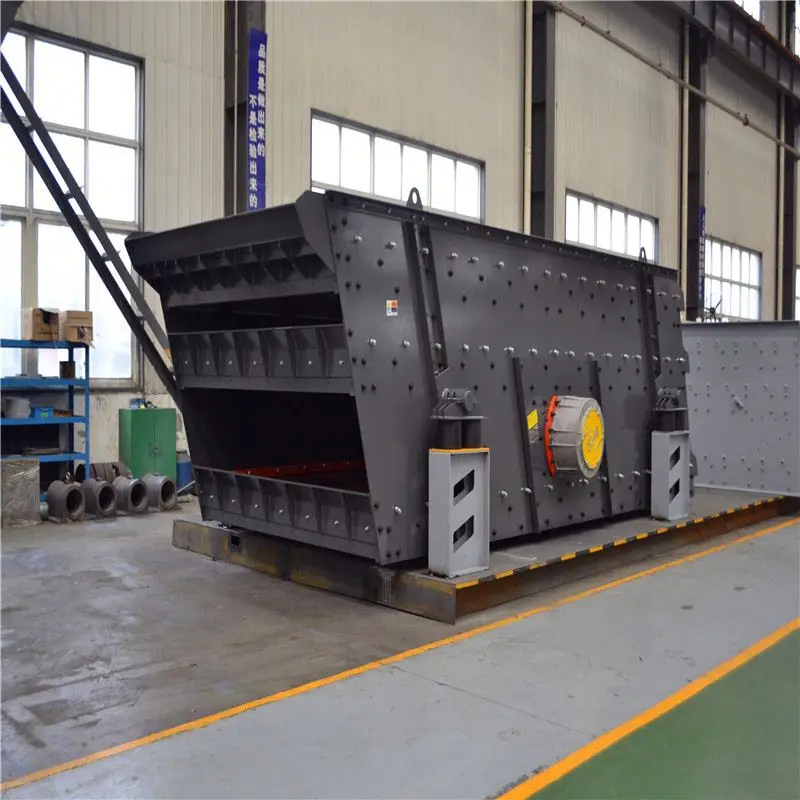

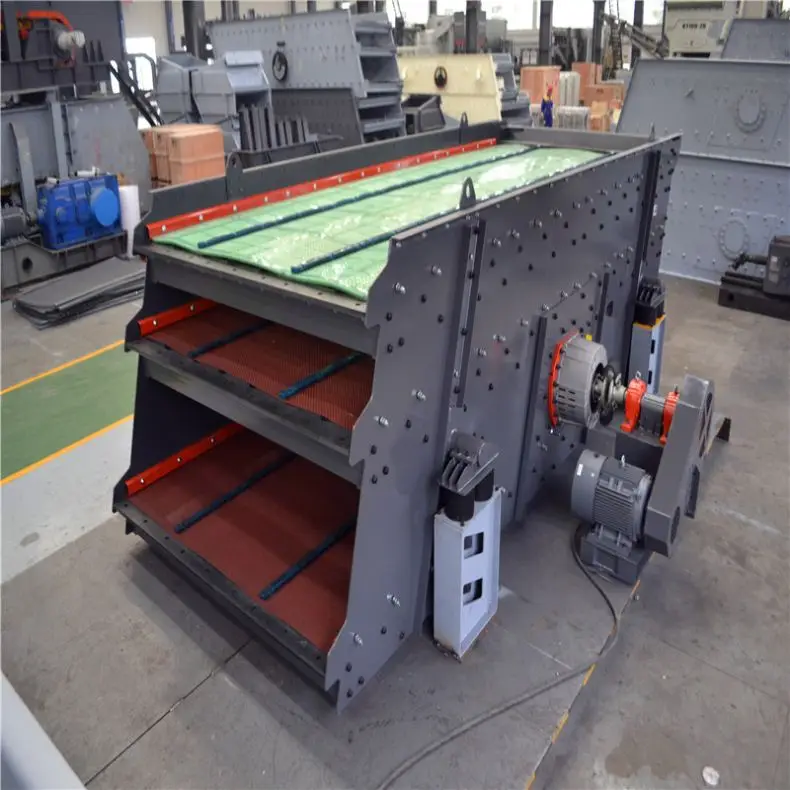

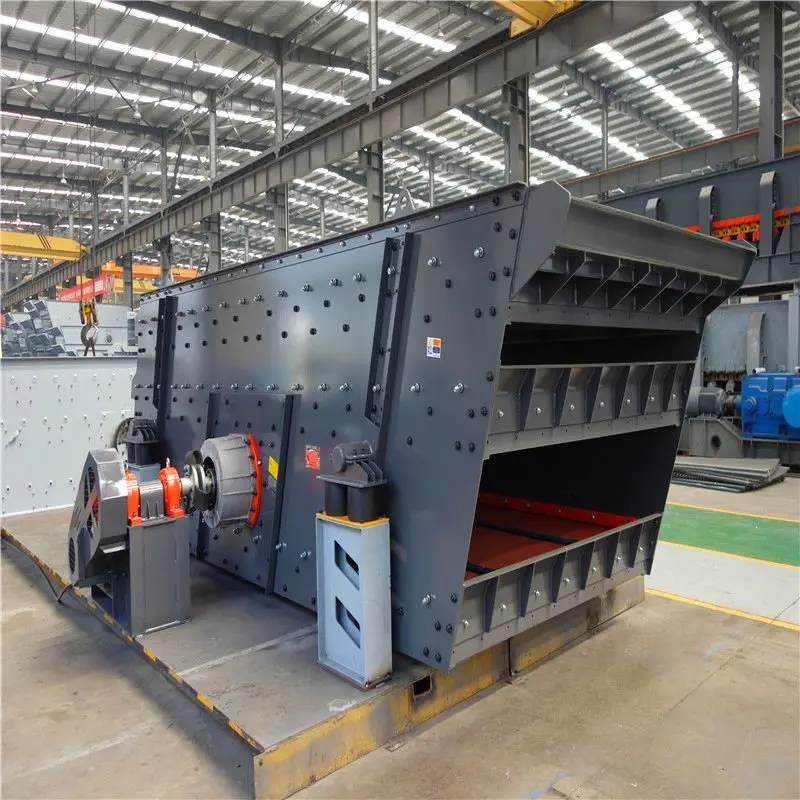

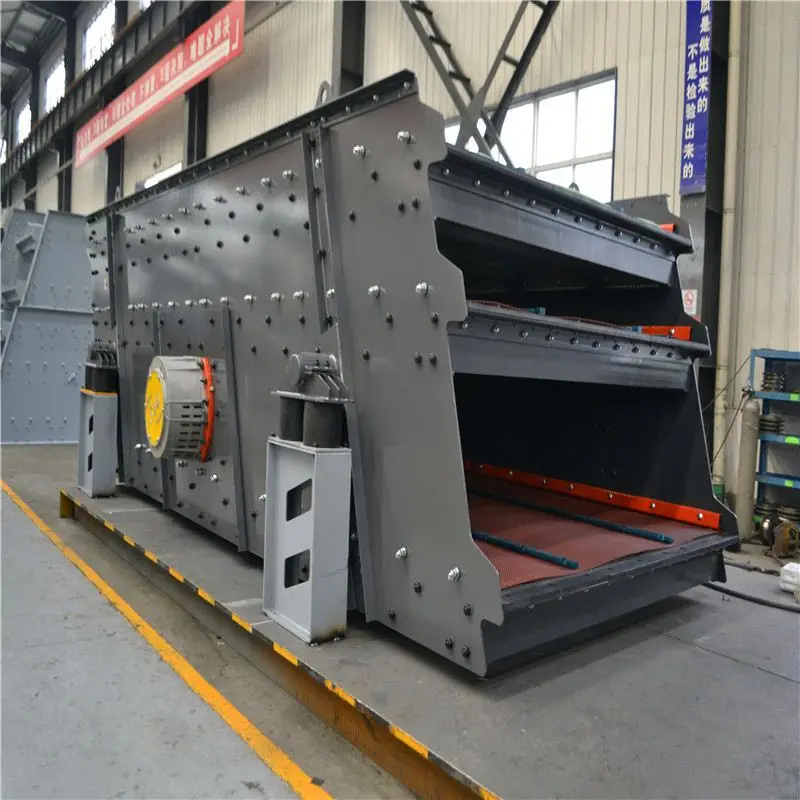

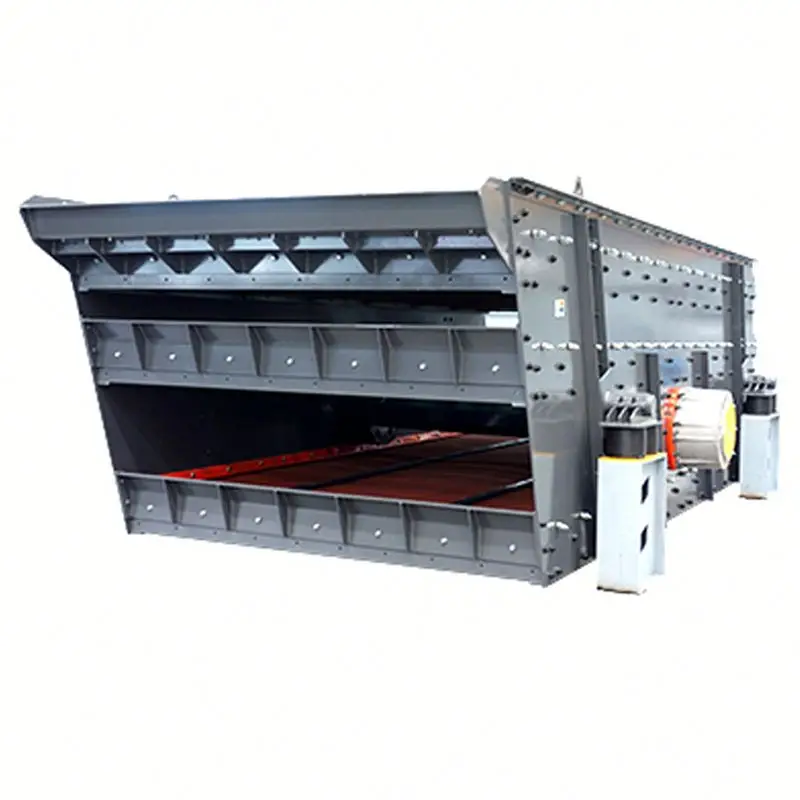

Mining New Linear Vibrating Screen for Ore
- Category: >>>
- Supplier: Shanghai Zenith Mineral Co. Ltd.
Share on (62584507883):
Product Overview
Description
With over 30 years of experience,ZENITH ,We had already build many mining projects in China & Overseas.
Come and inquire for free design solutions!
Product Description
Introduction of Mining New Linear Vibrating Screen for Ore:
- Machine type: vibrating screen
- Application area: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.
- Screen layers: 2-4
- Screening material: applicable to heavy type, middle type, fine screening and many other screening operations, and is the ideal screening equipment for primary crushing, secondary crushing and finished materials.
- Capacity: 25-900t/h ( can be customized)
- Max feeding size: 400mm ( can be customized)
- Get Quote and More info>>>> WhatsApp/WeChat: +8613917023121
What is the working principle of Mining New Linear Vibrating Screen for Ore?
Sieving machine with crank and connecting rod mechanism is used as a transmission part. The motor through a belt and a belt wheel drives the eccentric shaft rotation, so that the body along a certain direction through the connecting rod for reciprocating motion. Body movement in a direction perpendicular to the supporting rods or the suspension rod center line, because the body swing motion, so that the screen material in a certain speed to the discharging end of mobile, and screening material.
What is the features of Mining New Linear Vibrating Screen for Ore?
- Special SV vibration exciter design, more powerful exciting force and simpler maintenance;
- Modular design of complete machine is of higher degree of universalization and greatly reduces the types of user’s spare part;
- Use rubber spring with more excellent performance, passing the resonance region more stably and with lower noise;
What is the parameter of Mining New Linear Vibrating Screen for Ore?
Get Quote and More info>>>> WhatsApp/WeChat: +8613917023121
| Screen Size W×L(mm) | Screen Layers | inclination (°) | Vibration frequency (RPM) | Double amplitude (mm) | Power (kW) | Capacity(t/h) | Mesh Size(mm) | |
| S5X1230-2 | 1200×3000 | 2 | 18(18-25) | 800-900 | 7-12 | 11 | 25-200 | 2-70 |
| S5X1545-2 | 1500×4500 | 2 | 18(18-25) | 800-900 | 7-12 | 11 | 45-380 | 2-70 |
| S5X1545-3 | 1500×4500 | 3 | 18(18-25) | 800-900 | 7-12 | 15 | 45-380 | 2-70 |
| S5X1845-2 | 1800×4500 | 2 | 18(18-25) | 800-900 | 7-12 | 15 | 60-450 | 2-70 |
| S5X1845-3 | 1800×4500 | 3 | 18(18-25) | 800-900 | 7-12 | 22 | 60-450 | 2-70 |
| S5X1860-2 | 1800×6000 | 2 | 18(18-25) | 800-900 | 7-10 | 15 | 75-600 | 2-70 |
| S5X1860-3 | 1800×6000 | 3 | 18(18-25) | 800-900 | 7-12 | 30 | 75-600 | 2-70 |
| S5X1860-4 | 1800×6000 | 4 | 18(18-25) | 800-900 | 7-12 | 37 | 75-600 | 2-70 |
| S5X2160-2 | 2100×6000 | 2 | 18(18-25) | 800-900 | 7-12 | 22 | 85-700 | 2-70 |
| S5X2160-3 | 2100×6000 | 3 | 18(18-25) | 800-900 | 7-12 | 30 | 85-700 | 2-70 |
| S5X2160-4 | 2100×6000 | 4 | 18(18-25) | 800-900 | 7-11 | 37 | 85-700 | 2-70 |
| S5X2460-2 | 2400×6000 | 2 | 18(18-25) | 800-900 | 7-12 | 22 | 100-800 | 2-70 |
| S5X2460-3 | 2400×6000 | 3 | 18(18-25) | 800-900 | 7-11 | 30 | 100-800 | 2-70 |
| S5X2460-4 | 2400×6000 | 4 | 18(18-25) | 800-900 | 7-10 | 37 | 100-800 | 2-70 |
| S5X2760-2 | 2700×6000 | 2 | 18(18-25) | 800-900 | 7-12 | 30 | 120-900 | 2-70 |
| S5X2760-3 | 2700×6000 | 3 | 18(18-25) | 800-900 | 7-11 | 37 | 120-900 | 2-70 |
Packaging & Shipping
Certifications
Company Information
Contact us
In order to recommend the suitable models and supply more complete quotation for you, Send your Requiry Details in the below!
Include:
1. Which machine do you need?
(such as crusher, grinding mill, sand making machine, concrete batching plant,vibrating screen, vibrating feeder, belt conveyor and other beneficiation equipment)
2. Which kind of material you are going to process?
Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?
3. What's the production capacity per hour you want?
How many tons or cubic meters per hour?
4. You want only a machine or a complete production line?
And please tell me your email and phone or whatsapp, I will give you factory price with full specification and you will know all details about machine and discount.
Come and inquire for free design solutions!
