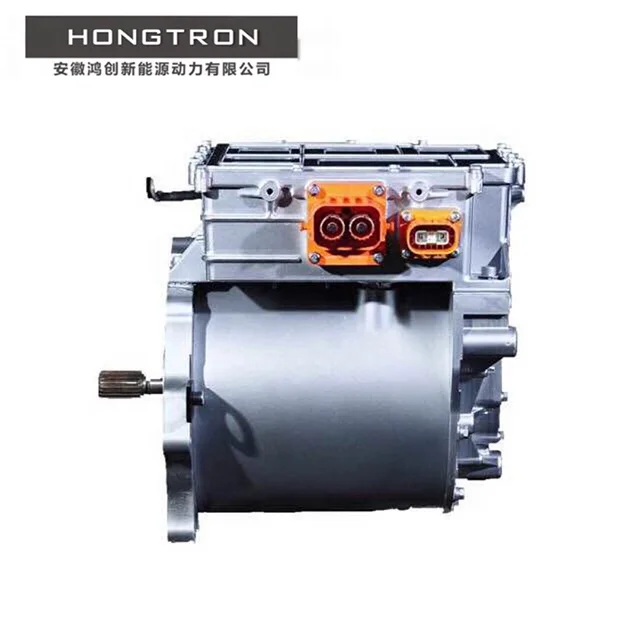

55KW two-in-one motor controlling assembly :
Introduction
The two-in-one motor controlling assembly here includes: drive motor and motor controller.
The drive motor is PMSM (Permanent Magnet Synchronous Motor).
The driving motor adopts water-cooled structure, there are inlet and outlet pipe on the cover, and the motor shares the cooling system with the MCU, the cooling rate of flow is 8 L/min.
Basic Parameters:
Indicator | Parameter | Remark |
Bus voltage(V) | 350 |
|
Operating voltage range | 240~420 |
|
Full performance voltage operating range | 310~420 |
|
Rated power(kW) | 25 |
|
Peak power(kW) | 55 | Lasting time:60s |
Rated torque(Nm) | 68 |
|
Peak torque(Nm) | 175 | Lasting time:60s |
Basic speed(performance,rpm) | 3000 |
|
Peak speed(performance,rpm) | 9000 |
|
Maximum speed(machine,rpm) | 10800 | 2MIN |
Rotating direction | Acceleration and regeneration during the advancement:C.W. | Looking from the output shaft toward the rear of the motor |
Cooling method | Water cooling |
|
Insulation rating | Class H |
|
Temperature protection limit | 135℃power reduction,140℃protection |
|
Efficiency distribution | High efficient area is greater than 80% |
|
Size(mm) | About 318.4*341.8*368.2 |
|
Weight(kg) | The motor<43 |
|
N-T external characteristic curve of the motor:
Remark:
Speed(rpm) | 500 | 1200 | 2100 | 3000 | 3500 | 6000 | 7500 | 9000 |
Peak output torque(N.m) | 175.1 | 175.1 | 175.1 | 175.1 | 150.1 | 87.5 | 70.0 | 58.4 |
Peak output power(kW) | 9.2 | 22.0 | 38.5 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 |
Rated output torque(N.m) | 68.2 | 68.2 | 68.2 | 68.2 | 68.2 | 39.8 | 31.8 | 26.5 |
Rated output power(kW) | 3.6 | 8.6 | 15.0 | 21.4 | 25.0 | 25.0 | 25.0 | 25.0 |
Quality management:
Systems: IATF/16949 Quality System, ISO 14001 Environmental System, OHSAS18001 Occupational Health and Safety System;
The products have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center;
Establish high-precision three-coordinate measuring machines, projectors, universal material tensile machines, Brock's hardness testers and other measuring instruments to ensure the true and effective quality data
Application range:
Applicable to new energy A00 class passenger cars, mini trucks, mini vans and other logistics vehicles.
Packaging:
The product name, model, logo, inspection certificate of the manufacturer's quality department, date of manufacture, etc. are on the packing box, and there is a list of accessories in the packing box.
Storage:
The product should be stored in the packing box when not in use. The warehouse environment temperature should be between -10 and 40 degrees celsius and the relative humidity should be no more than 80%. Harmful gas, flammable or explosive products and corrosive chemicals are not allowed in the warehouse. At the same time strong mechanical vibration, shock and strong magnetic field are also prohibited. The packing box should be at least 20cm above the ground, at least 50cm away from the wall, heat source, window or air inlet. The storage period is generally 2 years according to these storage conditions. The product should be re-inspected after 2 years.
