Product Description

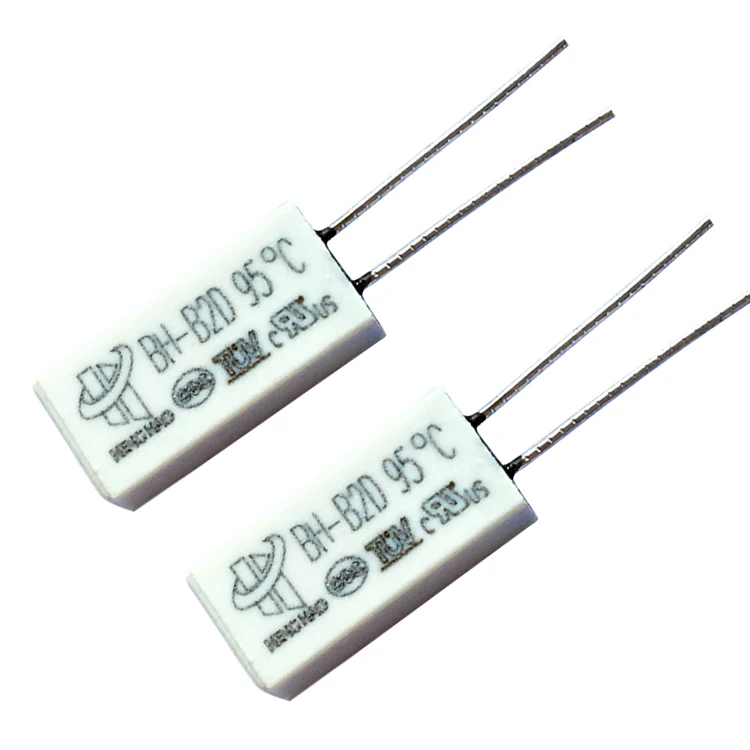

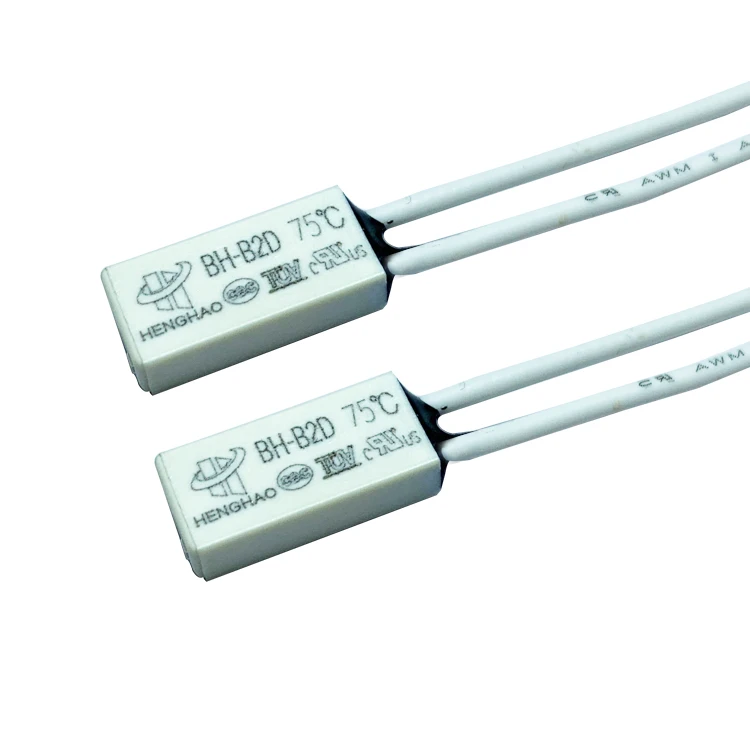

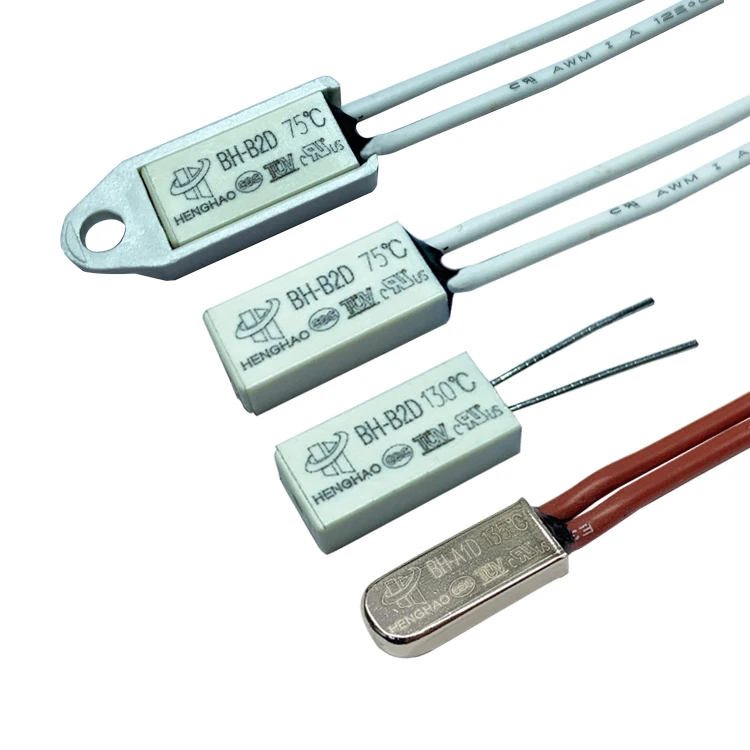

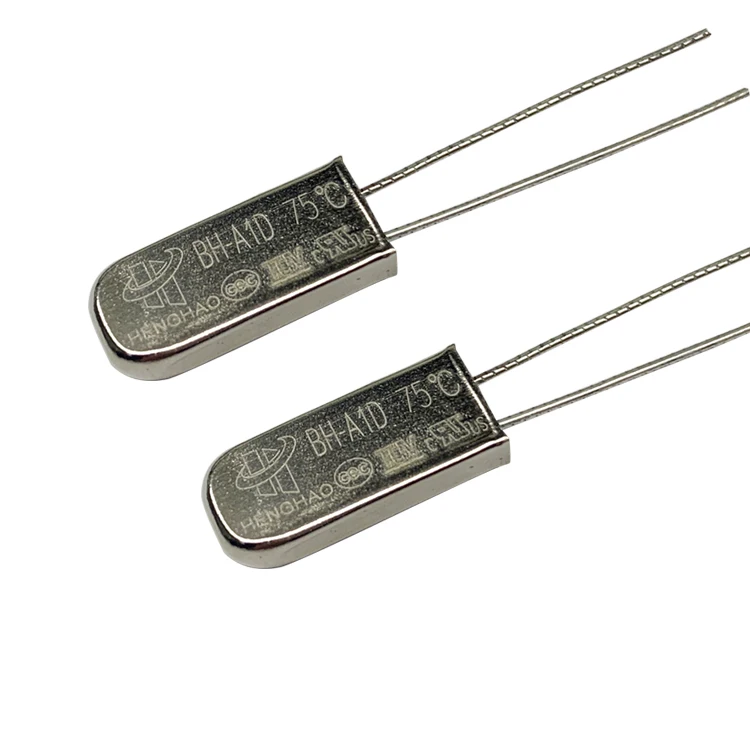

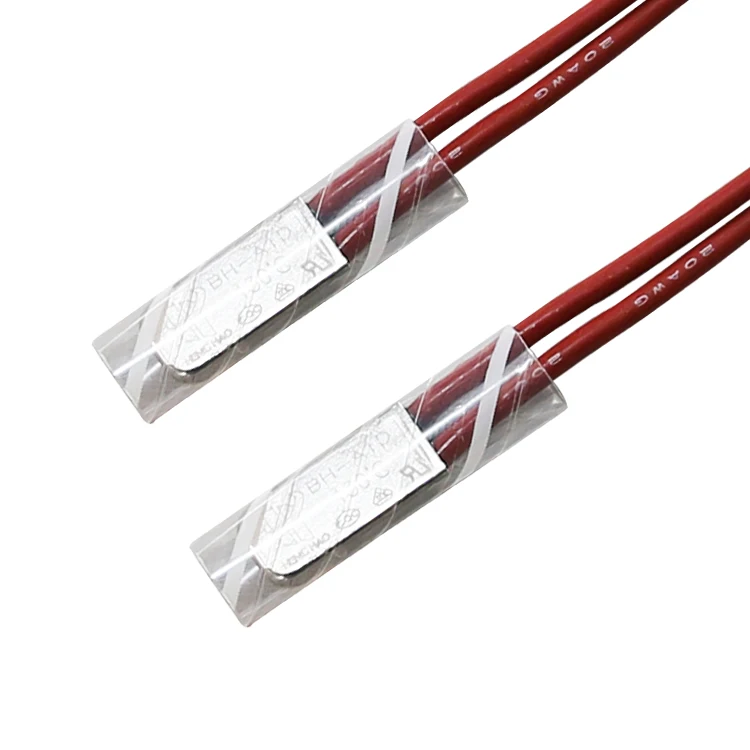

Small Thermal Protector BH-B2D BH-A1D Temperature Cut-off Switch Bimetal Thermostat
| Place of origin | China |
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V 5A |
| Action Temperature range | (30~150)±5°C; 5°C a step |
| Recovery and action temperature difference | Operating temperature decrease by 15-45°C |
| Temperature deviation | ±3°C / ±5°C / ±7°C |
| Circuit resistance | ≤50mΩ (Initial value) |
| Insulation resistance | ≥100mΩ (DC500V Normal State) |
| Dielectric Strength | AC50Hz 1500V / min, no breakdown blinding (Normal State) |
| Life cycle | 10000 times |
| Contact type | Normally closed & Normally open |
| MOQ | 1000PCS |
| Delivery time | 7 to 15 working days |
| Payment method | TT or negotiate payment term |
| Scope of application | BH series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor. |
