Product Overview

Description

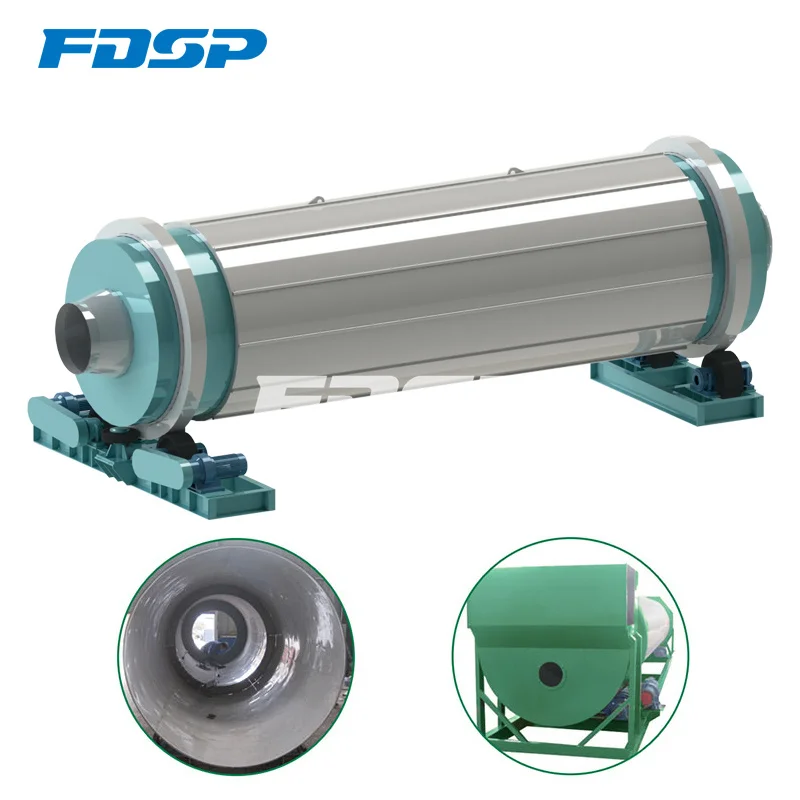

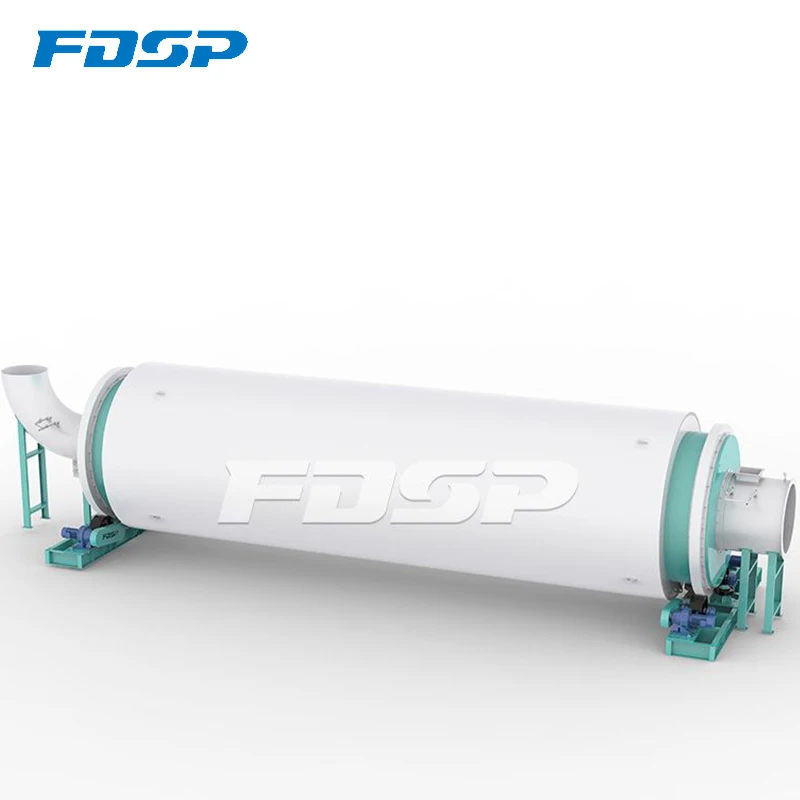

Rotary drum type sawdust dryer manufacturing factory for dryer 3tph

1. Introductions

It can be used for drying a wide range of biomass materials such as alfalfa, straw,

sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and leaves, etc



Rotary Dryer Features
1. High temperature and heat air can dry biomass materials quickly and evenly.
2. High self-insulation thermal efficiency of 70% inside the drum.
3. Economic space occupation, easy to build and maintain.
4. Moisture content requirements is adjustable, depending on clients’demand.
5. Stable drying process, low energy consumption, low cost.

Rotary Dryer Technical Data

Model	LYHG1.7*8	LYHG2.45*8	LYHG2.65*9.1	LYHG2.85*9	LYHG3.77*10
Diameter	1700	2450	2650	2850	3700
Length	8000	8000	9100	9000	100000
Capacity	1	2	3	4	5
Inlet temperature	<500	<500	<500	<500	<500
Raw material	sawdust
Moisture	45
Outlet temperature	80	80	80	80	80
Power	2.2*2	3*2	4*2	4*4	5.5*4





Rotary Dryer Structure

Consist of rotating cylinder, transmission device, supporting device and shoveling

plates,etc, rotary drum dryer is a horizontal type drying device. There are shoveling

plates indifferent angels welded throughout inner side of the whole drum.

The feeding place is set door ring and rotary shoveling plates to avoid materials

splashing.



Rotary Dryer Working Principle

Biomass materials with high moisture content are fed into rotary cylinder; shovelling

plates inside the drum walls raise up materials and these materials scatter down to

move in a spiral forward style. During the constant raising up and scattering down,

biomass materials can absorb enough amount of heat, at the same time, the drying

time is extended to achieve the best drying effects.
