Dia 22mm led indicator light dc 220v alarm buzzer
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (62585162852):
Product Overview
Description
Product Description

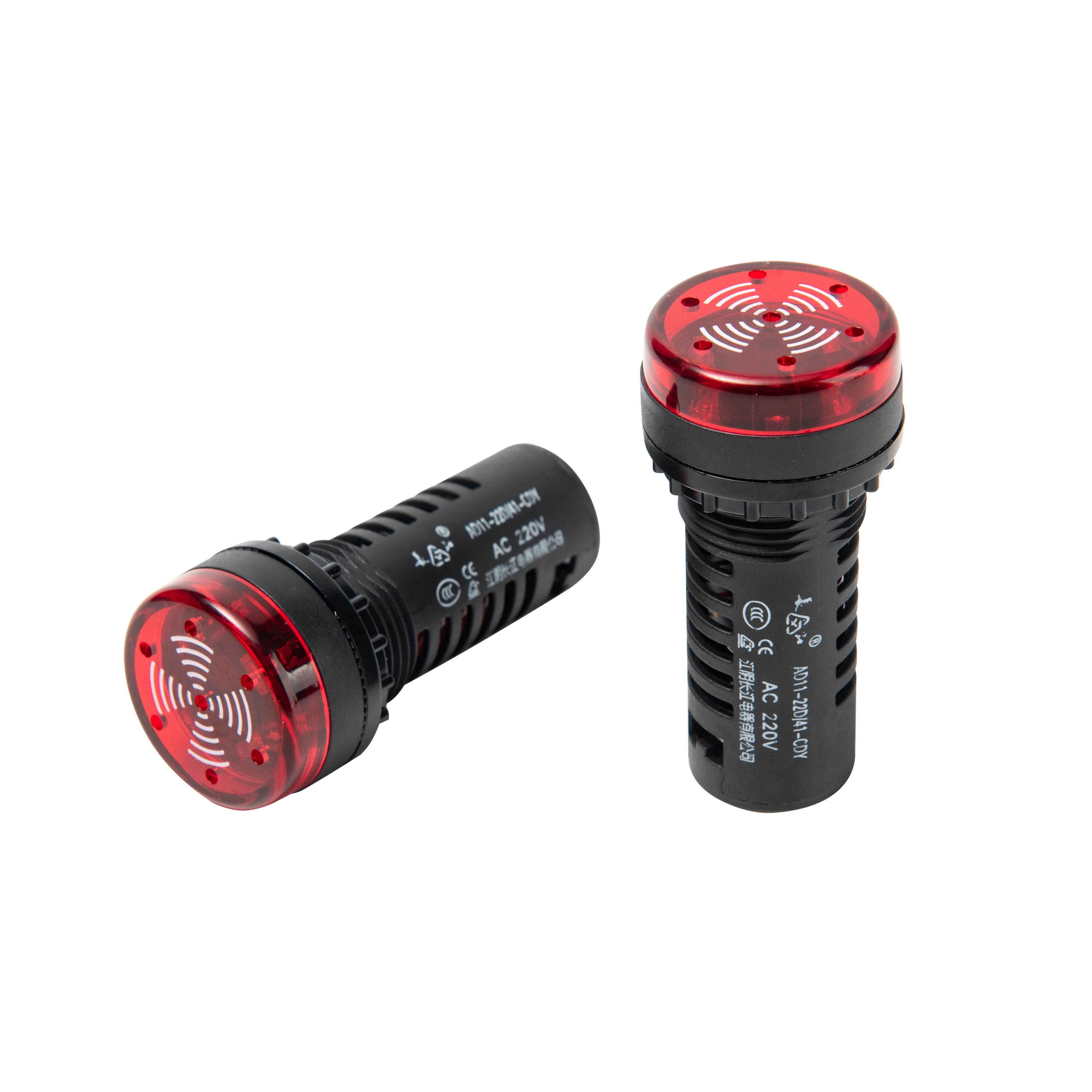

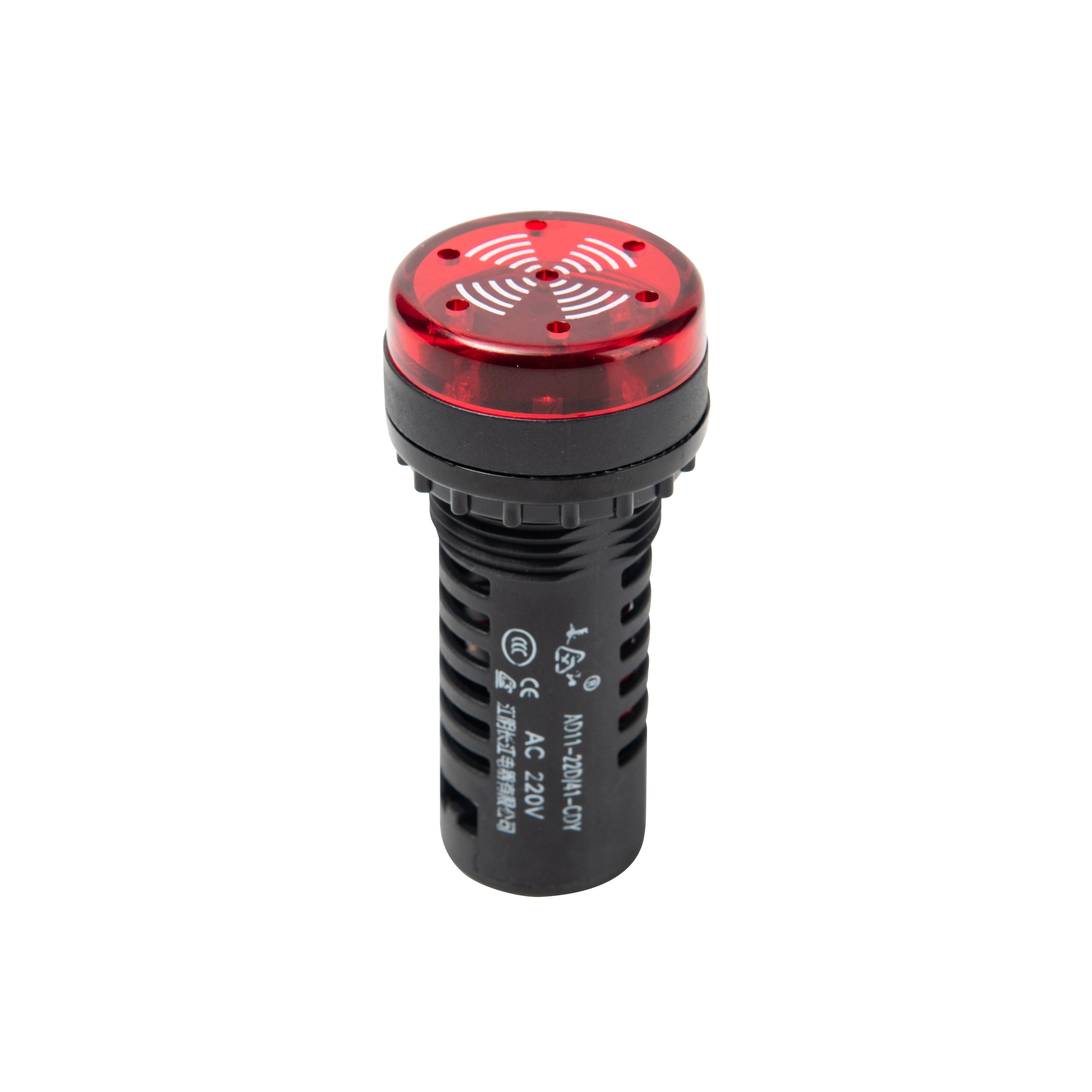

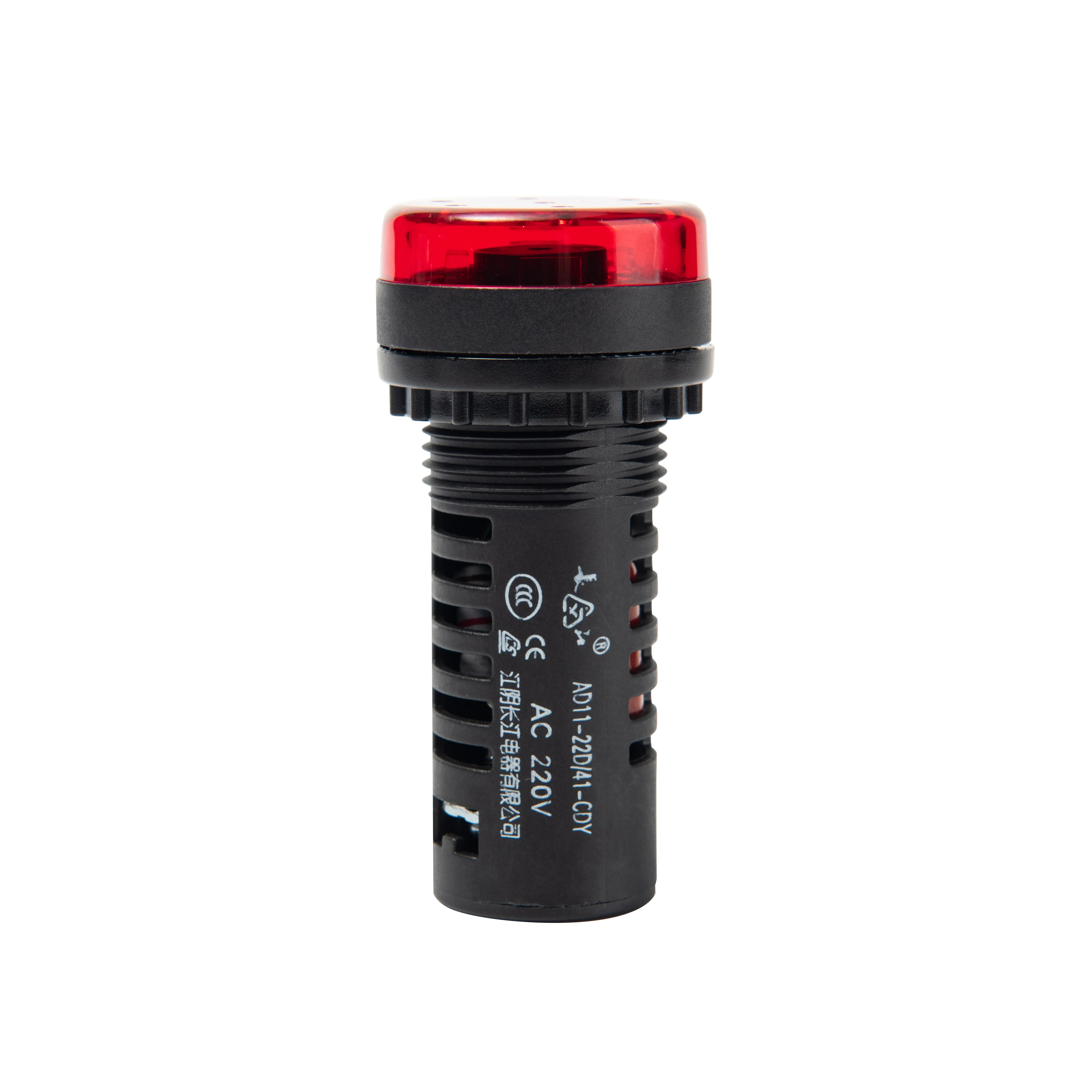

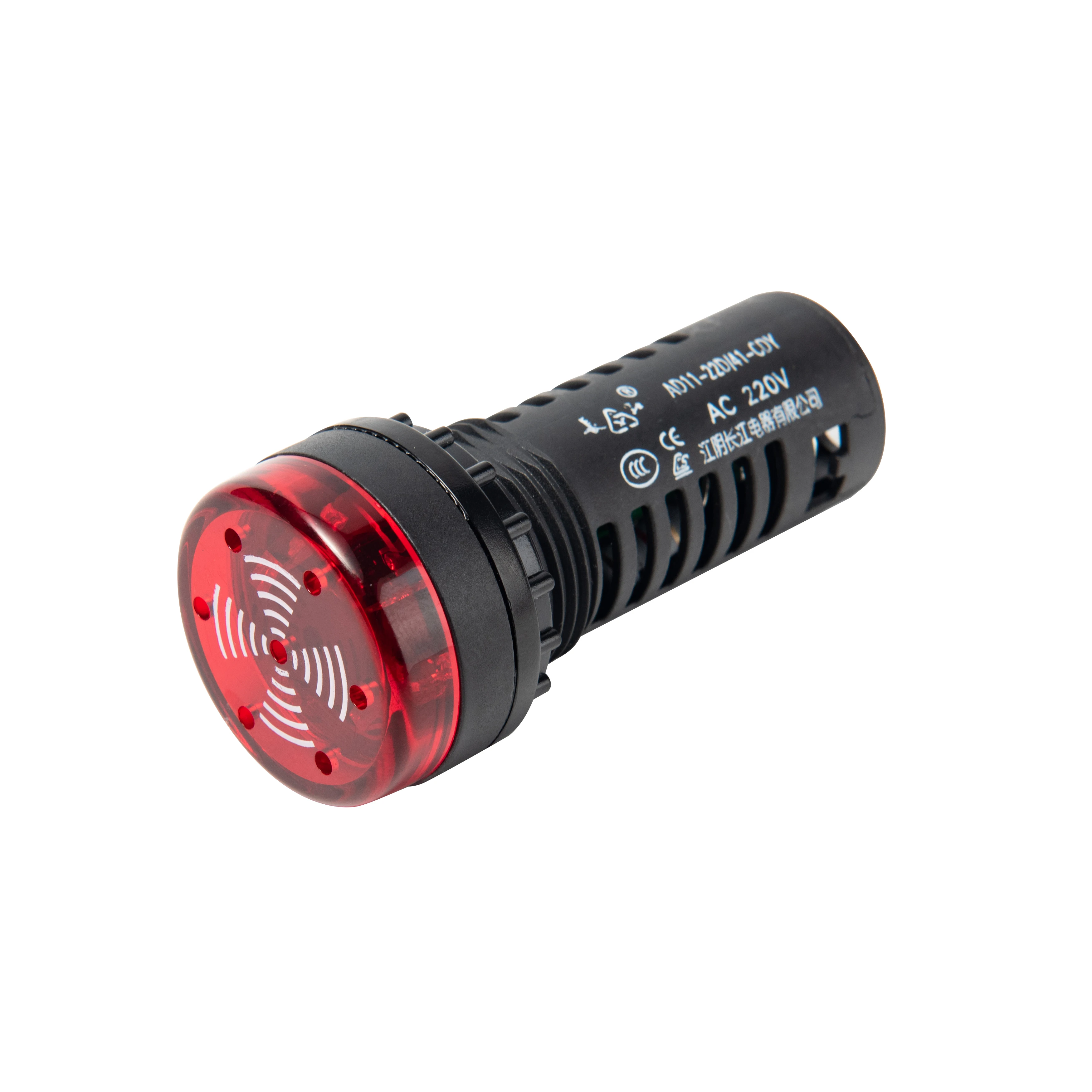

Product Name: AD11 series dia 22mm led flash alarm buzzer
CDY series alarm buzzer with LED uses high brightness LED chip as light source,has features of long life, small size, beautiful shape,clear sound and high reliability.It's widely used in rail transit, elevator, industrial control, textile and other equipment lines.
Main Specifications | ||
Rated insulated voltage | 690V | |
Insulation resistance | 50MΩ | |
Withstand Voltage | 1.89KV/5S | |
Life of signal light | ＞30000h | |
Flash buzzer sync frequency | 30±5 times/min | |
Details Images
Outline Size
Outline
Size of mounting hole
Specification
Product Type | AD11-22D/2(4)1-CDY | ||||||||||
Product Name | Buzzer with lamp | ||||||||||
Products Standard | GB/T 14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
<2000m | -25℃~+50℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | Rated insulated Voltage | 690V | |||||||||
Insulated resistance | Ui≤60V | 5MΩ | |||||||||
60＜Ui≤690V | 50MΩ | ||||||||||
Front protect class | non | ||||||||||
Withstand Voltage | 1.89KV/5S | ||||||||||
Work Frequency | 50HZ | ||||||||||
Flashing beep sync frequency | 30±5 times/min | ||||||||||
Lamps parameter | Rated working Voltage/Current | AC DC (V) | AC (V) | ||||||||
12 | 30±5mA | 220 | 20±5mA | ||||||||
24 | 15±5mA | 380 | 15±5mA | ||||||||
48 | 18±5mA | ||||||||||
110 | 18±5mA | ||||||||||
220 | 8.5±5mA | ||||||||||
Life of light | ≥30000h | ||||||||||
