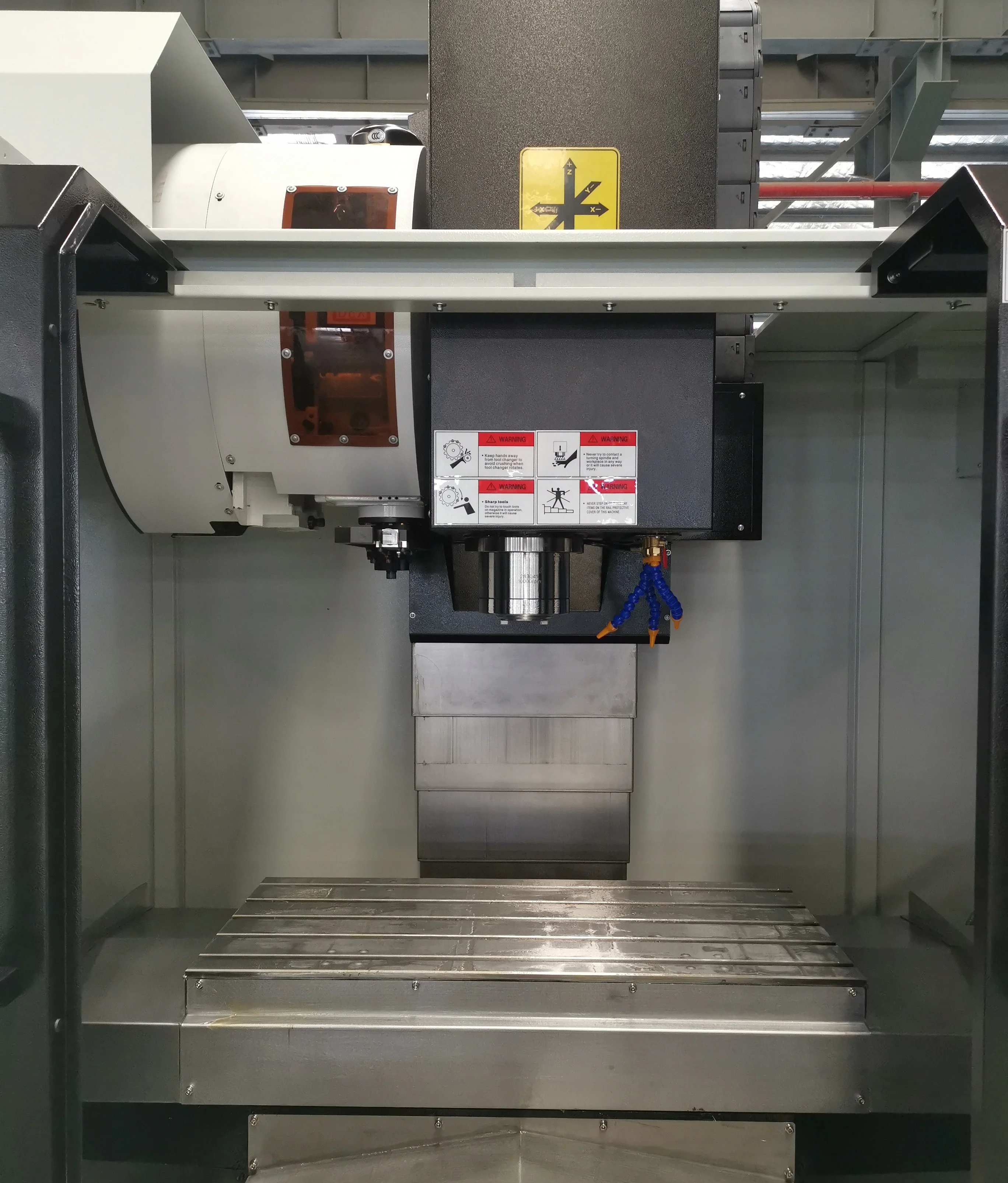

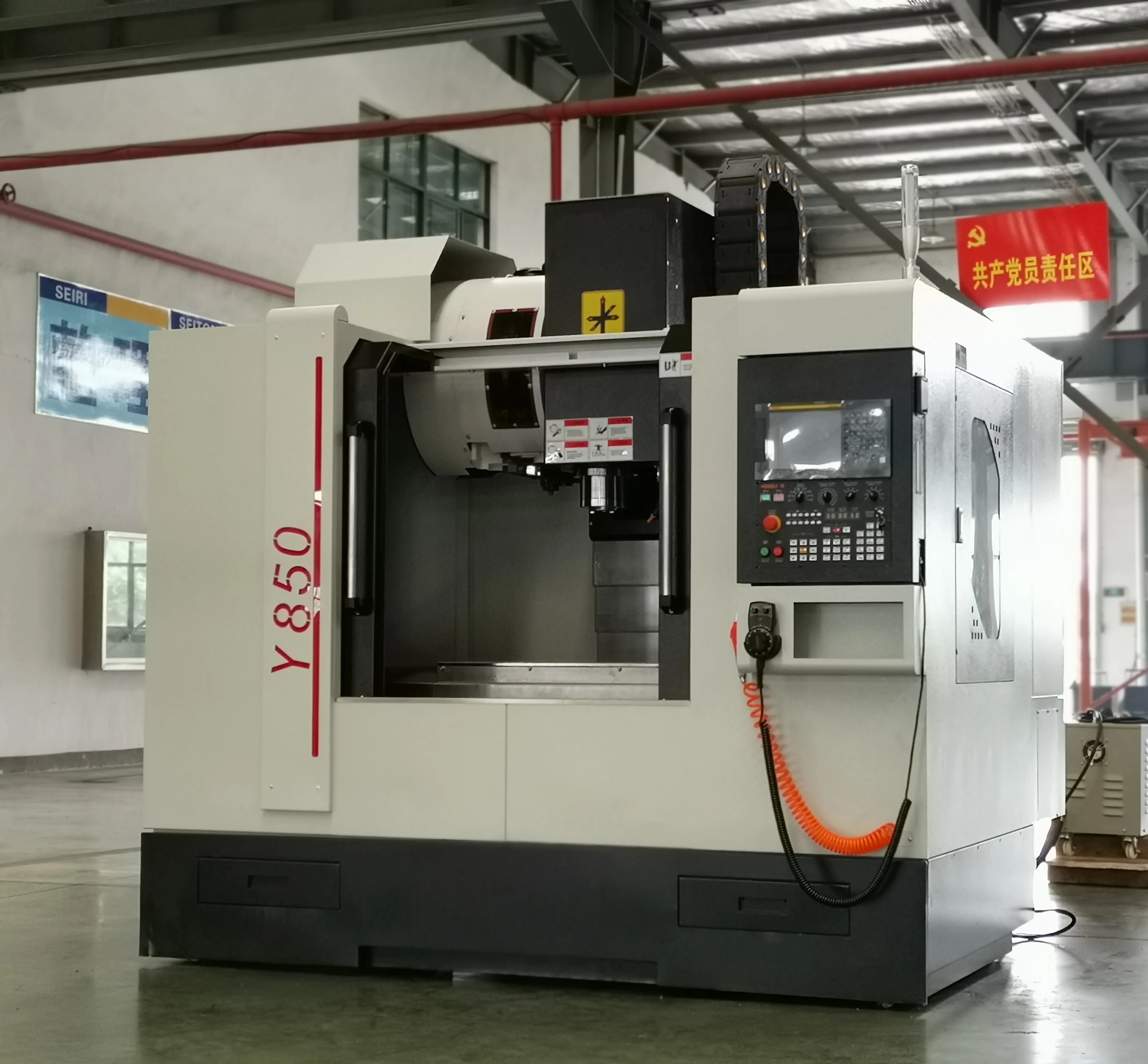

hot sale mini 6040 fresadoras cnc de precision vertical cnc milling machines for steel
- Category: >>>
- Supplier: Ningbo Blin Machinery Co. Ltd.
Share on (62585177433):
Product Overview
Description
Quick Details
| Port: | Ningbo |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 Unit/Units per Year |
| Weight (KG): | 5000 |
| Table Travel (Y) (mm): | 500 mm |
| Spindle Speed: | 100-8000rpm |
| Spindle Head: | BT40 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 2700/2900*2200*2500 |
| Spindle Taper: | BT40 |
| Machining Capacity: | Medium Duty |
| Distance From Spindle Nose to Worktable: | 150-700mm |
| Repeatability (X/Y/Z) (mm): | 0.005 |
| Warranty of core components: | 1 Year |
| Max. Table Load(kg): | 200 |
| Key Selling Points: | Multifunctional |
| Voltage: | 380/220/415 |
| Local Service Location: | None |
| Spindle Motor: | 9kw |
| Table Travel (Z) (mm): | 550 mm |
| Tool magazine type(Standard/Optional): | DISC type 24pcs/16T Funnel type |
| Table size: | 1000*460mm or 1200*460mm |
| Machinery Test Report: | Provided |
| Condition: | New |
| Warranty: | 1 YEAR |
| Place of Origin: | Zhejiang China |
| X/Y/Z axes fast feeding motor torque: | 11/11/11N.m |
| Showroom Location: | None |
| No. of Spindles: | Single |
| Table Travel (X) (mm): | 800 mm |
| X/Y/Z Axes Travel: | 800/500/550mm |
| Model Number: | BL-Y850/1050 |
| Controller: | Siemens/Fanuc |
| Range of Spindle Speed(r.p.m): | 1 - 10000 |
| Certification: | CE ISO |
| Brand Name: | BLIN cnc milling machine |
| Table Travel (mm): | 1000*460 |
| Video outgoing-inspection: | Provided |
| Type: | VERTICAL |
| Year: | 2019 |
| Core Components: | others |
| Marketing Type: | New Product 2020 |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use |
| Number of Axes: | 5 |
| After Warranty Service: | Video technical support,No service,Online support,Spare parts,Field maintenance and repair service |
| Positioning Accuracy (mm): | 0.008 |
| CNC Control System: | Siemens |
| Packaging Detail: | Plywood Case(LCL); Wooden/steel Pallet(FCL) |
