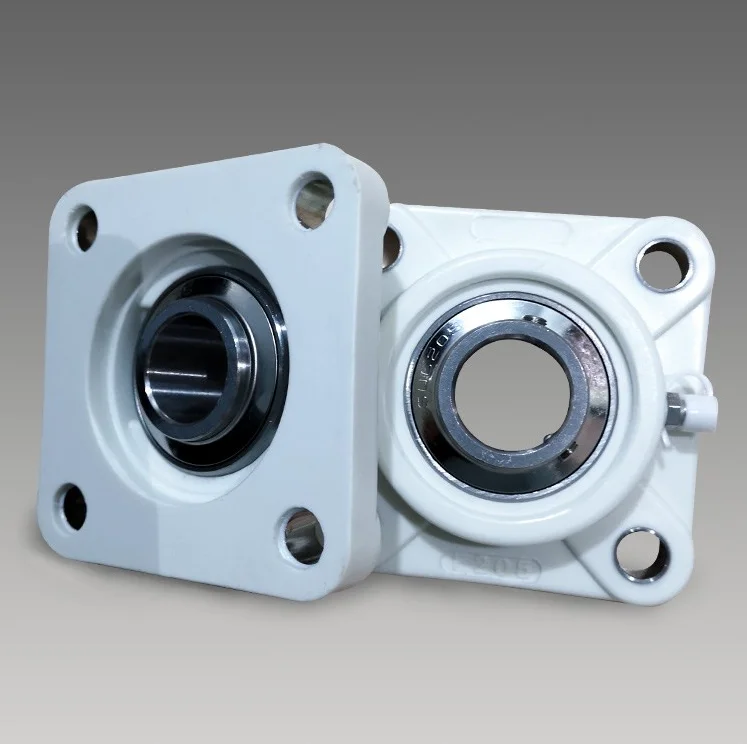

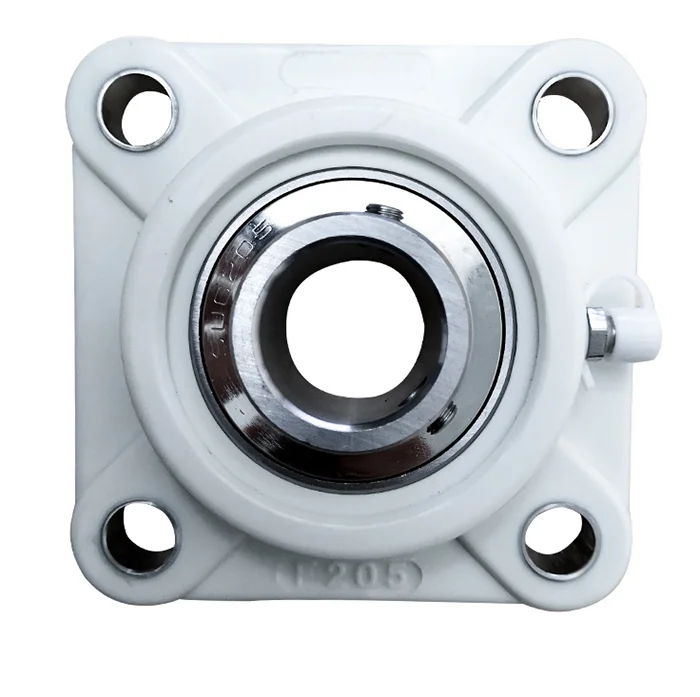

SUCF210 Plastic pillow block bearing With stainless insert Bearing
- Category: >>>
- Supplier: Shandong Tefule Bearing Co. Ltd.
Share on (62585208062):
Product Overview
Description
Product Description
The flange bearing UCF200 Series is suitable for very high radial loads and for installation in various applications. It is
hygienic and corrosion resistant with its plastic housing and stainless steel bearing insert.
hygienic and corrosion resistant with its plastic housing and stainless steel bearing insert.
* consisting of a stainless steel bearing insert and a thermoplastic housing
* suitable for mounting on flat surfaces and high radial load capacities
* the housing is made of plastic and is therefore lightweight, hygienic, corrosion-resistant and cushioning
* the bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws
* fixing of the shaft with two grub screws
* smooth running and good behavior with tilting due to the extended inner ring
* static misalignments can be compensated up to an angle of 2°
* two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger
made of sheet steel for high mechanical protection against foreign matter
* lubricated for life; under normal operating conditions relubrication is not required
* the bearing is lubricated for life with the grease for food industry FM 222 for normal operating conditions
* the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
* housing with integrated lubrication hole
* In addition to this article, we can also offer bearings of the brands KOYO, NSK, SNR, etc. on request.
* suitable for mounting on flat surfaces and high radial load capacities
* the housing is made of plastic and is therefore lightweight, hygienic, corrosion-resistant and cushioning
* the bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws
* fixing of the shaft with two grub screws
* smooth running and good behavior with tilting due to the extended inner ring
* static misalignments can be compensated up to an angle of 2°
* two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger
made of sheet steel for high mechanical protection against foreign matter
* lubricated for life; under normal operating conditions relubrication is not required
* the bearing is lubricated for life with the grease for food industry FM 222 for normal operating conditions
* the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
* housing with integrated lubrication hole
* In addition to this article, we can also offer bearings of the brands KOYO, NSK, SNR, etc. on request.

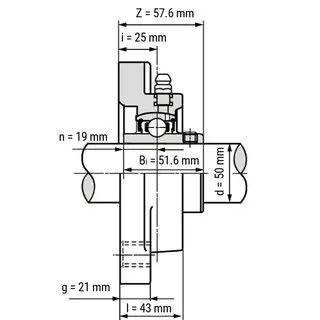

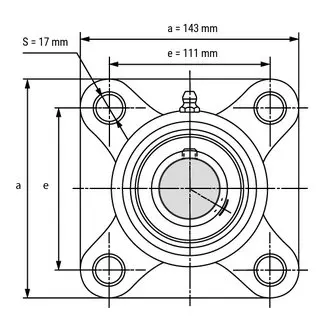

Size Information
Inside Diameter (mm): | 50 |
a (mm): | 143 |
e (mm): | 111 |
i (mm): | 25 |
Shaft Fastening: | Grub Screws |
Housing Type: | Flange |
Grub Screw: | M10 |
Bearing No.: | SSUC 210 |
Housing No.: | FPL 210 |
Ring Material: | Stainless Steel |
Rolling Element Material: | Stainless Steel |
Cage Material: | Stainless Steel |
Housing Material: | Plastic |
Max. Tightening Torques (Nm) For Bearing Insert: | 22 |
Number of Mounting Holes: | 4 |
Product weight: | 1,390 Kg |
