Chinese factory steering drive wheel 800KG load for automated guided vehicle
- Category: >>>
- Supplier: Zhejiang Tongzhu Technology Co. Ltd.
Share on (62585234855):
Product Overview
Description
Product Overview

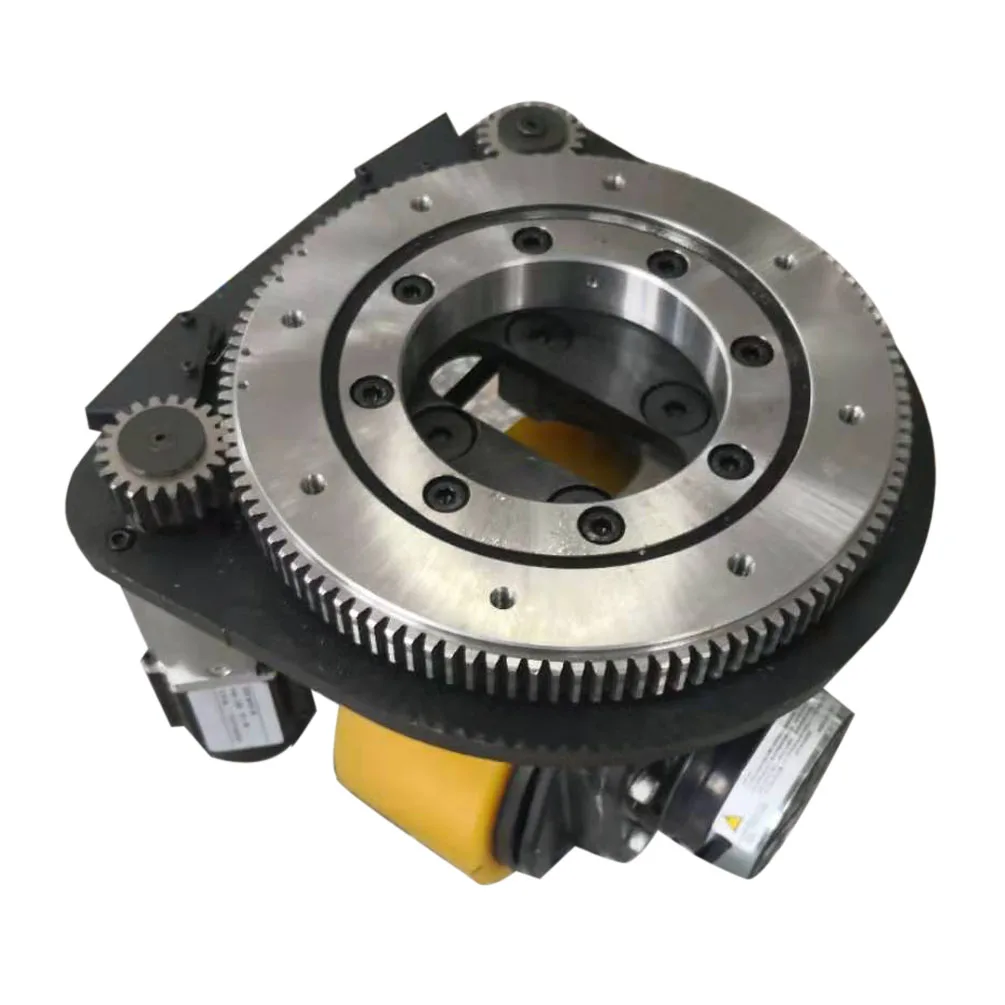

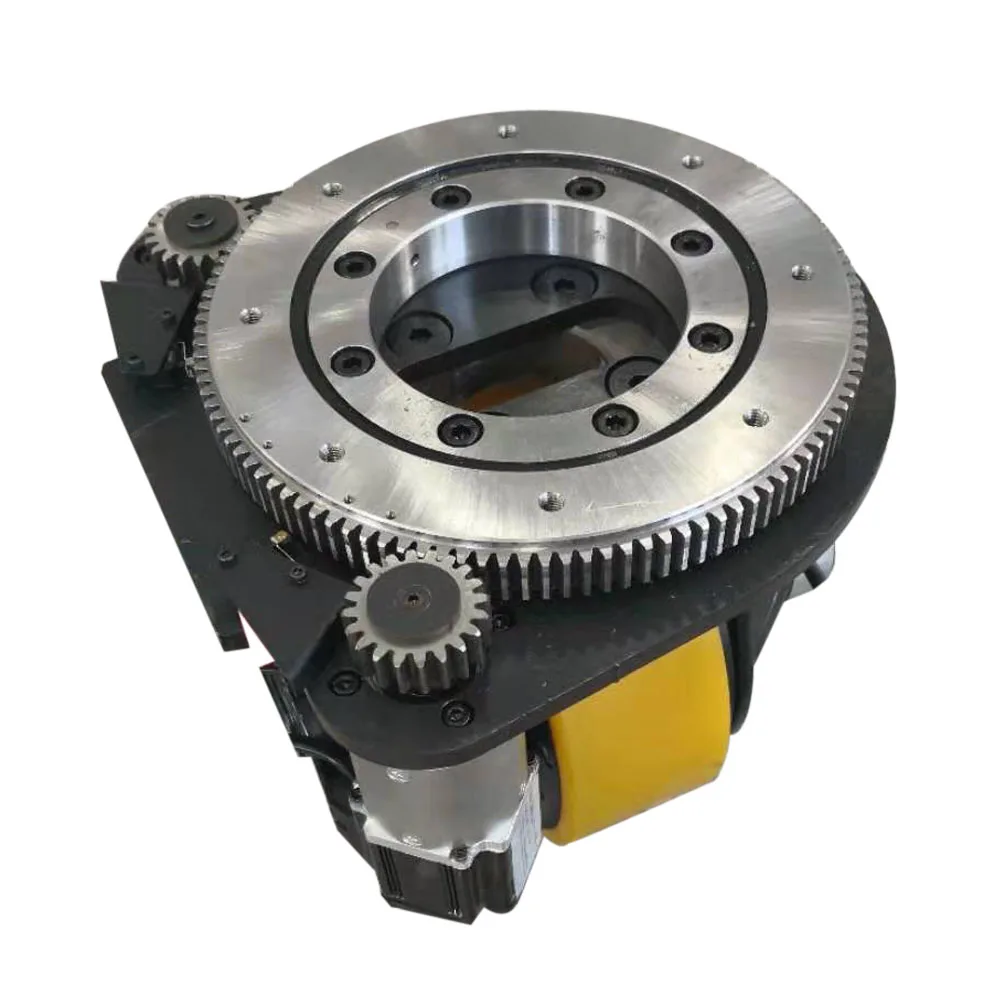

TZ09-D065S02 Horizontal Drive Wheel
The driving wheel is the core component of AGV (Automatic Navigation Vehicle), which is mainly used in various types of AGV vehicles, electric stackers, tractors, or other industrial automatic navigation vehicles. Driving and steering of driving wheels through transmission mechanisims such as motors and reduction gears, driving vehicles for precise walking and direction control.
PRODUCT SPECIFICATIONS
Item | Motor Data | |
Model | TZ09-D065S02 | |
Traction Data | 37.5KW | |
Motor Type | BLDC | |
Power S2-60 min | 650W | |
Rated Voltage | 48V | |
Rated Current | 20A | |
Rated Speed | 2560rpm | |
Rated Torque | 2.34Nm | |
Gear Ratio | 24.68i | |
Wheel Diameter | 210mm | |
Brake Torque | 6Nm | |
Encoder | Optional | |
Steering Data | ||
Power S2-60 min | 200W | |
Rated Voltage | 48V | |
Rated Current | 3.3A | |
Rated Speed | 3000 | |
Rated Torque | 0.45 | |
Total Reduction Ratio | 228 | |
Encoder | Optional | |

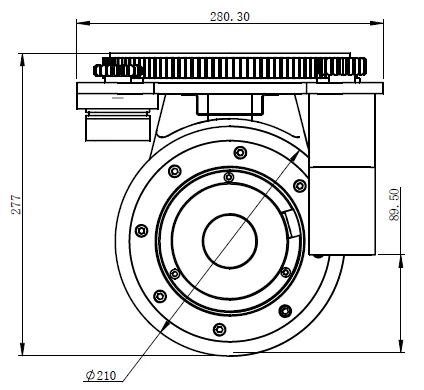

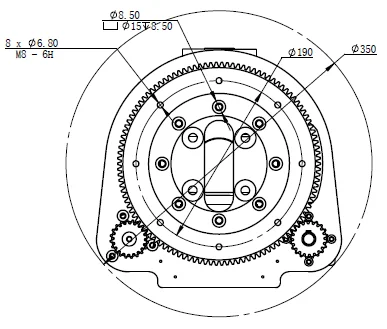

Dimensions
Advantages
Better precision for steering

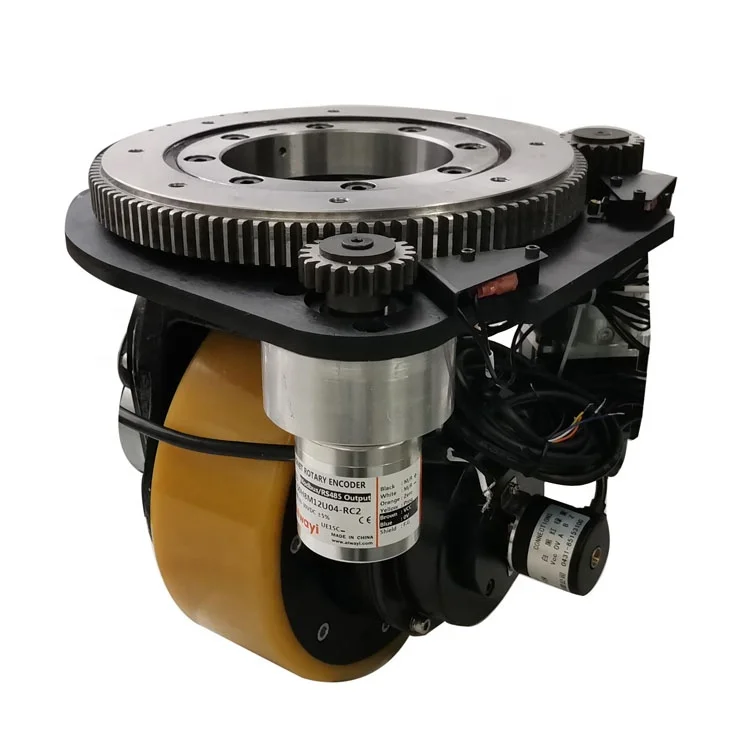

This TZ09-D065S01 drive wheel has two encoders, one on the motor and another on the steering gear wheel, which has much higher accuracy. Besides, it could install the absolute encoder at left position.
The smaller steering radius
The radius of gyration of TZ09-D065S01 is smaller, it’s better for designing of agv.
Easy maintenance
The TZ09-D065S01 is BLDC motor, which is much easier for maintenance.

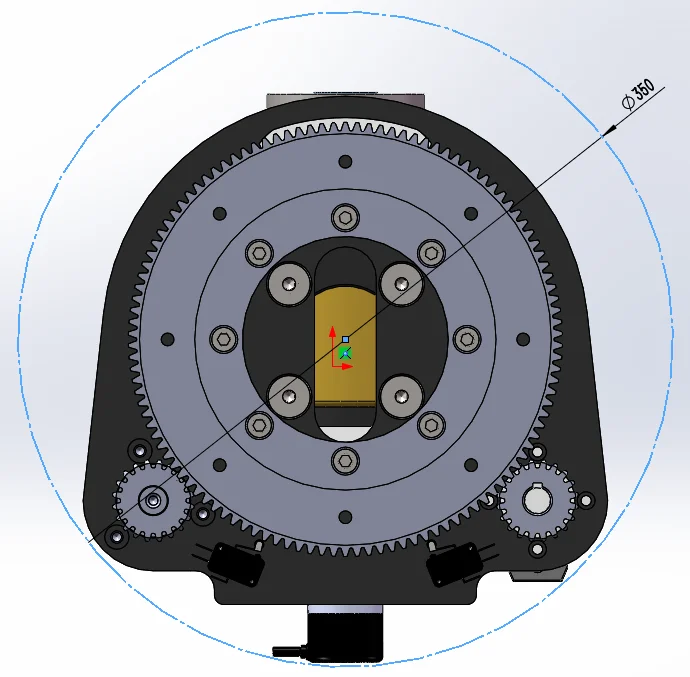

Structure Diagram
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
