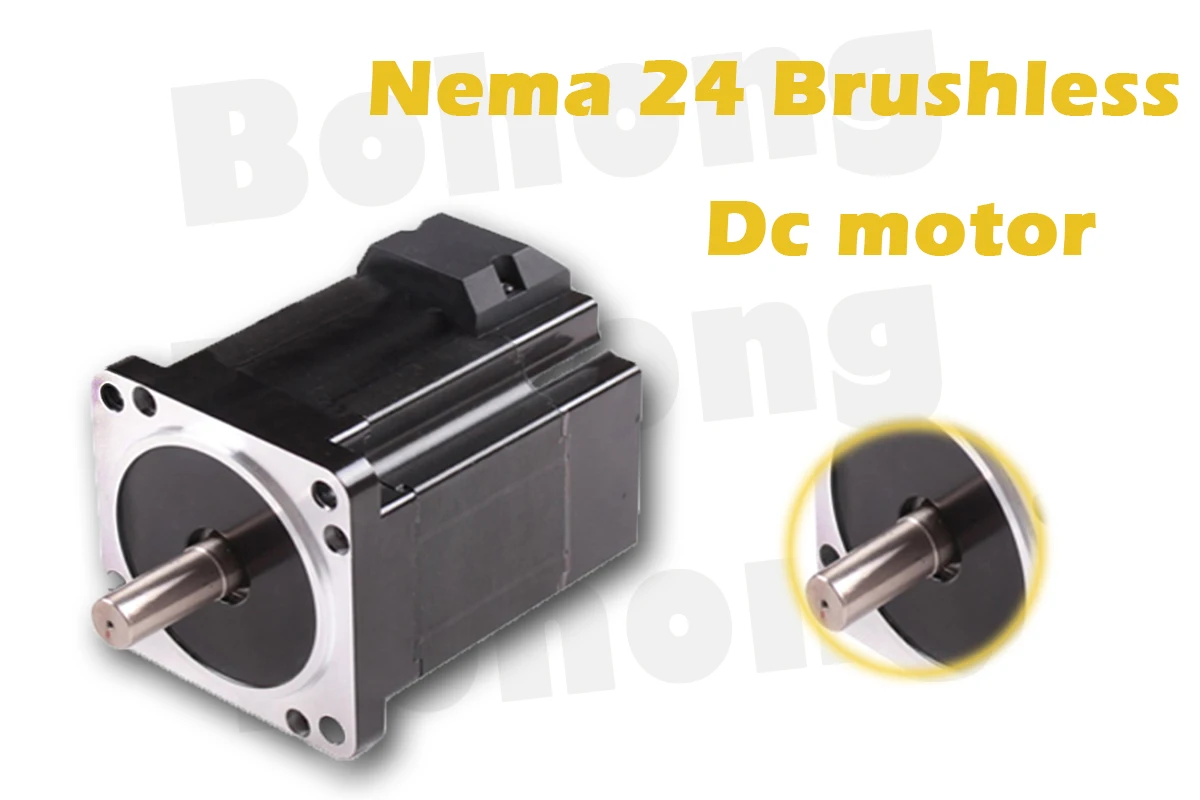

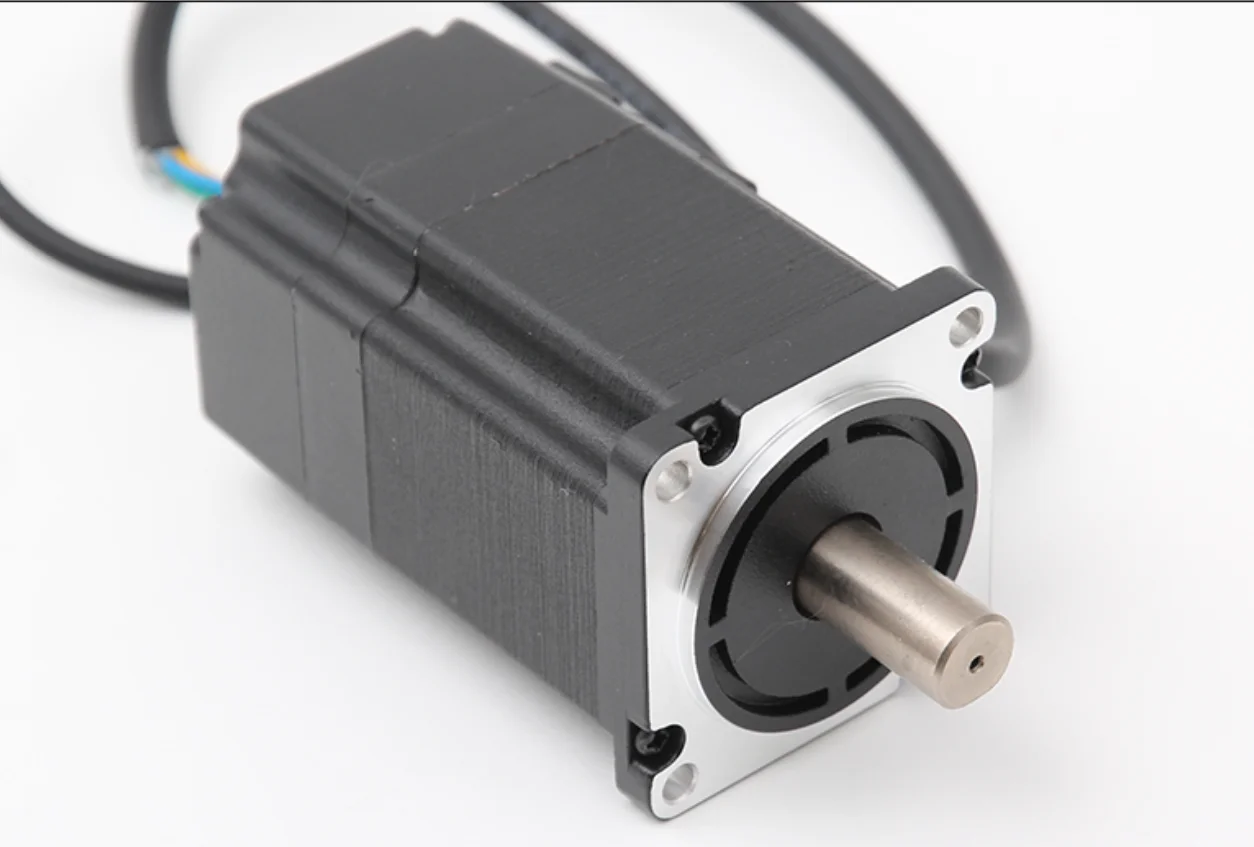

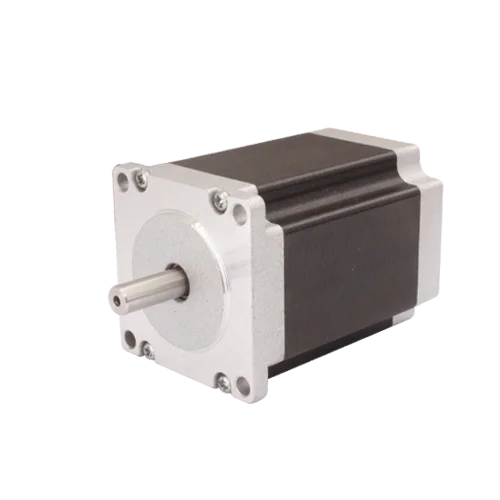

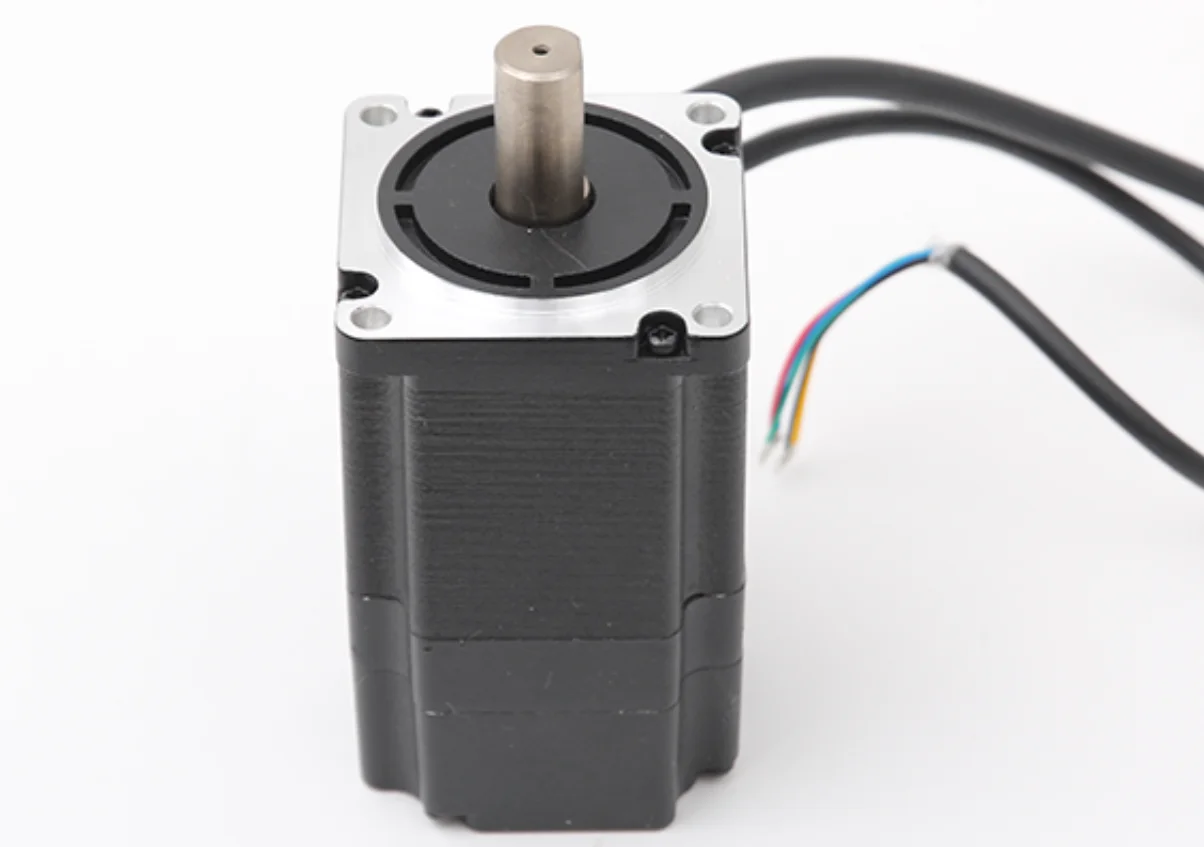

Good Price 200W Brushless Drone Motor, Industrial Custom Nema 24 Waterproof Brushless DC Motor
- Category: >>>
- Supplier: Changzhou Bohong Electric Appliance Co. Ltd.
Share on (62585272813):
Product Overview
Description
Main
Product Description

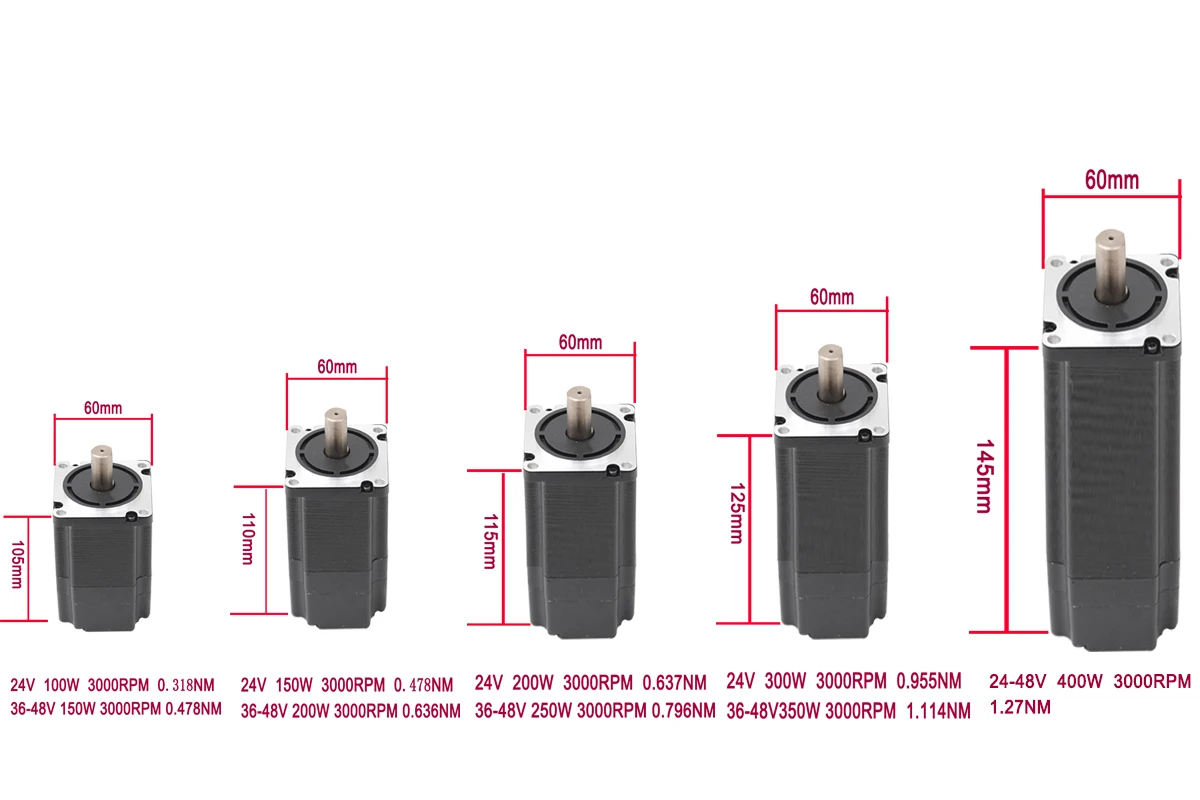

| Motor Type | 60BLDC21030A-01 | 60BLDC22030A-01 | 60BLDC43030A-01 | 60BLDC44030A-01 |
| Phase | 3 | |||
| Number of poles | 8 | |||
| Winding connection | Y | |||
| Hall electrical angle | 120 | |||
| Rated Voltage V | 24 | 24 | 48 | 48 |
| Rated Power(W) | 100 | 200 | 300 | 400 |
| Rated Torque(N.m) | 0.318 | 0.636 | 0.955 | 1.27 |
| Rated speedn(rpm) | 3000 | 3000 | 3000 | 3000 |
| Rated current(A) | 5.08 | 9.8 | 7.37 | 9.8 |
| Instantaneous maximum torqueTm(N.m) | 0.954 | 1.9 | 2.86 | 3.81 |
| Instantaneous maximum currentIm(A) | 15.16 | 29.4 | 22.11 | 29.4 |
| Back potential constant(V/kr pm) | 4.3 | 4.3 | 4.3 | 4.3 |
| Torque constantTt(N.m/A) | 0.48 | 0.48 | 0.48 | 0.48 |
| Lead resistance(Ω) | 6.41 | 8.02 | 6.41 | 8.02 |
| Lead inductance(Mh) | 13.04 | 16.3 | 13.04 | 16.3 |
| Moment of inertia(Kgcm) | 0.3 | 0.37 | 0.42 | 0.51 |
| Insulation class | B | |||
| Bearing radial force(N) | 180 | 180 | 180 | 180 |
| Bearing axial forceFa(N) | 90 | 90 | 90 | 90 |
| Weight(Kg) | 1.3 | 1.8 | ||
