High quality Electronic 12V 24V Electromagnetic cabinet lock for Electronic Solenoid Lock Door
- Category: >>>
- Supplier: Shenzhen Voung Electronics Co. Ltd
Share on (62585306552):
Product Overview
Description
Product Description
Cabinet Electromagnetic Lock for Locker
Item | Cabinet Electromagnetic Lock for Locker |
Model | VE-P203A |
Automatically Release | Power on to release lock, door bounce out automatically to disconnect power; |
Work mode | Power off to lock, The energization time must not exceed 10 seconds; |
Electrical Parameters | DC12V 2A; |
Size | 73*66*13mm |
Emergency Release | Manually release; |
Durable | 500,000 times tested |
Holding Force | 150Kg force, anti-vibration, tamper design |
Specification :
2. Size : 73*66*13mm;
3. Working mode: independent (i.e. the door is locked when the power is turned off, and the lock is triggered when the power is
turned on);
4. Electrical parameters: DC12V 2A, suction time cannot exceed 200ms;
5. Mechanical life: more than 500,000 times under design load;
6. Electromagnet life: rated working conditions, more than 1000000 times;
7. Lock opening detection: built-in lock opening position detection, door lock switch conduction, lock opening switch disconnect.
8, Self-elastic design: elastic adjustable, can be applied to 0.5~4Kg weight door self-elastic.
9, Surface treatment: electrocoat paint (neutral smoke test over 500 hours).
10. Safety: the lock hook can bear 150Kg tension without obvious permanent deformation;With anti - shock, anti - skid performance
11, Working temperature: -40 - +60 ° c
12, Installation: small size, simple installation, no left and right, pros and cons;And reserve the mechanical emergency opening
position;
Application :
Storage cabinet, telegraph box, locker, logistics cabinet, file cabinet, electricity meter box, locker, vending machine, mobile phone cabinet, shoe cabinet and other centralized control cabinet.Widely used in schools, community logistics, hotels, factories, bath centers, military, Banks, supermarkets, prisons and other places.
Products Show

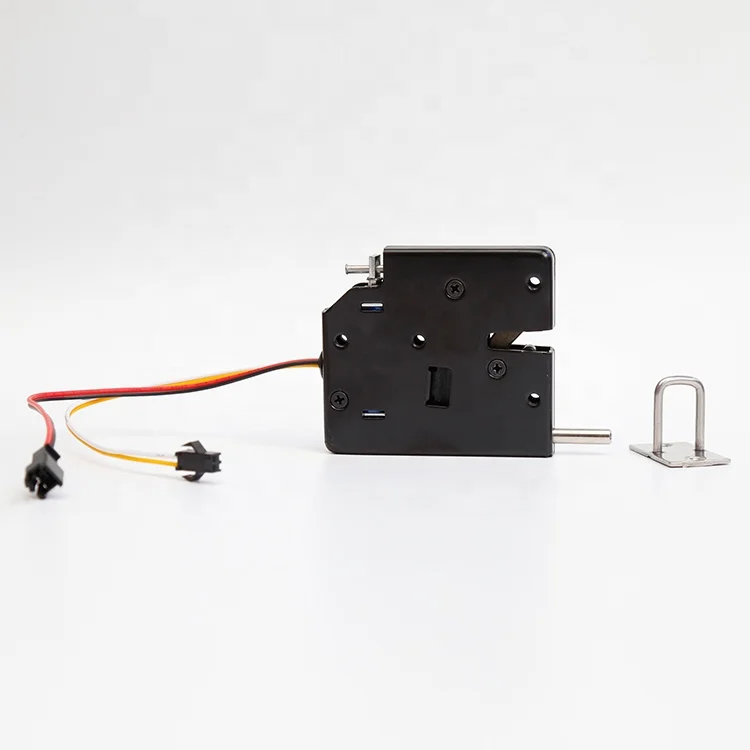

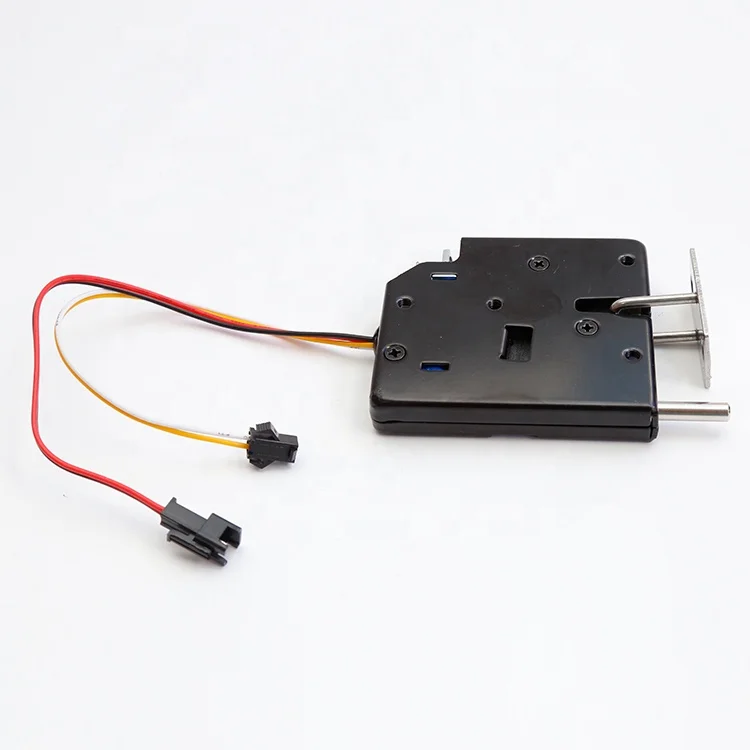

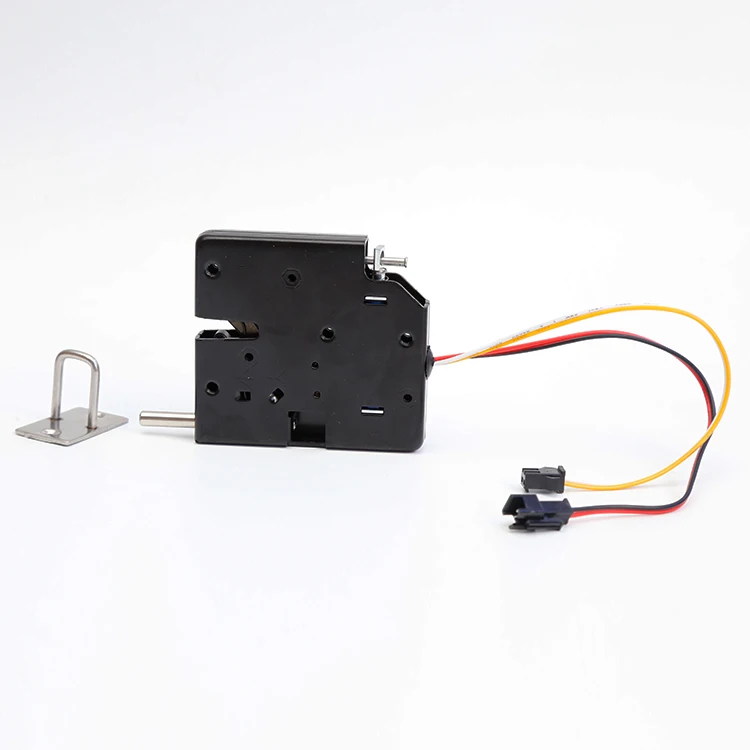

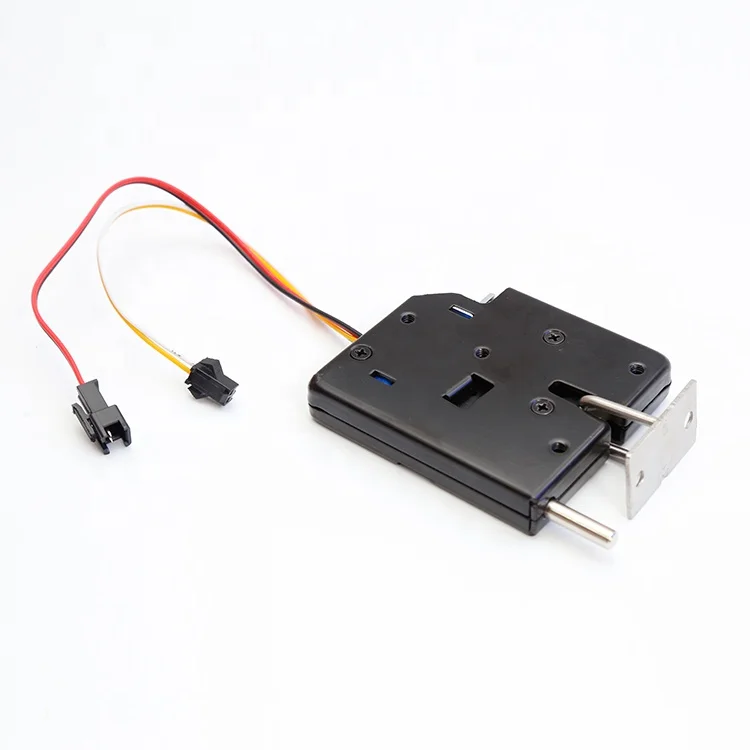

Cabinet Electromagnetic Lock for Locker
Related models -Please contact us
Usage & Installation
1 Read the manual carefully and test it before the installation;

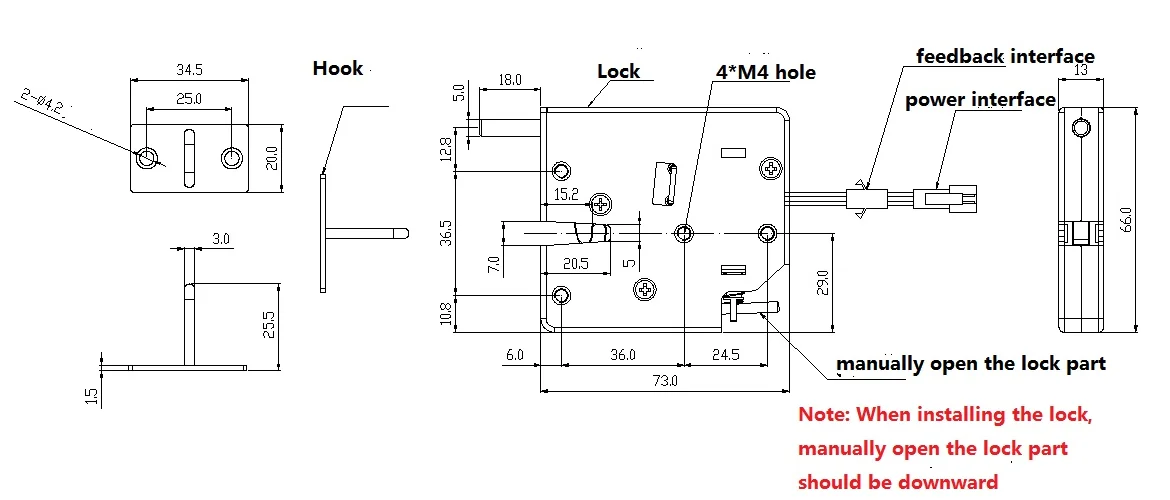

2 Lock Dimensions:
Packing & Delivery
100pcs / Carton
Carton size : 30*30*15cm
Carton size : 30*30*15cm
Weight : 20kg
Shipping way | Service | Time ( for reference , depend on your country) |
DHL/UPS/FEDEX/TNT | Door to door | 4-7days |
By Air | Door to airport | 7-15days |
By sea | Sea port to sea port | 20-40days |
