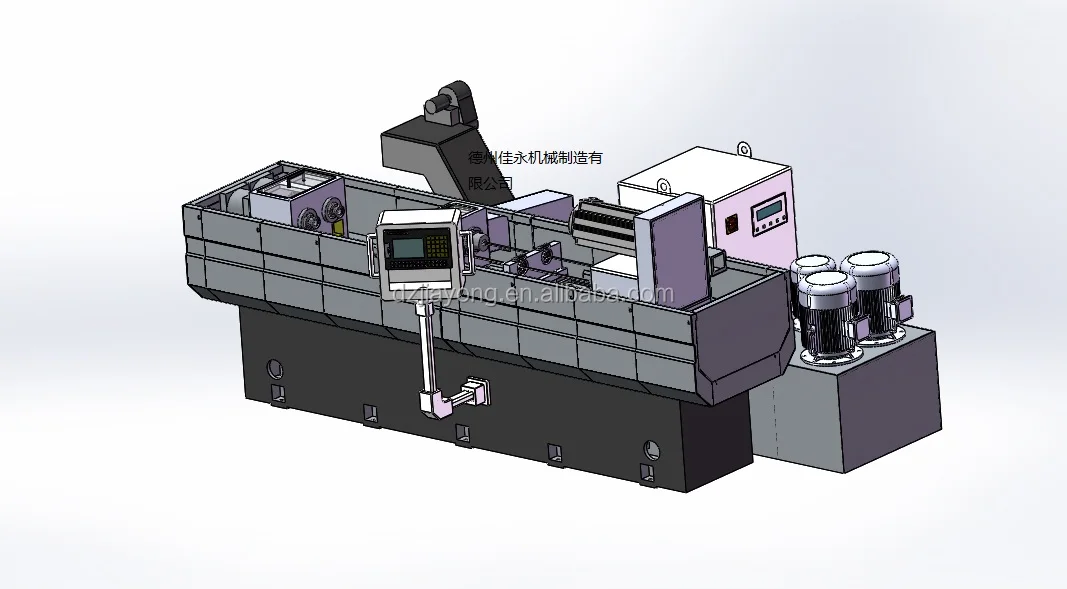

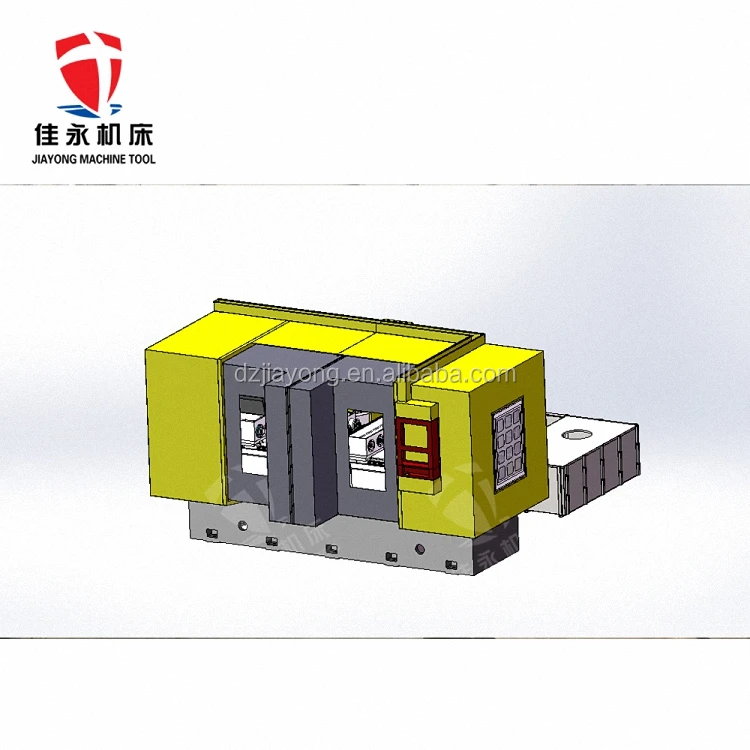

Hot sale CNC horizontal hydraulic small hole drilling machine with wholesale price
- Category: >>>
- Supplier: Dezhou Jiayong Machinery Manufacturing Co. Ltd.
Share on (62585325876):
Product Overview
Description

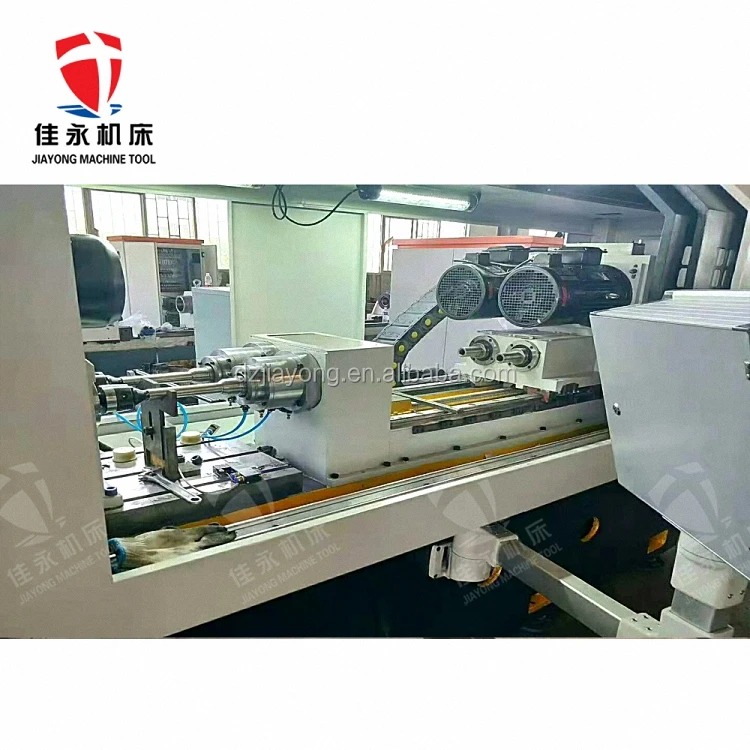

Machine introduction
Hot sale CNC horizontal double spindles deep hole gun drilling machine is a high-precision, high-automation and high-efficiency special deep-hole drilling machine. The equipment adopts external chip
removal drilling (gun drilling), and it can replace the processing accuracy and surface roughness generally required by drilling,
expanding and reaming operations through one continuous drilling. Jiayong CNC double-axis deep-hole gun drilling machine is
controlled by digital control system. It not only has single-action function, but also has automatic cycle function. Therefore,
this equipment is not only suitable for the processing of small batches of workpieces, but also especially suitable for the
production and processing requirements of large batches of workpieces. It can drill through holes, blind holes or stepped holes,
and can also process eccentric holes and oblique oil holes with special tooling.
removal drilling (gun drilling), and it can replace the processing accuracy and surface roughness generally required by drilling,
expanding and reaming operations through one continuous drilling. Jiayong CNC double-axis deep-hole gun drilling machine is
controlled by digital control system. It not only has single-action function, but also has automatic cycle function. Therefore,
this equipment is not only suitable for the processing of small batches of workpieces, but also especially suitable for the
production and processing requirements of large batches of workpieces. It can drill through holes, blind holes or stepped holes,
and can also process eccentric holes and oblique oil holes with special tooling.
Product Fetures
1. Bed and box are made of high-quality cast iron, with good rigidity and stability.
2. No need to retract the tool during drilling of deep holes.
3. Using CNC system control, high degree of automation.
4. The feed motion is driven by an AC servo motor, and the ball screw is driven by the pair.
5. Adopting sliding guide, stable running at low speed, no crawling.
6. Stepless speed regulation of the main shaft of the drill pipe box.
7.Main shaft bearings and guide surfaces are automatically lubricated intermittently.
8.The high-pressure cooling system uses a motor-driven gear pump and an immersed oil temperature controller.
9. Chip removal with automatic chip conveyor
10.The machine tool adopts a fully enclosed protection form, which is convenient to observe and overall beautiful.
11. With a variety of automatic monitoring devices.
2. No need to retract the tool during drilling of deep holes.
3. Using CNC system control, high degree of automation.
4. The feed motion is driven by an AC servo motor, and the ball screw is driven by the pair.
5. Adopting sliding guide, stable running at low speed, no crawling.
6. Stepless speed regulation of the main shaft of the drill pipe box.
7.Main shaft bearings and guide surfaces are automatically lubricated intermittently.
8.The high-pressure cooling system uses a motor-driven gear pump and an immersed oil temperature controller.
9. Chip removal with automatic chip conveyor
10.The machine tool adopts a fully enclosed protection form, which is convenient to observe and overall beautiful.
11. With a variety of automatic monitoring devices.
Machine Parameter
Project Name | Parameter | ||
Working range | Drilling hole diameter range | Φ3-Φ30mm | |
workpiece length | 500-2000mm | ||
Drilling box spindle parameters | The height of center | 200mm | |
Taper hole at the front end of spindle | Φ40mm1：20 | ||
Spindle speed range | 30-4000r/min（steplesss） | ||
Torque of boring bar | ≥35N.m | ||
Feeding parameter | Feed speed range | 5-1000mm/min（steplesss） | |
Pallet move quickly | 2m/min | ||
Feed torque of boring bar | ≥10N.m | ||
Positioning length | 0-2000mm | ||
Working precision | Cylindricity of workpiece machinin | ≤0.016/500mm | |
Roundness of workpiece machining | ≤0.01/100mm | ||
Working precision | oter power of boring bar | 5.5KW AC servo motor | |
Hydraulic pump motor power | 5.5KW | ||
Feeding motor | 1.5KW AC servo motor | ||
CNC systerms | SIEMNS KND or customer choose | ||

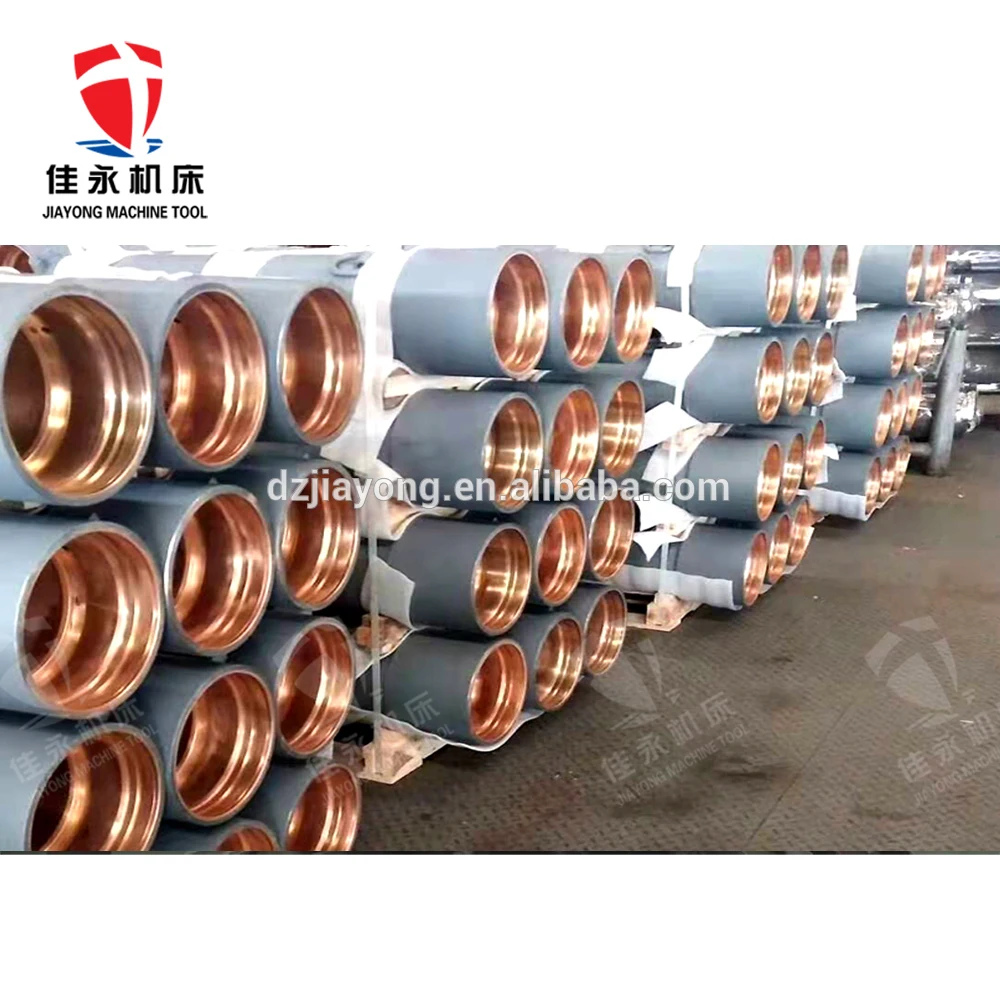

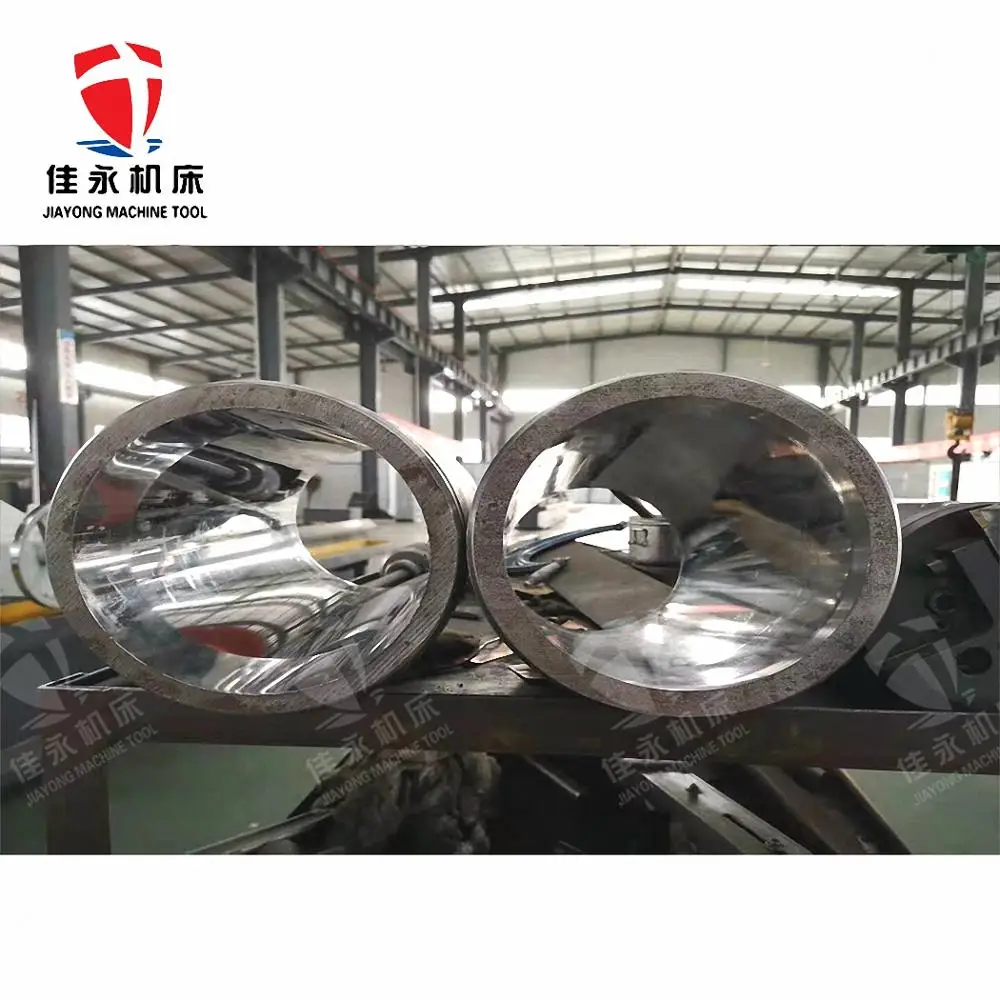

Machine usage workpiece

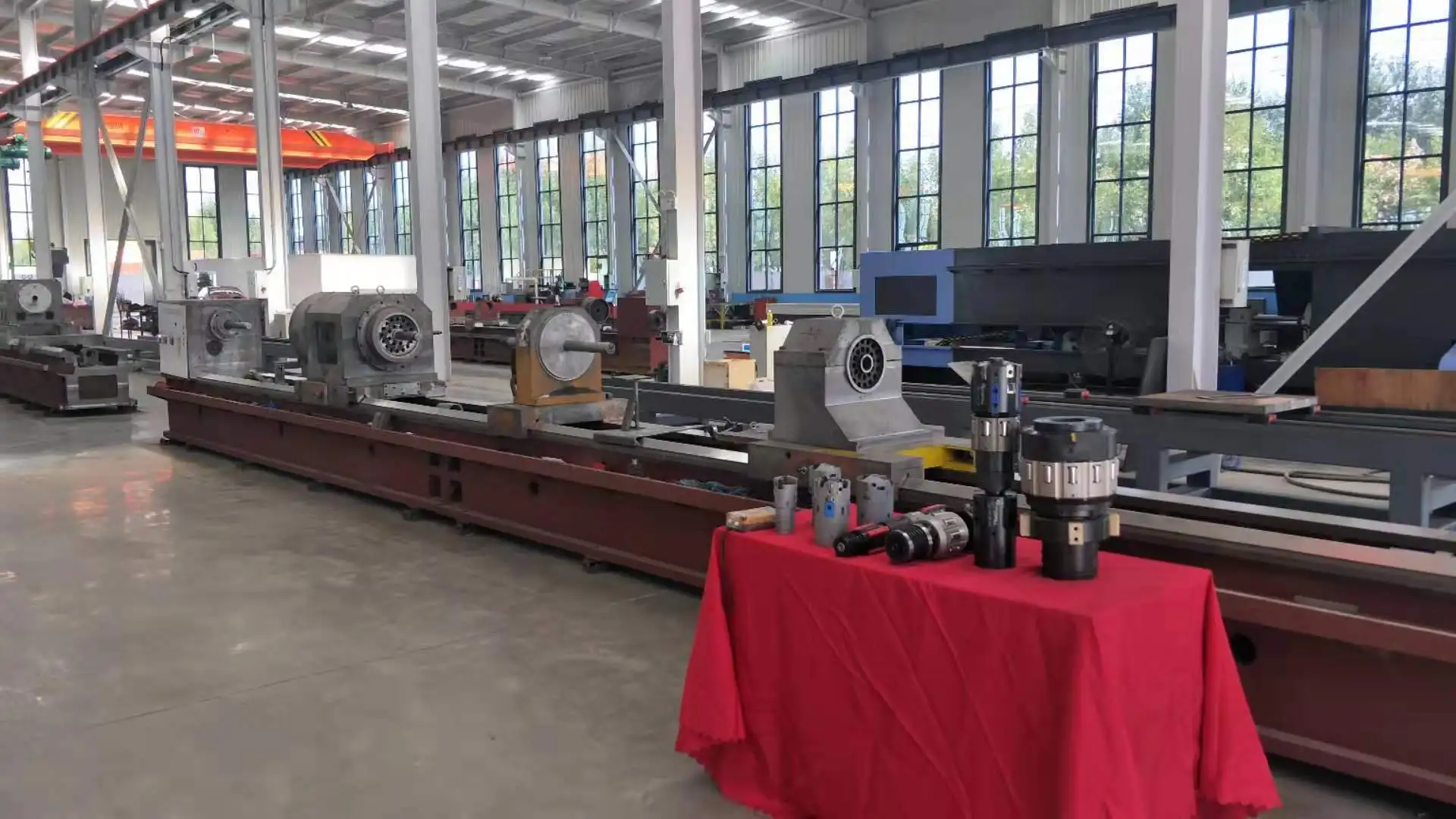

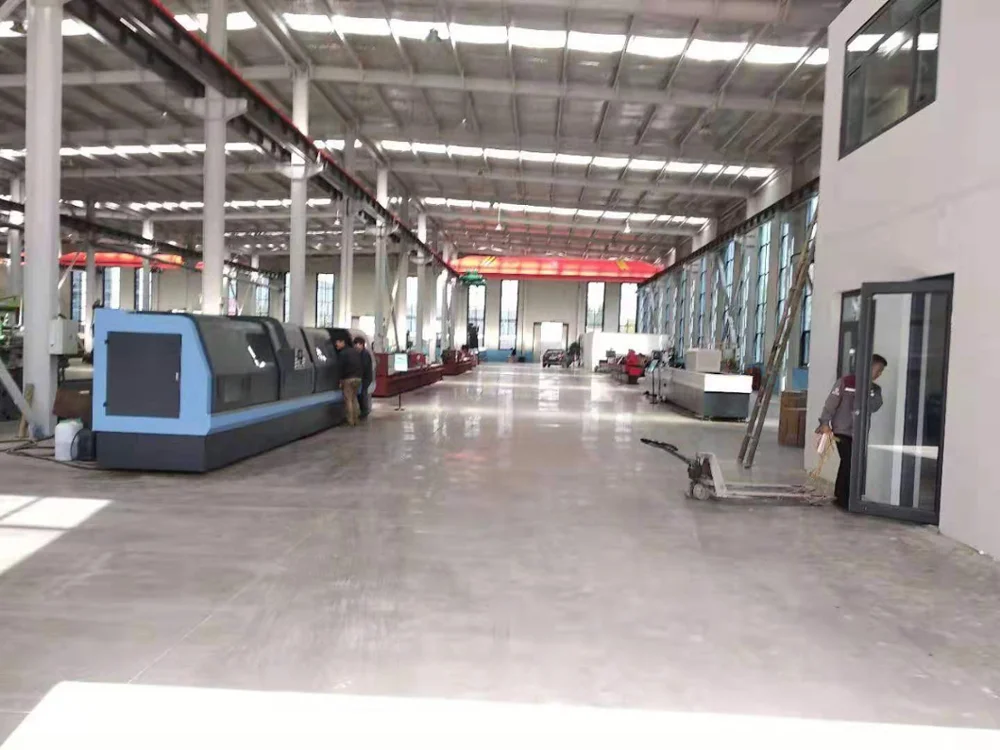

Company Introduction
Dezhou Jiayong Machinery Manufacturing Co., Ltd. was established in 2004. It is a high-tech enterprise in China. our company is committed to creating a leading brand of China's special machine tools, and constantly promotes the development of safe, sustainable and efficient users , we have many kinds of special deep hole processing machines,which has the advantages of high accuracy,high efficient,good performance and reasonable price. For exsample:gun drilling machines, deep hole boring machines,CNC deep hole drilling and boring machines,rolling and burnsihing machines,vertical drilling machines,high efficient honing machines and so on. Our values are: integrity, integrity, efficiency first, value first, win-win cooperation.
Certifications
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,L/C,Letter of Credit,This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-. We keep good quality and competitive price to ensure our customers benefit ;
-. We respect every customer as our friend and we sincerely do business and make friends with them, No matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,L/C,Letter of Credit,This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-. We keep good quality and competitive price to ensure our customers benefit ;
-. We respect every customer as our friend and we sincerely do business and make friends with them, No matter where they come from.
