Tetra repeater with 2W 5w 10w 20w 40 watt signal booster vhf uhf dmr repeater Bi directional amplifier BDA 400mhz 420MHz 450MHz

300~450MHz TETRA

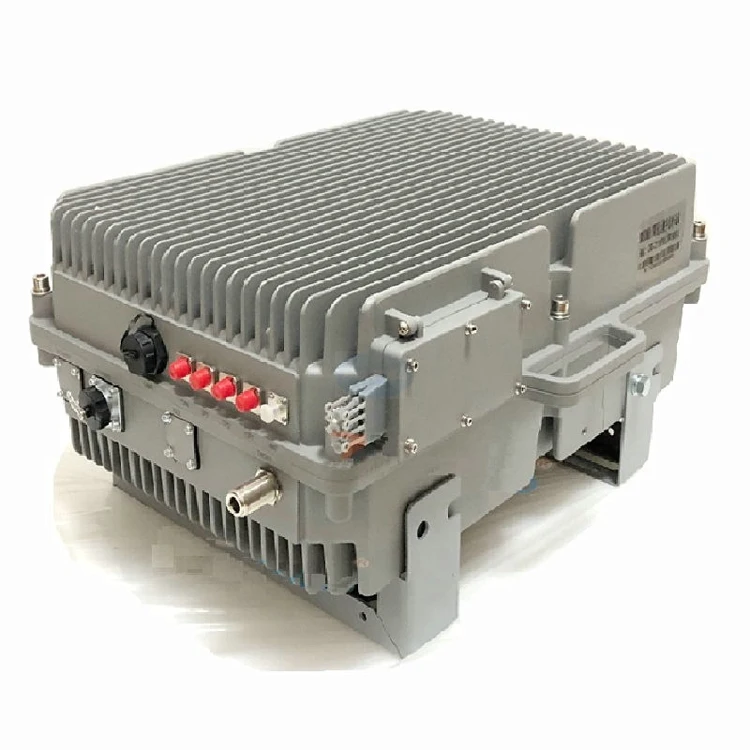

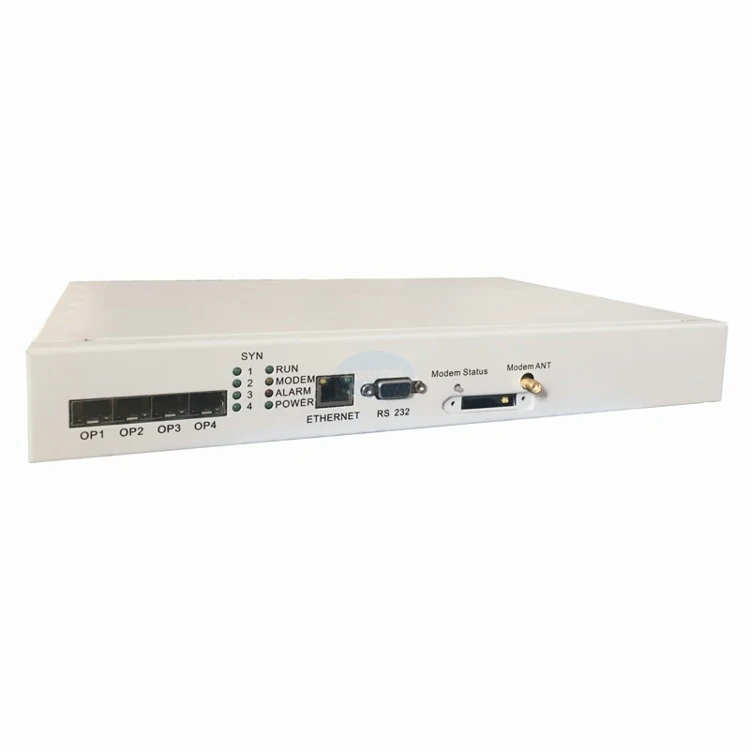

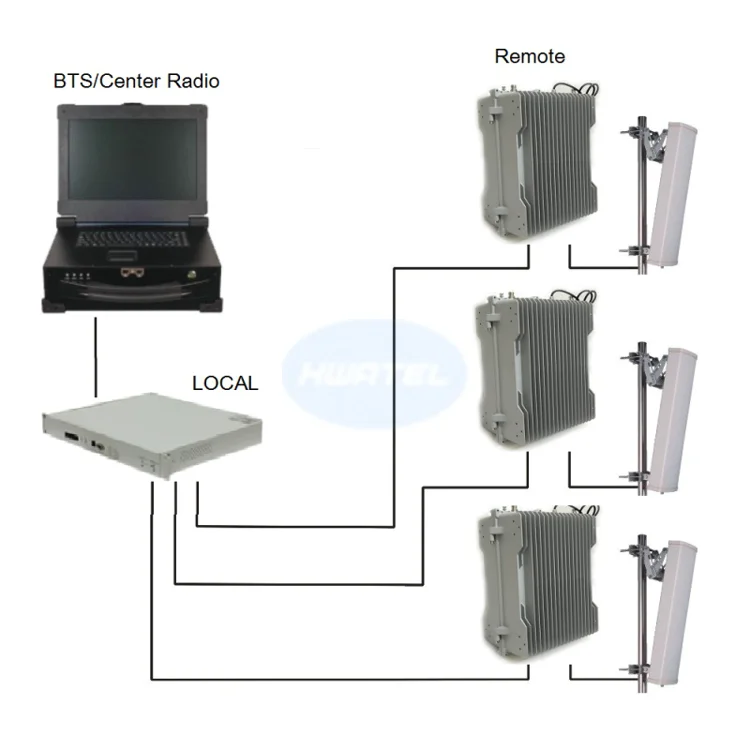

Digital Fiber Optic Repeater

TETRA 300M 380M 390M 400M 450M

46~33dBm 100~95dBi 15 Km coverage

   WHY HWATEL ?

    1) Mamufacture since 1999. Technical team derive from Sweeden Allgon Avtec Harris and ZTE.

    2)  Provides cell coverage solution for 2G,3G,4G,5G; frequency from 400, 450, 700, 800, 850, 900, 1800, 1900, 2100, 2300, 2600, to 3500 MHZ; and power from 33 to 49 dBm.

    3) Management system compatible with standard, cowork with ZTE, Hongxin.

  TELECOM  GRADE PRODUCT/ INDUSTRIAL GRADE DESIGN

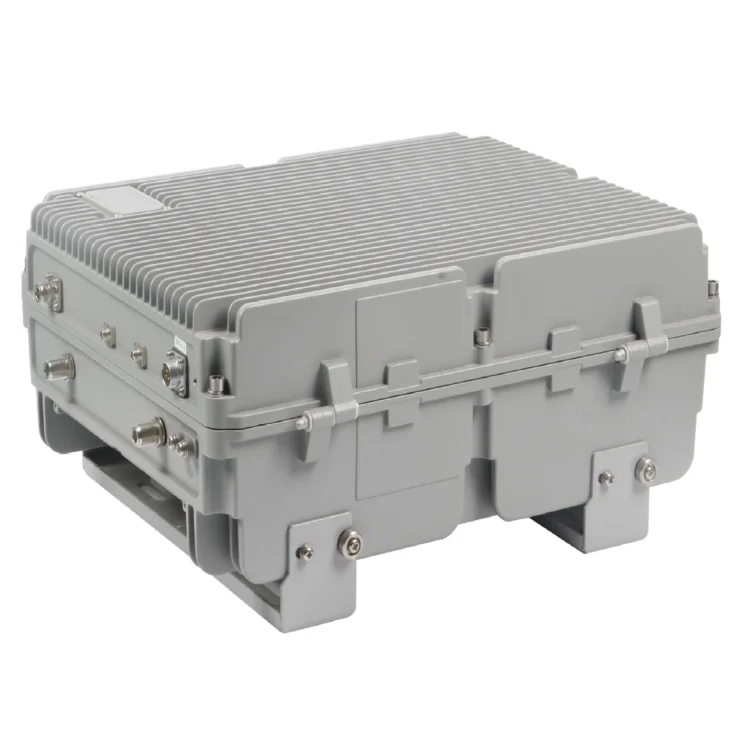

     -- HWATEL PATENT Indusatrial Grade Aluminium alloy case with dual-side 40 mm cooling fin, same with BTS and RRU. Ensure from -40~+65 degree application.

    -- Certificated from America AT&T, Verizon, T-mobile, Sprint; China Mobile, China Telecom, China Unicom; Zain Saudi Arab, Kuwait, Iraq; Indonesia PT.TELKOM; Pakistan PTCL; India Reliance; Alcatel-Luccent, Hitachi, Kyocera, ZTE, FIBERHOME , HONGXIN.

   HIGHER POWER HIGHER GAIN

    -- 3~5 higher in RF power and gain than competitor ensure repeater cover from 1Km to 30 Km area.

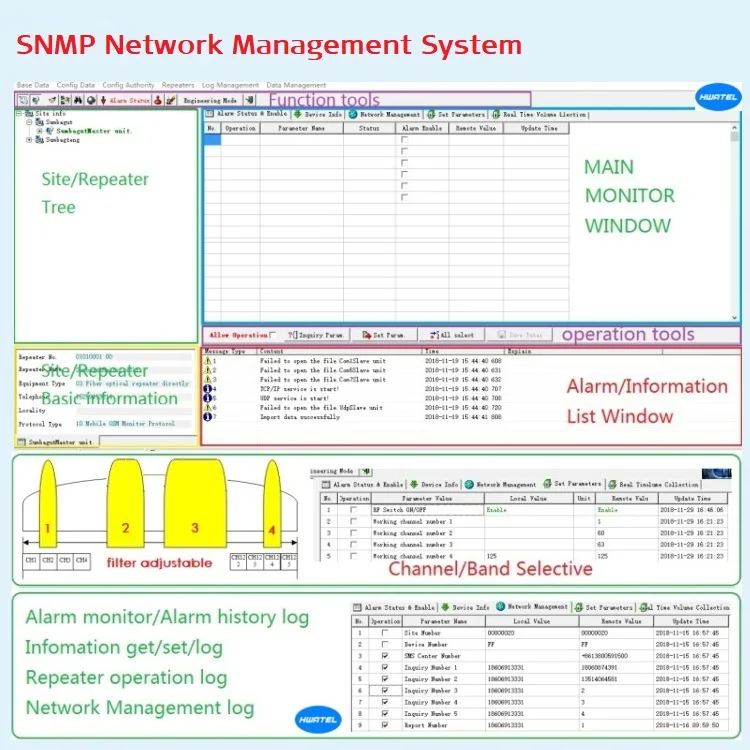

  Management System based SNMP

    -- Multi Band, multi-subband technology support up to 32 bandsl

    -- Both remote and Local IP/Ethernet maintenance port

    -- Bandwidth adjustable by software from internet at any time.

                Technocal Specification

UP LINK

DOWN LINK

Frequency Band

Channel (carriers) Number

32 sub-band autodetect

MAX. Output Power

33±2.0dBm

30/33/37/40/43/46 ±2.0 dBm

Gain

90@30, 90@33/37, 95@40/43, 100@46 ±3 dB

IMD3

≤-45dBc/3kHz(30 ~ 43dBm) ≤-36dBc/3kHz(46dBm)

AGC

≥20 dB

≥20 dB

Out band Rejection

F0±0.4MHz≥25dB

F0±0.6MHz≥45dB

Pass band Ripple

≤3 dB

Spurious emission

9KHz-1GHz: ≤-36dBm/30KHz

1GHz-12.75GHz: ≤-30dBm/30KHz

ATT Range

31 dB

31 dB

ATT Step

1 dB

1 dB

Gain Adjustment Error

-10 dB

±1.0dB

±1.0dB

-20 dB

±1.0dB

±1.0dB

-30 dB

±1.5dB

±1.5dB

Noise Figure

≤5 dB

VSWR

≤1.5

Group Delay

≤5 us

Power supply

-48VDC or 220VAC or 24 VDC

100W@33, 110W@37, 150W@40,170W@43, 260W@46

Operating Temperature

-25 ~ +55°C

Humidity/preasure

95%   70~106K Pa

Protection Grade

IP65 (dust tight+ water jets)

Dimension

450×315×170 mm

Net weight

15~32 kg

System Impedance (Ω)

50 ohm

In/Output Connector

N-F

Monitor interface

LAN/RS232/SMS(option) with RJ-45

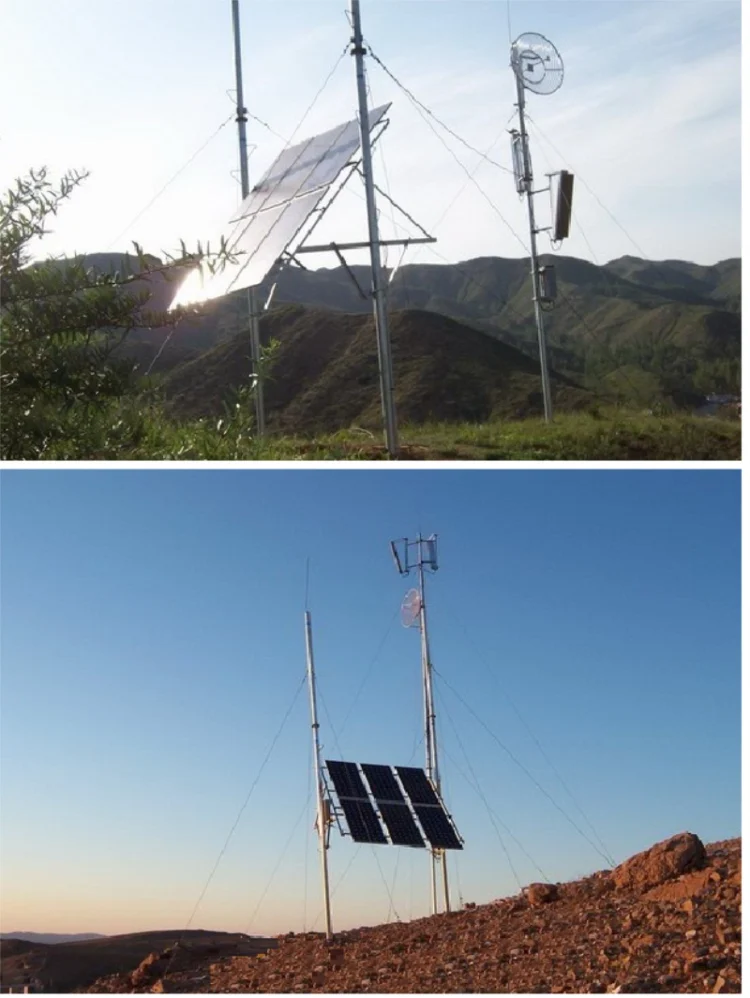

                             APLLICATION

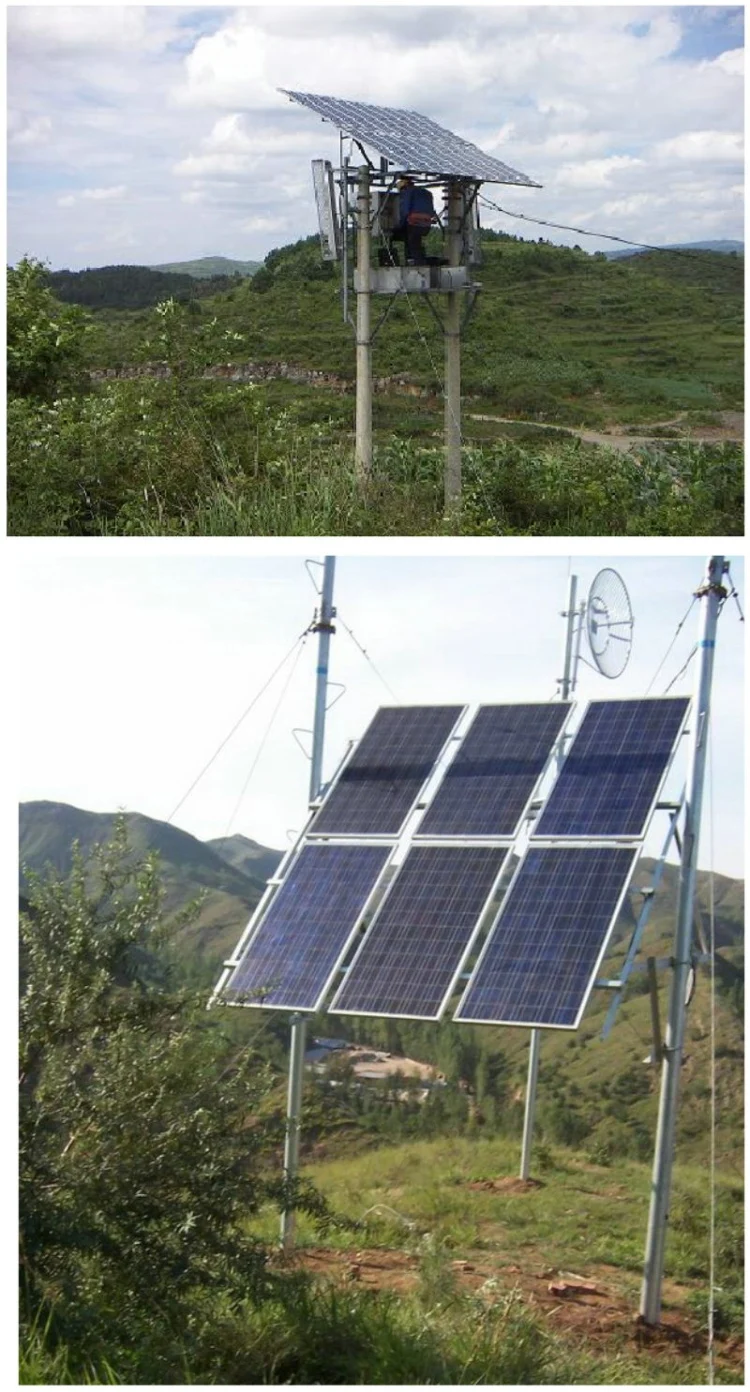

        PRONDUCING&INSTALL HISTORY
