Hot sale photographic UVCTP,CTcP plate with Developer

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Company advantage
Product Description

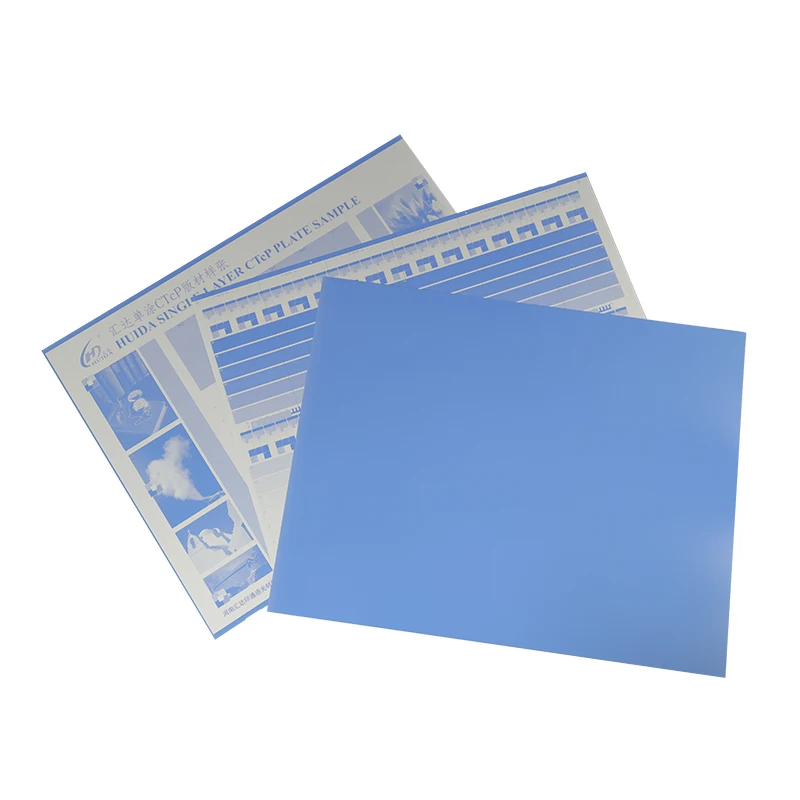

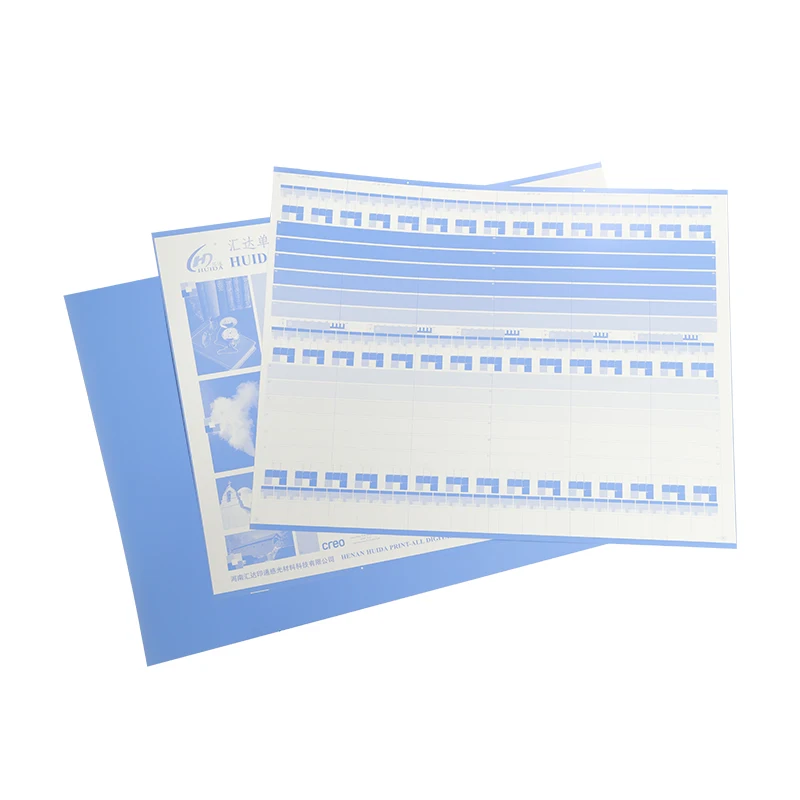

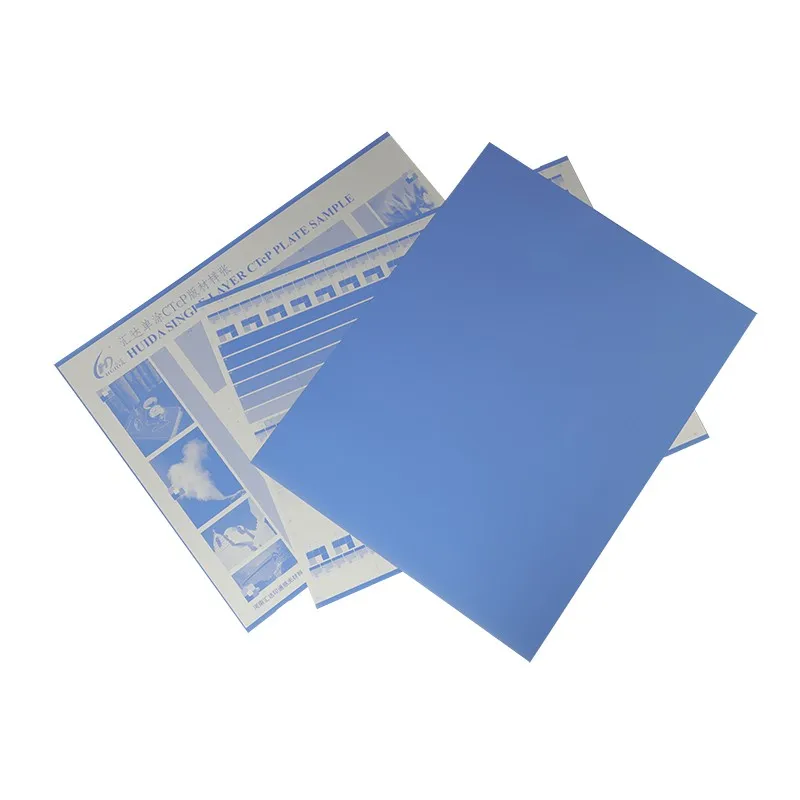

Positive Thermal CTP Plate

HUIDA HYD-3 thermal CTP plate have high sensitivity,good hydrophilic,well ink-water
balance,Long Run-length,best market compatibility,so it is extensively usedcommercial printing
and newspaper printing.Whether conventional or alcohol wet plate can output the,clear,
excellently,perfectly colorful prints.

Unbaked: Normal Ink 100,000-250,000 copies, UV Ink 20,000 to 50,000 copies
Baked: Normal Ink 300, 000-500,000 copies, UV Ink 100,000 to 150,000 copies
(Actual run length may vary according machine,ink,paper conditions)
\t
Product Type
\t
HYD-3 Type Positive Thermal CTP Plate
\t
Application Type
\t
Commercial Printing, Newspaper Printing and Light Printing
\t
Plate Features
\t
1.Easy-to-use. Able to work under white light and no need to pre-heating.
2.Steady Quality, Good Compatibility, Fast sensitive speed,
Excellent dot reappearance, Long Run-length
3. Close-grained Oxidation Layer –Outstanding dot reproduction,
high resolution and long run length
4.Excellent Hydrophilicity- keep ink-water balance optimally
5.Unique Photosensitive Coating-High and fast Sensitivity
6.Steady Quality and Extensive Adaptability
\t
Compatible Plate setter
\t
Compatible with all the common thermal plate setter
\t
Aluminium Coil width
\t
Aluminium Group Alloy 1050/1060 CTP aluminium coil
\t
Plate Thickness
\t
0.15mm ,0.25mm,0.30mm
\t
Maximum Coil Width
\t
1350mm
\t
Spectral Sensitivity
\t
830nm
\t
Exposure Energy
\t
110-130mj/C㎡
\t
Developing Temperature
\t
23-26℃
\t
Developing Time
\t
25-30 Sec
\t
Safe-light
\t
2 hours under white light
\t
Resolution
\t
1-99% at 200lpi
\t
Run-Length
\t
Normal lnk:100000 to 250000 and UV lnk:20000 to50000 copies(Actual run length may vary according machine,ink,paper conditions)
\t
Shelf Life
\t
18 Months
\t
Storage Conditions
\t
The recommended storage conditions are 10-25℃,with 40%-60% humidity Away from sunlight radiation & direct sunlight, Anti-humidity ,Anti-acid & alkali, Pack height no more than 1.5 meters

1.Easy-to-use. Able to work under white light and no need to pre-heating.
2.Steady Quality, Good Compatibility, Fast sensitive speed, Excellent dot reappearance, Long Run-length.
3.Close-grained Oxidation Layer –Outstanding dot reproduction,high resolution and long run length.

4.Excellent Hydrophilicity- keep ink-water balance optimally.
5.Unique Photosensitive Coating-High and fast Sensitivity.
6.Steady Quality and Extensive Adaptability .

\t
Exposing
\t


Plate setters
\t
Kodak:Trendsetter/Lotem/Magnus
Fuji:Javelin T9000HS,
Heidelberg:Top setter/ Supra setter
Luscher: Xpose Plate setter
Screen :PT-R
Creo :Scitex
\t
Exposure energy
\t
110-130mJ/cm²
\t
Spectral Sensitivity
\t
830nm -Peaks
\t
Resolution
\t
1-99% at 200 LPI
\t
FM capability
\t
20 micron stochastic
\t
Image color
\t
Blue
\t
Developing
\t
Processor
\t
All the kind Brands
\t
Developer
\t
Kodak Gold Star or our own developer
\t
Processing temperature
\t
23-26℃
\t
Developing time
\t
25-30 sec
About us

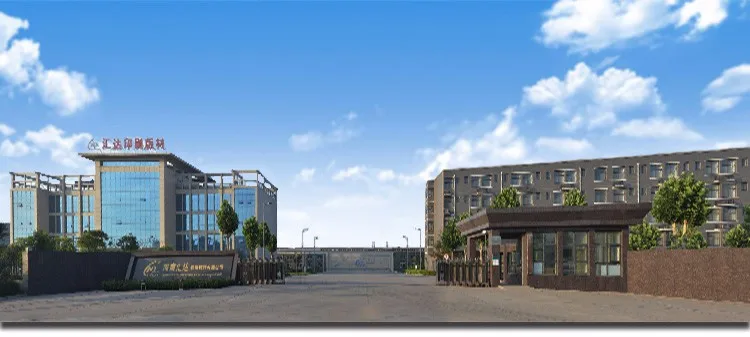

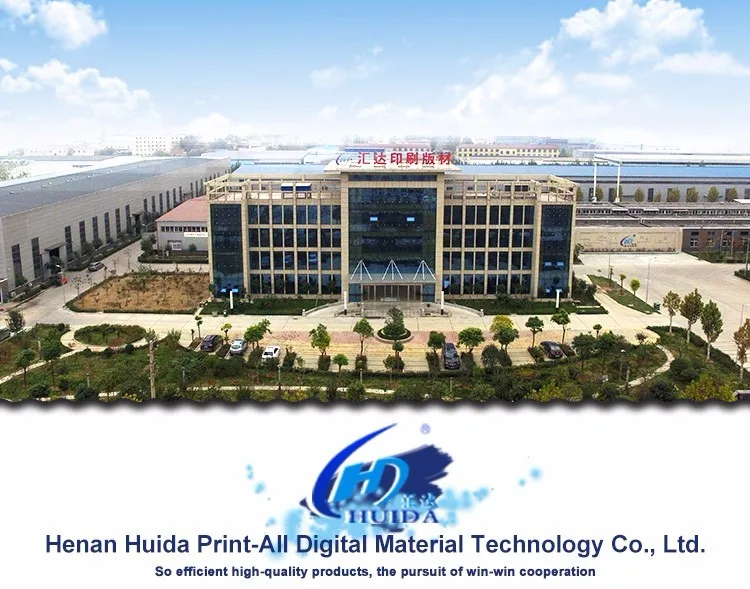

Henan Huida Print-All Digital Material Technology Co.,Ltd, established in 2003, covers an area of 120 acres, an investment scale of 170 million CNY, 210 production staff, 21 senior technical researchers, 35 patent certifications, our products are all In line with international standards, exported to Eastern Europe, ASEAN, the Middle East, South America, Africa and so on more than 10 countries. With 3,000 tons of raw materials reserves, 2 million square meters of finished products storage, 30 million square meters of annual production, to ensure timely supply of products. 13 years experience in CTP / CTCP / PS plates production, introduction of the United States Kodak thermal plate making machine, Japanese Screen thermal plate making machine, Corn CTCP plate making machine, Taiwan Grafmac developing machine, Denmark Glunz& Jensen developing machine and so on full set of plate making, developing, testing equipments, triple testing, man-machine combination, to ensure that each piece of plate's quality. Our one-to-one customer service system, to provide you with one-stop service.

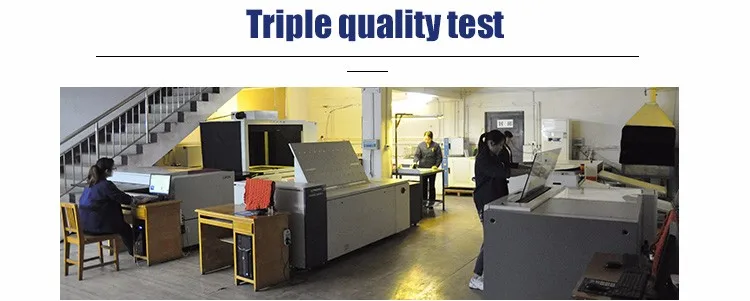

More than 3 million CNY of scientific research quality testing input: the United States Kodak thermal plate making machine, Japanese Screen thermal plate making machine, Corn CTCP plate making machine, Taiwan Grafmac developing machine, Denmark Glunz& Jensen developing machine and so on full set of plate making, developing, testing equipments. 21 high-tech research and development quality testing personnel, to ensure that our product quality foolproof, to ensure our products continue to innovate!

Gain national "HG / T26 94-95" standard, ISO 9001 quality system certification, product testing by SGS, in line with EU standards.

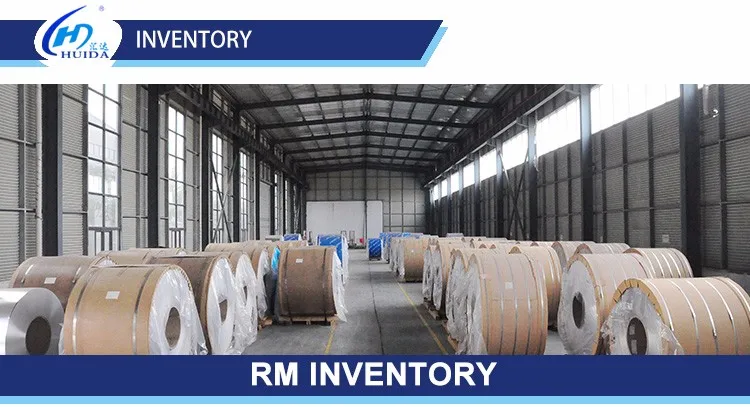

3,000 tons of raw materials reserves, adequate raw material guarantee, to ensure the continued stability of our product supply. 2 million square meters of finished product storage, a variety of conventional storage sizes for customer, ready to ship any time.

After strict quality testing of products, then use impervious waterproof kraft paper packaging, with wode reinforcement into the carton, stick well lable, according to the requirements of height stacking, outer packing a layer of waterproof moisture-proof plastic wrap and reinforcement package, shipped away.

Exhibition
FAQ

Q:When can I get the price?
A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are
very urgent.

Q.Can we get samples for testing?
A: We can provide you with free samples, you only need to bear the freight. If your first purchase quantity meets our requirements, we can apply for you more favorable price.

Q.How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-10 days.

Q.How to do the problems of product in the printing process?
A: We have a professional technical team, will be online to solve the use of the process encountered various problems. If can not be resolved online, technical staff will arrange timely home visits.
