High Quality small farm tractor tractors 4wd prices 30HP Efficient garden tractor new cheap
- Category: >>>
- Supplier: Taian Taishan Guotai Tractor Manufacturing Co. Ltd.
Share on (62585705211):
Product Overview
Description
small farm tractor tractors 4wd prices 30HP
Product Description
1. The streamline design makes it an elegant appearance.
2. The tires are made of multi-ply natural rubber which ensures its wear resistance performance.
3. Front axel is strong and robust.
4. Our high quality diesel engine is powerful and environmental friendly.
5. Independent hydraulic fuel system reduces maintenance cost.
6. Both clutch and brakes system are light and easy to control.
7. Reinforced chassis greatly increases pulling force.
8. Well-sealed cabin with low noise.
9. A comprehensive production line consists of casting, forging, CNC machining and final assembling.
10. The replacements are within your reach for more than ten years.
11. Quality control processes are in place to ensure all our parts are made up to high standards.
12. Our tractor evolves rapidly with time and it is your best choice for performance and reliability.
2. The tires are made of multi-ply natural rubber which ensures its wear resistance performance.
3. Front axel is strong and robust.
4. Our high quality diesel engine is powerful and environmental friendly.
5. Independent hydraulic fuel system reduces maintenance cost.
6. Both clutch and brakes system are light and easy to control.
7. Reinforced chassis greatly increases pulling force.
8. Well-sealed cabin with low noise.
9. A comprehensive production line consists of casting, forging, CNC machining and final assembling.
10. The replacements are within your reach for more than ten years.
11. Quality control processes are in place to ensure all our parts are made up to high standards.
12. Our tractor evolves rapidly with time and it is your best choice for performance and reliability.

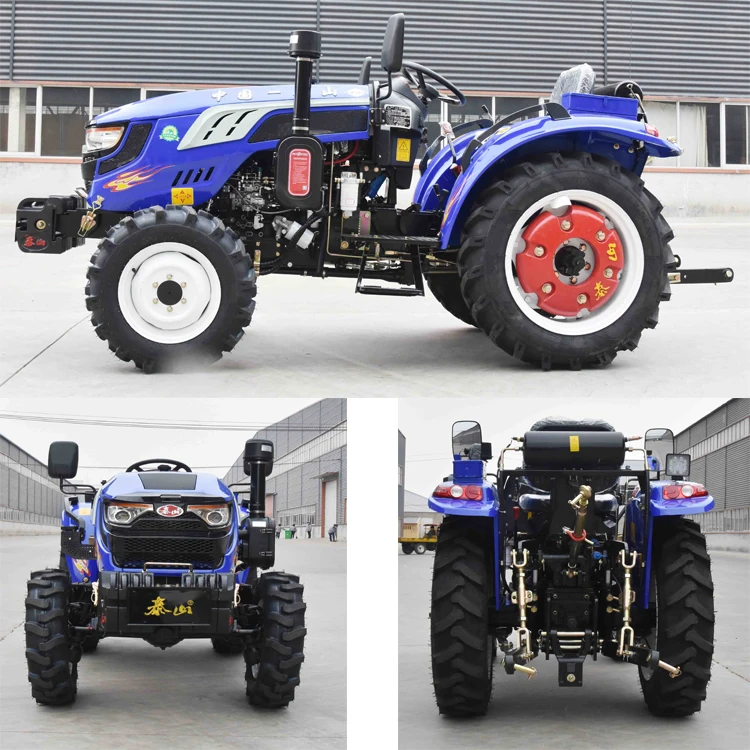

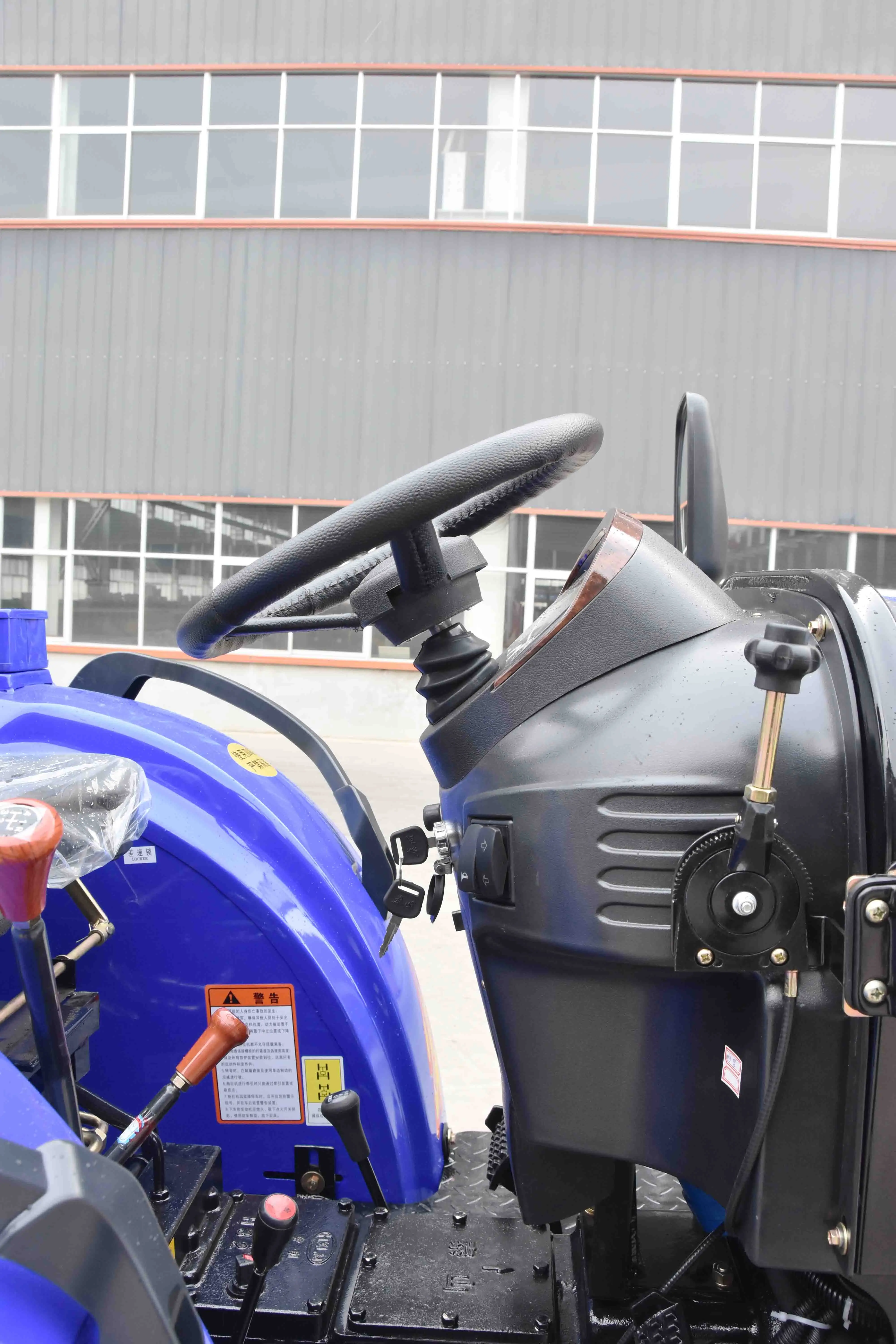

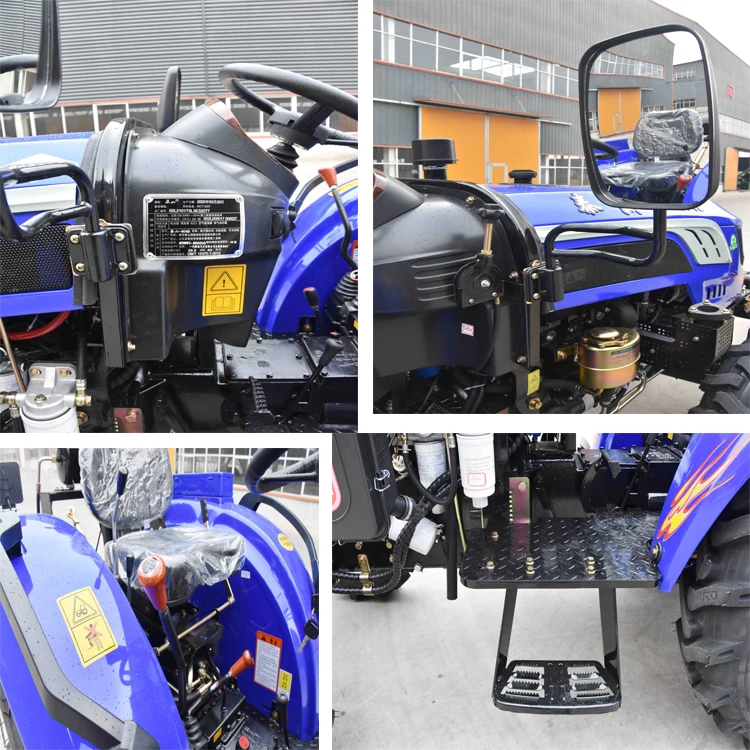

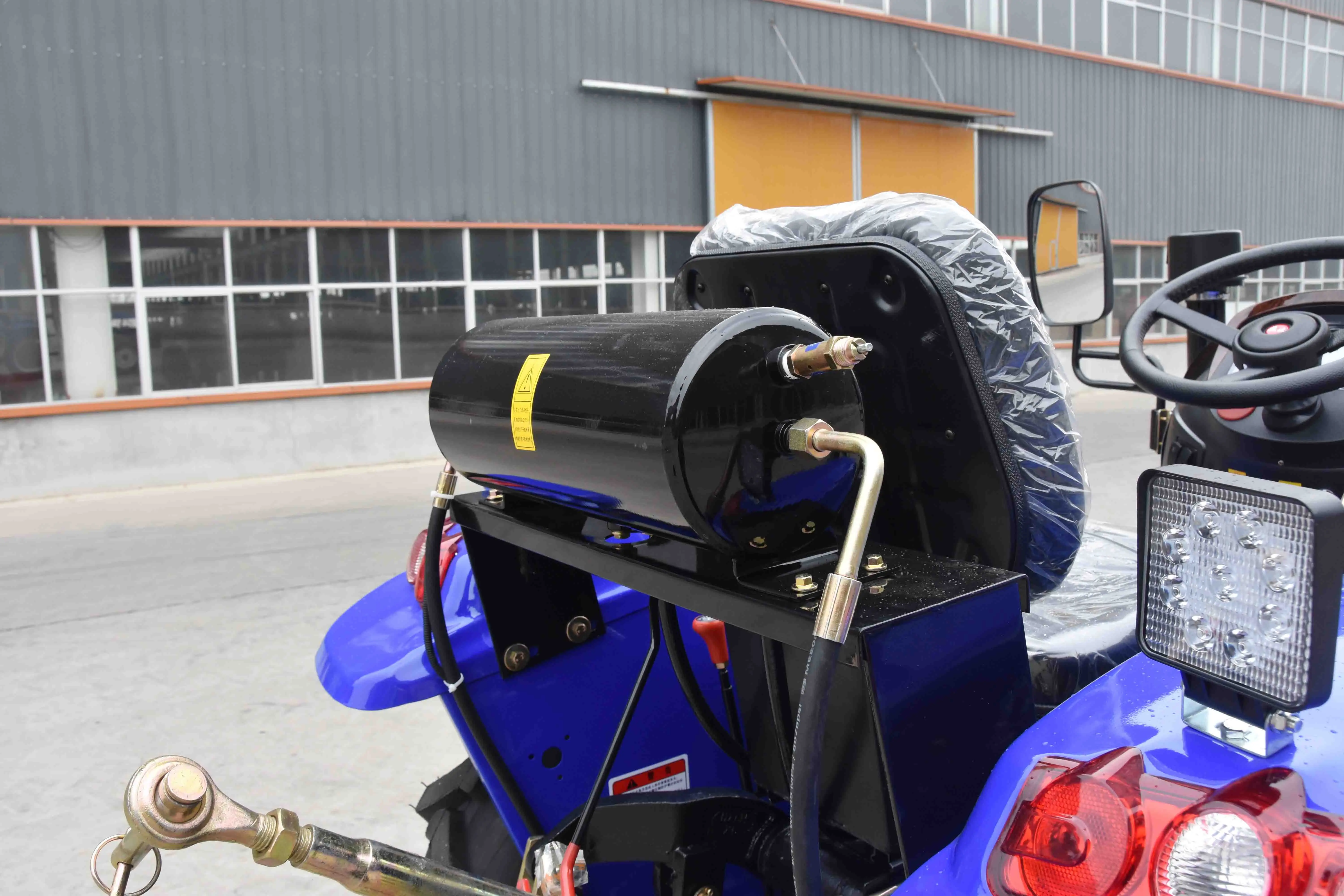

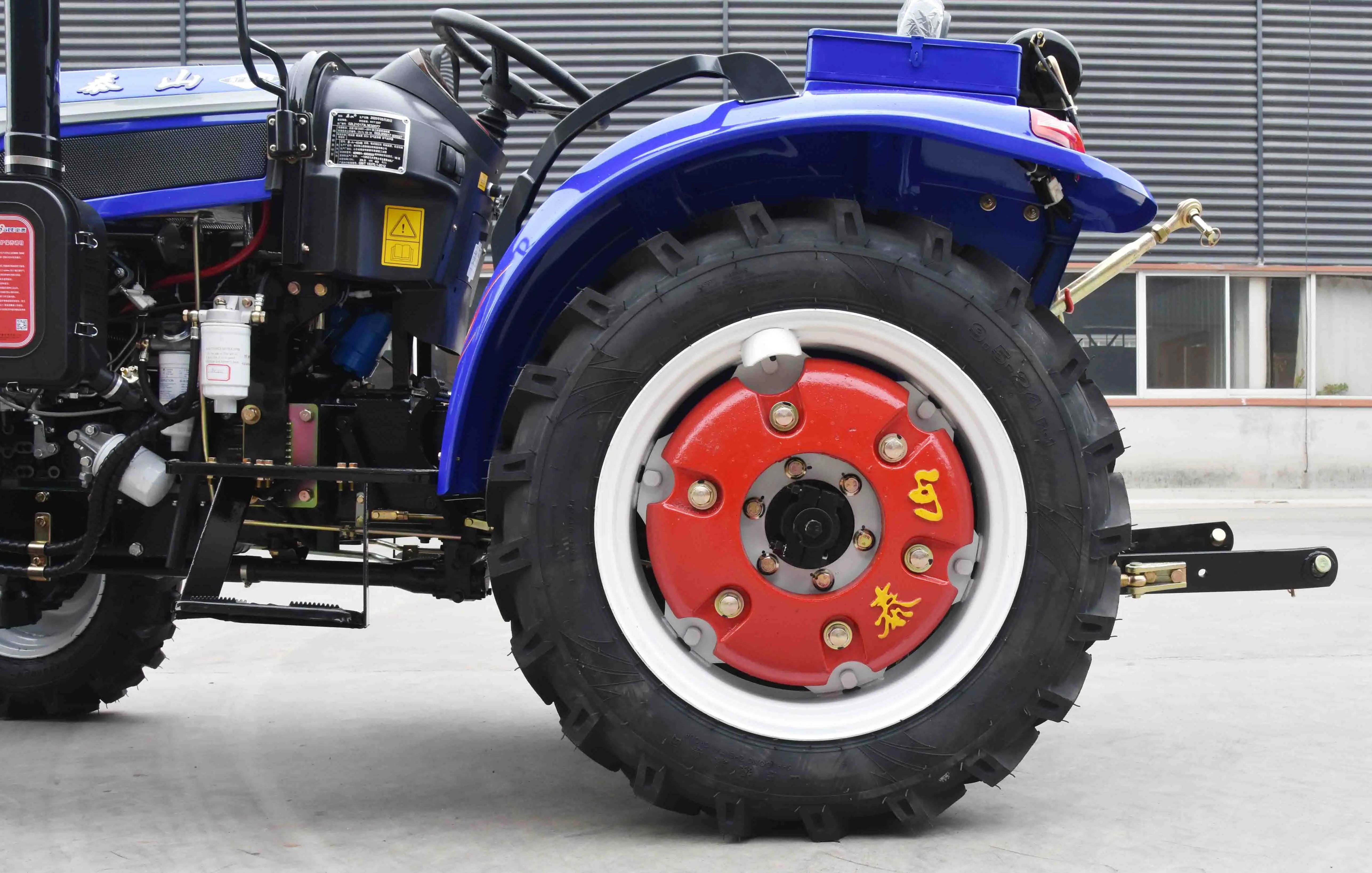

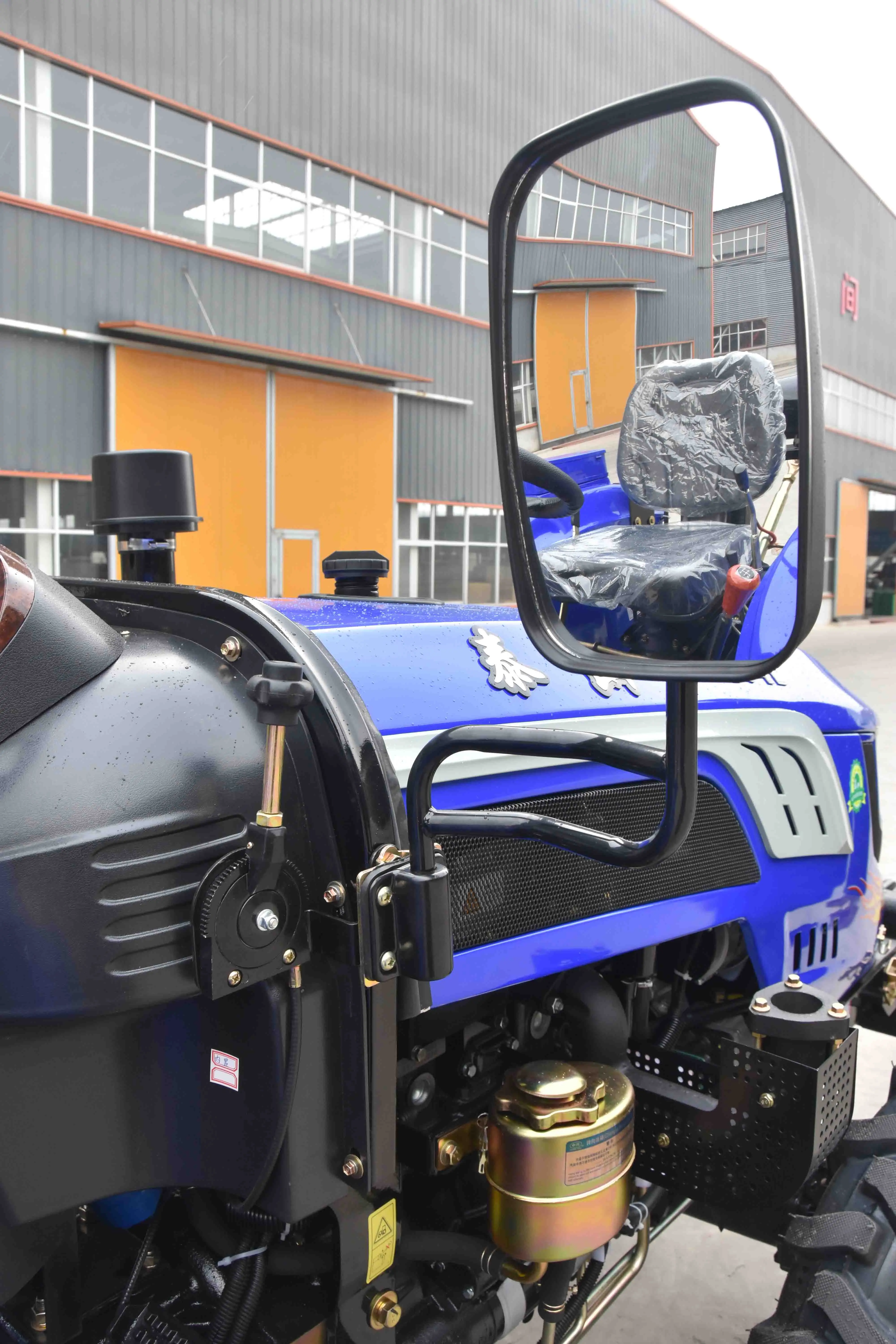

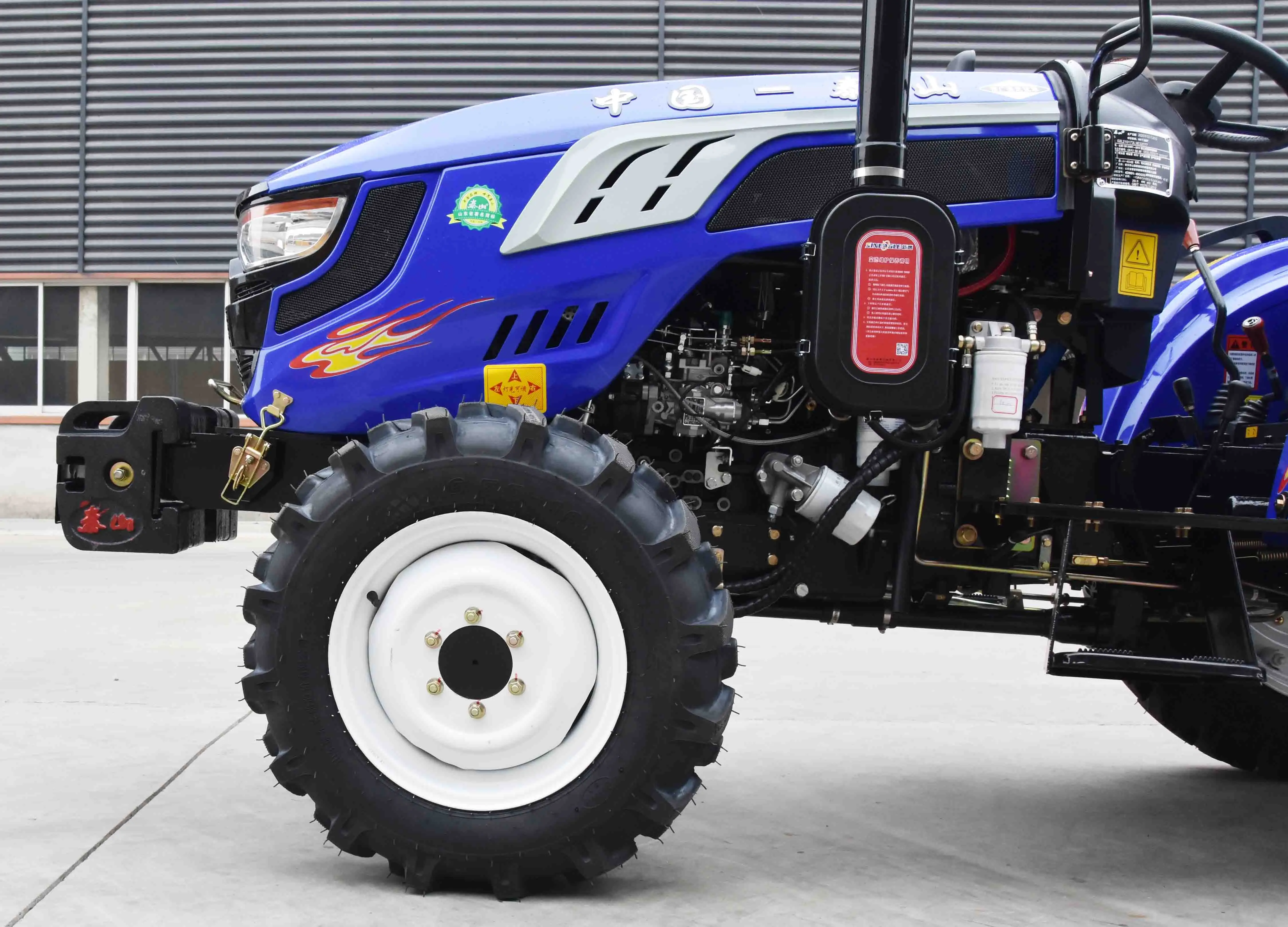

Details Images
Specification
Model | TY-304 |
Drive type | 4X4 FOUR-Wheel Drive |
Dimension of The Tractor | |
The whole machine size (mm) | 3250*1550*2250 |
Min. Operation mass (kg): | 1520 |
Wheel base (mm) | 1750 |
Minimum ground clearance (mm) | 320 |
Front/ Rear wheel tread (mm) | 1000/850-1300(ADJUSTABLE) |
Tyre size(front/rear) (inch) | 6.5-16/9.5-24 |
Braking and steering | |
Braking system | Mechanical-shoe type |
Steering type | Hydraulic steering |
Working device | |
Three-point-linkage: | Yes |
PTO/PTO Speed (r/min) | 540/760 |
(610mm) kn/Lifting Capacity | 4.8KN |
Tillage depth adjustment | Comprehensive |
Hydraulic system | |
Hydraulic output valve | 2 groups |
Transmission system | |
Clutch | dry type, single action |
(F+R) No. Of gears | 8 F+2R |
Shift method | (4+1) x 2 |
Max. Speed (km/h) | 26.4km/h |
Gear Position | Right-hand side |
Engine | |
Engine Type | Laidong, Emission Stage II. |
( L ) Displacement | 1.909 |
Fuel tank capacity (L) | 25/27.5 |
( g/kw.h) Fuel consumption @ nominal power | ≤238 |
Air intake type | Naturally- Aspirated |
Air Filter | Three stage oil bath |
Diesel Engine Specification | |
Type | In-line, vertical, water cooled,four-stroke |
Combustion chamber type | Direct-Injection |
Number of cylinders | 3 |
Bore(mm) | 90 |
Stroke(mm) | 100 |
Compression ratio | 18 |
Firing order | Electric starting |
Rated output(kW) | 22.1 |
Rated speed(r/min) | 2350 |
Direction of rotation of crankshaft | Counterclockwise |
(view from flywheel end) | |
Method of cooling | Forced water cooling |
Method of lubrication | Combination of pressure and splash |
Method of starting | Electric |

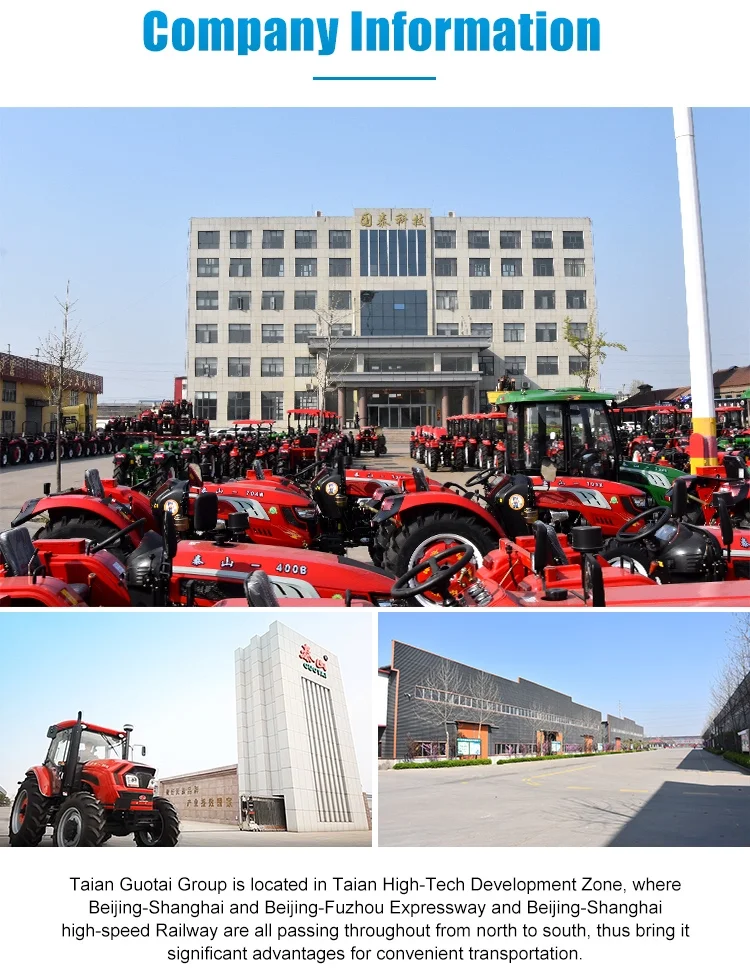

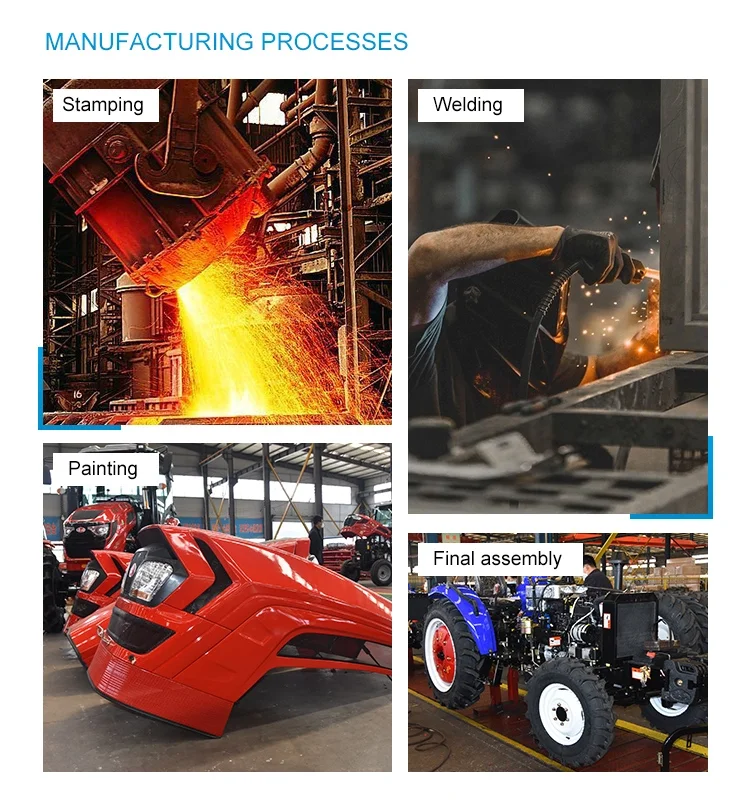

Company Profie

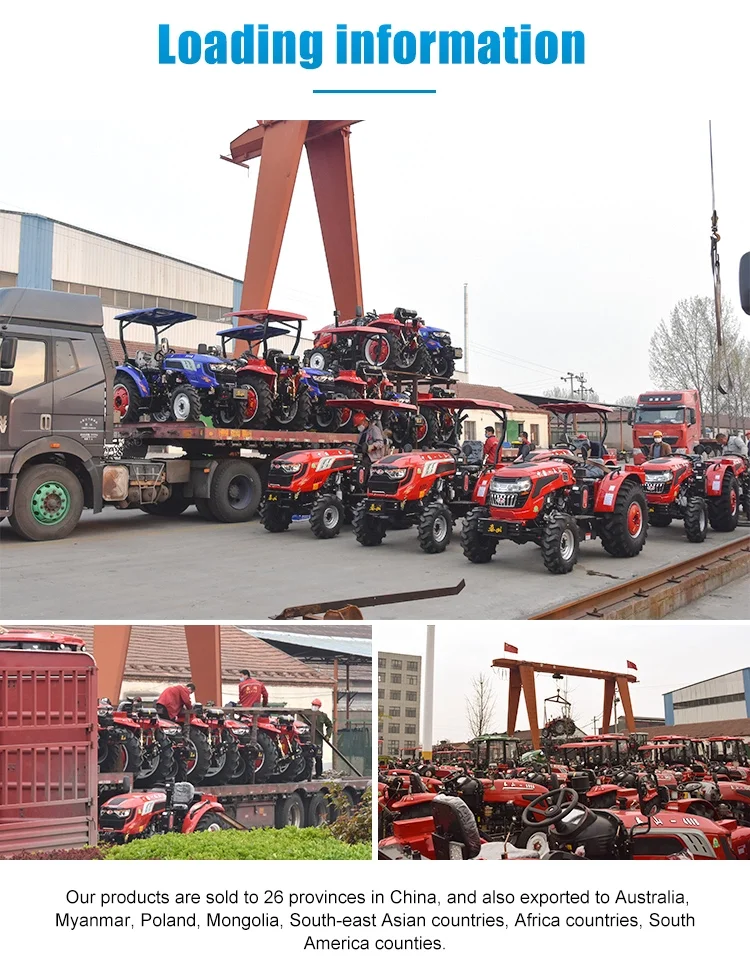

Packing & Delivery
Certifications
Implements
FAQ
1. Why choose us?
(1) Near 20 years Agricultural Machines Manufacturing Experience.
(2) Competitive price. Attractive design. Best performance. High quality.
(3) Full range products for choice.
(4) High reputation in More Countries.
(5) Experienced Service Team.
(6) Quick and Safe Delivery.
(1) Near 20 years Agricultural Machines Manufacturing Experience.
(2) Competitive price. Attractive design. Best performance. High quality.
(3) Full range products for choice.
(4) High reputation in More Countries.
(5) Experienced Service Team.
(6) Quick and Safe Delivery.
2. Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare part steady with competitive price, because we are the source.
3. Do you provide after-sales service?
During warranty period, free spare parts for quality-problem spare parts replacement.
4. what are your products?
The main products include large-size, middle-size and small-size Taishan brand 180-2404 series tractors, and also large and medium horse power, Taituo brand, 400-1804 series tractors, 450 CVT tractor, 2204 power shift tractor, 725 crawler tractor, as well as variable products for meeting the demands of different working areas and environments,
5. How about your packaging and shipping method?
Our product packaging details are metal frames, one 20'GP can hold 8 pieces; one 40'GP can hold 16 pieces(smaller than 50hp) ,Our mode of transportation is by sea, and the port is in Qingdao. we will Provide the best shipping solution, save the cost of logistics.
We are tractor manufacturer. We can provide the complete tractor and spare part steady with competitive price, because we are the source.
3. Do you provide after-sales service?
During warranty period, free spare parts for quality-problem spare parts replacement.
4. what are your products?
The main products include large-size, middle-size and small-size Taishan brand 180-2404 series tractors, and also large and medium horse power, Taituo brand, 400-1804 series tractors, 450 CVT tractor, 2204 power shift tractor, 725 crawler tractor, as well as variable products for meeting the demands of different working areas and environments,
5. How about your packaging and shipping method?
Our product packaging details are metal frames, one 20'GP can hold 8 pieces; one 40'GP can hold 16 pieces(smaller than 50hp) ,Our mode of transportation is by sea, and the port is in Qingdao. we will Provide the best shipping solution, save the cost of logistics.
