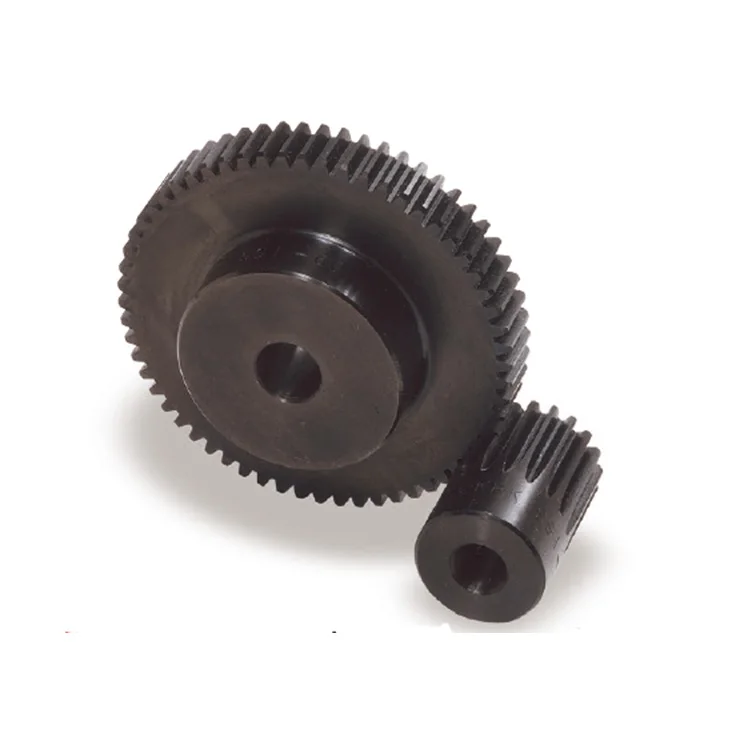

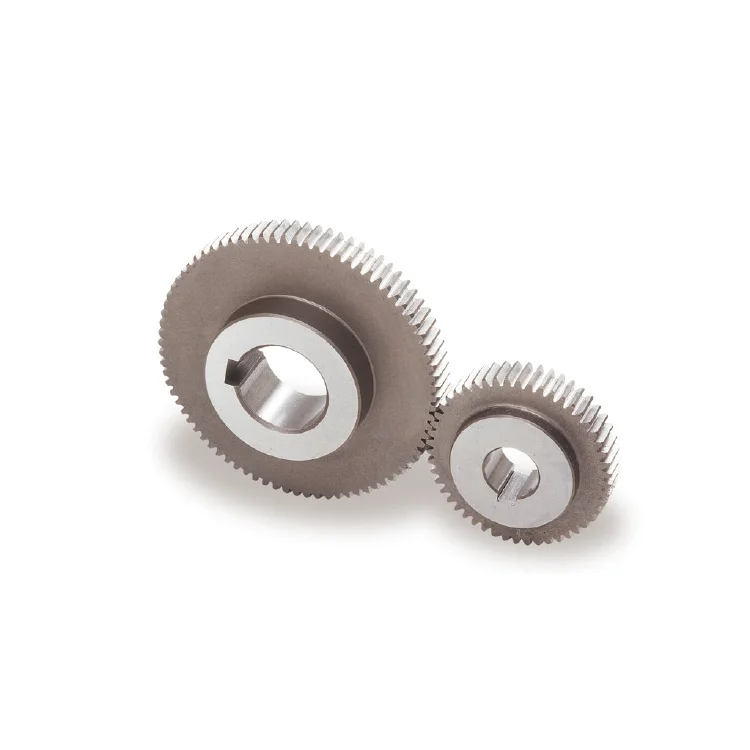

Specialized in Manufacturing Spur Steel Gear
- Category: >>>
- Supplier: Shanghai Michigan Mechanical Co. Ltd.
Share on (62585765449):
Product Overview
Description
Products Description
Specification | 3.5 | |
Precision Grade | ISO 1328 grade 8 | |
Gear teeth | Standard full depth | |
Pressure Angle(α） | 20° | |
Material | S45C | |
Heat Treatment | Black oxide coated except for teeth | |
Hardness | 200~270HB | |
Module | No. of teeth | Bore (Ah7) | Hub dia.(B) | Pitch dia.(C) | Outside dia.(D) | Face width(E) | Hub width(F) | Total Length(G) |
1 | 18 | 8 | 15 | 18 | 20 | 10 | 5 | 15 |
1 | 55 | 15 | 40 | 55 | 57 | 10 | 10 | 20 |
1.5 | 40 | 16 | 35 | 60 | 63 | 15 | 10 | 25 |
2 | 50 | 22 | 50 | 100 | 104 | 20 | 10 | 30 |
2.5 | 60 | 30 | 70 | 150 | 155 | 25 | 12 | 37 |
3 | 60 | 45 | 80 | 180 | 186 | 30 | 15 | 45 |
4 | 50 | 50 | 85 | 200 | 208 | 40 | 20 | 60 |
Thank you for reaching out to us for your custom gear requirements. Our Engineering team will review your request and will be in contact within 24 hours. - SMM TEAM
Company Profile
Shanghai Michigan Mechanical Co. Ltd - Concentrate on OEM Transmission Parts for More Than 15 Years.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First; Integrity; Never Stop Improving.
Core Value: Customer First; Integrity; Never Stop Improving.
EQUIPMENT
Mitsubishi
Hobbing machine GE15A
Hamai
N80 Hobbing machine
Kashifuji
Hobbing machine KN80
Liebherr
LGG280 Grinding Machine
Qinchuan
YKS7225 CNC worm wheel grinder
SCHERER
Double spindle vertical type turning center VDZ 100DS
Production Process
Testing
CNC Gear Testing TTI-150E Kingelnberg GmbH P26 Mahr UD130 Automatic Inspection Line
How Do Our Technical And Quality Team Support Our Clients And Partners ?
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.
Quality Warranty : 12 months counting from the delivery of the goods.
Product packaging
Inner Package Carton Non-solid Wood Packing Iron box packing
To be packed in new strong case(s)/carton(s), suitable for long distance ocean/air and inland transportation. In addition,we are willing to customize packaging per your request.
Certifications
ISO 9001 certification
ISO/TS 16949 certification
Main Application Fields
Over 15 years accumulating, SMM gears are used in various industries in numerous machines. The main application fields
including,but not limited to machine tools,UAV,Tobacco machinery,new energy automobile,electical tools,cement vertical mill,oil drilling machine.
SMM have been working with some global leading companies more than 10 years.
including,but not limited to machine tools,UAV,Tobacco machinery,new energy automobile,electical tools,cement vertical mill,oil drilling machine.
SMM have been working with some global leading companies more than 10 years.
Why Choose Us
Being proactive, we constantly recognize and strive for opportunities that are beneficial to customers and self-improvement;Action speaks louder than words, we make fast decisions on the needs of customers, suppliers and employees. We are Ready to Support Your Further Success! ——SMM TEAM
