Solar medium type B Aviation obstruction lighting system with superior quality and competitive price
- Category: >>>
- Supplier: Hunan Lingte Technology Co. Ltd.
Share on (62586007553):
Product Overview
Description
Product Description

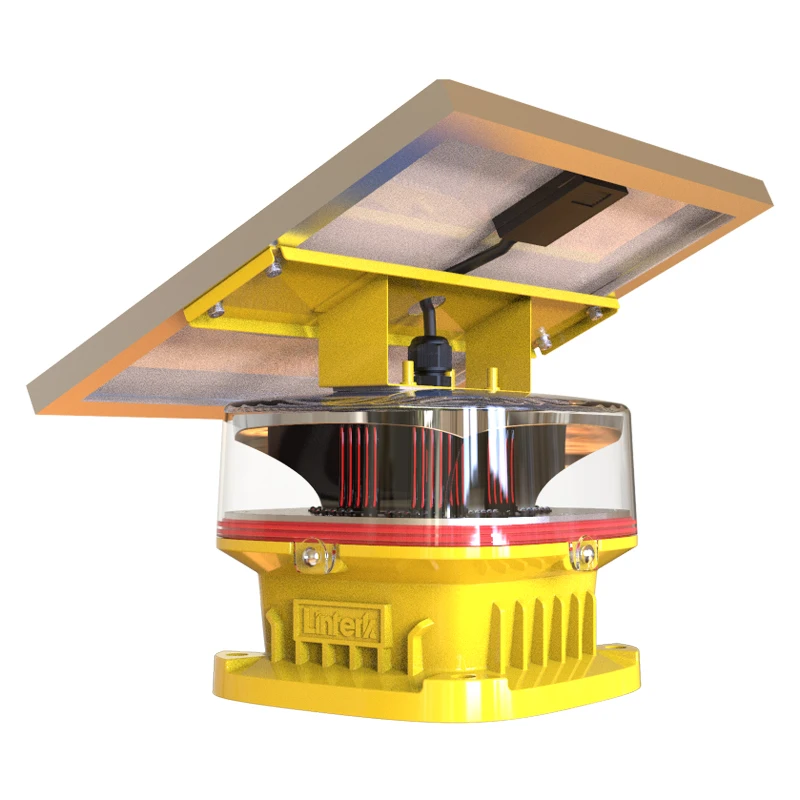

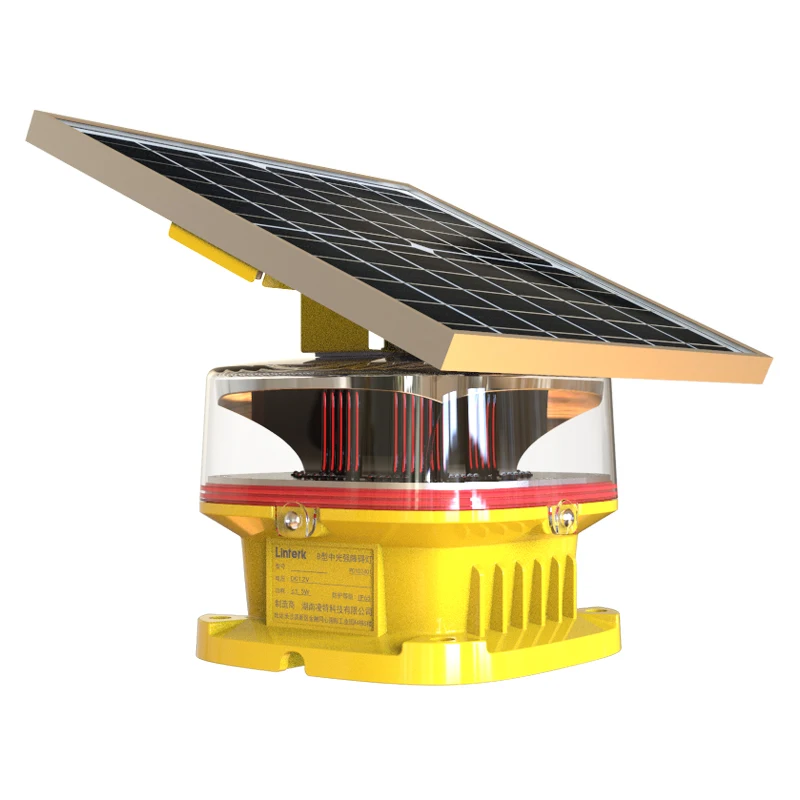

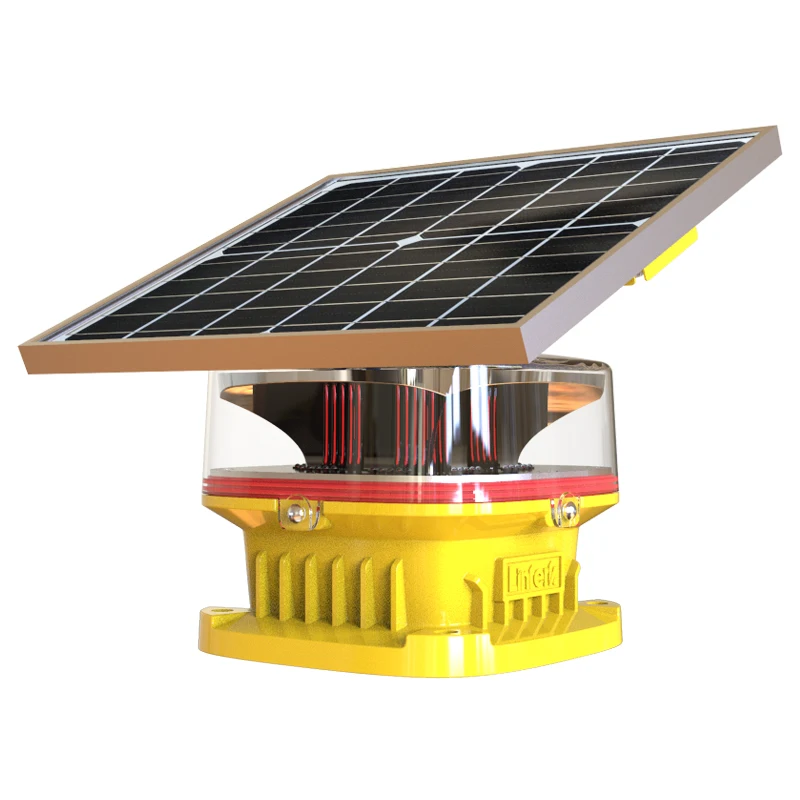

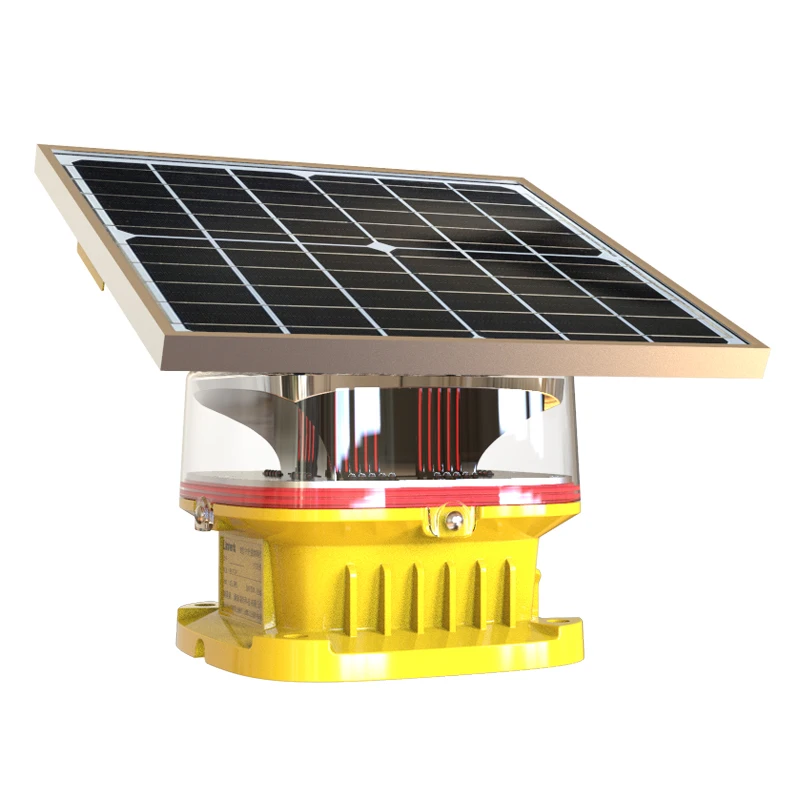

Solar Powered Aviation obstruction light
Medium intensity Type B (Lithium battery)

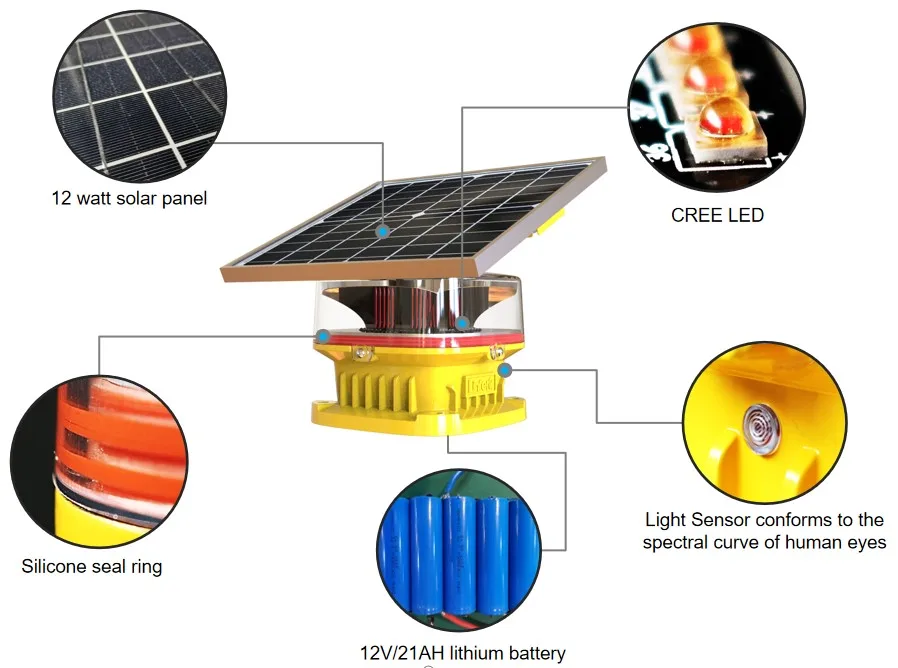

● The base is formed by precision die-casting mould, with high dimensional accuracy, good thermal conductivity, signal yellow of electrostatic powder spraying on the surface, anti-vibration and anti-corrosion.
●The lens is made of PC material that Bayer optical grade and UV-resistant, with a light transmission of more than 90% and a flame retardant grade of UL94V-2. It has good toughness, crack resistance,impact resistance, no discoloration and yellowing.
● The light source is cold LED light source with high efficiency, low power consumption, long life and high brightness to ensure that the light color and beam distribution meet the standard requirements.
● The reflector is injection-molded with special ABS material for electroplating. It has stable size, high strength, high temperature resistance up to 110 °C, strong adhesion of vacuum coating, uniform coating and light reflectivity of over 93%.
● The sealing ring is molded by silica gel, with high elasticity, high and low temperature resistance, wear resistance, anti-aging and anti-deformation. The design of three-line sealing structure and sufficient compression amount avoid the influence of processing and assembly tolerance on sealing effect, and maintain IP67 waterproof grade for a long time.
● The optical sensor uses light control that conforms to the natural light spectrum curve which can quickly and accurately detect changes in the surrounding environment and adjust the working state of the Aviation Obstruction Light.
Model | LT-01-MB02TG(L) |
Synchronization mode | GPS Synchronization |
Light source | LED |
Emitting color | Red |
Power consumption | ≤ 2W |
Solar panel | 12W |
Battery | Lithium battery |
Flashing frequency | 20~60 FPM (adjustable) |
Lifespan | ≥100,000 hours |
Photosensitivity | 0~500cd/ ㎡（adjustable） |
Ref. weight | 5.5Kg |
Vertical output degree | ≥ 3 ° |
Horizontal output degree | 360° |
Wind level | 240Km/h |
Ambient temperature | -40˚C ~ +55˚C |
Body: aluminum alloy Lens: high strength PC Reflector: ABS vacuum coating | |
Ambient humidity | 0% ~ 95% (no condensing) |
Intensity | 2,000 cd |
Anti surge capability | IEC61000-4-5 3kA IEC61000-4-5 6kV |
ICAO (Aerodromes Annex 14-2018) CAAC (MH5001-2019), (MH/T6012-2015) FAA (AC150-5345-43J) |
Installation size
Hot Sale Products
Certificates and Patents
Company Profile
Hunan Lingte Technology Co., Ltd. is a professional manufacturer of ICAO standard Aviation Obstruction Lights. We assist our customers with exemplary guidance in maintaining regulatory compliance and offer robust, industry-leading Obstruction Lights with unrivaled support and service to the Tall building, Power Towns, Telecommunications, Broadcast, Utility and Renewable Wind Energy industries all of the world.
Application scenario Installation Process
Tall buildings
Power Transmission Lines
Wind Turbine
Bridge marking
Chimneys
Industrial lighting
Airport Navigation
Helipad Lights
Cranes
Production Process
FAQ
Frequently asked questions
Can I have a sample order for obstruction lights?
Yes, we welcome sample order to test and check quality.
How to proceed an order for obstruction light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Is it OK to print my logo on led obstruction light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Can I have a sample order for obstruction lights?
Yes, we welcome sample order to test and check quality.
What about the lead time?
Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than 100 units.
Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than 100 units.
Do you have any MOQ limit for aviation obstruction light order?
Low MOQ, 1pc for sample checking is available
Low MOQ, 1pc for sample checking is available
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
How to proceed an order for obstruction light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Is it OK to print my logo on led obstruction light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
