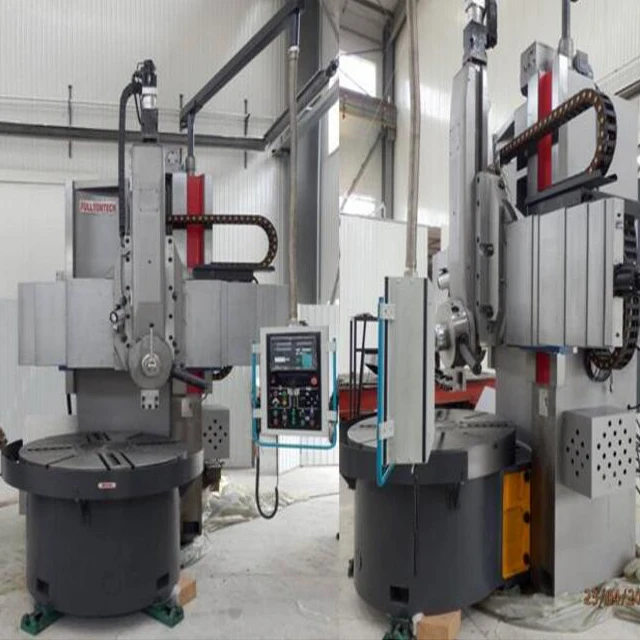

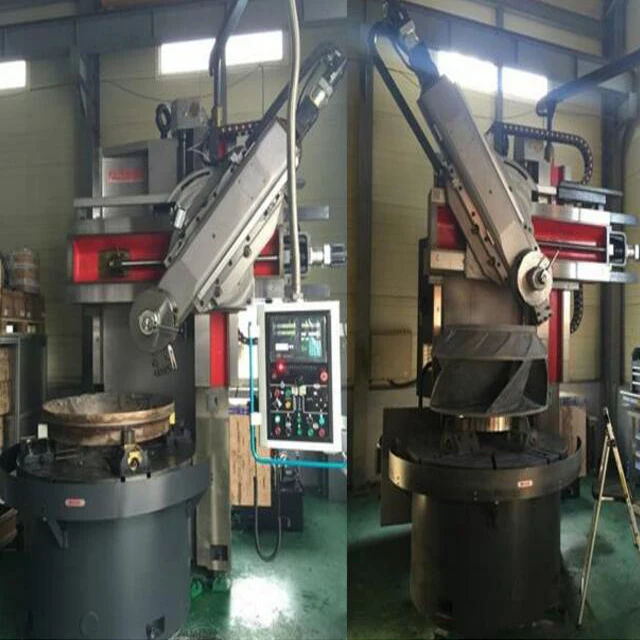

C51 Series Single Turret Automatic Lathe Manual
- Category: >>>
- Supplier: Dalian Fullton Machinery Co. Ltd
Share on (62586269335):
Product Overview
Description
SPECIFICATION | UNIT | C5112-1 | C5112-2 | C5116-1 | C5116-2 | C5116-3 | ||||
MAX VERTICAL TURRET CUTTING DIAMETER | MM | 1250 | 1250 | 1600 | 1600 | 1600 | ||||
SIDE TURRET CUTTING DIAMETER(MAX.)-OPTION | MM | 1100 | 1100 | 1400 | 1400 | 1400 | ||||
DIAMETER OF WORKTABLE | MM | 1000 | 1000 | 1400 | 1400 | 1400 | ||||
MAX. WEIGHT OF WORKTABLE | TON | 3.2 | 3.2 | 5 | 5 | 5 | ||||
MAX. HEIGHT OF WORKTABLE | MM | 1000 | 1200 | 1200 | 1400 | 1600 | ||||
SPEED OF WORKTABLE | R/MIN | 6.3-200 | 6.3-200 | 5-160 | 5-160 | 5-160 | ||||
SPEED STEP OF WORKTABLE TURNING | STEP | 16 | 16 | 16 | 16 | 16 | ||||
VERTICAL/SIDE TURRET FEEDING RANGE | MM/MIN | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | ||||
VERTICAL/SIDE TURRET FEEDING STEP | STEP | 12 | 12 | 12 | 12 | 12 | ||||
VERTICAL TURRET TRAVERSE(HORIZONTAL) | MM | 700 | 700 | 915 | 915 | 915 | ||||
VERTICAL TURRET TRAVERSE(VERTICAL) | MM | 650 | 650 | 800/1000 | 800/1000 | 800/1000 | ||||
MAX. TORQUE OF TABLE TURNING | N | 63000 | 63000 | 63000 | 90000 | 90000 | ||||
TOOLPOST | Square ram with square toolpost or 5 position manual turret with T type ram | |||||||||
DIGITAL READOUT(DRO) | YES | YES | YES | YES | YES | |||||
MAIN MOTOR POWER | KW | 22 | 22 | 30 | 30 | 30 | ||||
