Fiber Optical Rosenberger Duplex Connector RDC Waterproof Patch Cable SM MM 2C 2F IDC FTTA solution for 5G Base Station Outdoor
- Category: >>>
- Supplier: Shenzhen Ih Optics Co. Ltd.
Share on (62586542787):
Product Overview
Description
Product Description

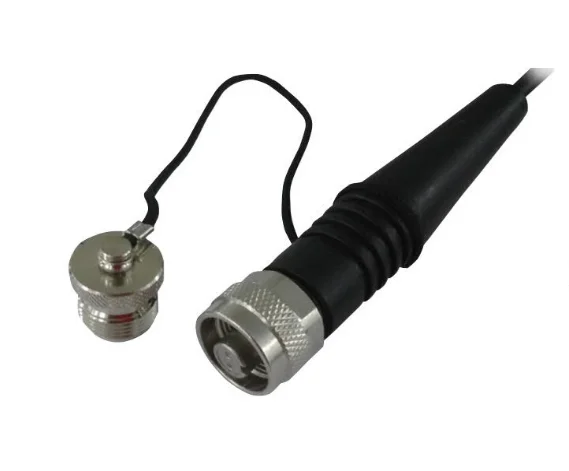

Rosenberger Duplex Connector RDC Waterproof Fiber Optical Patch cable SM MM 2 Cores For BBU 5G Base Station

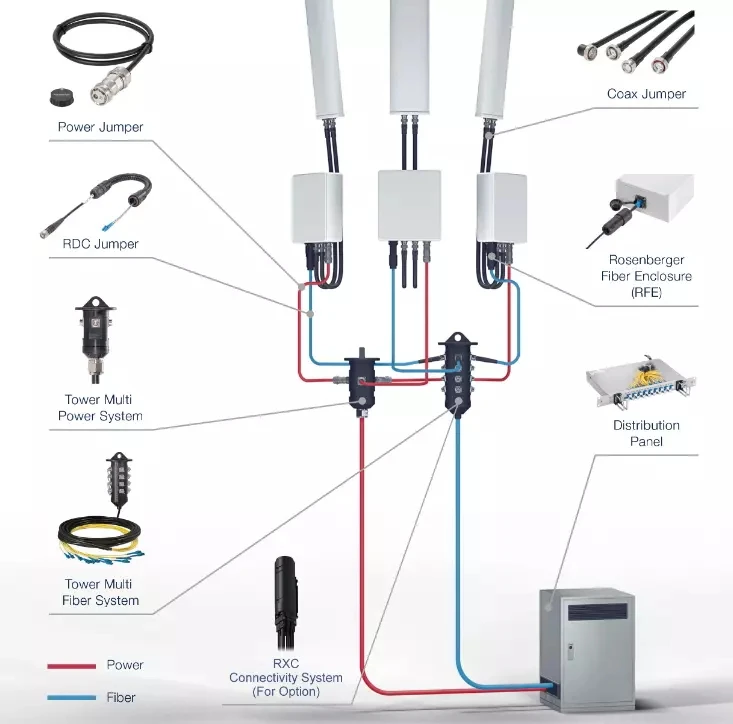

Using as flexible connection joint in fiber optic network, where there is device with a fiber optic interface installed in outdoor or harsh environment. Typical is for mobile communication (FTTA), broadcast, smart-grid cabling application.
Specification | ||
Standard | IEC 61753-1 Cat. E | |
Housing Material | Nickel-plated brass | |
Ferrule Material | Zirconia ceramic | |
Operating Temperture | -40°C~+125°C (dependent on cable type) | |
Imgress Protection | IP67 (IEC 60529) | |
Mechnical Resistance | >600N | |
Mating Cycles | ≥1000 | |
Suitable Cable (mm) | D4-D7 (Mini) breakout or D1.7 Simplex cable | |
Fiber Types | SM, OM1, OM2, OM3, OM4 | |
2011/65 /EU(RoHs) | Compliant | |
Feature:
•2 fibers connector
•Support singlemode and multimode
•Robust connector system with screwed locking mechanism
•Components of the N coaxial connector according to MILPRF-39012 enable a conversion
•With the standard panel cutout, the receptacle can easily replace a coaxial connector type
•Mated or with attached protection cap, plug and receptacle are sealed according to IEC 60529 IP67
•Captive protection cap, plastic dust cap and metal cap without rope are available
•PC and APC are available
•Cable connector (male/female) and flange connector (female) are available
•Support singlemode and multimode
•Robust connector system with screwed locking mechanism
•Components of the N coaxial connector according to MILPRF-39012 enable a conversion
•With the standard panel cutout, the receptacle can easily replace a coaxial connector type
•Mated or with attached protection cap, plug and receptacle are sealed according to IEC 60529 IP67
•Captive protection cap, plastic dust cap and metal cap without rope are available
•PC and APC are available
•Cable connector (male/female) and flange connector (female) are available

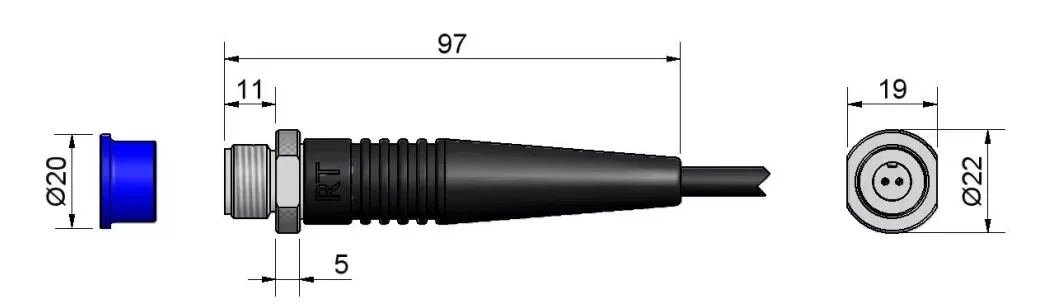

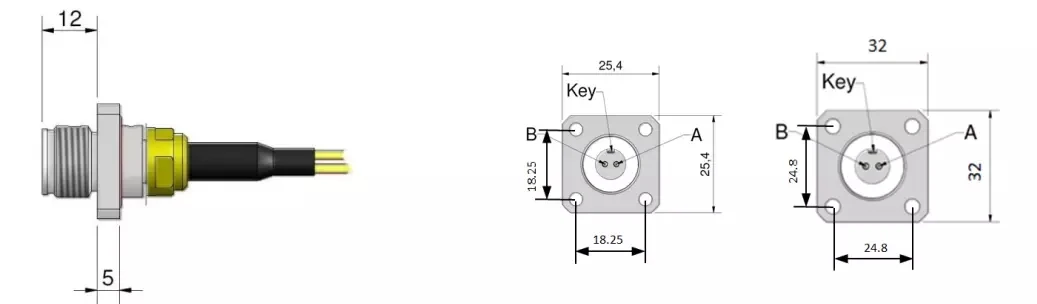

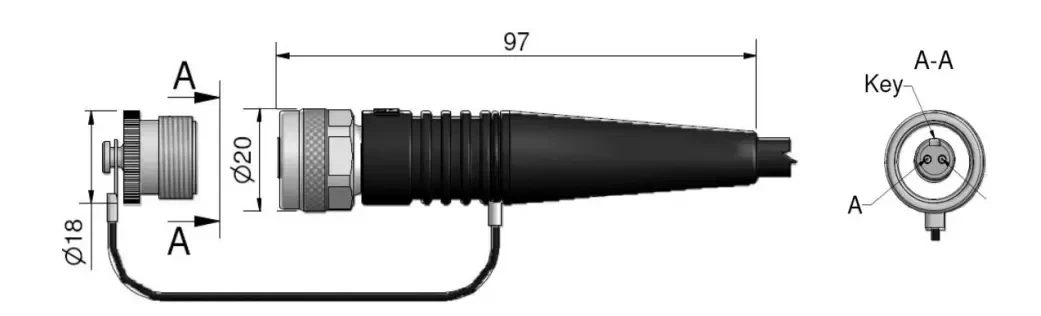

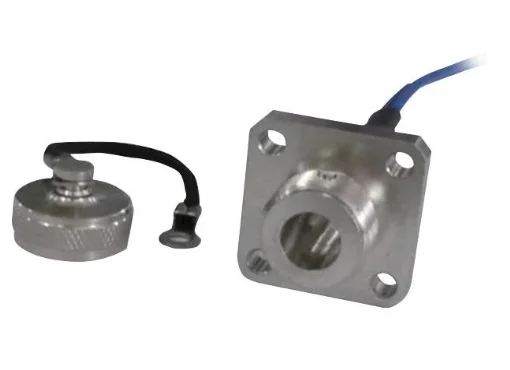

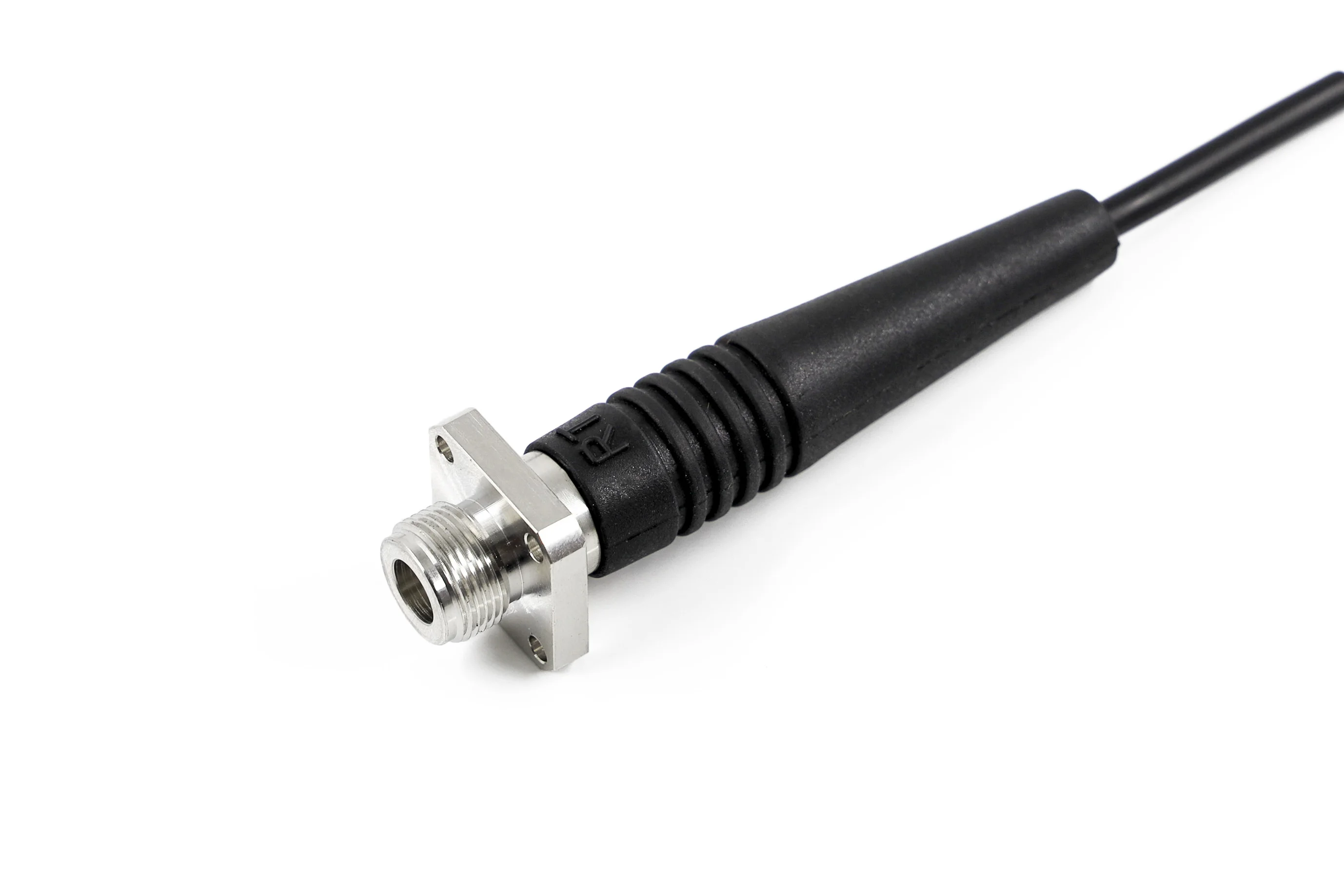

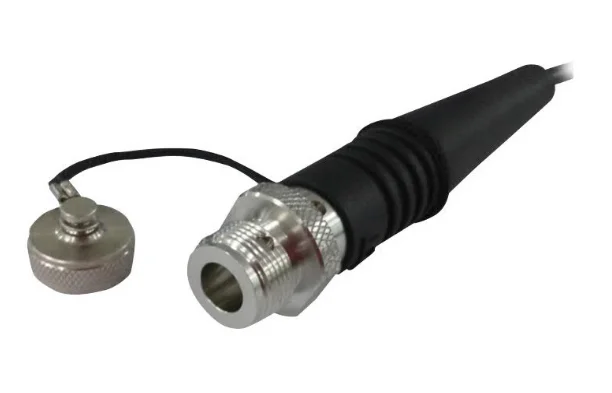

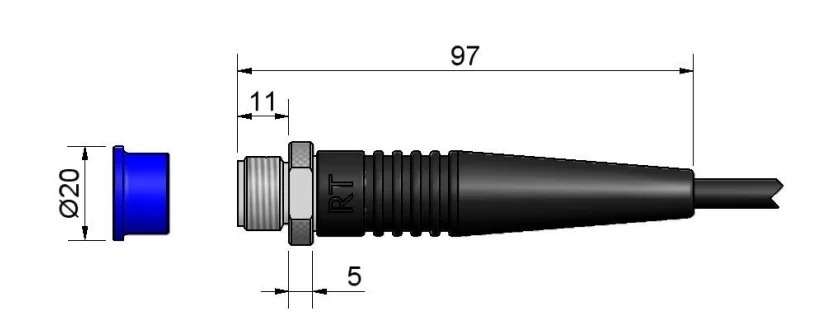

Details Images
Quality Certification
Quality and standards are the foundation of IH Fiber. We are dedicated to providing customers with the outstanding,
standards-compliant products and services.
standards-compliant products and services.
IH Fiber has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Related Products
Tips&Contact us
Tips:
• An unused or spare fiber optic cable should be protected with the dust caps.
• Ensure that same wavelength as fiber optic cable when using with the fiber optic transceivers.
• As a leading communication corporation devoting to design, R&D, innovation, IHong pursues all-round and tailored solutions with
the optimal products, welcome to contact us.
• Ensure that same wavelength as fiber optic cable when using with the fiber optic transceivers.
• As a leading communication corporation devoting to design, R&D, innovation, IHong pursues all-round and tailored solutions with
the optimal products, welcome to contact us.
Product Line
High Quality Fiber Optic Cable Guarantee

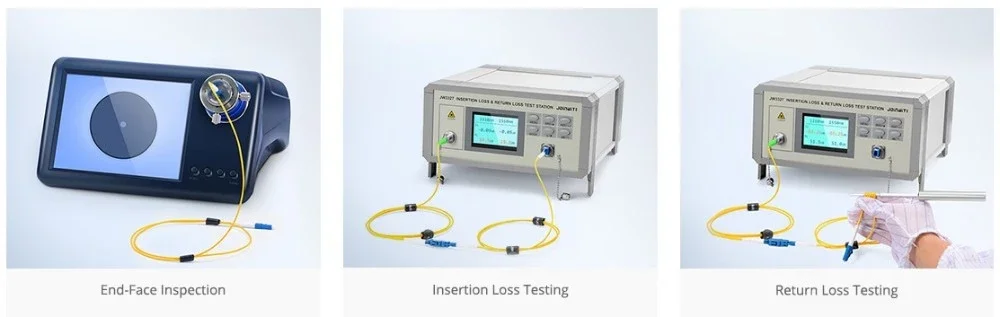

1. Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
2. Cable assembly: A total of 21 steps, each to be the best.
Packing&Shipping
This easy to take and well-protected fiber optical cable package has been labeled and marked by IHong as default. Customized label or package solution are available on request.
Company Introduction
FAQ
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.
A1: Yes, you can buy some samples of any our products for testing quality and market.
Q2: What is delivery time if we place an order?
A2: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
A2: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.
Q3: Do you accept OEM/ODM?
A3: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.
A3: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.
