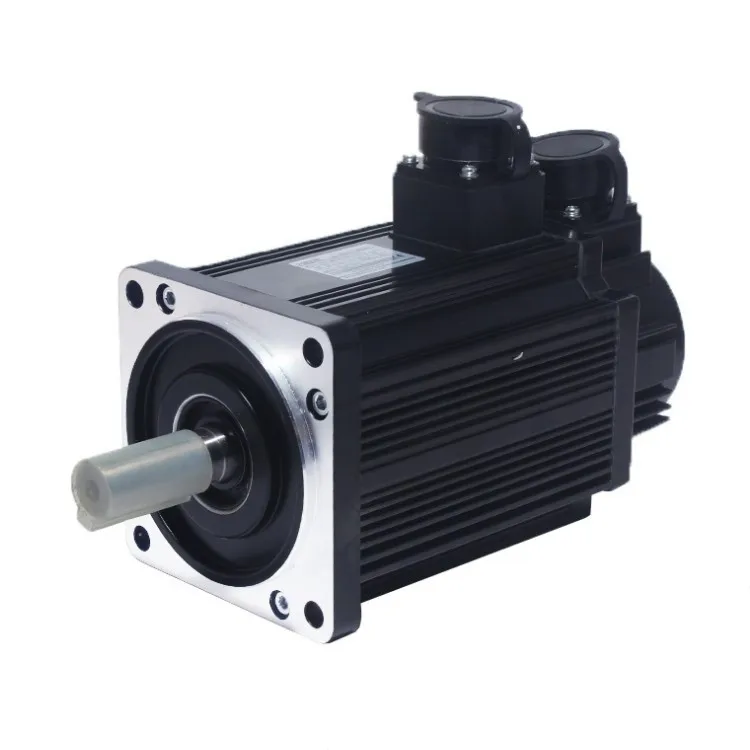

220V 3.8KW 3800W 2500RPM 15N.M. Single-Phase AC Servo Motor 130ST-M15025 Matched Driver AASD-50A
Product Description
220V 3.8KW 3800W 2500RPM 15N.M. Single-Phase AC Servo Motor 130ST-M15025 Matched Driver AASD-50A

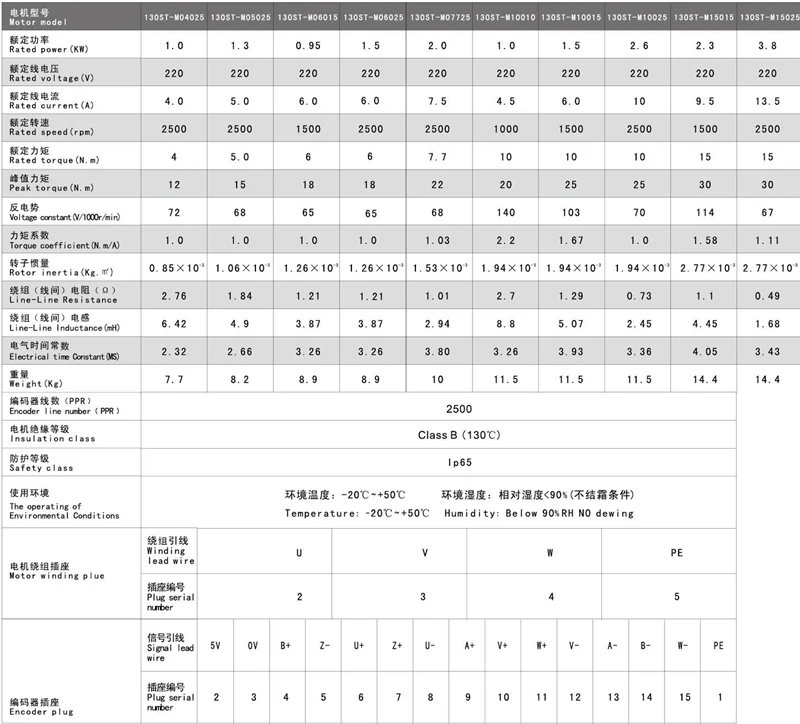

Data:
MOTOR MODEL
130ST-M15025
Rated power(w)
3800
Rated voltage(v)
220
Rated current(A)
13.5
Rated speed(rpm)
2500
Peak torque(N.m)
30
Voltage constant(v/1000r/min)
67
Torque coefficient(N.m/A)
1.11
Rotor inertia(kg.m2)
2.77*0.0001
Line-Line Resistance
0.49
Line-Line Inductance(mH)
1.68
Electrical time constant(MS)
3.43
Encoder line number(PPR)
2500
Insulation class
Class B
Safety class
IP65
The operating of environmental conditions
temperature: -20°c ~ +40°c Humidity: Below 90%RH No dewing
Package Included:
1 x 130ST-M15025 3.8KW 220V ServoMotor

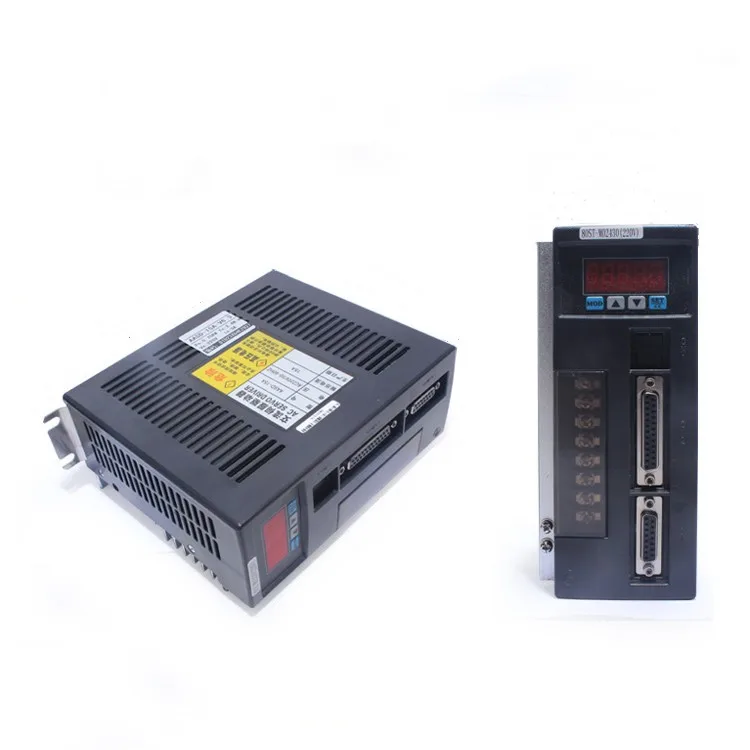

1 x AASD-50ADriver

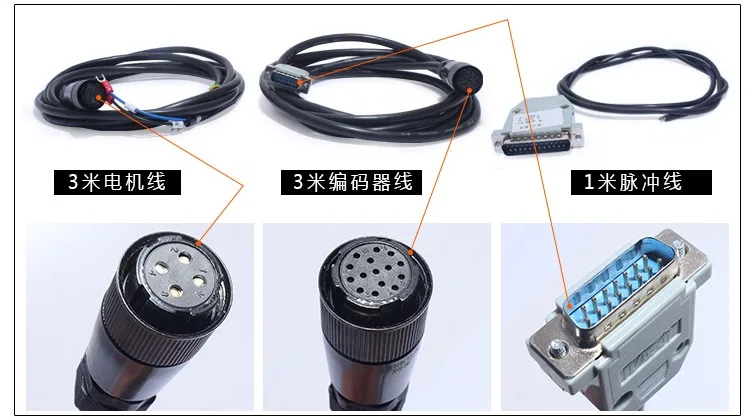

1 x 3 Meter Motor Cable
1 x 3 Meter Encoder Cable
1 x 25 Pin Centronics Connector
Note:
Please contact us, if you need:
1. English Manual
2. Motor with Brake
3. Longer Cable
4. MODBUS communication function for RS-232 and RS-485
