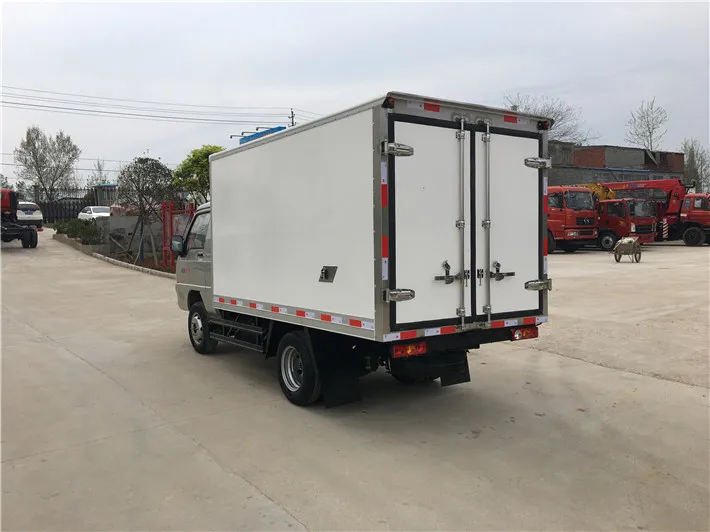

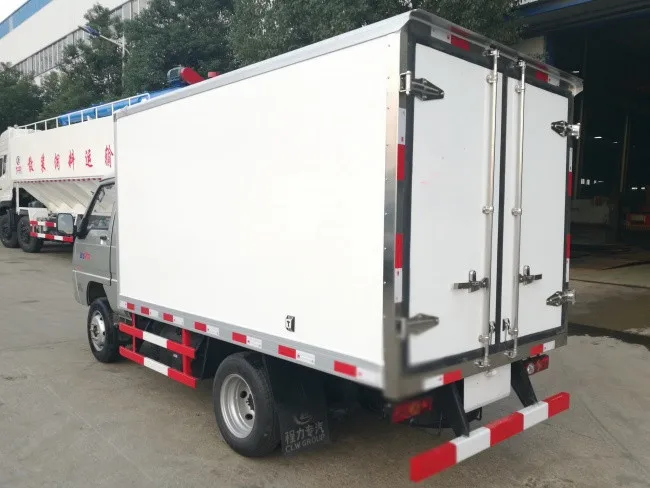

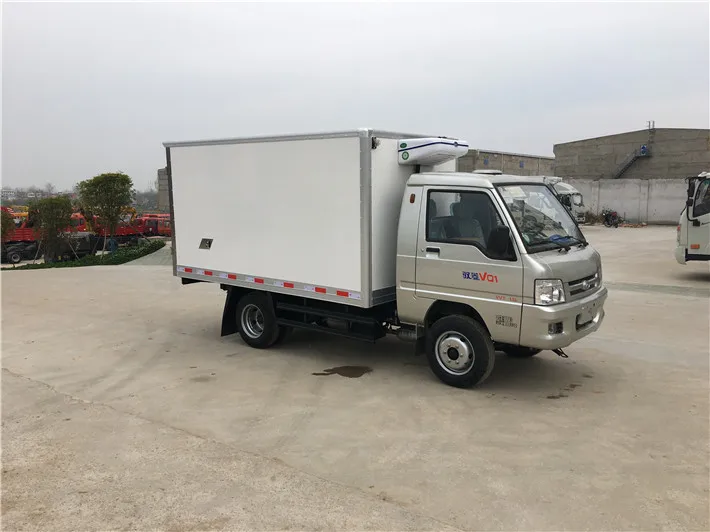

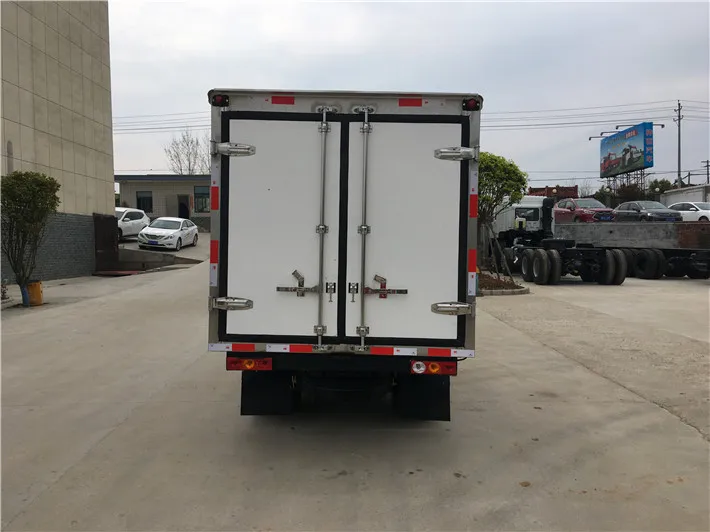

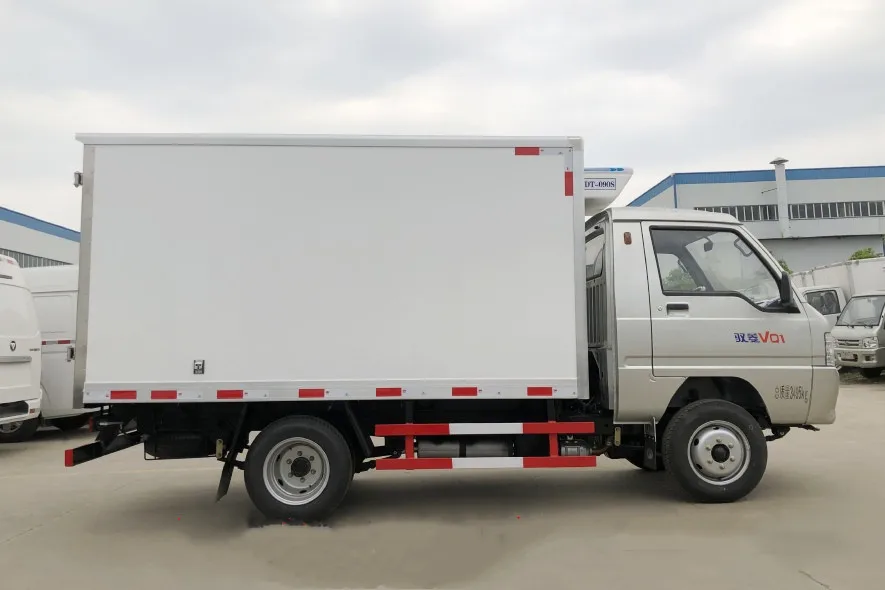

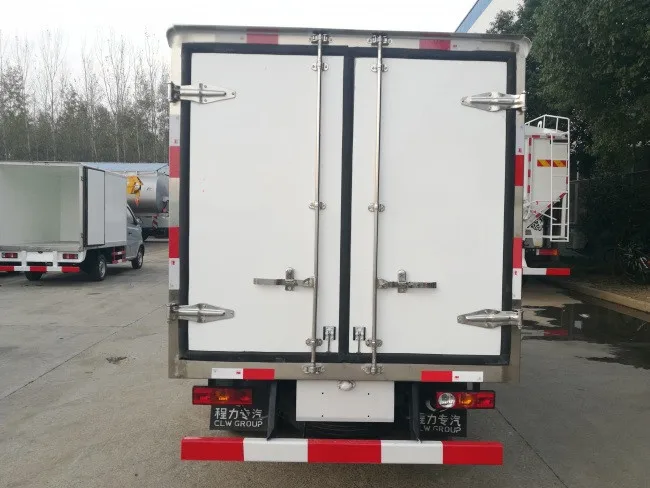

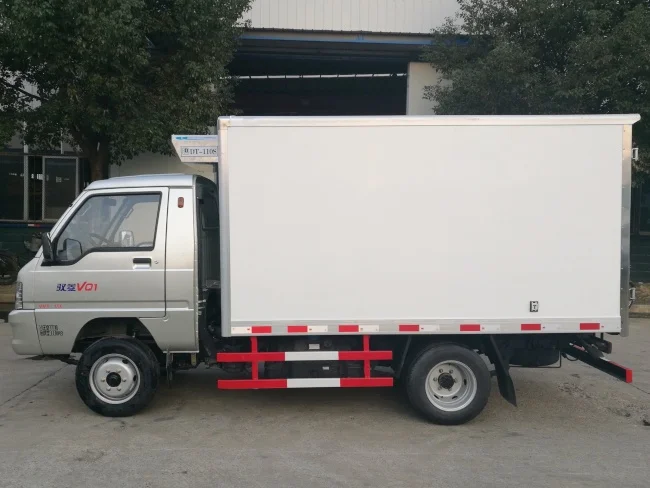

Foton mini 1ton camion frigorifique refrigerated van refrigerator cargo truck

Main specification

Product model and name

 A refrigerator truck

Gross weight(Kg)

3000

Drive type

4X2,LHD,RHD

Overall dimension(mm)

4450×1550,1620×2400

Axle No.

2

Cab seats

2,3

Max speed(Km/h)

80

 Wheelbase(mm)

 2700

Chassis specification

Brand name

Dimension(mm)

4450×1550,1620×2400

Tire specification

Tire No.

Emission standard

Euro 3 ; 4

Transmission

5 forward gear

Cab

Single row,2 person allowed with A/C, Choose to fix power steering

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

JX493ZLQ4

Jiangling Diesel Engine Co.,Ltd

2771

85(115HP)

 body box

Tank capacity(m³)

2-4

box material

Fiber Reinforced Plastics

Box thickness

8mm

accessories

Stainless steel

temperature

-18~30degree

Refrigerating unit

Famous brand

Main feature

1, Refrigerated truck is mainly used to transport fresh meat, vegetables and seafood etc. Special ones can also transport dangerous chemicals. Our truck has lots of advantages, flexible, easy to operate , efficient, large Carryings, safe and reliable.

2,We product many kinds of refrigerated truck, the cargo body uses assembled technology with fully plastic and total enclosed composite material plates.

3, the inner and exterior thin-gauge skin of the cargo is glass epoxy, the sandwich panel is made of polyurethane foam insulation materials. The cargo body is adhered by glass epoxy and polyurethane foam materials with high-strength glue to make the cargo enclosed.

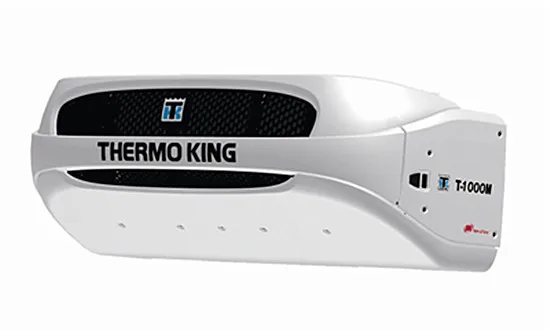

4, About the refrigerator unit, we choose domestic and thermo King, Carrier, Mitsubishi and other international famous brands.

6, Choose to fix meat hooker, leading rails, ventilation slots
