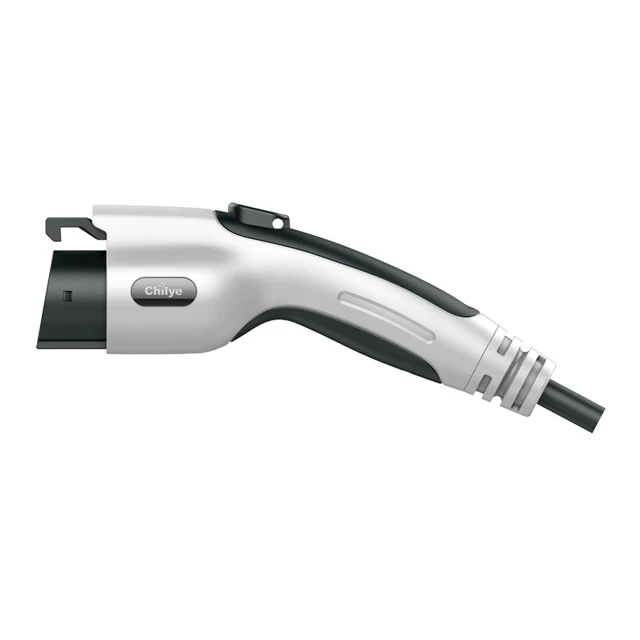

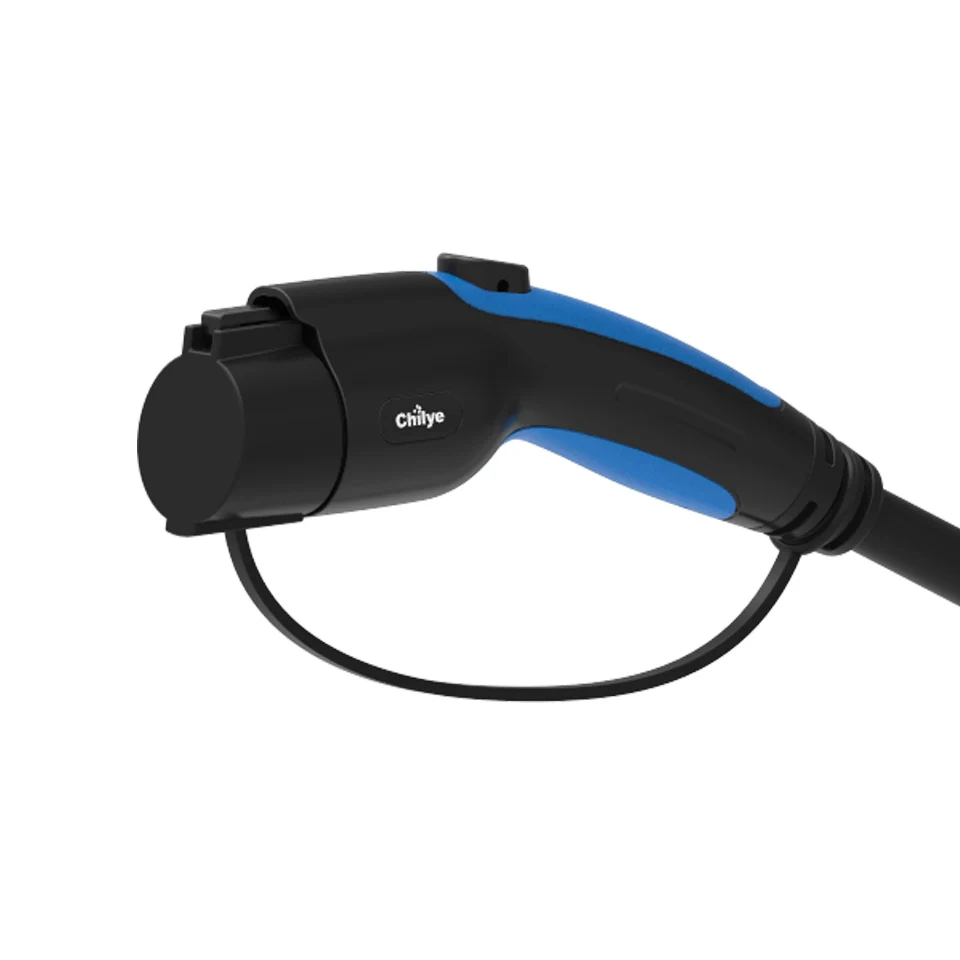

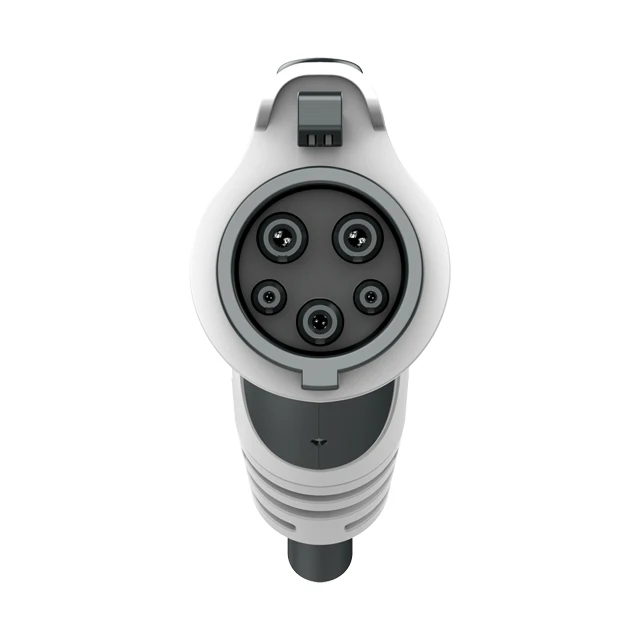

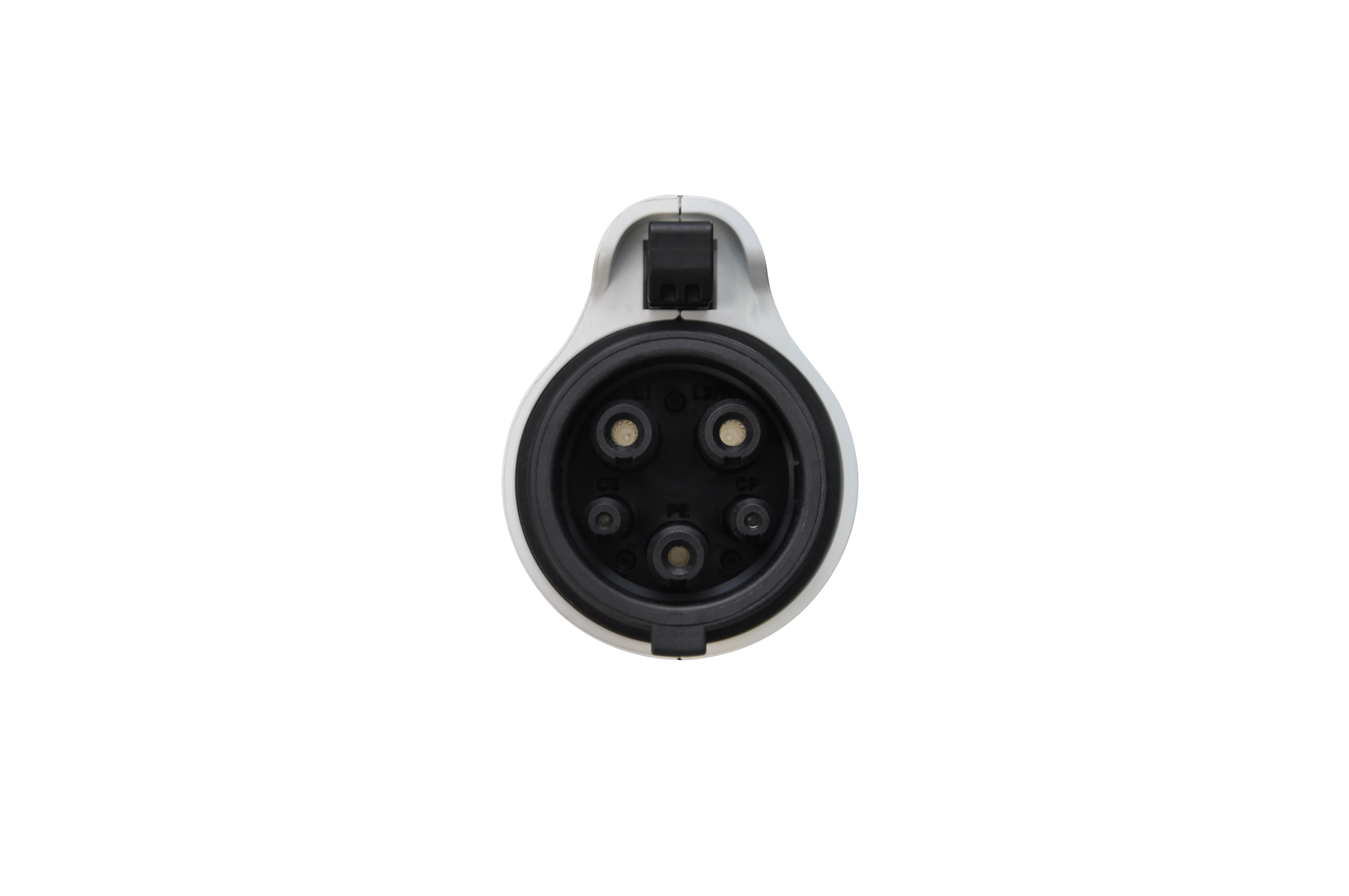

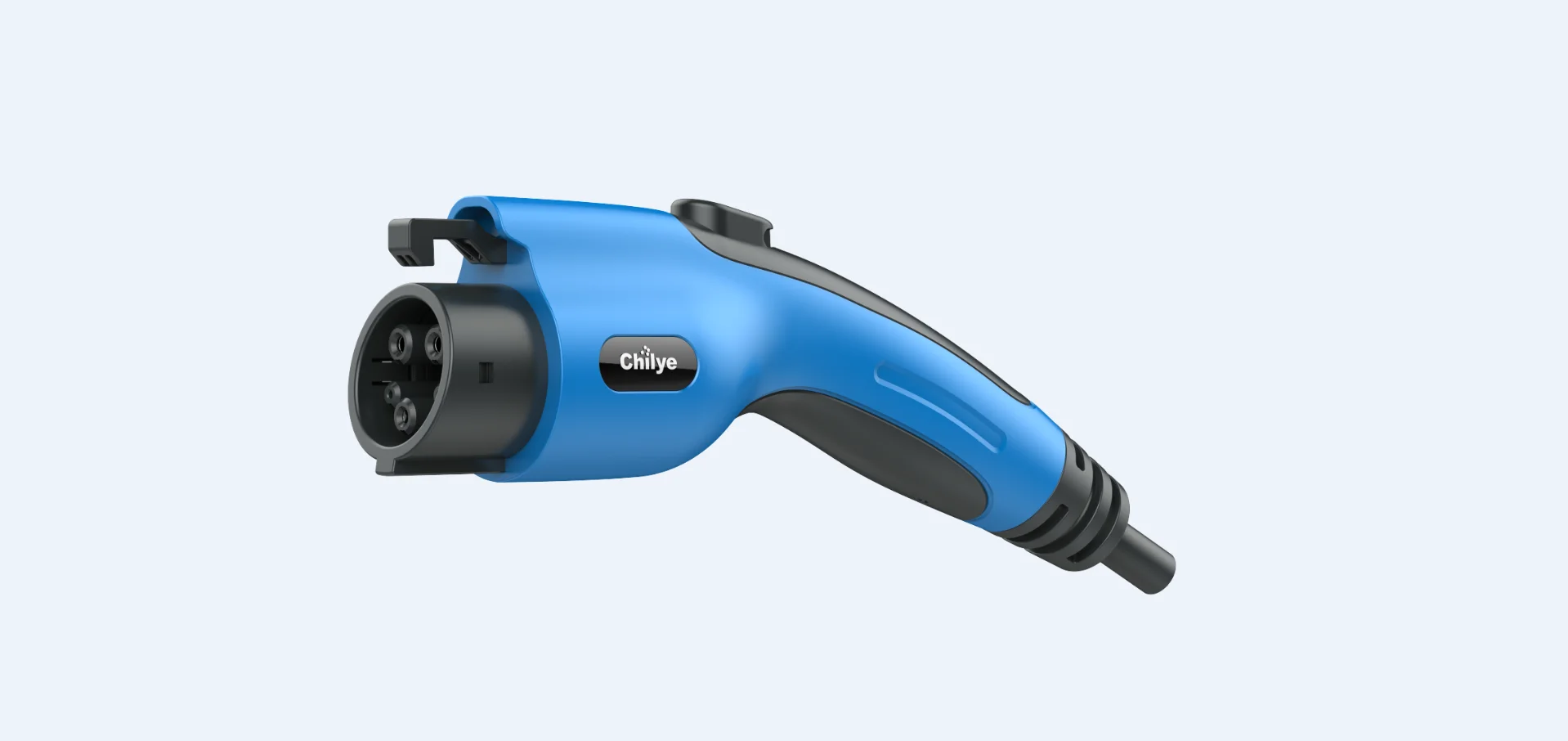

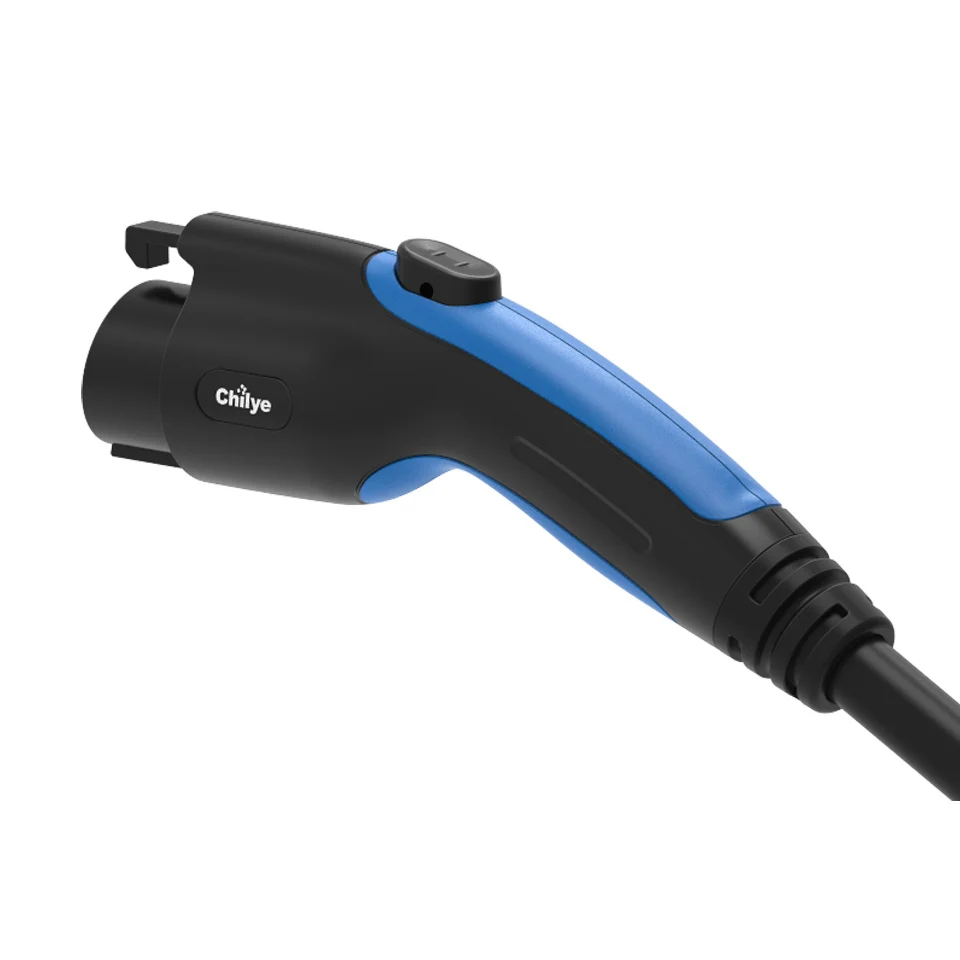

SAE j1772 Electric Vehicle Connector Plug for conductive charging of Electric Vehicle

Product Overview

Description

Product Name:SAE j1772 Electric Vehicle Connector Plug for conductive charging of Electric Vehicle







Model Number	CL-C3SCA32	Application	Electric Vehicle
HV cable	13.5-20.5mm²	Standard	SAE J1772
Material	Plastic sealed connector	Rated voltage	120/240V AC
Rated current	16A/32A/50A	Insulation resistance	>200MΩ(500Vdc)
Temperature range	-40℃ to +80℃	Shielding range	360 degree shield
Electric protection level	IP2XB	Connecting protection level	IP55







EV Charging Plug/Connector

HV charging series connectors integrate touch-proof design, good EMC shielding performance,

high IP rating,high safety, unique design,
providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.

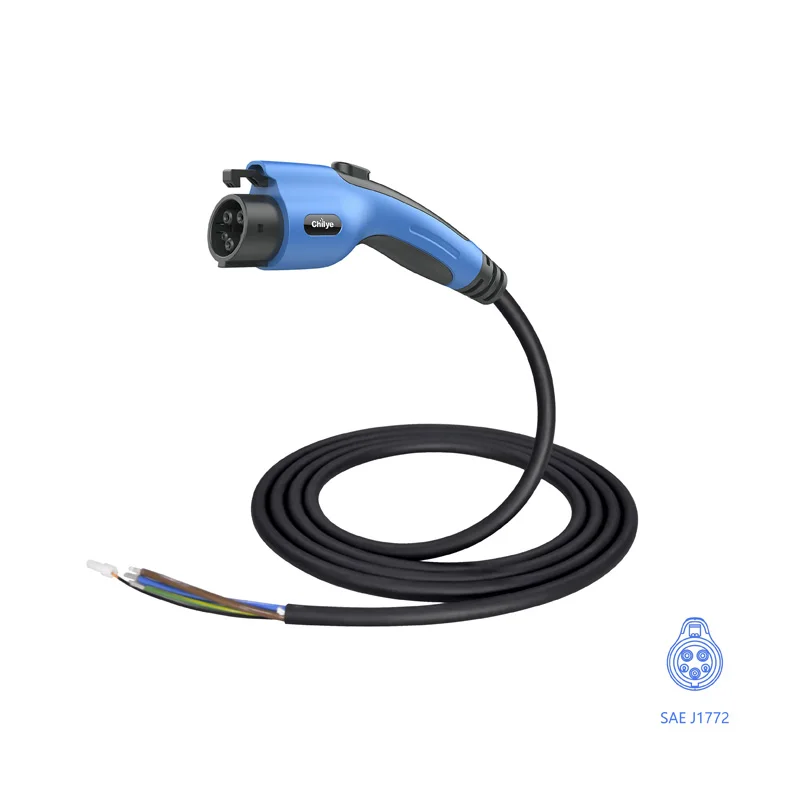

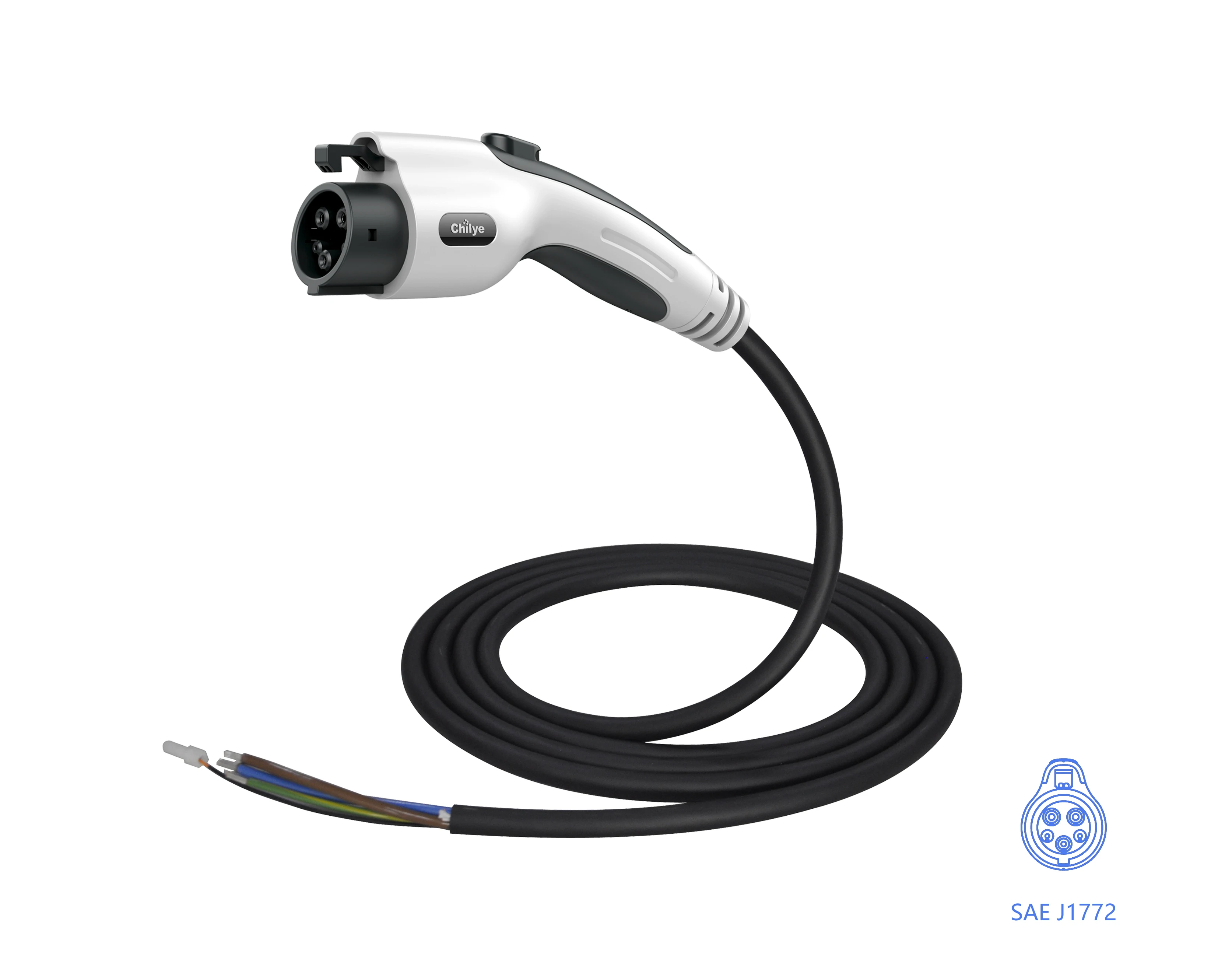

     Electric Vehicle charging plug/connector for EV charging system



Application
Electric vehicle charging system



Description
• single phase
• 5 meters long cable
• IP55 protection level
• Customized color
• Finger proof/touch safe
• Shielding range: 360° shielded from the line to the connector
• Cable range: 13.5 mm² to 20.5 mm² power circuit;



Performance
• Current capacity: 12A/16A/20A/32A/50A
• Voltage: 120/240V AC
• Temperature range: -40°C to +80°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB
