Product Overview
Description

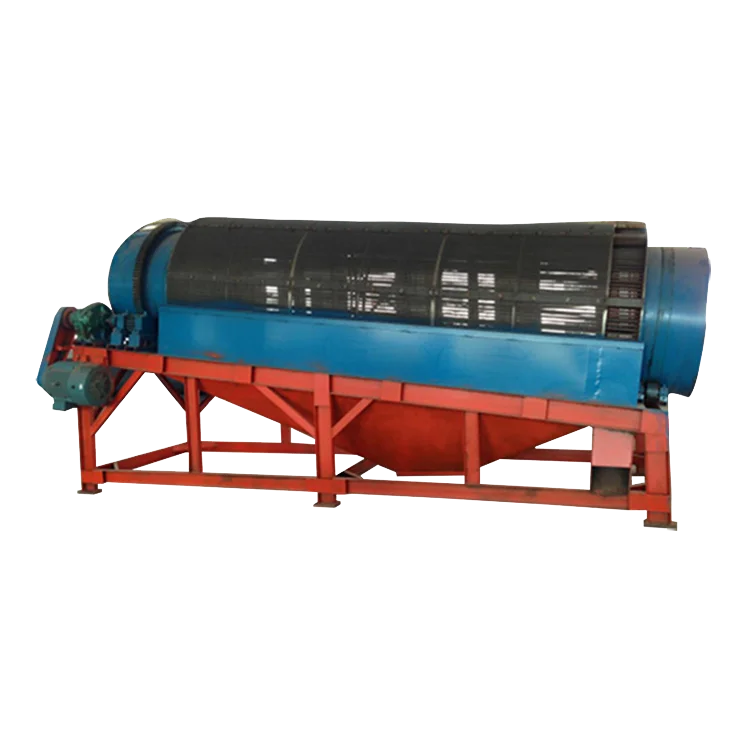

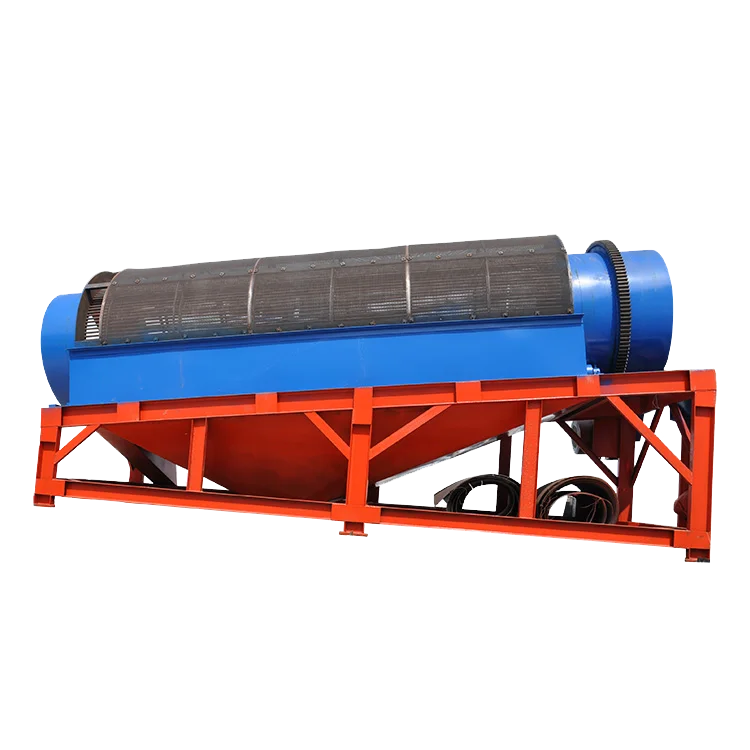

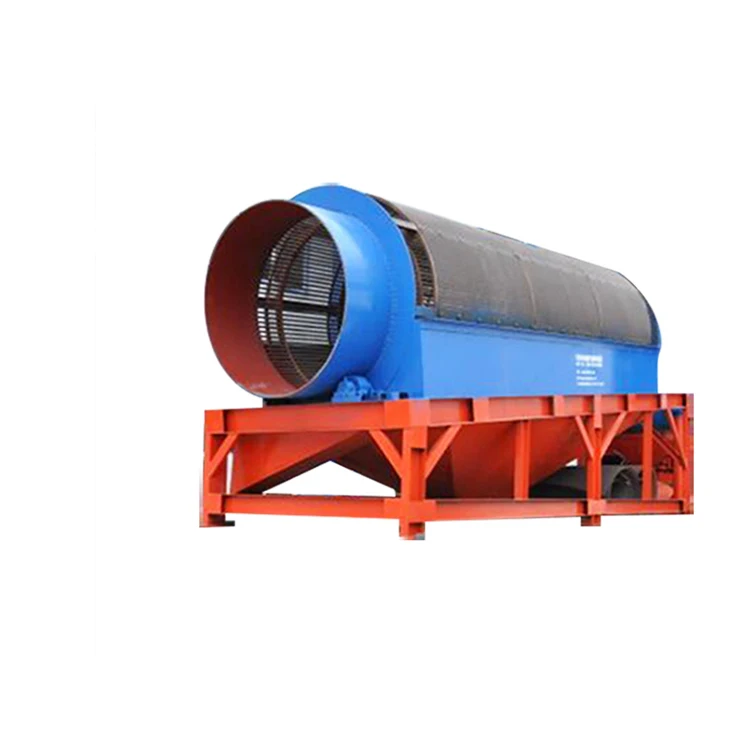

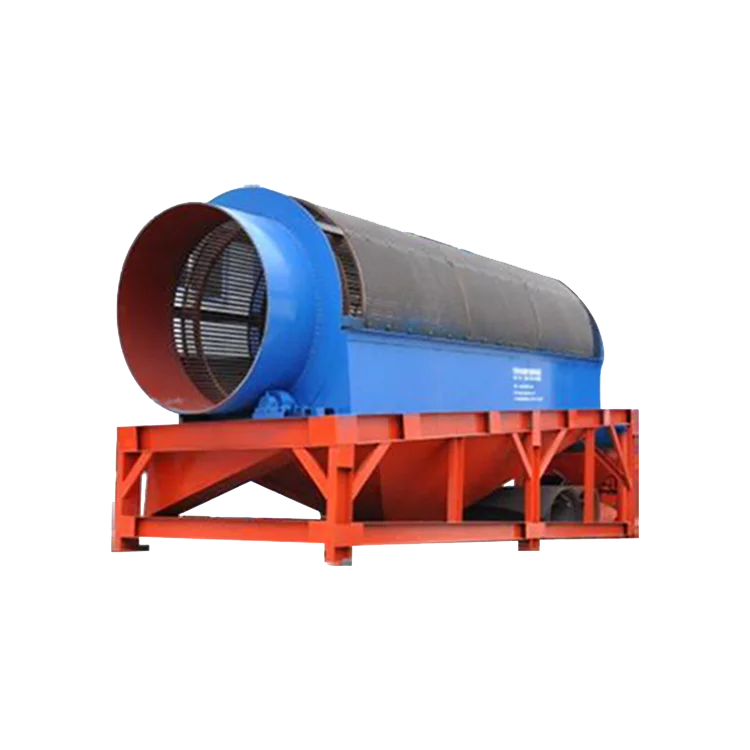

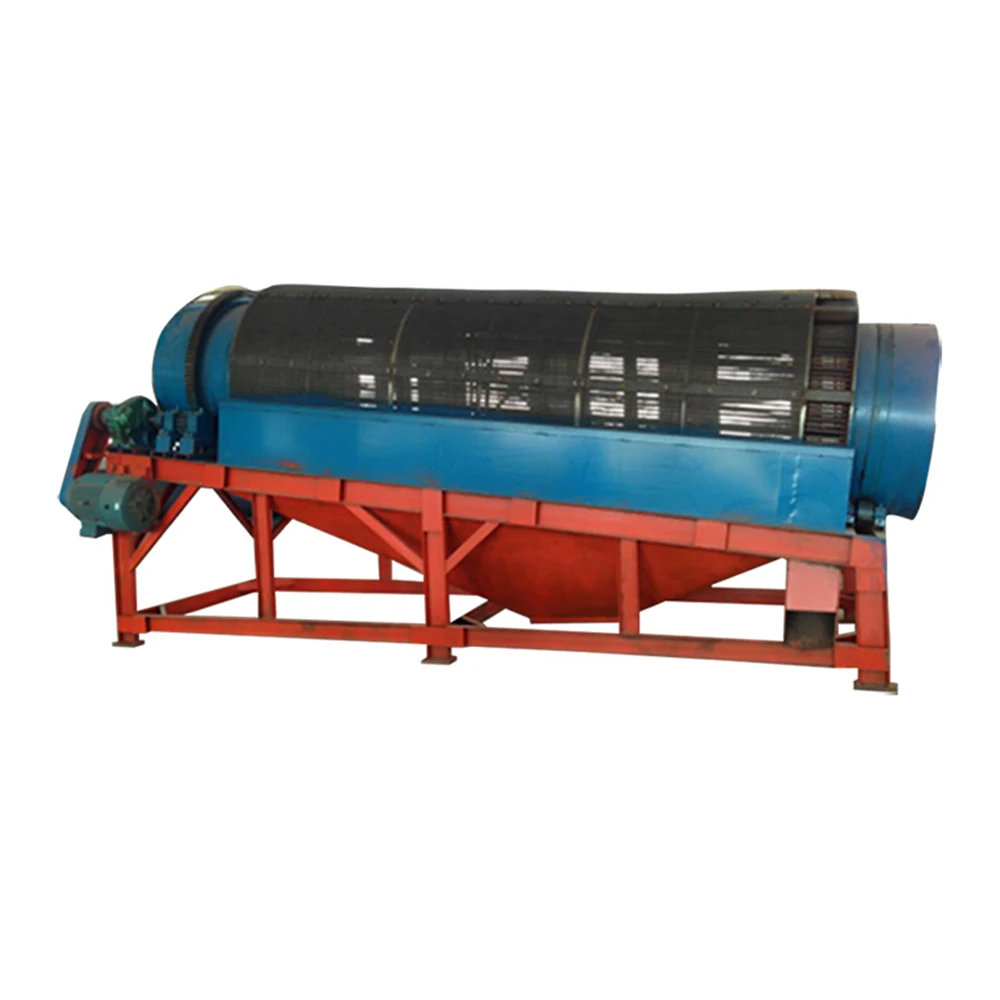

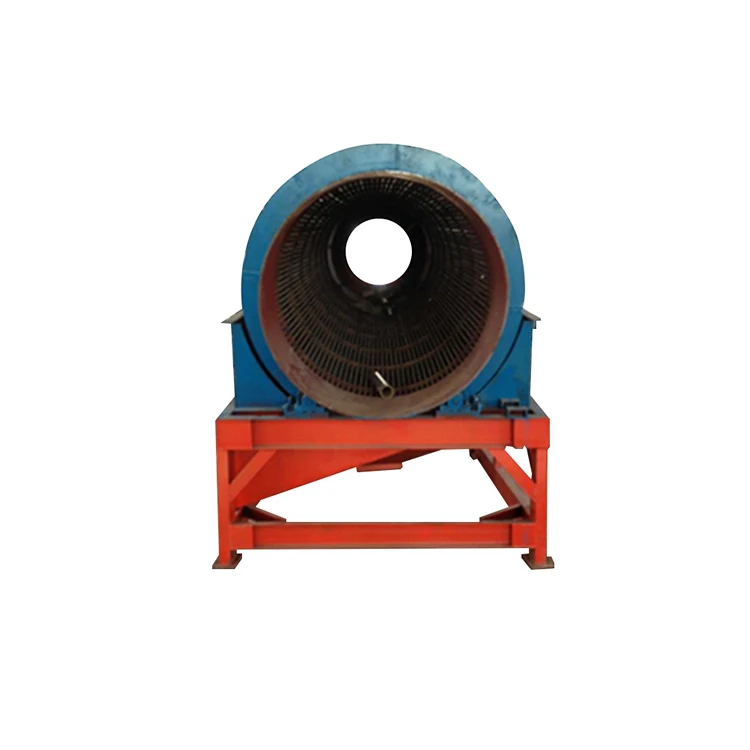

Rotary Drum Trommel Screen
Product Display
From the storage hopper, raw material is fed into the drum, and lifted up by the rotation, in the meantime washed by the flushed water as it falls back down. The action is repeated with each revolution along the wall of drum screen. The finer ore passes through the screen while the bigger ore tumbles towards the eventual exit at the backside of the drum.The finer size mineral ore is then passed to the downstream process equipment, which can be in various forms, such as centrifugal concentrator, spiral chutes, jig machine etc.
Model | Capacity (t/h) | Motor Power (kw) | Drum Dia (mm) | Drum Length (mm) | Screen mesh (mm) | Dimension (mm) | Weight (kg) |
GT0510 | 1-10 | 1.5 | 500 | 1000 | 3-10 | 1800*1020*1500 | 1000 |
GT1015 | 5-20 | 4 | 1000 | 1500 | 3-10 | 3000*1400*2145 | 2200 |
GT1020 | 10-40 | 5 | 1000 | 2000 | 3-10 | 3460*1400*2145 | 2800 |
GT1225 | 20-60 | 7.5 | 1200 | 2500 | 3-10 | 4146*1600*2680 | 4200 |
GT1530 | 30-90 | 11 | 1200 | 3000 | 3-10 | 4460*1900*2820 | 5100 |
GT1545 | 50-120 | 15 | 1500 | 4500 | 3-10 | 5960*1900*3080 | 6000 |
GT1848 | 70-180 | 22 | 1800 | 4800 | 3-10 | 6500*2300*4000 | 7000 |
GT1860 | 80-200 | 22 | 1800 | 6000 | 3-10 | 8000*2300*4000 | 7500 |
GT2055 | 120-250 | 30 | 2000 | 5500 | 3-10 | 7500*2500*4000 | 8600 |
Related Products
Main Products
Successful Cases
Malaysia 1500tpd Magnetite Magnetic Separation Plant
Nigeria 50tpd Tin Gravity Separation Plant
Guoda 200tpd Zinc Cementation Plant
Linglong Group 3000tpd Gold Flotation Plant
Mali 20tph River Sand Gold Gravity Separation Plant
Company Information
About Us
Originated from Mines, Serving Mines, Rooted in China, Serving the World.
Yantai Qinglin Mining Machinery Co., Ltd. is located in China's gold capital -- Zhaoyuan city, Shandong province, Asia's largest gold mining area -- Linglong gold mining area, surrounded by many large mining enterprises, mineral processing enterprises and smelting enterprises. Since 1981, we have been providing mining equipment and processing lines to surrounding, domestic and foreign mining enterprises.
Our main business is the equipment manufacturing of mineral processing equipment and smelting equipment, leading products are feeder, crusher, vibrating screen, ball mill, classifier, agitation tank, flotation cell, thickener, dehydration filter, leaching tank, gold CIP/CIL equipment, gravity separator, magnetic separator, mineral processing reagents and so on, used for processing of all kinds of precious metals, non-ferrous metals, ferrous metals and non-metals.
We have laboratories and mineral processing professionals, we can select the best mineral processing reagent and process scheme according to the mineral properties of users through experiments, improve the technical indicators of mineral processing, and create the best economic effect.
We can provide one-stop service of designing, manufacturing, installation, commissioning and training. Professional, timely, meticulous and patience are our commitment to customers.

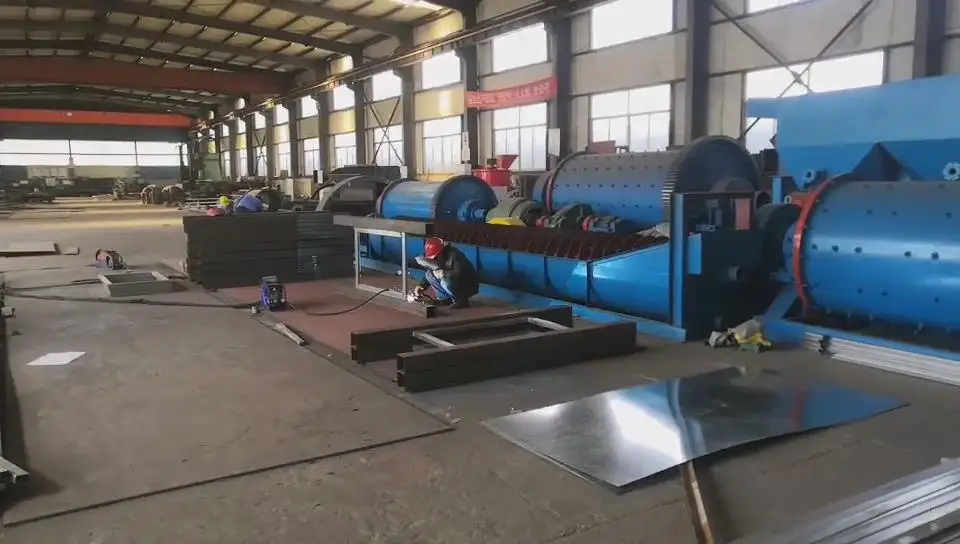

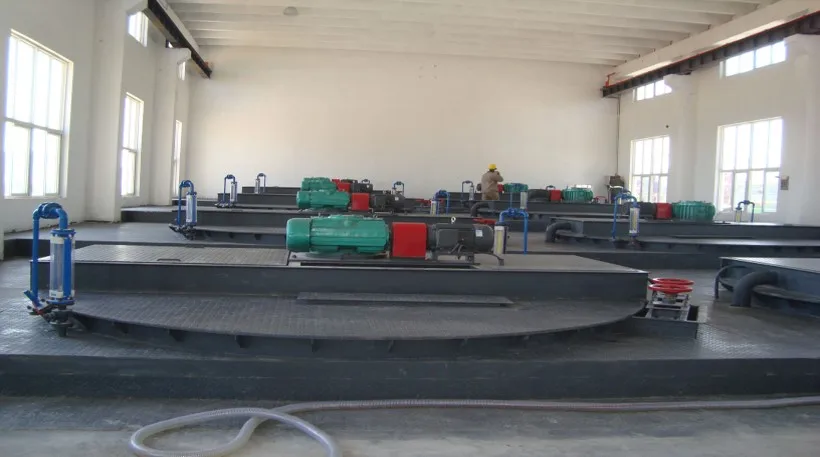

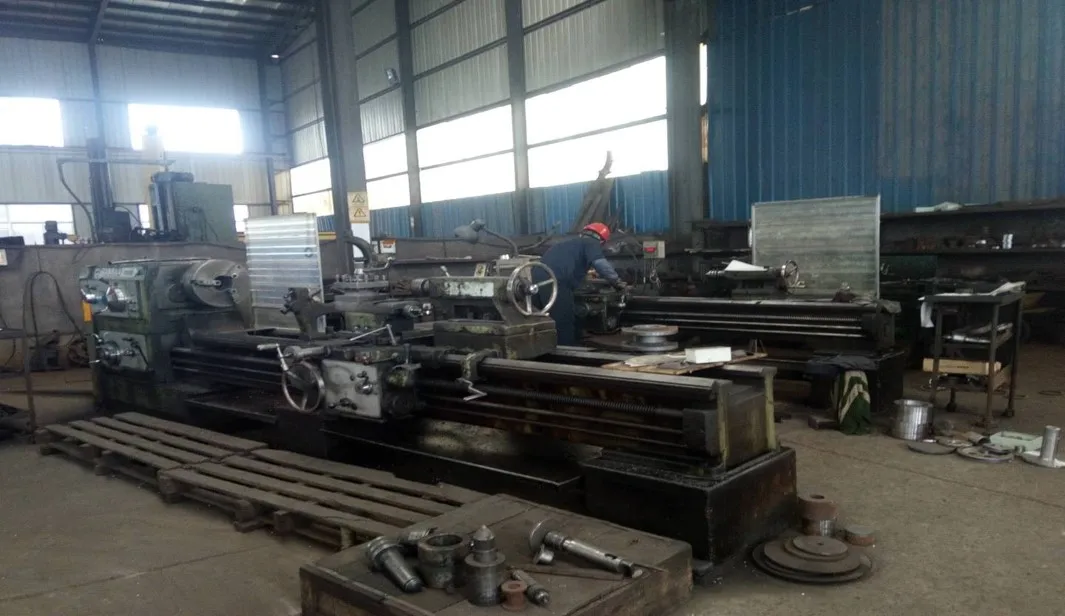

Production Workshop
