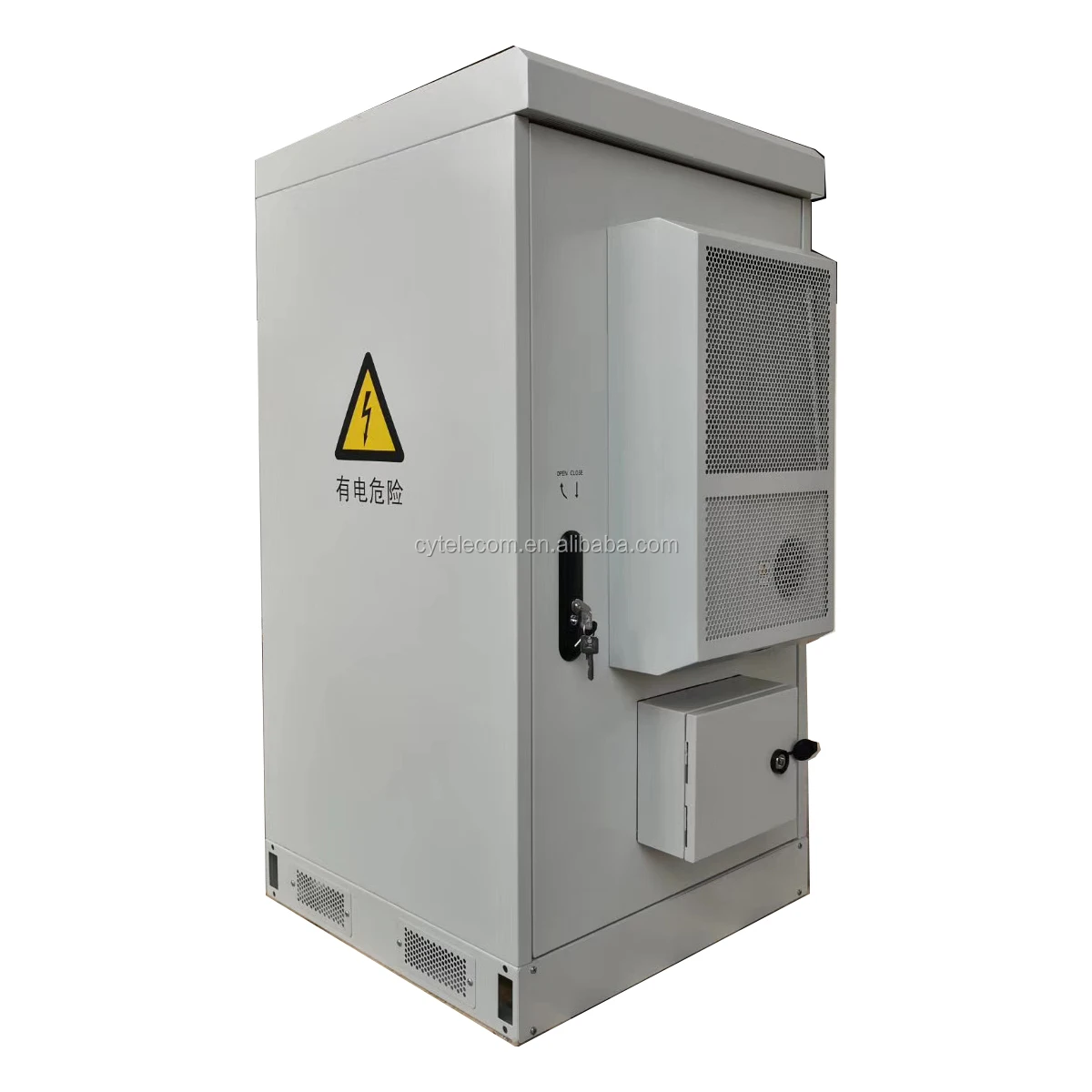

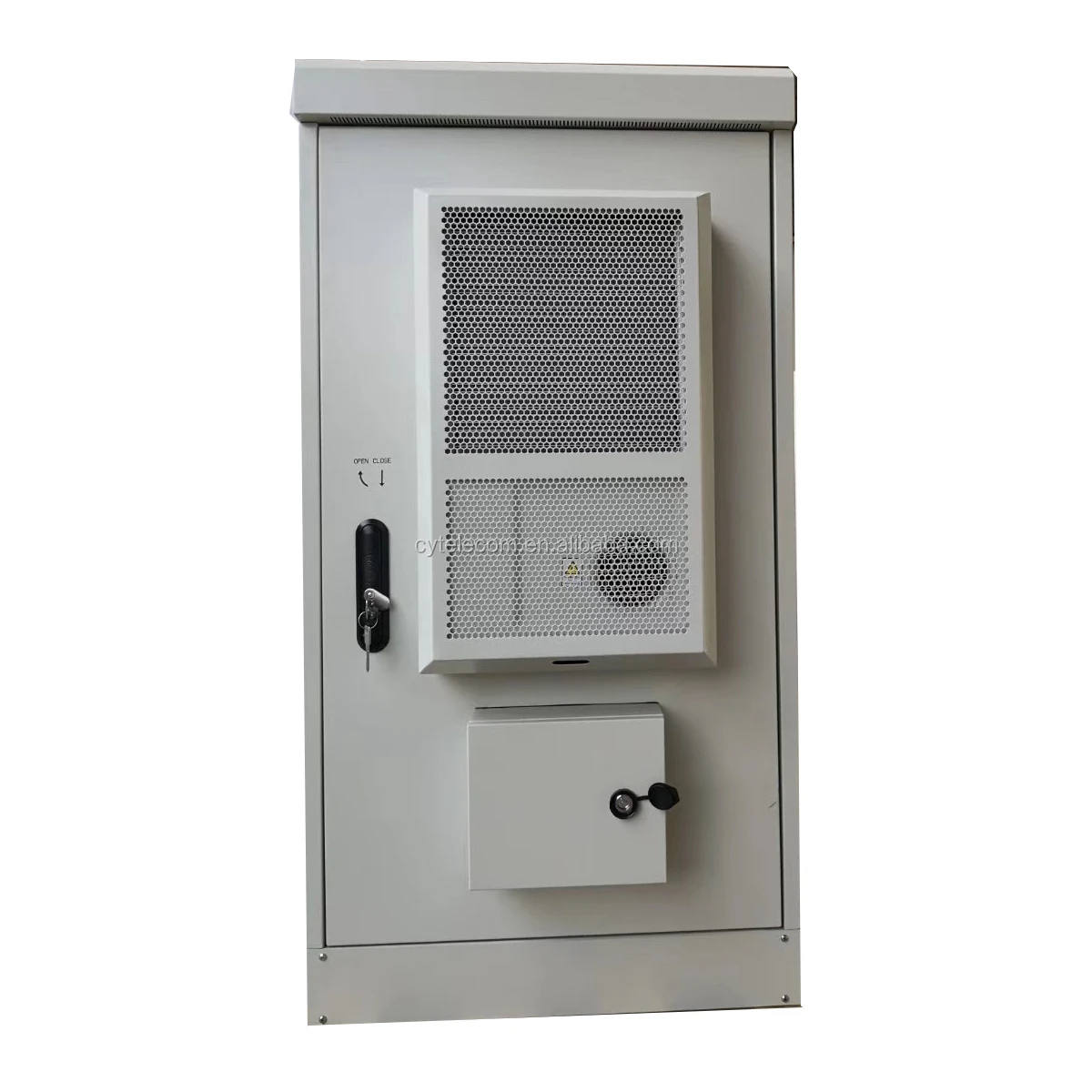

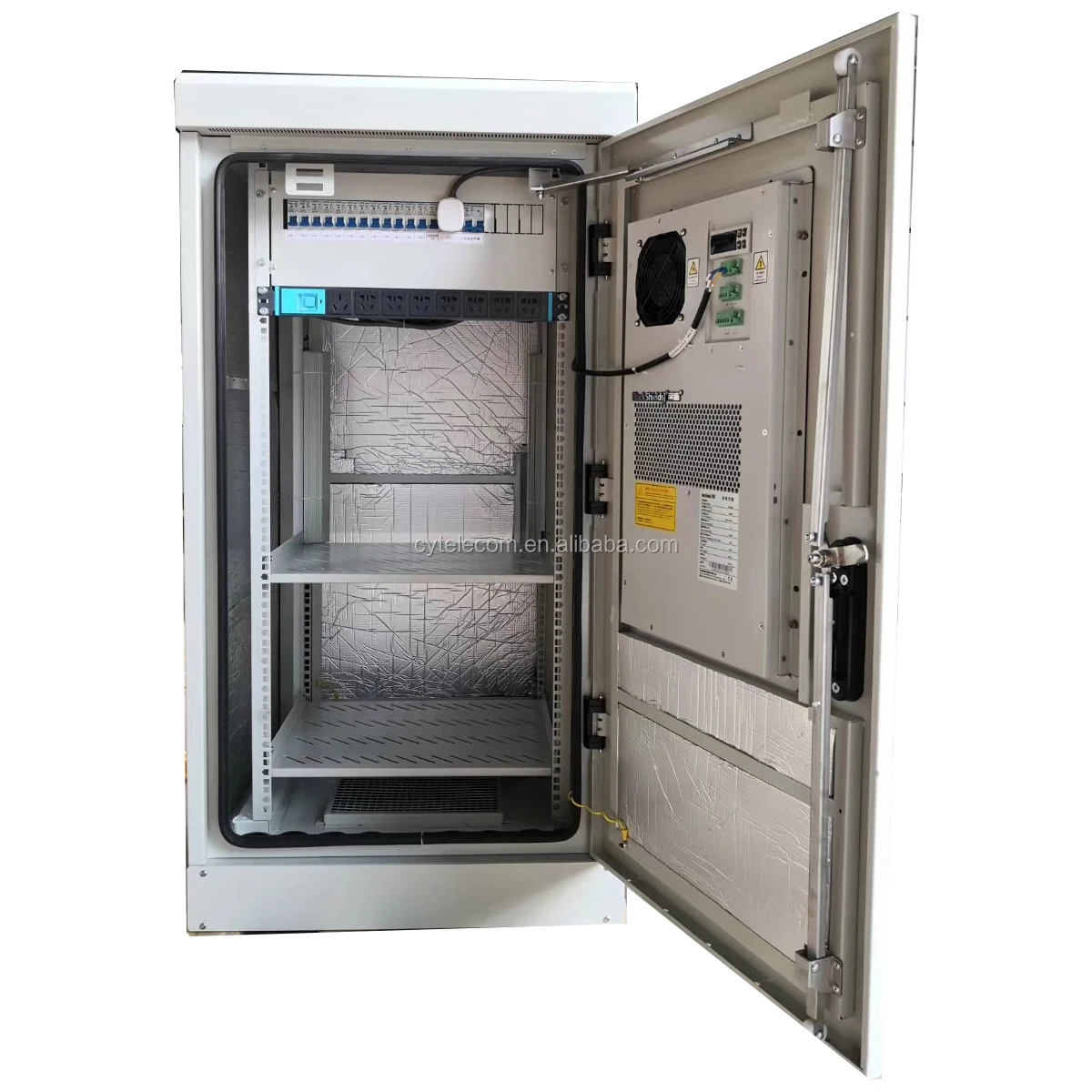

OLT telecom equipment electrical outdoor cabinet enclosure for battery UPS power distribution supply rectifier
Product Description
OLT telecom equipment electrical outdoor cabinet enclosure for battery UPS power distribution supply rectifier are made of galvanized steel plate and sprayed with plastic. It is an equipment that provides outdoor physical working environment and safety system for wireless communication stations under outdoor use conditions. The utility model has the advantages of high integration, small floor area, flexible expansion, simple installation, lateral and back expansion, energy saving, etc.
1.1 If conditions permit, try to install outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment.
1.2 After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment. The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω.
1.3 Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Product Paramenters
(1) the external surface of the outdoor telecom cabinet is UV resistant plastic spraying layer, which can effectively isolate the solar radiation heat.
(2) patented air duct design: the cabinet door and the top air inlet and outlet adopt the secondary air inlet and heat
dissipation design (patented technology), so that the product can meet the IP55 level of sealing protection on the premise of ensuring efficient heat dissipation.
(3) the effective service life of sealing strip can reach 10 years.
(4) adopt outdoor lock, with good sealing and waterproof performance.
(5) the inner hinge is adopted, and there is no exposed screw outside the cabinet.
(2) patented air duct design: the cabinet door and the top air inlet and outlet adopt the secondary air inlet and heat
dissipation design (patented technology), so that the product can meet the IP55 level of sealing protection on the premise of ensuring efficient heat dissipation.
(3) the effective service life of sealing strip can reach 10 years.
(4) adopt outdoor lock, with good sealing and waterproof performance.
(5) the inner hinge is adopted, and there is no exposed screw outside the cabinet.
Details Images
Power distribution unit
40KVA SPD,input 63A*2,output 63A*1,32A*1,16A*1 and socket*1

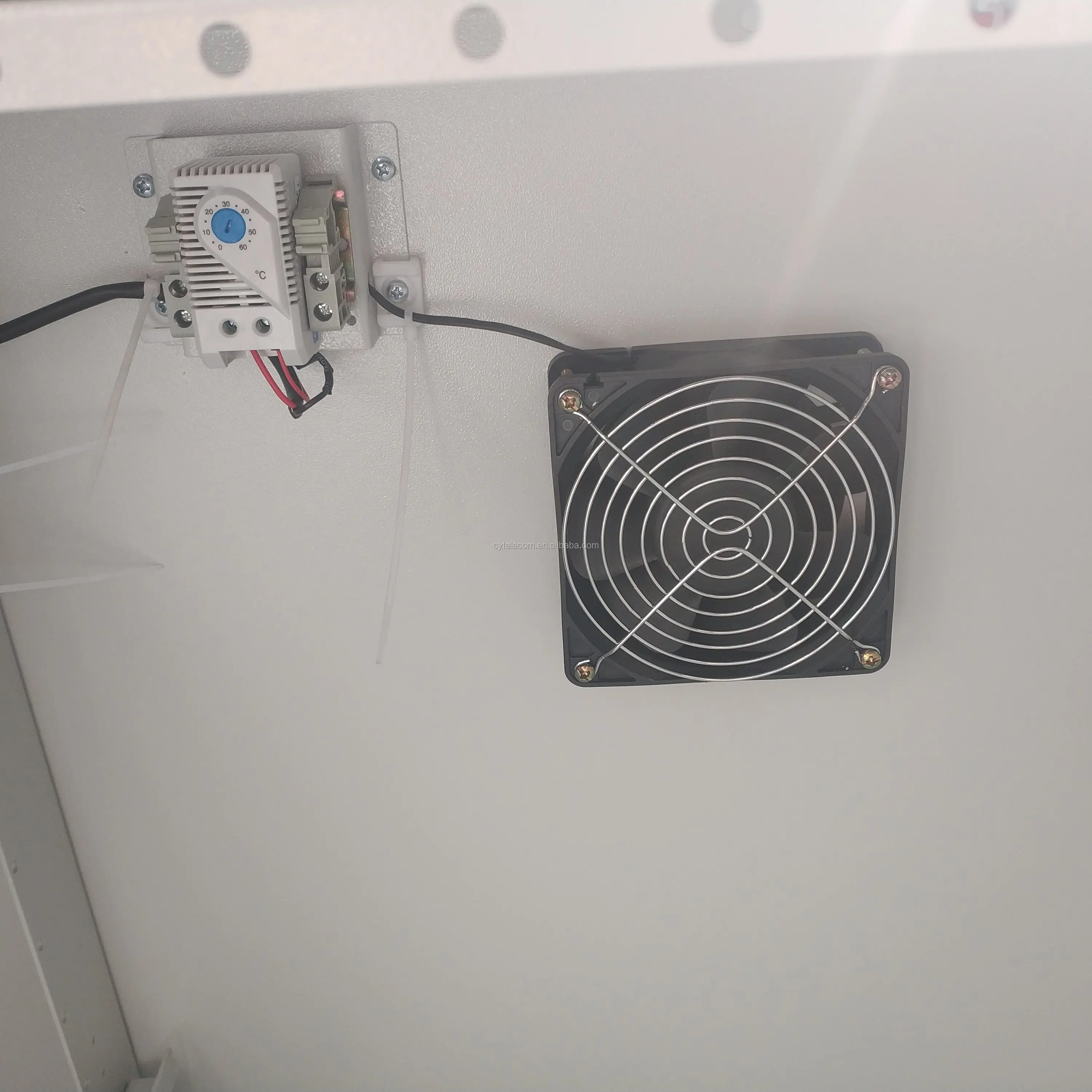

DC fan
DC48V fan with temperature manual controller.We can use the cross blade to rotate to 35 ℃, so that when the temperature in the
cabinet exceeds 35 ℃, the DC fan will start automatically.
cabinet exceeds 35 ℃, the DC fan will start automatically.

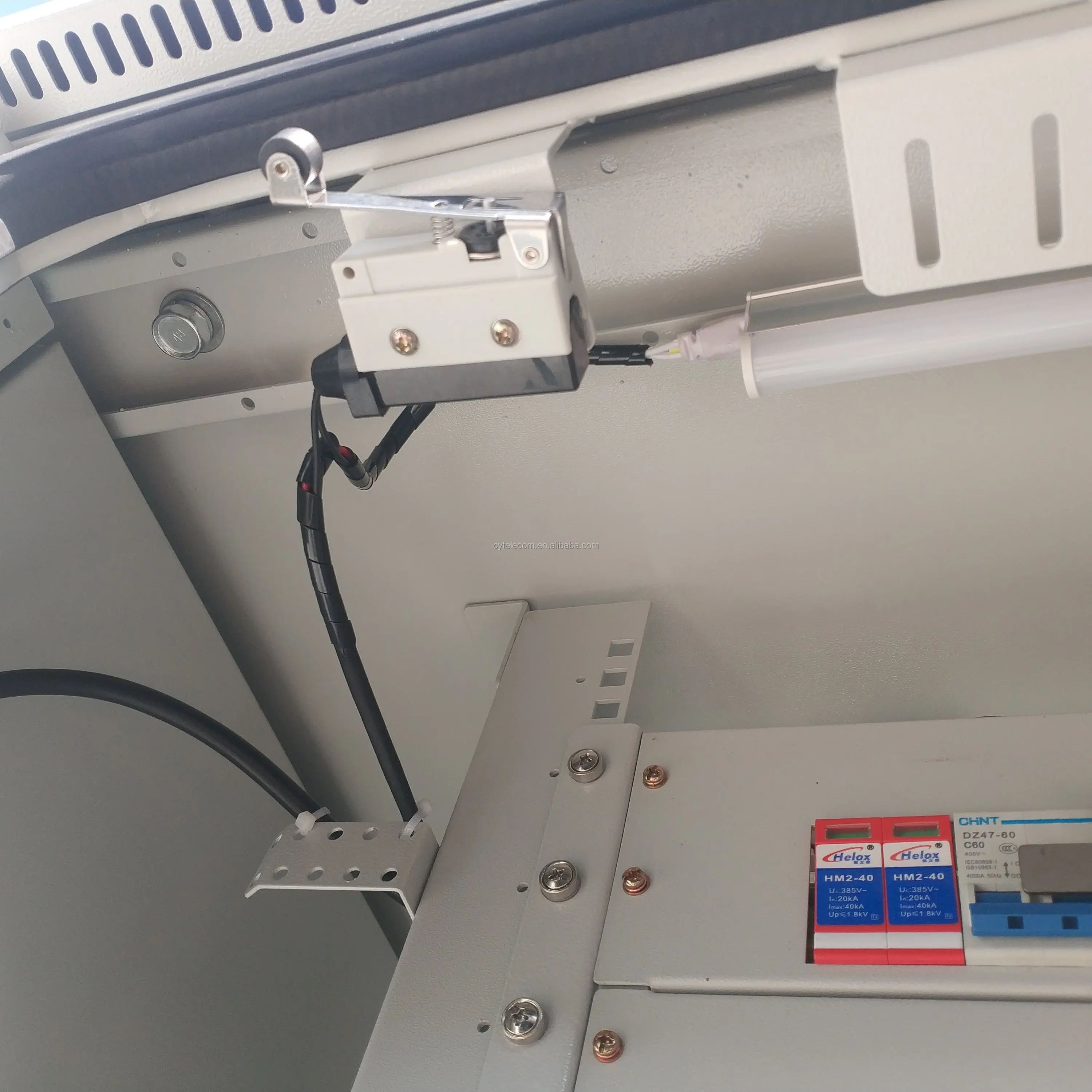

Door sensor
When we open the door, door sensor will connect the LED power, the LED will be light.
AC 1500W air conditioner
This air conditioner is a self-developed refrigeration product for the cooling of communication cabinet. It is suitable for the
application places with large internal heat, sensitive internal electronic equipment to environmental temperature, and completely
isolated inside and outside. The product features complete functions, high reliability, simple installation, working after power
on, and no complex debugging.
application places with large internal heat, sensitive internal electronic equipment to environmental temperature, and completely
isolated inside and outside. The product features complete functions, high reliability, simple installation, working after power
on, and no complex debugging.

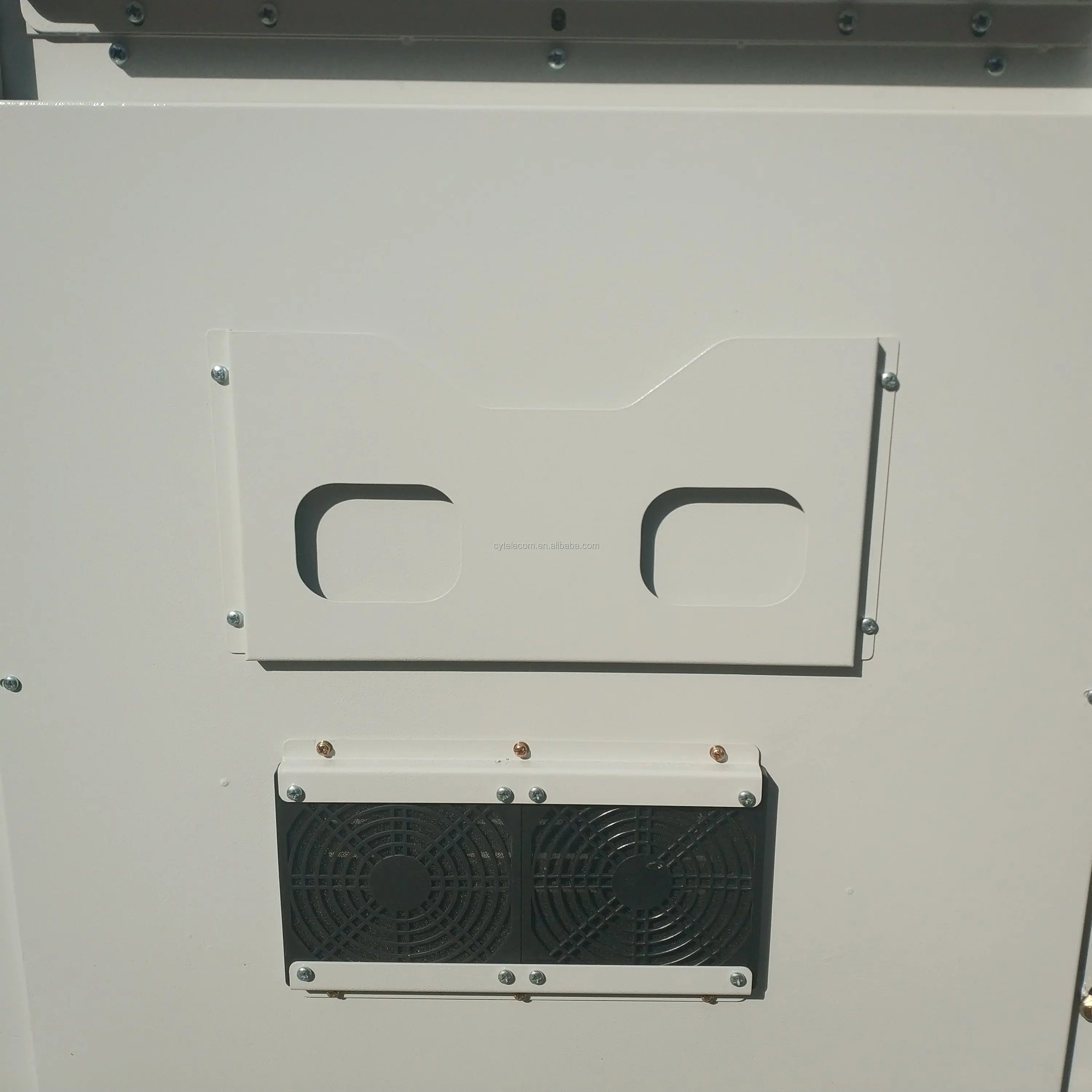

metal document holder and air inlet of outdoor telecom cabinet
We can put the document in the document holder.
Our Advantages
Chen Tong Yuan a high-tech enterprise integrating R & D, production and sales. The total area of the factory is 5000 square
meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its
establishment, the company has been focusing on outdoor telecom cabinet, cabinet air conditioning, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system, distribution cabinet research and development, production and sales.
meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its
establishment, the company has been focusing on outdoor telecom cabinet, cabinet air conditioning, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system, distribution cabinet research and development, production and sales.
Why Choose Us
Q1.Do you have any MOQ limit for outdoor telecom cabinet?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your telecom cabinet enclosure can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions
in 24 hours, and remote video support is available.
Q5: Where the application of outdoor cabinet?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station,
steel, metallurgy, petrification, cars and war industry etc.
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your telecom cabinet enclosure can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions
in 24 hours, and remote video support is available.
Q5: Where the application of outdoor cabinet?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station,
steel, metallurgy, petrification, cars and war industry etc.
Welcome your inquiry for further discussion regarding on OLT telecom equipment electrical outdoor cabinet enclosure for battery UPS power distribution supply rectifier
