* High performance: the maximum air injection speed ≥8M/S,pressurized construction time ≤15M/S * High reliability: high stability ,high rigidity, high reliability and high durability. * High-speed production:high-speed production, which can increase the quantity by more than 15%.
Product Paramenters
160T Cold Chamber Die Casting Machine
Project
Unit
Technical Parameter
Die Locking Force
KN
≥1600
Space Between Tie Bars
MM
440x440
Tie Bar Diameter
MM
φ80
Locking Stroke
MM
≥345
Die Thickness
MM
200~550
Ejection Stroke
MM
≥80
Ejection Force
KN
≥100
Injection Force
KN
85~200
Injection Position(0 as the center)
MM
0~ -120
Plunger Diameter
MM
φ40
φ50
φ60
Injection Weight(Aluminum)
KG
0.8
1.3
1.8
Injection Pressures
Mpa
159
101
70
Cast Projection Area
CM²
100
158
228
Max Cast Projection Area
CM²
400
Height of Pressure Chamber Flange
MM
10-0.05
Plunger Penetration
MM
≥100
Injection Stroke
MM
≥320
Dry Cycle
S
7
System Working Pressure
Mpa
12
Motor Power
KW
11
Machine Weight
KG
5400
Machine Dimension(LxWxH)
MM
4900X1180X2300

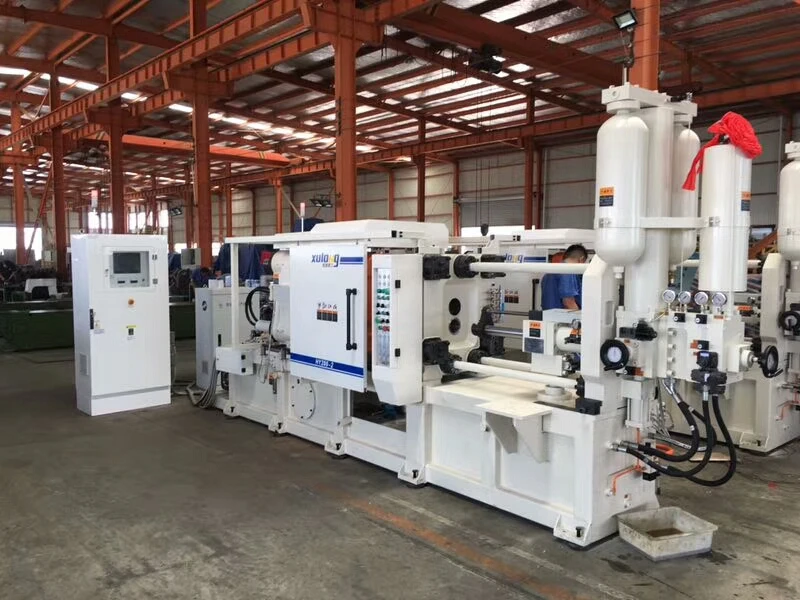

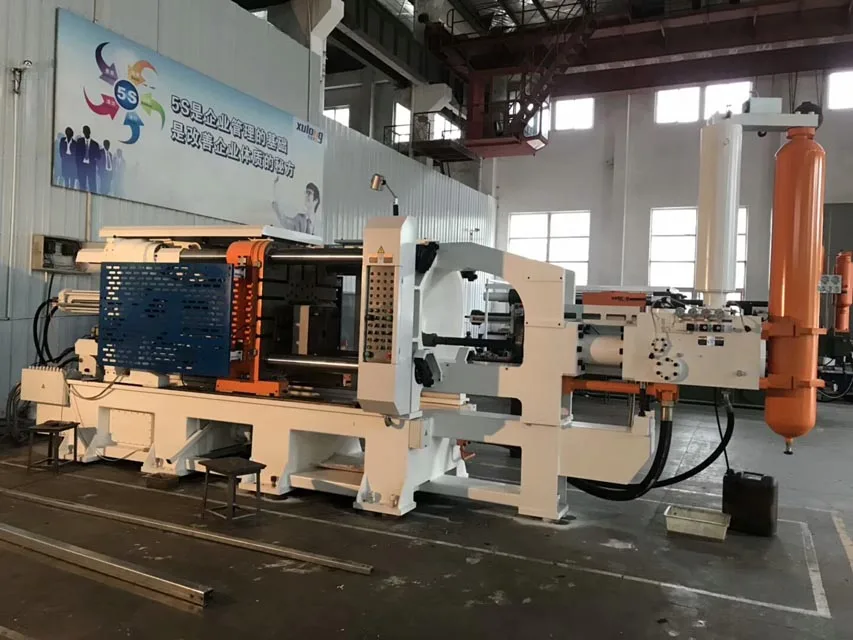

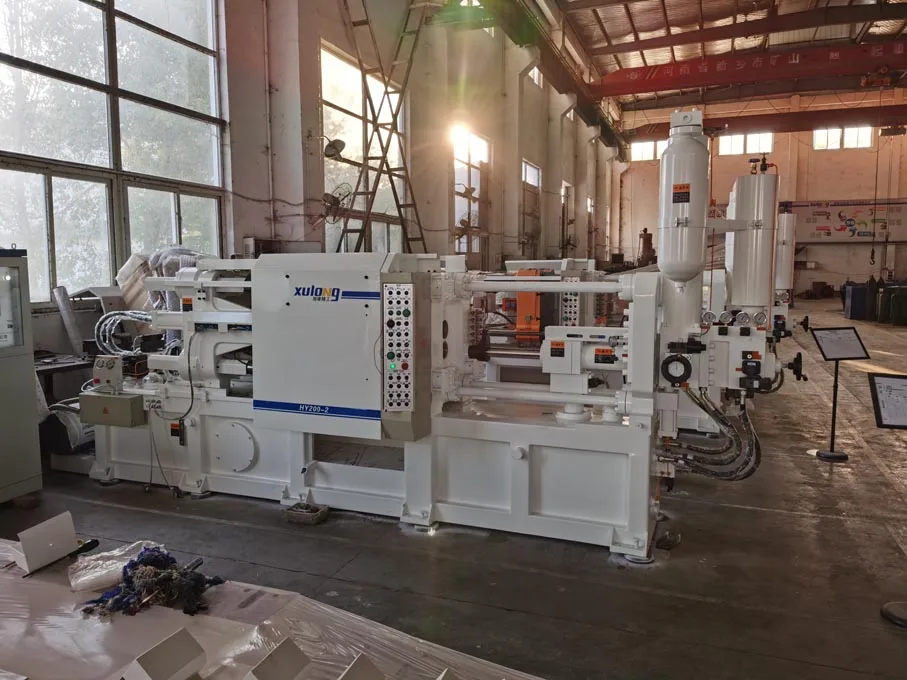

Details Images
Products Features:
* Oil hydraulic system adopts proportional controlled system pressure and flow, achieves multi-stage pressure & speed control, and low pressure die clamping protection function.
* Injection speed and pressure are controlled by four stages, position and location are the two ways to supercharge.
* Reliable and durable foreign brand electrical appliances and hydraulic components.
* Central electric lubrication system.
* Rapid hydraulic ejecting device and core puller.

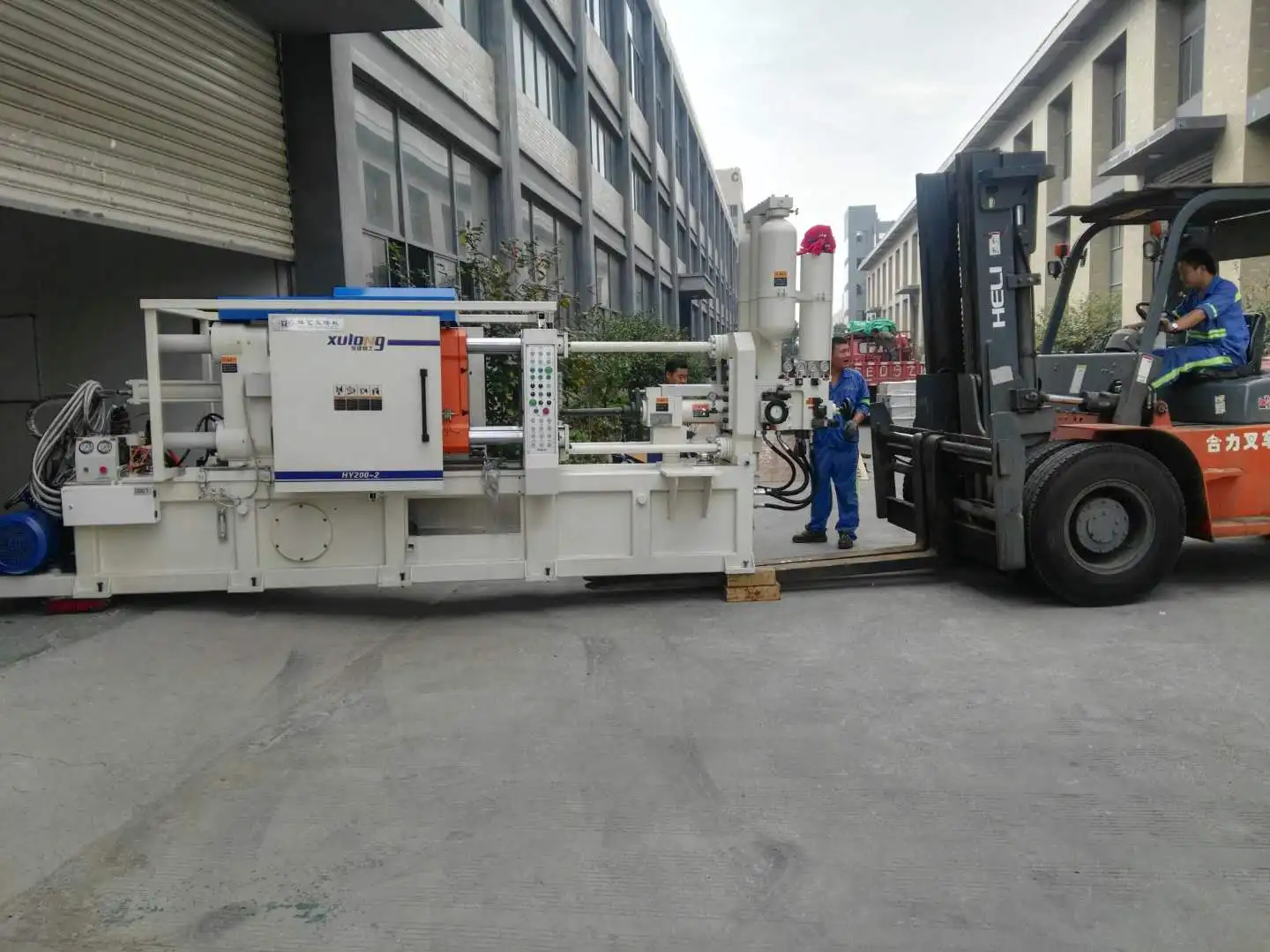

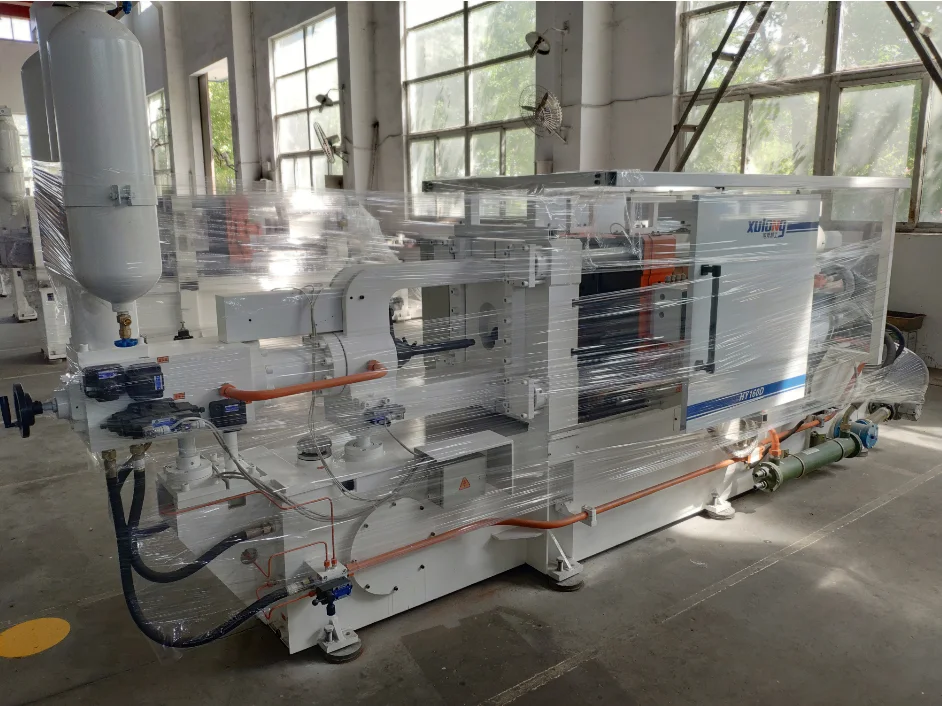

Packing & Delivery
Company Profile
Anhui Xulong Precision Industry Co,.Ltd is a professional manufacturer,specialized in manufacturing various types die casting machine.In the past 35 years,our products are welcomed by many customer from all over the countries,and earned good reputation in domestic and overseas market because of advanced manufacturing technology,strict quality control,perfect quality management system and our creative spirit.
