Tips: We sell the hardware only (The price is for hardware only), any software is not what we sell, just for better technical exchange, and we can help to install,which not make any commercial application.
If the software generated any problems, we do not assume any responsibility Hardware support PFS, ROS and other systems etc
Equipped with intel core i5 2540m processor,could not overclock,AES-NI support,compatible with many open source software distributions, could help to install pfsense 2.4.4 or other distributions, no special demand, will be pfsense 2.4.4; easy configuration and management
24/7 security network: original industry network security motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation and stable heat dissipation
Comprehensive functionality and stability: call power on (circuit directly realizes/ not on bios), network wake-up, system power management, temperature management, network card with heat sink, gigabit wan+lan ports provide high-speed wired connectivity,prioritize traffic with quality of service (qos) and wan traffic metering

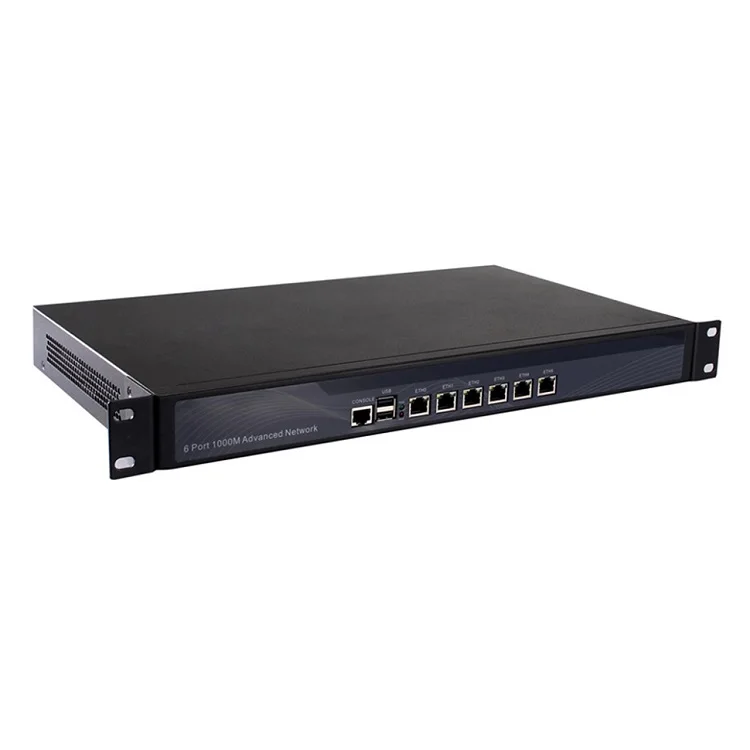

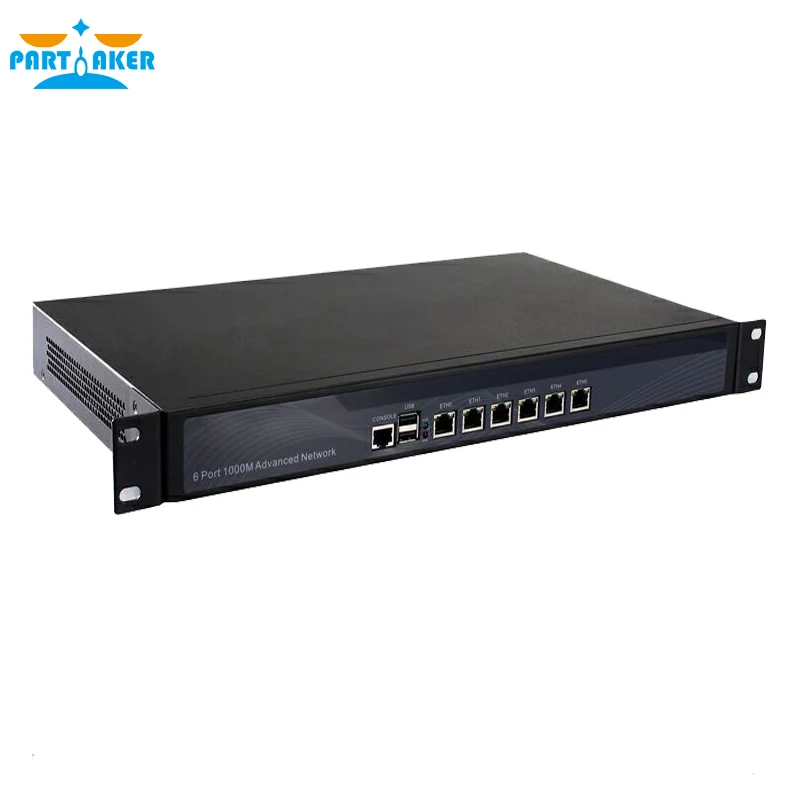

Designed with 6* intel gigabit lan,1* vga,2* usb, 1* com; standard 13-19 inches 1u, full mold production, fine surface treatment, solid structure, solid states storage, load balancing and failover capabilities to keep businesses always connected nonstop,protect your network from most known internet attacks,business-class firewall prevents unwanted access to your network,cli management for advanced users,secure off-site management and monitoring
Size at 45*25*4.5cm,100w big power,with power cord; all use big brand memory and ssd/hdd with quality assurance,ready to run straight out of the box
Model Number:
Partaker R11
Type:
I3-3120M 6 Ethernet, (Cabinet Type)
CPU:
Onboard Intel® Core™ I3 3120M Processor, Up To 2.50 Ghz
AES-NI Supported:
NO
Chipeset:
Intel® HM65 Express Chipset
Memory:
1* SO DDR3,1333MHz, Max. 8G RAM
HDD/SSD:
1 SSD+1 HDD Supported
Ethernet:
6*Intel® I-211 Gigabit Ethernet
COM
YES
Hardware:
Standard 1U Type(43*27*5CM),180W Big Power,Can Rack,With Mounting Bracket Ears,Wall Hanging,Foot Pad

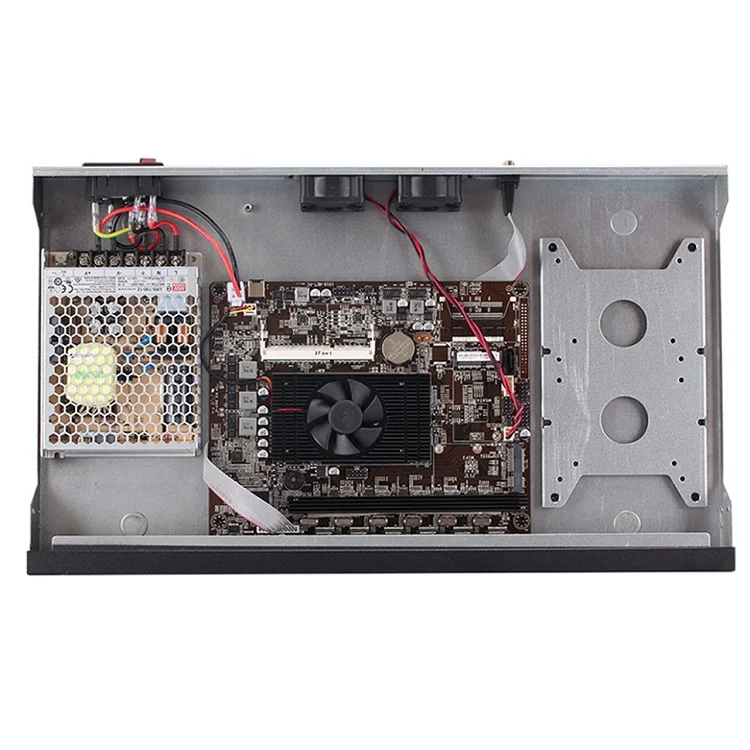

The motherboard integrates 6 Intel Gigabit Ethernet electrical interfaces and uses the Intel 82583V/L10/100/1000M Ethernet controller. The network card bus uses the PCI-E interface and the actual test traffic exceeds 1000M/S.
WAN-LAN Throughput:
Around 500 Mbps-600 Mbps
Model Number: R11 Type: 6 Ethernet, (Cabinet Type), With Fan Version Processor: Intel Core I3-3120M Processor (3m Cache, Up To 2.50 Ghz),COULD NOT overclock Graphics: Intel HD Graphics 4000 AES-NI Supported: NO Memory: 1* SODIMM DDR3 1066/1333, Max. 8GB, Low Power Consumption and Low Heat HDD/SSD: 1* Msata SSD+ 1*2.5 Inch HDD Supported Expansion: 1* Mini PCIE for WiFi, 1* PCIE 8X, 1* CF Card NIC: 6 Intel I-211 10/100 / 1000M Ethernet, The Actual Test Flow More Than 1000M/ S. COM YES Radiator: The Processor Uses The Ball Silent Cooling Fan, You Can Ensure Long Time Work And Stable Cooling. Storage: 1* MSATA SSD, 1* SATA 2.5-Inch/3.5-Inch All-In-One Hard Drives. Chassis: Standard 19-Inch 1U, Full Mold Production, Fine Surface Treatment, Solid Structure Hardware: Standard 1U Type, 100W Big Power,Can Rack,With Mounting Bracket Ears, Wall Hanging, Foot Pad WAN-LAN Throughput: Throughput through 1 Gigabit NIC from LAN to WAN forwarding speed is 1Gbps. Power: 102W 12V 8.5A, 100V-240V 50Hz/60Hz Size: 430*250*50mm Weight: 6.5kgs System Support: Any FreeBSD based router systems, Linux distros, or Win.OS Other OS demand, Please do leave us message on the order, thank you.
4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop, Welcome contact us and we will be glad to supply you different demands. Contact us freely and you will get a timely reply.
