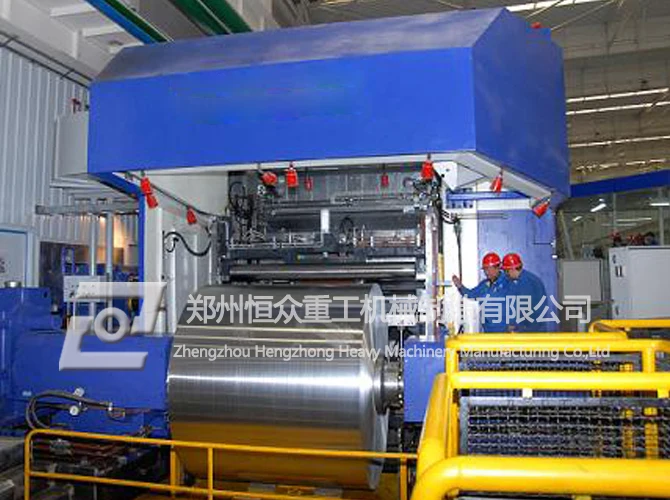

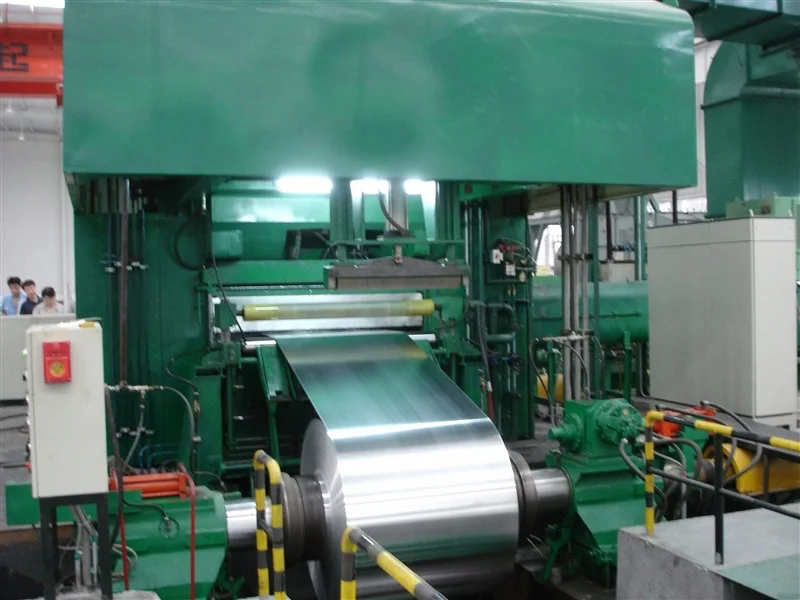

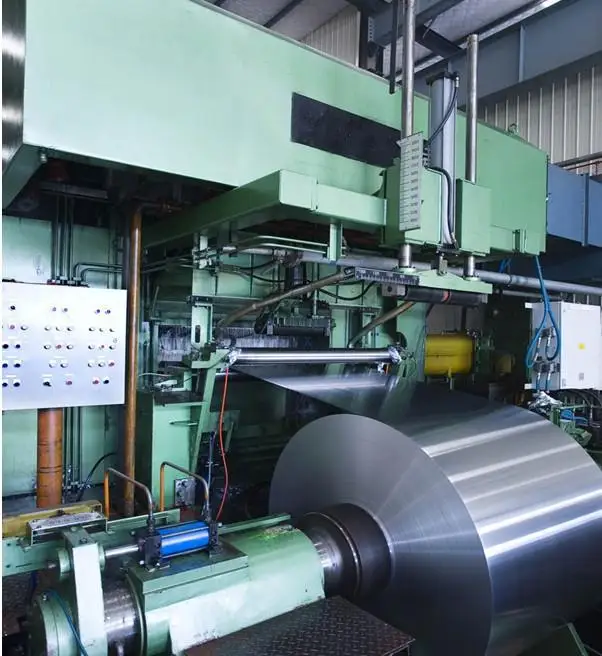

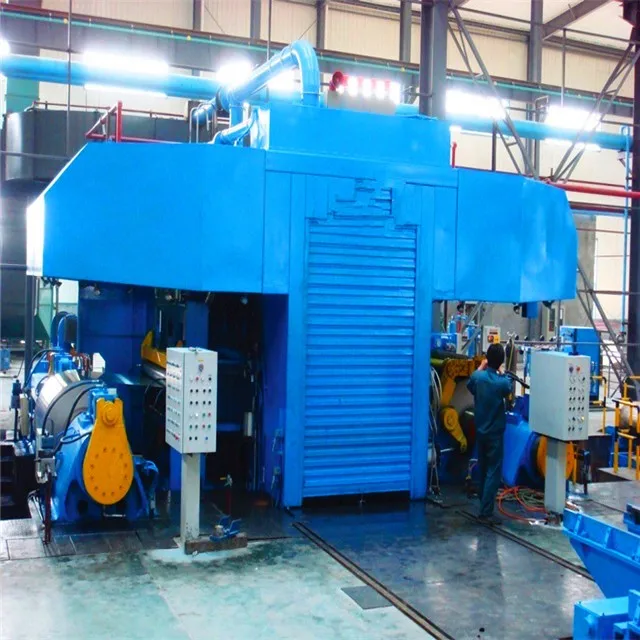

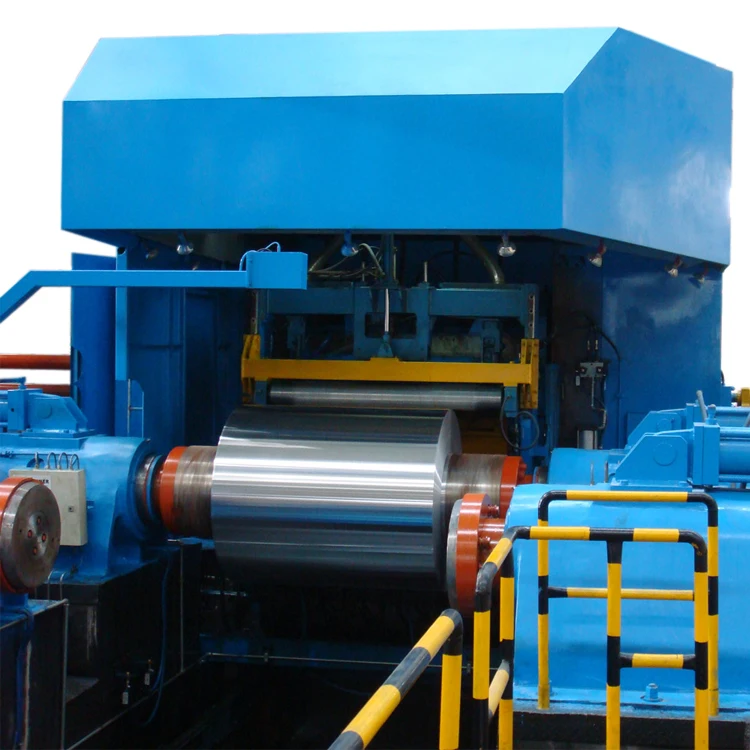

China aluminum foil rolling mill machine
- Category: >>>
- Supplier: Zhengzhou Hengzhong Heavy Machinery Manufacturing Co. Ltd.
Share on (62587694834):
Product Overview
Description
Product Description
The aluminum foil rolling mill machine can process max 0.95mm material into foil material with all kinds of gauge and width. These processed foil can be offered as further processing raw material such as producing container, embossing, printing and coating, sticking, package for food, drink, medicine in daily life, cosmetics and package for some special using material, cable and heat exchanger, etc.
Parameter of aluminum foil rolling mill | ||||||
Aluminum alloy: | 1000,3000,8000 series | O.D. of roll: | max 2500mm | |||
Entry thickness: | max 0.6mm | Weight of coil: | max 20000kg | |||
Entry width: | 600~1850mm | Rolling speed: | max 1500mm/min | |||
DIA. of work roll: | 140~280mm | Exit thickness: | 0.4~0.018mm | |||
Width of work roll: | 800~2000mm | Finishing thickness: | 0.1~0.007*2 | |||
DIA. of back-up roll: | 440~850mm | Rolling mode: | Non-reversing | |||
Width of back-up roll: | 750~2250mm | Electric control system: | SIMENS ABB | |||
Exit width: | 950~2250mm | |||||
Main Features
The aluminum foil rolling mill adjusts the roll gap and work roll with hydraulic pressure. It is equipped with a strong and good rolling oil system, which can control the roll type freely. With the automatic control and display system of thickness and plate shape, the mill can produce the aluminum foil with strict thickness tolerance and good plate shape . It can adjust and maintain tension sensitively .
Production Process
1.The waste aluminum and pure aluminum ingots are melted into aluminum water by melting furnace. .
2.Aluminum water is rolled directly into aluminum sheets through aluminum casting rolling mill. . Then the aluminum plate is rolled to 0.06 mm by aluminum cold rolling mill machine
3.The aluminum foil with 0.06mm aluminum plate become 0.1- - 0.06mm after rolling 3 times by aluminum foil rolling mill.
Useing
Our Company

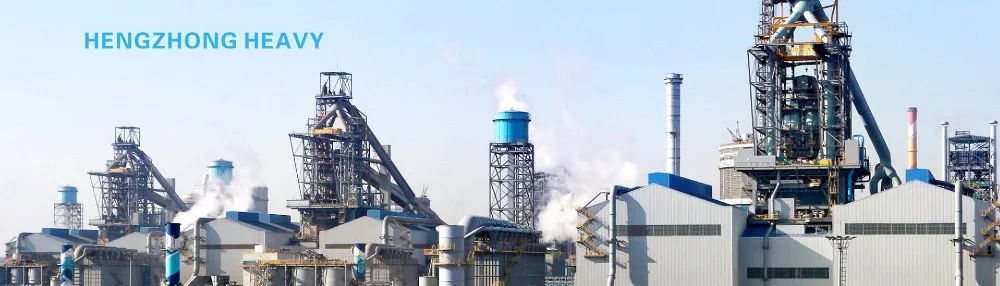

Company profile
Zhengzhou Hengzhong Heavy Machinery Manufacturing Co., Ltd. is an aluminum equipment company, our main products include aluminum cast rolling mill, cold rolling mill, aluminum foil rolling machine, tension leveling line, cut to length line, slitting line, cast roll, roller sleeve, steel sleeve, etc. And we also have aluminum products, like aluminum sheet, aluminum coil, aluminum plate, aluminum circle, aluminum color reflector and PE protective film.
Now, our products are sold well all over China and have exported to the Middle East, South America, India, Russia and Southeast Asia.
Welcome to visit our factory and send inquiry. We'll become your reliable supplier in China. And looking forward to cooperating with you in near future.
Certifications
Contact us | ||||||
